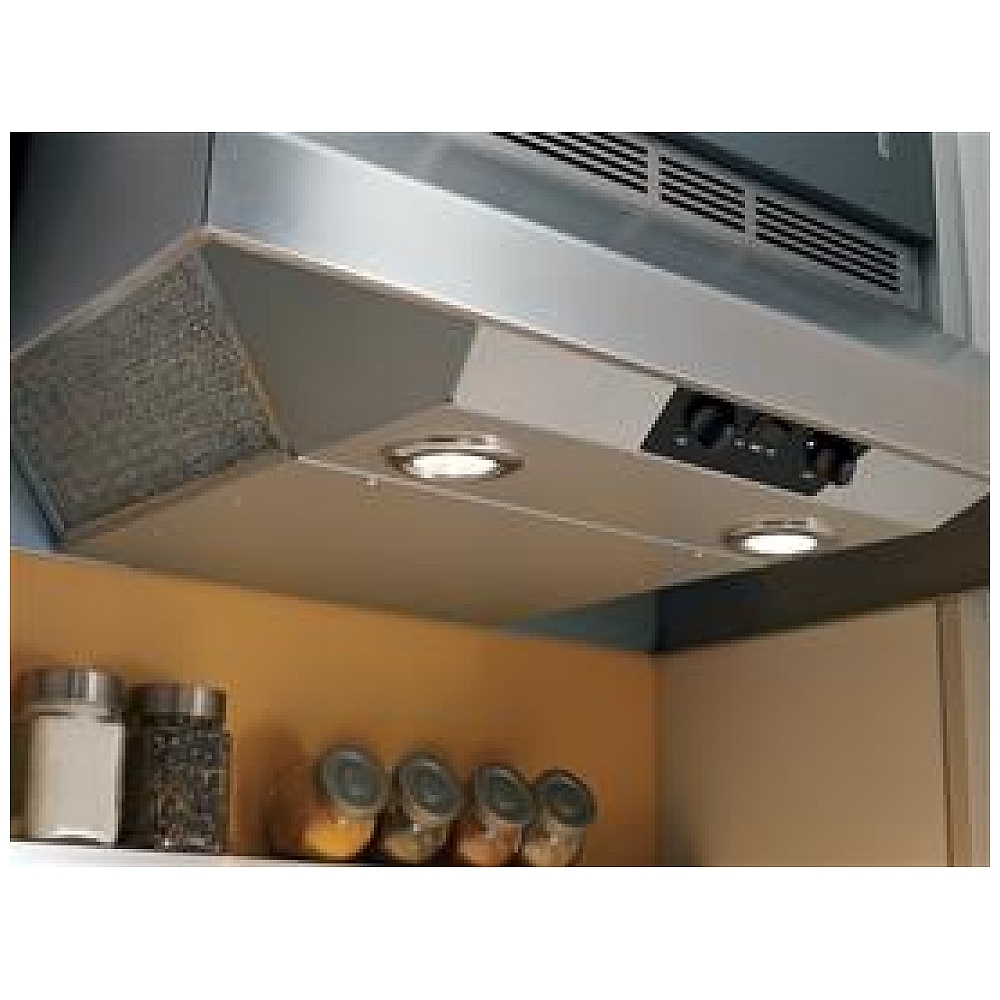

The AP1 series is part of BROAN's newest pro-style undercabinet hood collection, uniting stylish appearance with tremendous value. The deep 9 in. height provides excellent capture of cooking grease and odor, whether vented to the exterior, or installed to recirculate air through optional charcoal filters. Optional non-duct recirculation kit available with charcoal filters sold separately.
- Concealed variable speed control with last setting memory means the hood is set for the next time you cook your favorite dish
- 440 CFM at 7.0 Sones on high setting, 120 CFM at 0.5 Sones on low setting
- Two halogen lamps (designed for bulbs up to 50 W, GU10 bulbs purchase separately) light up the cooktop and surrounding area. Two-level light control gives you unmatched visibility
- Mesh grease filters with Antimicrobial Protection are dishwasher-safe. The coating inhibits the growth of odor causing bacteria and protects the filter so it stays cleaner in between cleanings. Your kitchen stays fresher longer
- This hood is adaptable to recirculation applications with the addition of Optional Non-Duct Recirculation Kit NDK35836BL for installations where ducting to the exterior is not possible
- Heat Sentry is a smart feature that detects excessive heat and adjusts speed to high automatically to prolong product life
- Non-Duct Filter 88F required for non-ducted installations, purchased separately
- 440 CFM (horz & vert)
- Variable speed control with last setting memory
- 7.0 Sones high, 0.5 Sones low
- Two level light control
- MICROBAN® protected filters
- Heat Sentry
- Non-Duct Recirculation Kit for 9N Pro Hood, 30N
Manufacturer's Warranty: 1 year
Canadian model: AP136WW
| Accessories Optional | Yes |
| Accommodates Ceiling Height | N/A |
| Blower Air Mover Type | Centrifugal Blower |
| Blower Included | Yes |
| Boost Mode | No |
| Cabinet Width (inches) | 36" |
| CFM (Airflow) | 440 |
| Color/Finish | White |
| Control Feature Filter Reminder | No |
| Damper Included | Yes |
| Delay Shut Off | No |
| Digital Clock | No |
| Dishwasher Safe Filters | Yes |
| Duct Connector Size | 3-1/4" x 10" |
| ENERGY STAR® certified product | No |
| Filter Included | Yes |
| Filter Type | MicroMesh Aluminum with Antimicrobial Protection |
| Flue Accommodates ceilings up to xx ft | N/A |
| Heat Sentry - Temperature Sensor | Yes |
| HVI Certified | Yes |
| Light Bulb Quantity | 2 |
| Light Bulbs Included | No |
| Lighting Function | Two-level |
| Lighting Type | Halogen |
| Max Sones/100 CFM | 1.7 |
| Minimum Height Above Cook Top | 18" |
| Mounting Type | Under Cabinet |
| Nightlight Setting | No |
| Non-Ducted Recirculation Capable | Adaptable with optional kit |
| Non-Stick Coated | No |
| Product Depth (inches) | 20-5/8" |
| Product Height (inches) | 9" |
| Product Width (inches) | 36" |
| Rated Amps | 1.9 |
| Rated Voltage | 120 |
| Remote Control | No |
| Sones Certified Horizontal Rectangular High | 7.5 |
| Sones Certified Horizontal Rectangular Low | 0.5 |
| Sones Certified Vertical Rectangular High | 7.5 |
| Sones Certified Vertical Rectangular Low | 0.5 |
| Sones Certified Vertical Round High | N/A |
| Sones Certified Vertical Round Low | N/A |
| Switch Control Settings | Variable |
| Switch Style | Rotary Dial |
| Timer | No |
| UL Listed | Yes |
Installation Guide (AP136WW-installation-guide-canada.pdf)
