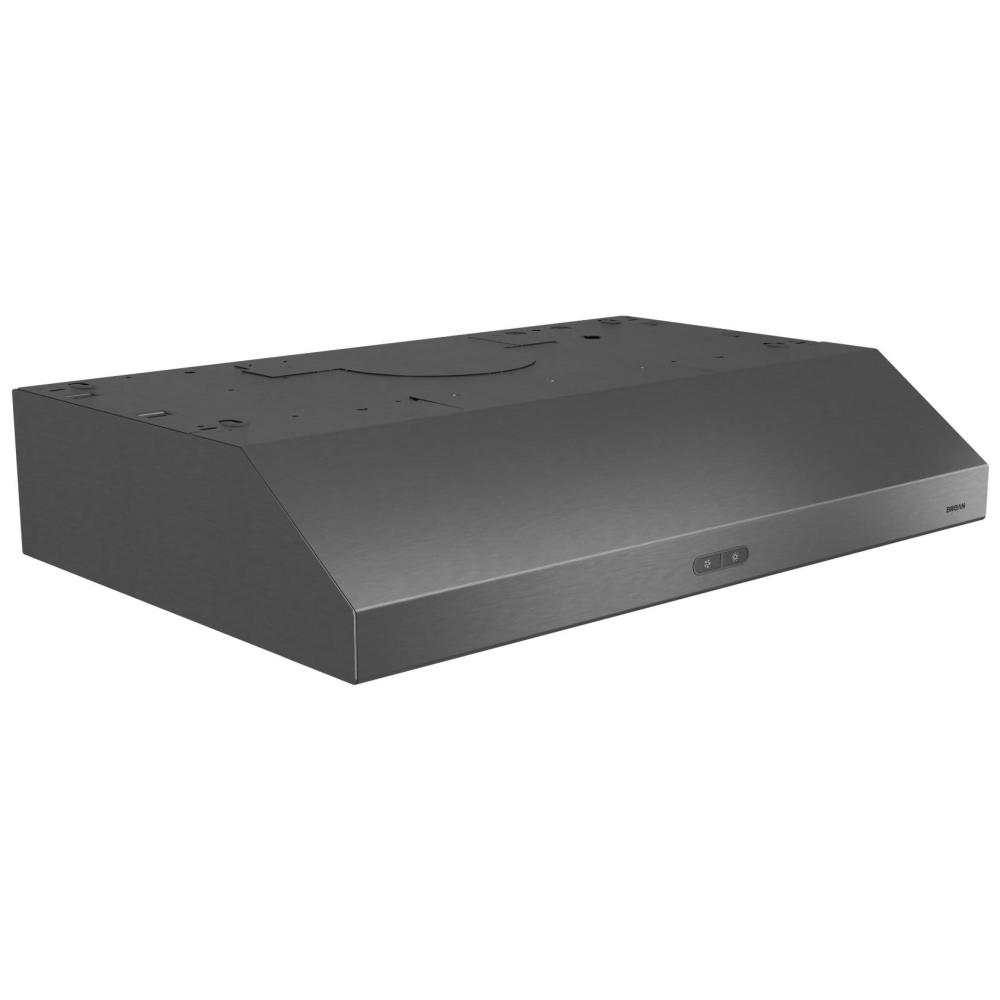

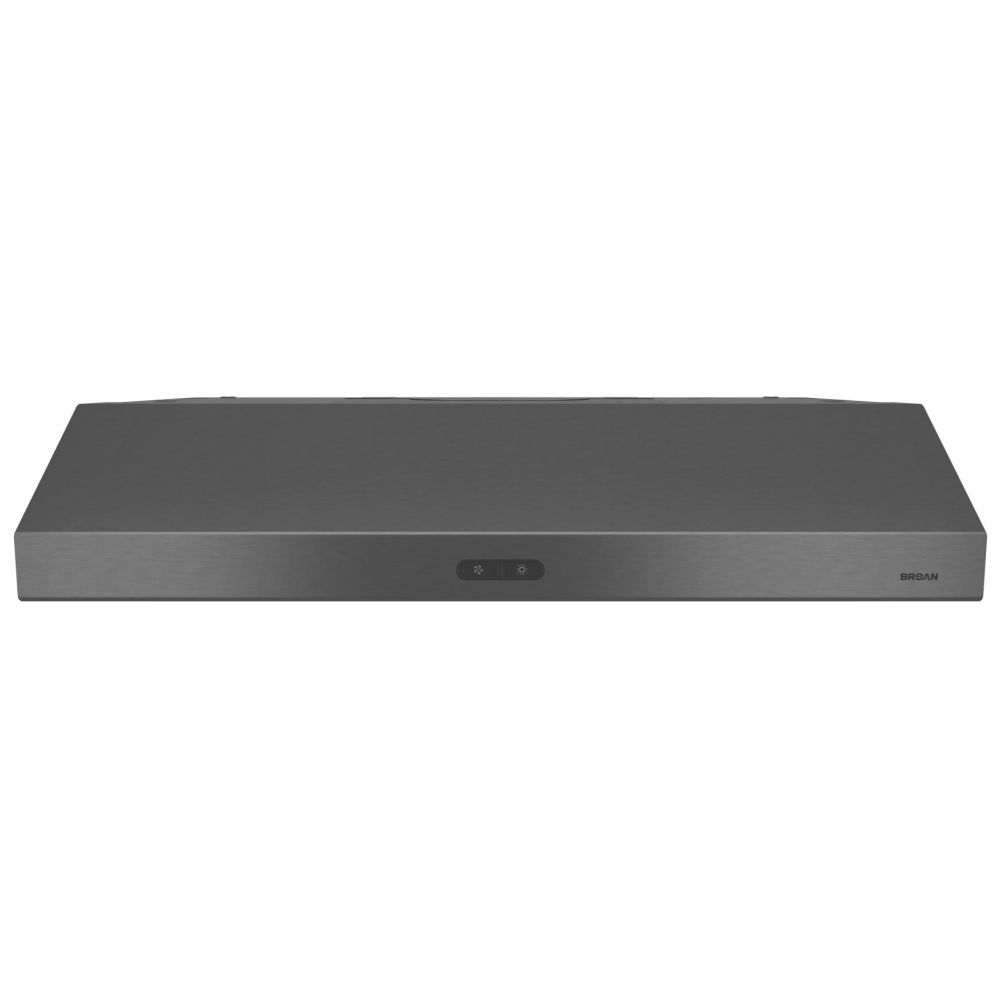

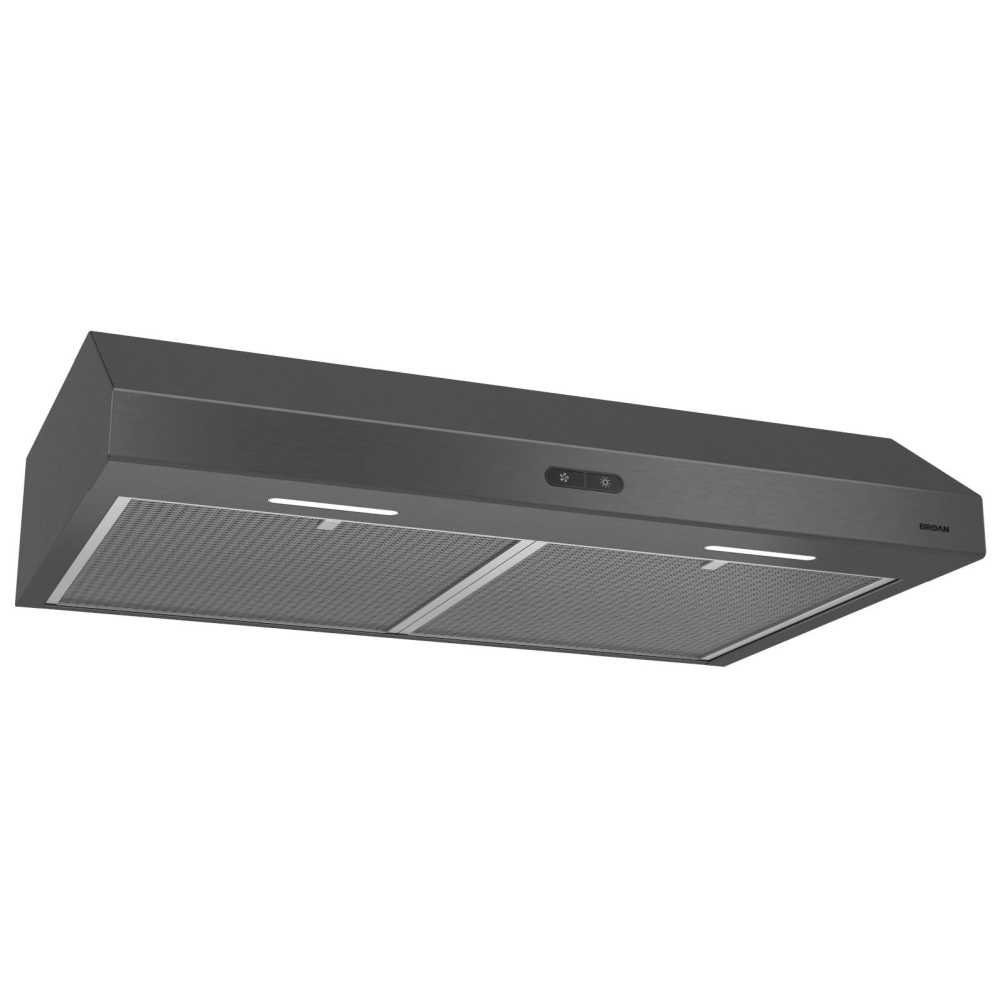

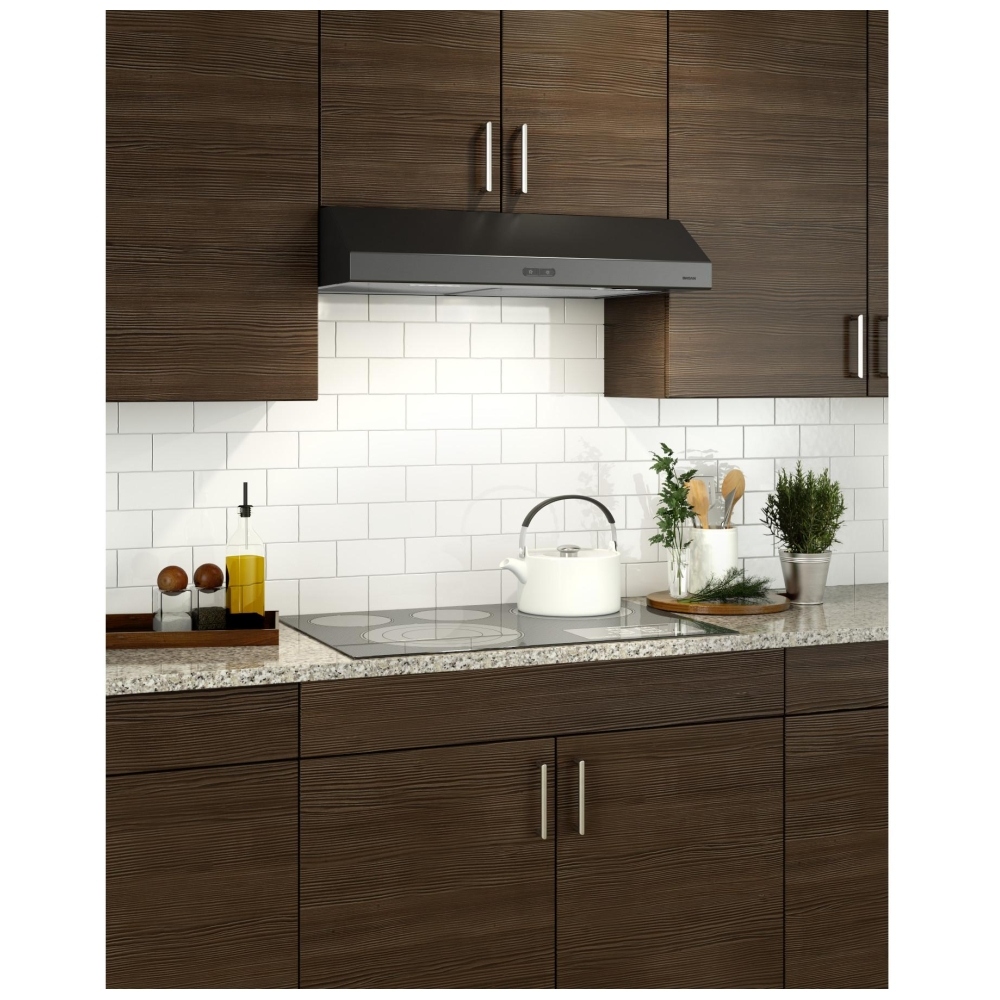

Broan

BCDA130BLS

• Captur™ system advanced blower design – forward‑positioned centric inlet and smooth‑flow blower wheel remove smoke and odors faster while keeping operation quiet.
• EZ1® single‑person installation system – two‑bracket mounting design lets one person install the hood in roughly half the time of traditional methods.
• HVI Certified performance – independently verified airflow and sound ratings ensure the hood performs as advertised in real‑world conditions.
• UL Listed construction – tested to meet recognized safety standards for household electrical appliances.

• 300 Max blower CFM ventilation – provides strong exhaust power to effectively clear smoke, steam and cooking odors from the kitchen.
• Quiet 1.5 sones operation at normal speed – delivers effective ventilation with low noise for comfortable everyday cooking.
• Convertible ducted or ductless design – installs with exterior venting or as a recirculating (ductless) hood using optional charcoal filters.
• Top or rear ducting options – supports horizontal or vertical duct connections to match different kitchen layouts.
• Ductless recirculation capable – hidden louvers on top of the hood exhaust filtered air away from cabinetry in non‑vented installations.
• Optional charcoal filter kit – allows odor removal when exterior venting is not possible (filters sold separately).
• Optional power cord kit compatibility – can be hardwired or plugged in using an accessory cord kit for flexible installation.

• Bright two‑level LED lighting – integrated LED modules provide even illumination over the cooktop with high and low settings.
• Long‑life LED modules – lighting is tested for use in cooking environments to resist dimming over time.
• Warm 3000 K light color – delivers a soft, warm white light that complements most kitchen finishes.

• Tap‑touch capacitive controls – smooth, flat control panel responds to a light touch and is easy to wipe clean.
• 3‑speed fan control – lets you match ventilation power to light simmering, everyday cooking or heavier frying.

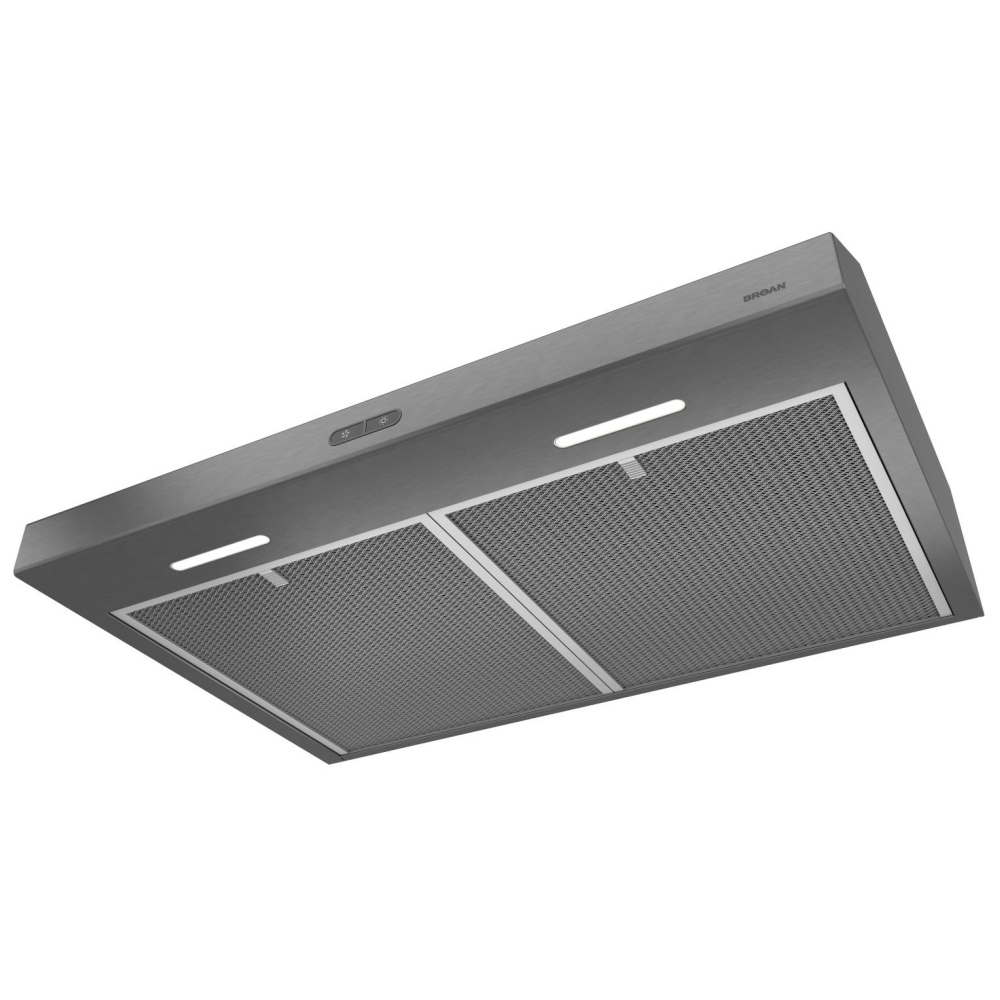

• Dishwasher‑safe micro‑mesh filters – high‑flow aluminum micro‑mesh filters capture grease efficiently and clean easily in the dishwasher.
• Filter clean reminder – indicator prompts you to wash the filters so capture efficiency stays high.
• Antimicrobial filter protection – filter material includes antimicrobial properties to help inhibit odor‑causing bacteria.

• 30‑inch under‑cabinet design – sized to fit standard 30" cooktops and ranges under wall cabinets.
• Low‑profile 5" height – sleek, shallow body provides a modern look while maximizing headroom over the cooking surface.
• 21" depth coverage – extends over the front burners to better capture rising smoke and steam.
• Black stainless steel finish – contemporary, smudge‑resistant look that coordinates with modern black stainless kitchen appliances.
• Clean, contemporary styling – gently curved front and smooth surfaces complement a wide range of cabinet designs.

• ADA compliant capable – can be configured for remote operation from a standard wall switch when installed with the appropriate low‑voltage wiring kit.
• 120V standard household power – connects to typical North American residential electrical service.
• Energy‑efficient 78W system – balances strong ventilation and lighting performance with moderate power consumption.

• 1‑year limited product warranty – provides coverage on the range hood for added purchase confidence.
• 3‑year LED module warranty – extended coverage on the integrated LED lighting components.
