Broan

BKDF130WW

• Captur™ exclusive system – advanced blower design with forward-positioned centric inlet provides faster, more effective smoke and odour removal from the cooking area.

• Captur™ 375 MAX Blower CFM performance – high-capacity ventilation quickly pulls smoke, steam and cooking odours out of the air to help keep your kitchen fresher.

• EZ1® installation brackets – patented mounting system allows single-person under-cabinet installation in roughly half the time of traditional methods.

• Broan® ADA compliant design – can be wired for remote operation from a standard UL-approved wall switch (such as Broan model 68W or 68V, sold separately) to meet ADA accessibility requirements.

• Broan-NuTone Sahale BKDF1 Series styling – slim, contemporary under-cabinet profile designed to complement a wide range of modern kitchen decors.

• Tap-touch capacitive controls – smooth, flat touch panel with 3-speed fan and light settings is easy to wipe clean and offers a sleek, modern look.

• 3-speed ventilation – multiple fan speeds let you choose from quiet everyday operation to higher power for heavy cooking.

• Quiet 2.0 sones operation (normal speed) – smooth-flow blower wheel and high-flow filters reduce noise so conversation can continue comfortably while cooking.

• Bright 2-level LED lighting – integrated LED modules provide even illumination over the cooktop with high and low settings for task or ambient lighting.

• Long-life LED modules with 3-year warranty – energy-efficient LEDs are tested for use in cooking environments and backed by an extended manufacturer warranty.

• Dishwasher-safe micromesh grease filters – high-efficiency micro-mesh filters capture airborne grease and can be cleaned easily in a standard dishwasher.

• Filter clean reminder – built-in indicator alerts you when it’s time to clean the filters to maintain optimal capture performance.

• Convertible ducted or ductless installation – can be vented horizontally or vertically to the outside, or used in non-ducted recirculating mode with optional charcoal filters (sold separately).

• Hidden top louvers – discreet exhaust louvers on the top of the hood direct air away from cabinetry for better protection and a cleaner appearance.

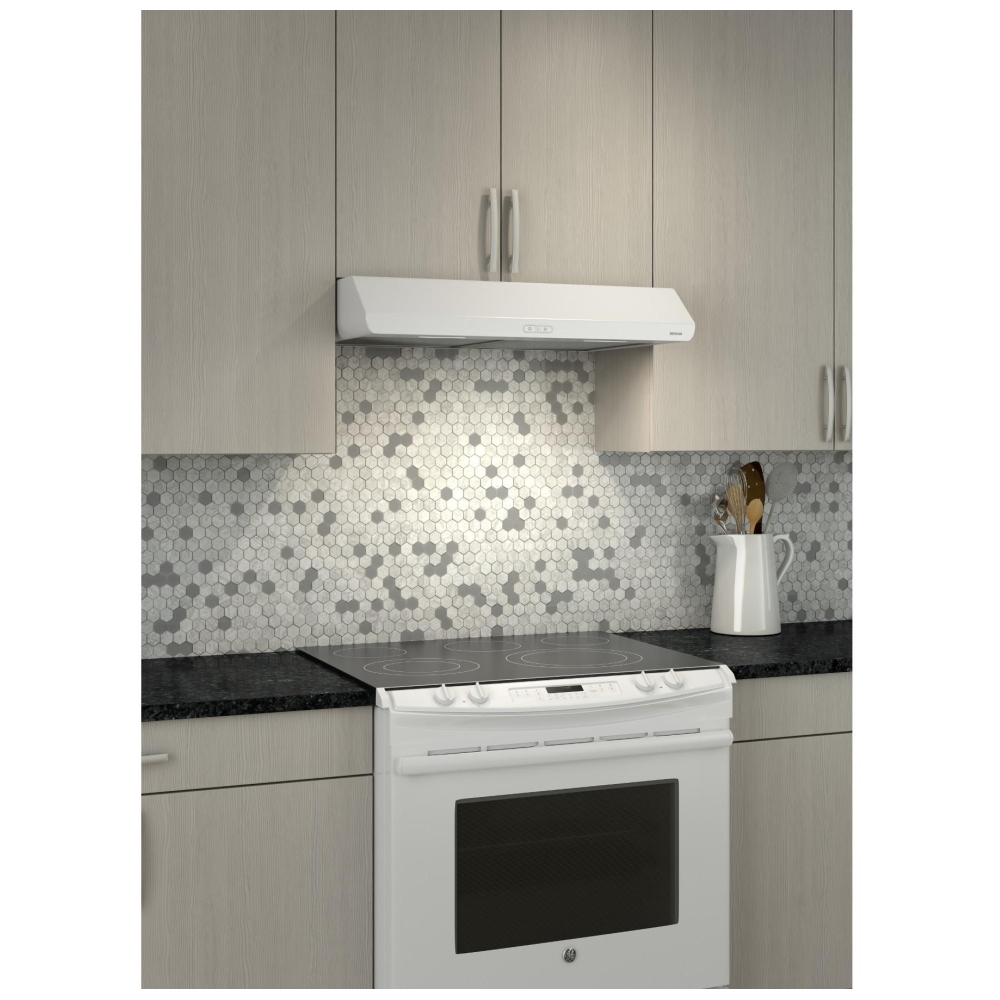

• 30-inch under-cabinet design – sized to fit most standard 30-inch cooktops and ranges, mounting neatly beneath wall cabinets.

• Low-profile 5-inch height – shallow body maintains headroom over the cooktop and suits kitchens with limited space under cabinets.

• Steel construction with white finish – durable metal body with classic white colour coordinates with common appliance finishes.

• Horizontal or vertical ducting options – supports 3¼" x 10" rectangular or 7" round ducts to match existing ventilation layouts.

• 375 CFM maximum airflow – strong extraction capacity helps clear air quickly during high-heat or high-moisture cooking.

• Integrated LED light modules included – no separate bulb purchase required; lighting is ready to use out of the box.

• Removable grease filters – filters lift out easily for cleaning or replacement, simplifying routine maintenance.

• Non-ducted recirculation capable – optional charcoal filters allow installation where exterior venting is not practical, such as some condos or interior kitchens.

• Standard 120V connection – plugs into typical household electrical supply for straightforward wiring by a qualified installer.

• 1-year limited product warranty – provides manufacturer coverage on the hood for added purchase confidence.

• 3-year LED module warranty – extended coverage on the integrated LED lighting components for long-term reliability.

• HVI certified performance – tested to industry standards so published airflow and sound ratings reflect real-world operation.

• UL listed safety certification – independently evaluated to meet recognized electrical and safety standards for home use.
