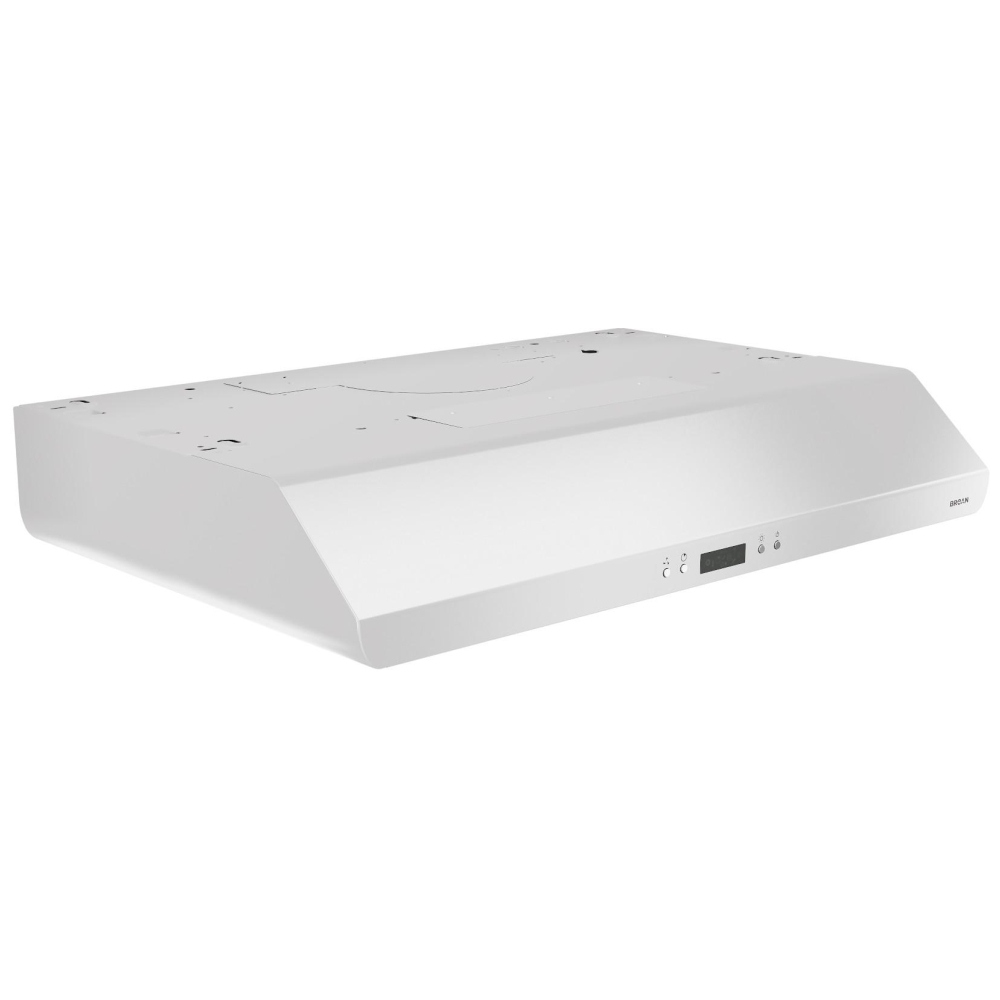

Broan

BKDN136WH

• Captur™ exclusive system – advanced blower design with forward-positioned inlet provides faster, more effective smoke and odour removal from the cooking area.

• Heat Sentry™ automatic protection – detects excessive heat from the cooktop and automatically adjusts blower speed to help protect the hood and improve ventilation performance.

• EZ1™ single-person installation brackets – two-bracket mounting system holds the hood in place, allowing one person to complete installation in roughly half the time of traditional methods.

• Broan-NuTone® Sahale design – slim, contemporary under-cabinet profile in white finish complements a wide range of kitchen styles while maximizing headroom over the cooktop.

• 450 Max Blower CFM performance – high-capacity dual blower quickly clears smoke, steam, and cooking odours to help keep kitchen air fresh.

• Ultra-quiet 0.4 sone operation on normal speed – delivers powerful ventilation with extremely low sound levels for comfortable everyday cooking.

• 3-speed electronic tap-touch controls – intuitive touch panel lets you easily select low, medium, or high fan speeds to match your cooking needs.

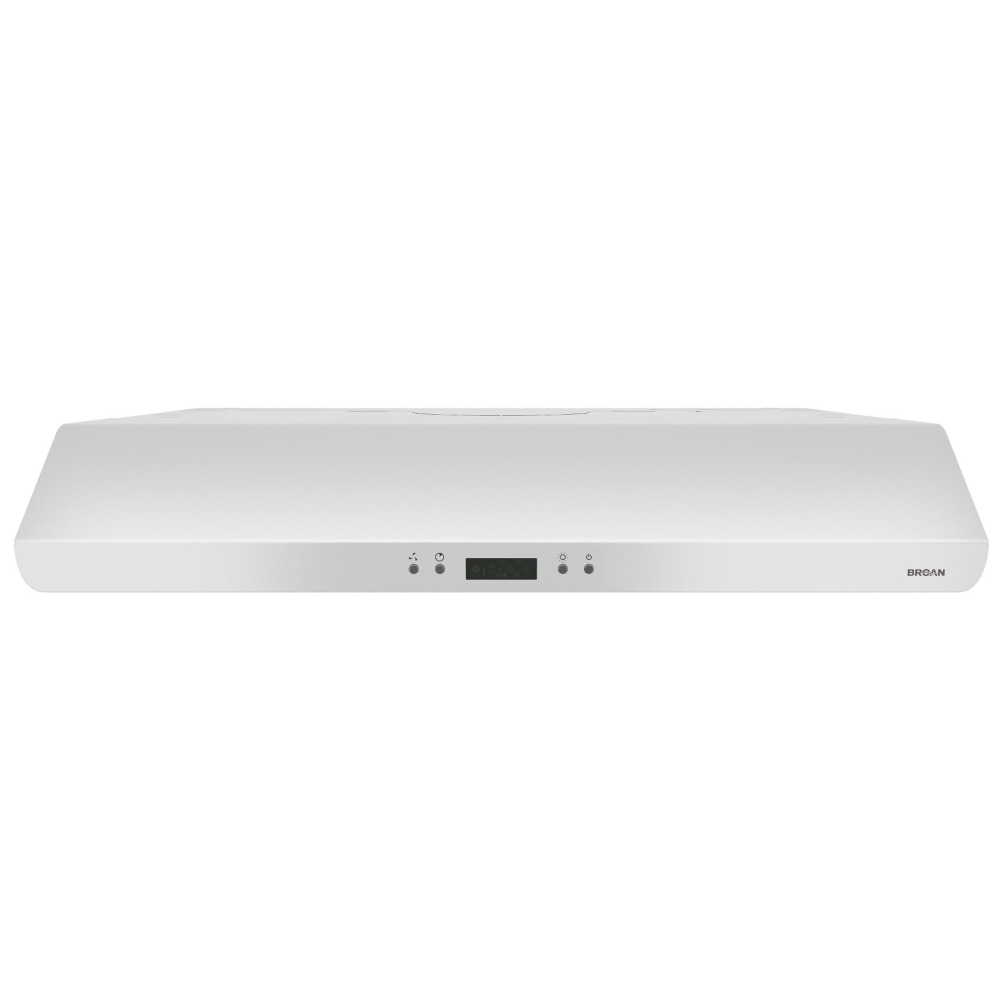

• LCD status display – integrated screen shows current fan speed, light level, and active functions such as delay-off and filter reminders for at-a-glance monitoring.

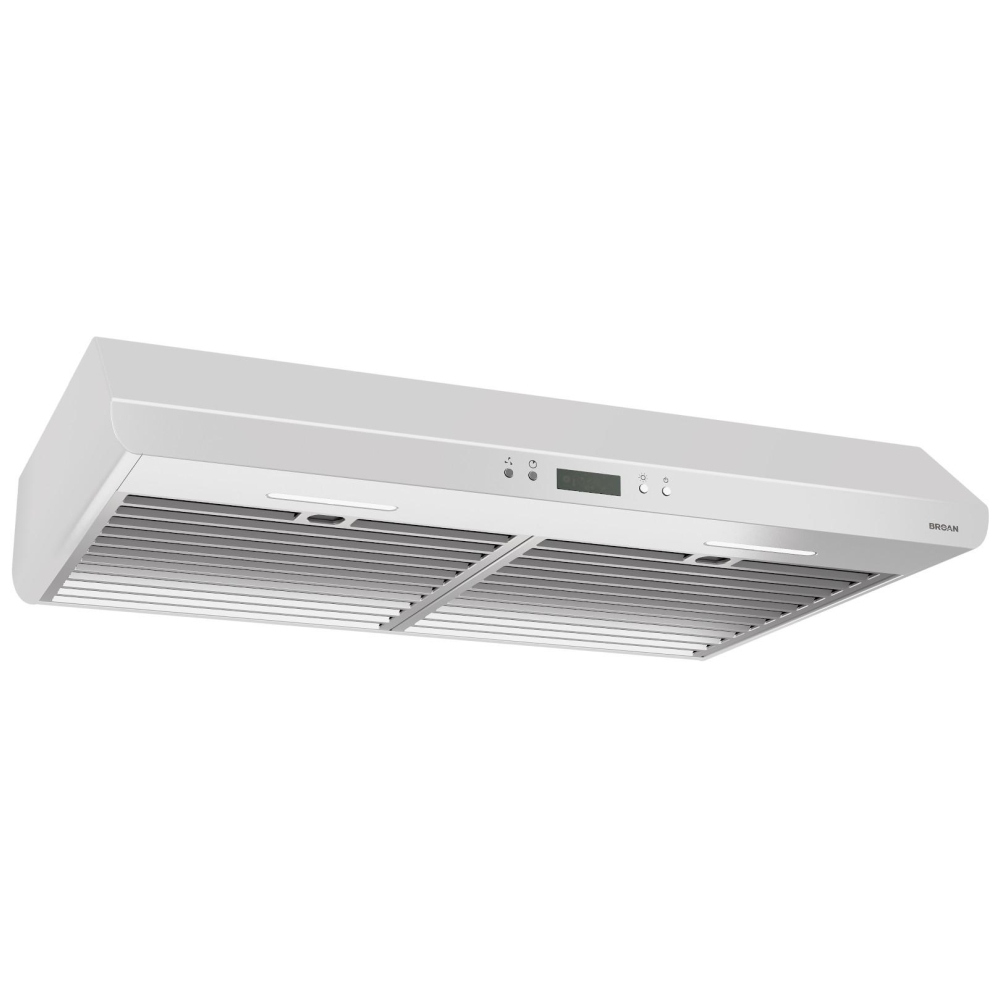

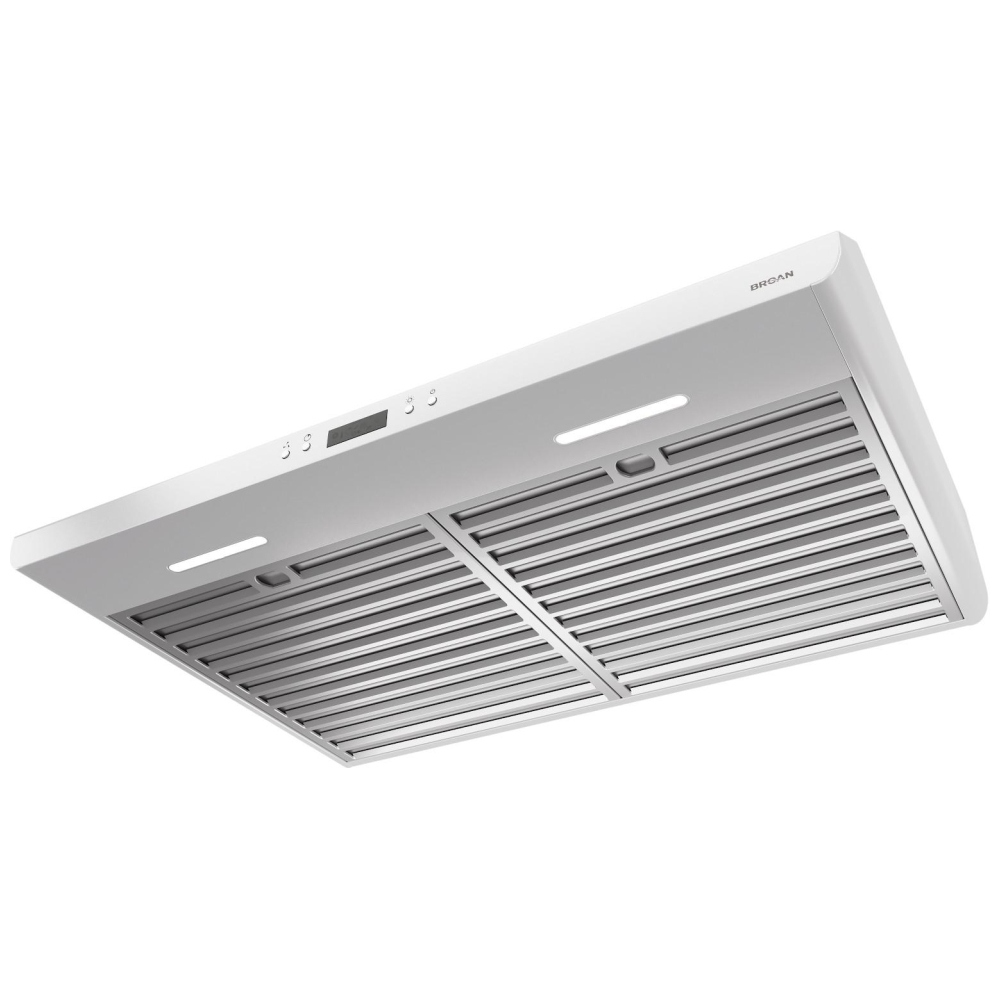

• Two ultra-efficiency hybrid baffle filters – high-performance filters capture grease and airborne particles while maintaining strong airflow.

• Dishwasher-safe filter design – removable hybrid baffle filters can be placed directly in the dishwasher for quick, convenient cleaning and maintenance.

• Filter clean reminder function – automatic alert notifies you when it’s time to clean the filters, helping maintain optimal capture efficiency over time.

• 10‑minute delay-off timer – keeps the fan running for a preset period after cooking to clear residual smoke and odours, then shuts off automatically.

• Automatic heat sensor function – boosts blower speed when high heat is detected, providing extra ventilation during intensive cooking.

• Bright 2-level LED lighting – integrated LED modules provide even illumination over the cooktop with high and low settings for task or ambient lighting.

• Energy-efficient LED modules included – long-life LEDs are designed for kitchen environments, reducing bulb replacement and energy consumption.

• 36-inch under-cabinet configuration – sized to fit standard 36" cooktops and ranges, mounting neatly beneath most wall cabinets.

• Convertible ducted or ductless installation – supports traditional venting to the outside or recirculating operation when paired with optional charcoal filters (HPF36, sold separately).

• Ductless recirculation capable – optional charcoal filters help remove odours when exterior venting is not possible, offering flexibility for condos or remodels.

• Multiple ducting options – compatible with common duct configurations to simplify connection to existing ventilation runs (check installation guide for exact sizes).

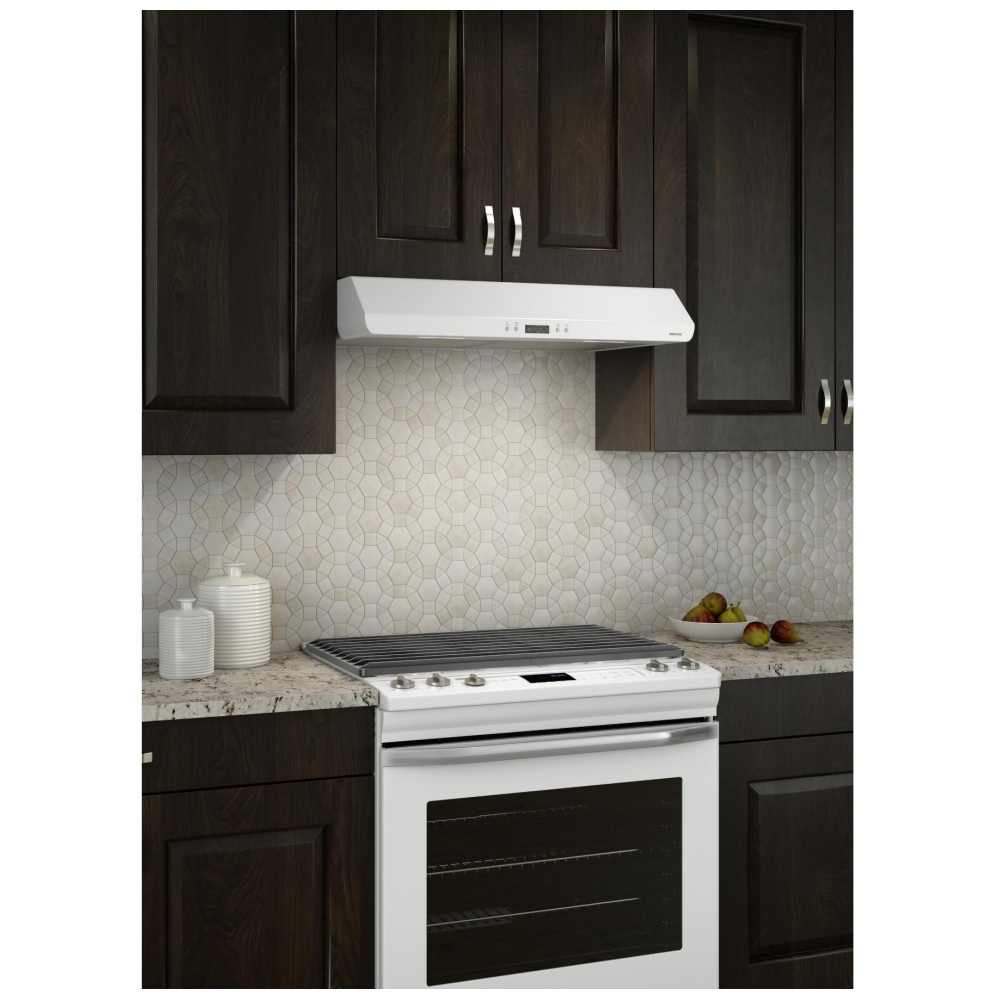

• Under-cabinet mounting style – installs directly beneath wall cabinets to save space and provide effective capture close to the cooking surface.

• White finish – neutral colour blends with most white appliances and cabinetry for a coordinated kitchen look.

• Tap-touch light control – dedicated touch buttons let you quickly adjust LED brightness independent of fan speed.

• Grease and odour reduction – combination of high airflow and efficient filters helps minimize lingering cooking smells and greasy residue on nearby surfaces.

• Improved indoor air quality – continuous capture of smoke, steam, and airborne particles contributes to a cleaner, more comfortable kitchen environment.

• ADA compliant with optional wiring kit – can be operated from a standard UL-approved momentary wall switch (ADA wiring kit required, sold separately) to support accessible installations.

• Hardwire or corded power options – designed for direct hardwired connection or use with an optional power cord kit (sold separately) to match your electrical setup.

• UL Listed construction – tested to meet recognized safety standards for household electrical appliances.

• Durable metal hood body – robust housing is built for daily use and easy wipe-down cleaning.

• Helps protect cabinetry and walls – effective capture of grease and moisture reduces staining and warping of surrounding kitchen surfaces.

• Ideal for everyday and high-heat cooking – variable speeds, heat sensing, and strong CFM make it suitable for simmering, frying, searing, and boiling.
