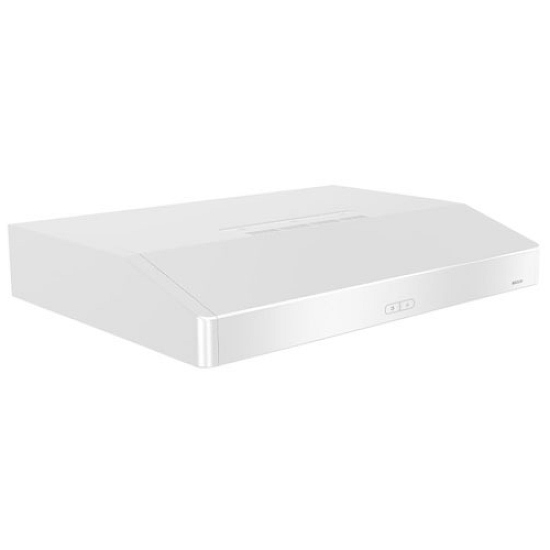

Broan

BNDD124WW

• Captur™ exclusive system – provides faster smoke and odor removal to help keep kitchen air cleaner during cooking.

• ADA compliant capability – can be installed for ADA compliance with a compatible wall switch and Broan-NuTone HAWRK3 low-voltage wiring kit for easier accessible operation.

• ENERGY STAR® status – not ENERGY STAR® certified, helping set accurate expectations for energy-efficiency classification.

• Heat Sentry™ status – does not include Heat Sentry™, clarifying that this automatic heat-sensing protection feature is not part of this model.

• Broan® Tenaya 24-inch under-cabinet design – slim-profile range hood designed to fit neatly beneath 24-inch cabinetry for space-saving kitchen ventilation.

• 375 Max Blower CFM performance – delivers strong airflow for effective removal of smoke, steam, and cooking odors in everyday meal preparation.

• 3-speed capacitive touch / tap-touch control – lets users quickly select ventilation speed with a modern, easy-to-clean control interface.

• Quiet 1.5-sone operation at normal speed – helps maintain a more comfortable kitchen environment with reduced operating noise.

• 2-level LED lighting – provides bright cooktop illumination with selectable light levels for better visibility while cooking.

• Integrated LED modules included – built-in LED lighting is included from the factory, reducing the need for separate bulb purchases.

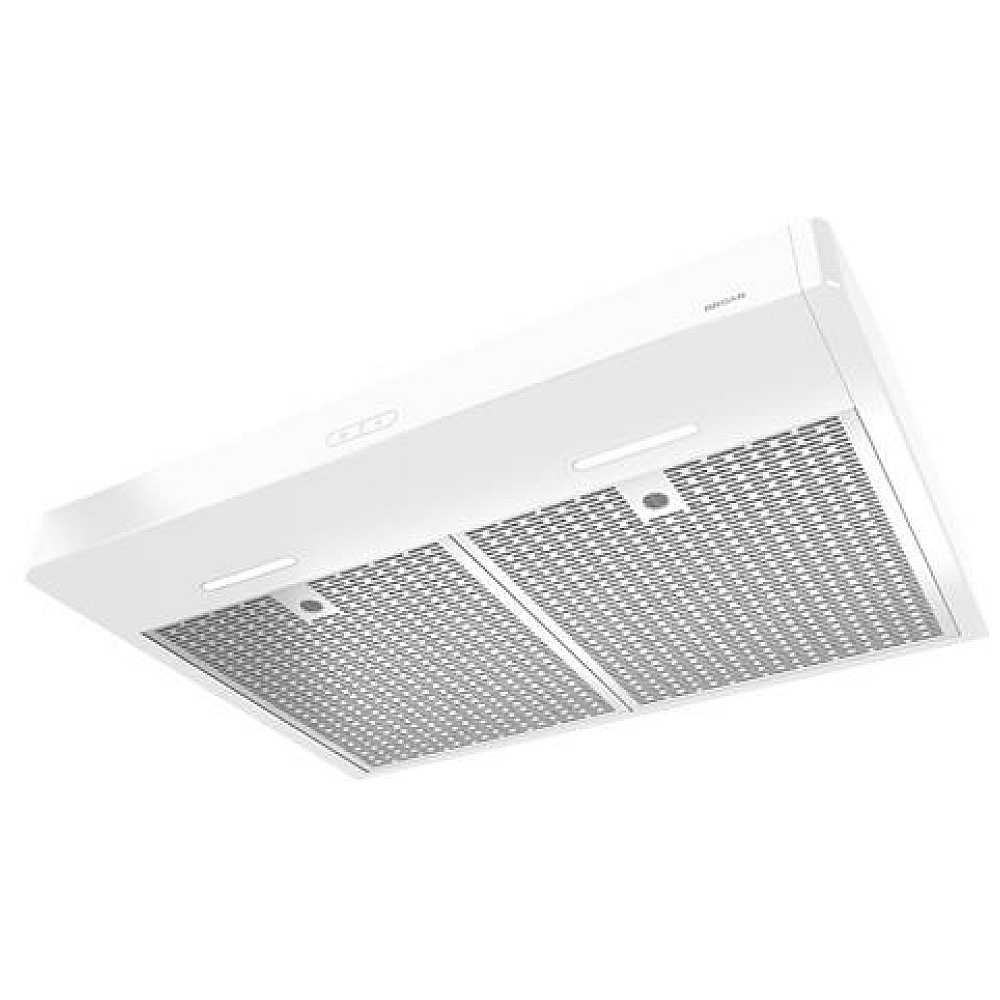

• Deluxe micro mesh filters – two high-efficiency grease filters help capture airborne grease while supporting cleaner airflow.

• Easy-clean filter system – washable filters are designed for convenient maintenance and long-term usability.

• Filter clean reminder – alerts users when it is time to clean the filters for more consistent ventilation performance.

• Ducted horizontal or vertical venting – supports installation with either horizontal or vertical duct direction for added setup flexibility.

• Ductless recirculation capable – can be configured for non-ducted installation when exterior venting is not practical.

• Optional charcoal filter compatibility – works with charcoal/non-duct filters sold separately for recirculating applications.

• EZ1 bracket installation system – simplifies mounting and helps enable faster, easier single-person installation compared with traditional methods.

• Under-cabinet mounting format – ideal for kitchens needing overhead ventilation without sacrificing wall or cabinet space.

• White finish – clean white exterior coordinates with light-colored cabinetry and appliances.

• 24-inch width – sized to match compact cooktops or ranges and fit smaller kitchen layouts.

• Low-profile 5-inch height – slim body helps preserve sightlines and maintain a streamlined appearance under cabinets.

• 21.125-inch depth – provides effective coverage over the cooking surface while maintaining a balanced under-cabinet fit.

• 120-volt operation – designed for standard household electrical compatibility.

• 0.65-amp electrical draw – supports efficient day-to-day operation within typical residential power requirements.

• 78-watt power rating – defines total operating power consumption for planning electrical use.

• UL listed – tested to recognized safety standards for residential installation confidence.

• 18-inch minimum mounting height above cooktop – allows proper placement guidance for safe and effective ventilation performance.

• Light bulbs included – lighting components are supplied with the hood for added convenience during installation.

• No built-in timer – clarifies that this model does not include an automatic shutoff timer feature.

• No boost mode – indicates the hood operates through standard speed settings without a temporary high-power boost function.

• No night-light setting – confirms there is no dedicated low-level night illumination mode.

• No remote operation capability – designed for direct onboard control rather than handheld or wireless remote use.

• No damper included – damper may need to be purchased separately depending on installation requirements.

• 1-year limited warranty – provides manufacturer-backed coverage for added purchase assurance.

• 3-year LED module warranty – extended coverage on LED modules helps support long-term lighting reliability.
