Broan

BXT130WWC

• Broan® BXT1 Series design – coordinates with other Broan® ventilation products for a consistent, contemporary look in the kitchen.
• 4-way convertible ventilation – installs in four different ducting configurations or non-ducted, making it suitable for a wide variety of kitchen layouts.
• Convertible ducted / non-ducted operation – supports both external venting and recirculating setups (with optional charcoal filter) to match your home’s ventilation needs.
• 270 Max Blower CFM performance – provides strong airflow to effectively capture smoke, steam and cooking odours from electric and most gas ranges.
• 2-speed fan control – rocker switch lets you choose between low and high speeds for everyday simmering or more intensive cooking.
• Standard sound level (approx. 2 sones on normal speed) – delivers effective ventilation with relatively quiet operation for comfortable conversations in the kitchen.
• 18" deep hood design – offers about 20% more coverage over the cooktop than many over-the-range microwave units, improving capture of rising smoke and steam.

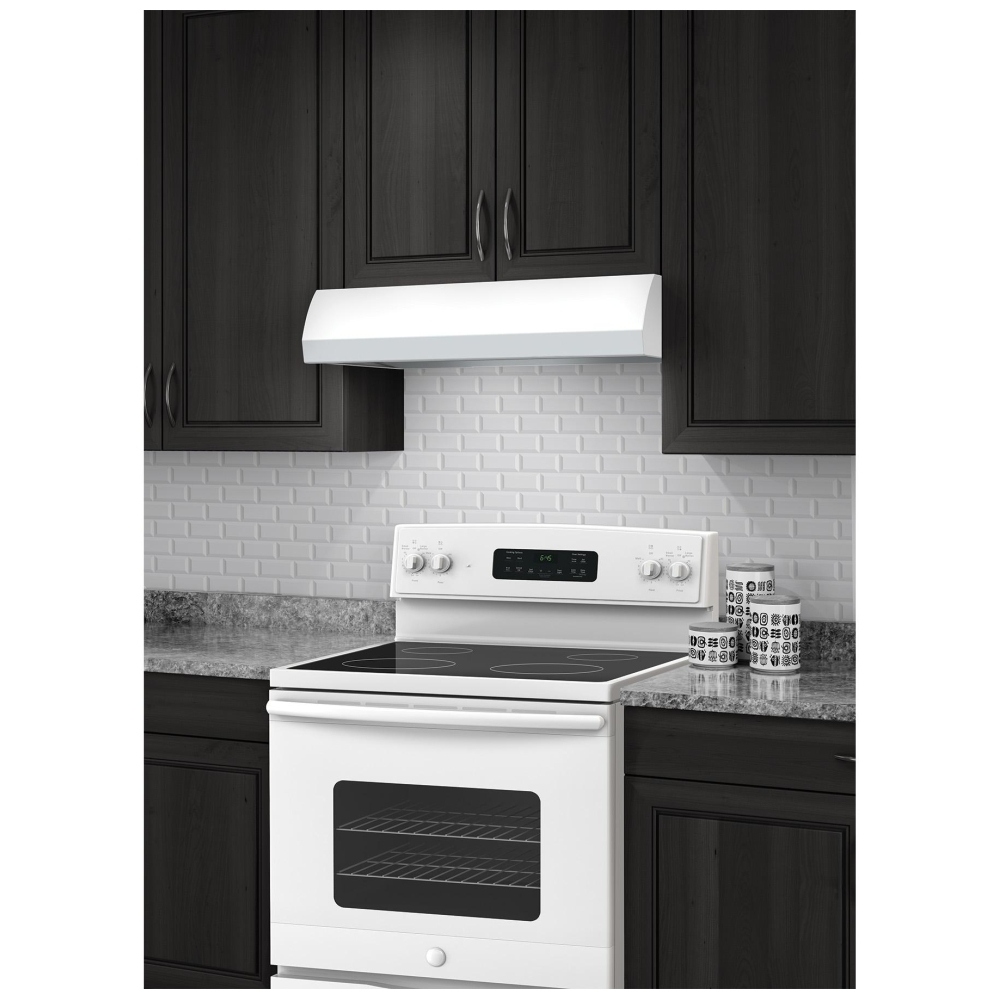

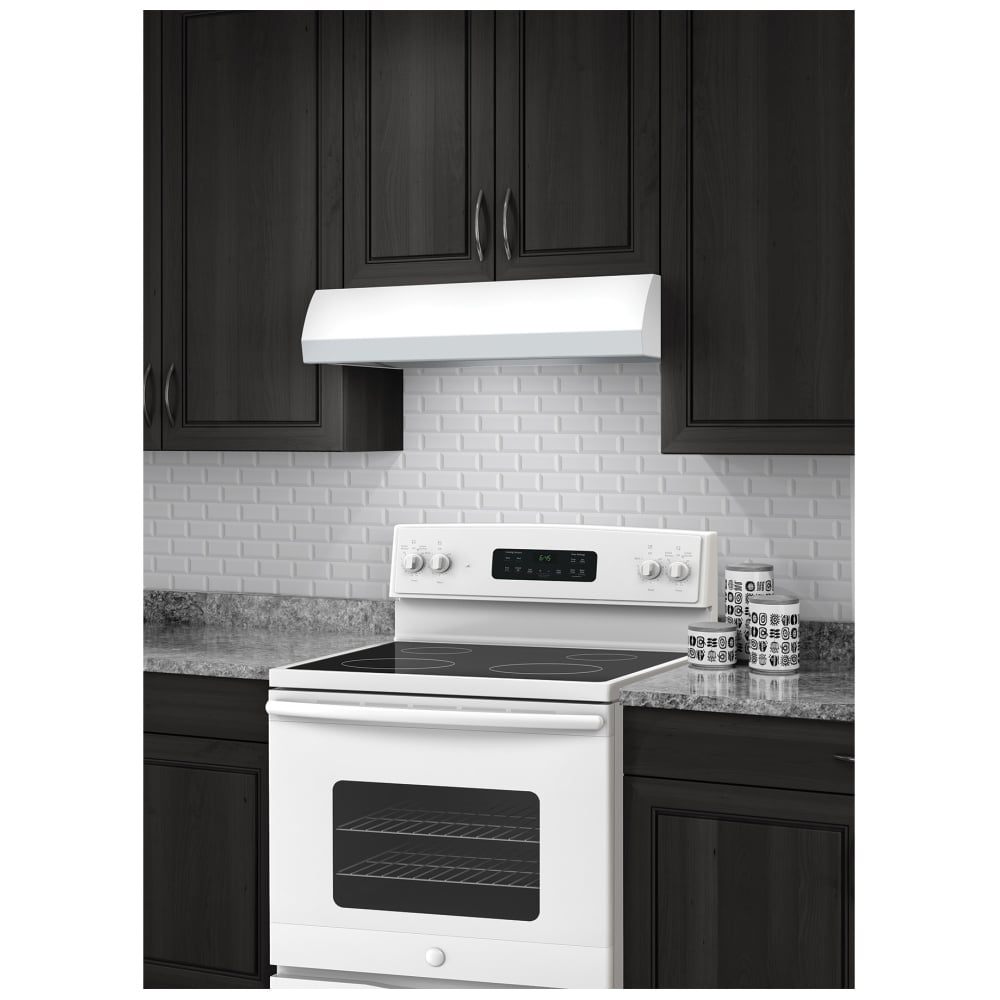

• Under-cabinet installation – mounts neatly beneath a standard 30" cabinet to save space and provide a built-in, finished appearance.

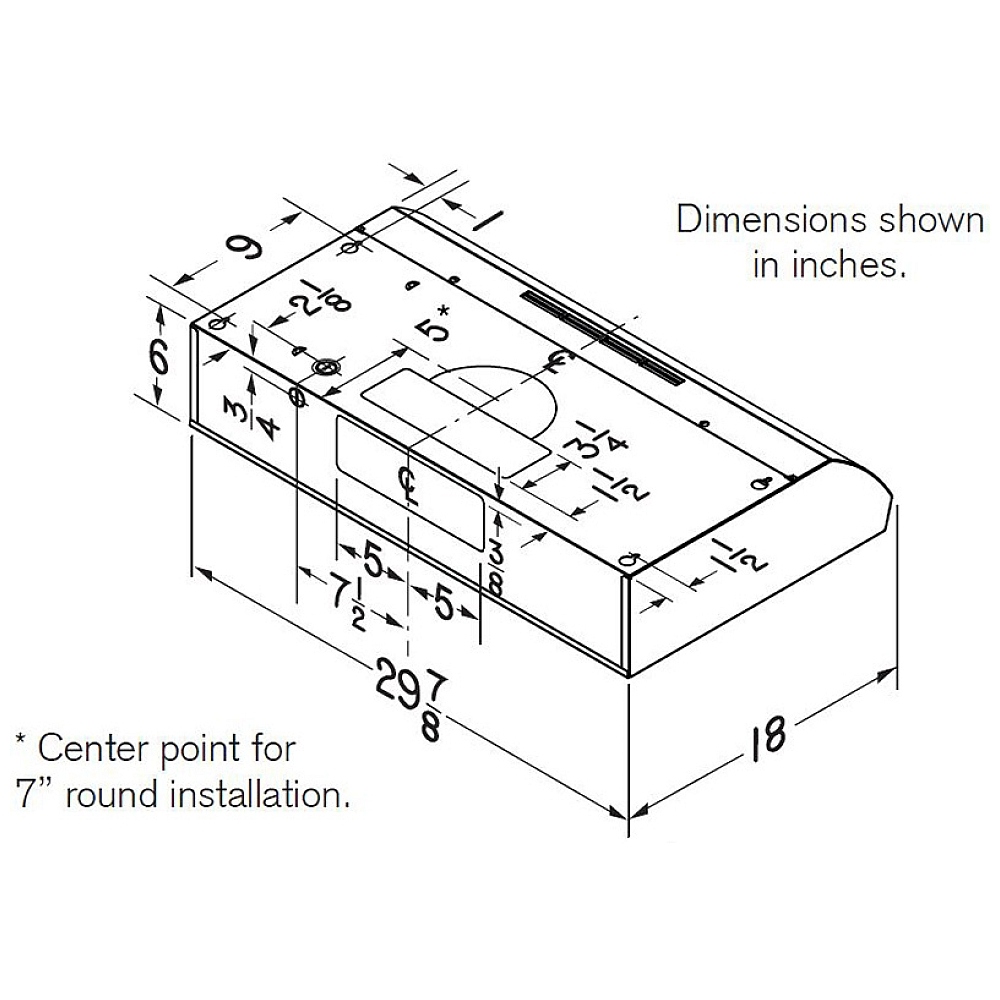

• Top or back duct connection – supports horizontal or vertical ducting with 7" round or 3¼" x 10" ducting (depending on installation) for flexible vent routing.
• Hidden recirculation louvers – top-oriented, discrete louvers exhaust air away from cabinetry while maintaining a smooth, clean front profile.
• Dishwasher-safe aluminum mesh filter – captures grease efficiently and can be removed and cleaned in the dishwasher for low-maintenance care.
• Large, easy-to-clean filter area – maximizes grease capture across the width of the cooktop and simplifies routine cleaning.
• One-level LED lighting system – integrated LED light panel brightly illuminates the cooking surface for better visibility while preparing meals.
• LED bulb included – comes with a compatible LED bulb so the hood is ready to use right after installation.
• Fully integrated light panel – protects the bulb and makes the underside of the hood easier to wipe clean.
• Simple rocker switch controls – low-profile, hidden rocker switches operate both fan speeds and lighting for straightforward, reliable use.
• ADA compliant design – can be wired to a standard wall switch for remote operation, making it accessible for users with limited reach or mobility.
• UL Listed safety certification – tested to meet recognized electrical safety standards for household appliances.
• HVI Certified performance – airflow and sound ratings are independently verified so you can trust the published CFM and sone values.
• Standard 120 V, 60 Hz electrical connection – connects to typical North American household power for easy integration.
• Hardwired installation – designed to be wired directly into household power for a clean, cord-free look.
• Optional power cord kit compatibility – can be used with an optional cord kit (sold separately) when a plug-in installation is preferred.
• Optional 7" round damper – supports use of an add-on damper (sold separately) to help prevent backdrafts when the fan is off.
• Optional charcoal filter – allows non-ducted recirculating installation by filtering odours when exterior venting is not possible.
• Steel construction – durable metal body resists everyday wear and provides long-lasting performance.
• White finish – neutral colour blends with most white ranges and cabinetry for a cohesive appearance.
• Approx. 30" width – sized to match the width of standard 30" cooktops and ranges for full coverage.
• Low-profile 6" height – maintains headroom above the cooktop while still providing effective ventilation.
• Standard 1-year limited warranty – provides manufacturer coverage for parts and labour for added peace of mind.
