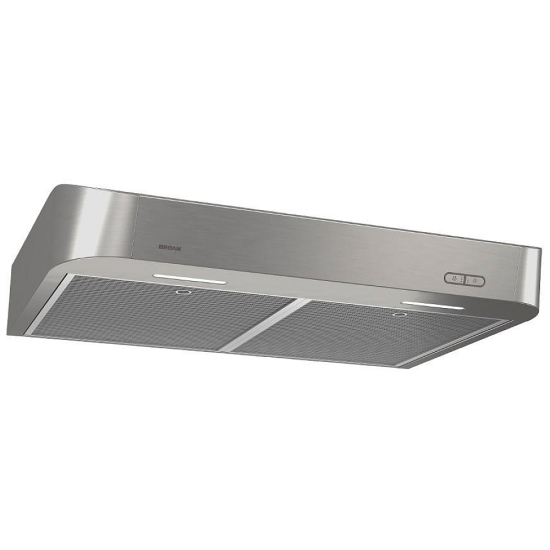

Broan

CLDA130SS

• Captur™ system advanced blower design – forward-positioned centric inlet and smooth-flow blower wheel remove smoke and odors faster while keeping operation quiet.
• EZ1® single-person installation brackets – mounting system allows one-person installation in roughly half the time of traditional methods.
• ADA compliant design – can be operated remotely with a standard UL-approved momentary wall switch for accessible use.

• 400 CFM ventilation performance – powerful blower quickly clears cooking smoke, steam and odors from the kitchen.
• Ultra-quiet operation (as low as 0.4 sones) – delivers strong ventilation with very low noise at normal speed for comfortable conversations while cooking.
• 30-inch under-cabinet configuration – fits standard 30" cooktops and installs neatly beneath wall cabinets.
• Convertible ducted or non-ducted installation – supports both vented setups and ductless recirculation when used with optional charcoal filters (sold separately).
• Multiple ducting options – compatible with 7" round vertical or 3¼" x 10" horizontal/vertical ducting to match existing kitchen vent runs.
• Hidden top louvers for ductless mode – exhausts air away from cabinetry when installed in recirculating configuration.
• Hardwire or plug-in flexibility – can be hardwired or used with an optional power cord kit (model SHCK44, sold separately) to suit installation preference.

• Tap-touch capacitive controls – smooth, flat control panel is easy to wipe clean and provides simple, modern operation.
• 3-speed fan settings – low, medium and high speeds let you match ventilation power to light simmering or heavy frying.
• Bright 2-level LED lighting – integrated LED modules offer high and low settings to evenly illuminate the cooking surface.
• Long-life LED modules – LEDs are tested for use in cooking environments to resist dimming and are backed by a multi-year warranty.
• Warm 3000K light color – comfortable, warm-white illumination complements most kitchen lighting schemes.

• Dishwasher-safe micro-mesh filters – high-flow filters capture grease effectively and can be cleaned easily in a dishwasher.
• Filter clean reminder – indicator prompts you to wash filters regularly so airflow and capture efficiency stay high.

• High capture efficiency – engineered to remove a very high percentage of smoke and airborne contaminants for cleaner indoor air.
• HVI certified performance – independently tested to industry standards so published CFM and sound ratings are reliable.
• UL listed safety – meets recognized electrical and safety standards for household use.

• Stainless steel finish – durable, easy-to-clean surface coordinates with a wide range of stainless kitchen appliances.
• Low-profile 5" height – slim design provides good headroom while maintaining strong capture over the cooktop.
• Full 21" depth coverage – deeper hood body helps capture rising smoke and steam from front burners.

• Remote wall-switch operation capable – supports control via compatible wall switch for convenient, code-compliant ADA installations.
• Optional charcoal filters for recirculation – allow use where exterior venting is not possible, helping reduce odors in ductless setups.
• Optional damper and accessories – compatible with standard round dampers and wiring kits to integrate with broader ventilation systems.

• Energy-efficient LED lighting – uses low wattage while providing bright task lighting, helping reduce overall energy consumption.
• Steel construction – robust housing resists warping and damage for long-term reliability.
• Ideal for electric and gas ranges – 400 CFM rating supports typical residential cooking loads on most 30" cooktops.
