Broan

MTR3304SS

• SmartSense™ Automated Ventilation – uses an infrared sensor to detect heat from the cooktop and automatically adjusts fan speed to clear smoke and odors without manual intervention.

• Code Ready Technology™ (CRT) – allows the installer to reduce the 490 Max Blower CFM down to 300 or 400 CFM to meet local building codes or make‑up air requirements.

• EZ1™ one‑person installation system – includes special mounting brackets so a single installer can mount the hood quickly and accurately, saving time and labor.

• ENERGY STAR® certified performance – meets strict energy‑efficiency standards to help reduce power consumption and operating costs.

• Title 24 compliant design – satisfies California Title 24 energy code requirements for residential ventilation.

• Mantra 3 Series under‑cabinet design – low‑profile 30" stainless steel hood fits neatly under standard kitchen cabinets for a built‑in, modern look.

• 490 Max Blower CFM – delivers strong airflow to effectively capture and exhaust cooking smoke, steam, and airborne grease from everyday and high‑heat cooking.

• 3‑speed blower control – offers multiple fan speeds so you can choose quieter low settings for simmering or higher power for frying and searing.

• Up to 71% quieter operation – operates at about 1.1 sones on working speed, similar to the sound of a running refrigerator, for a more comfortable kitchen environment.

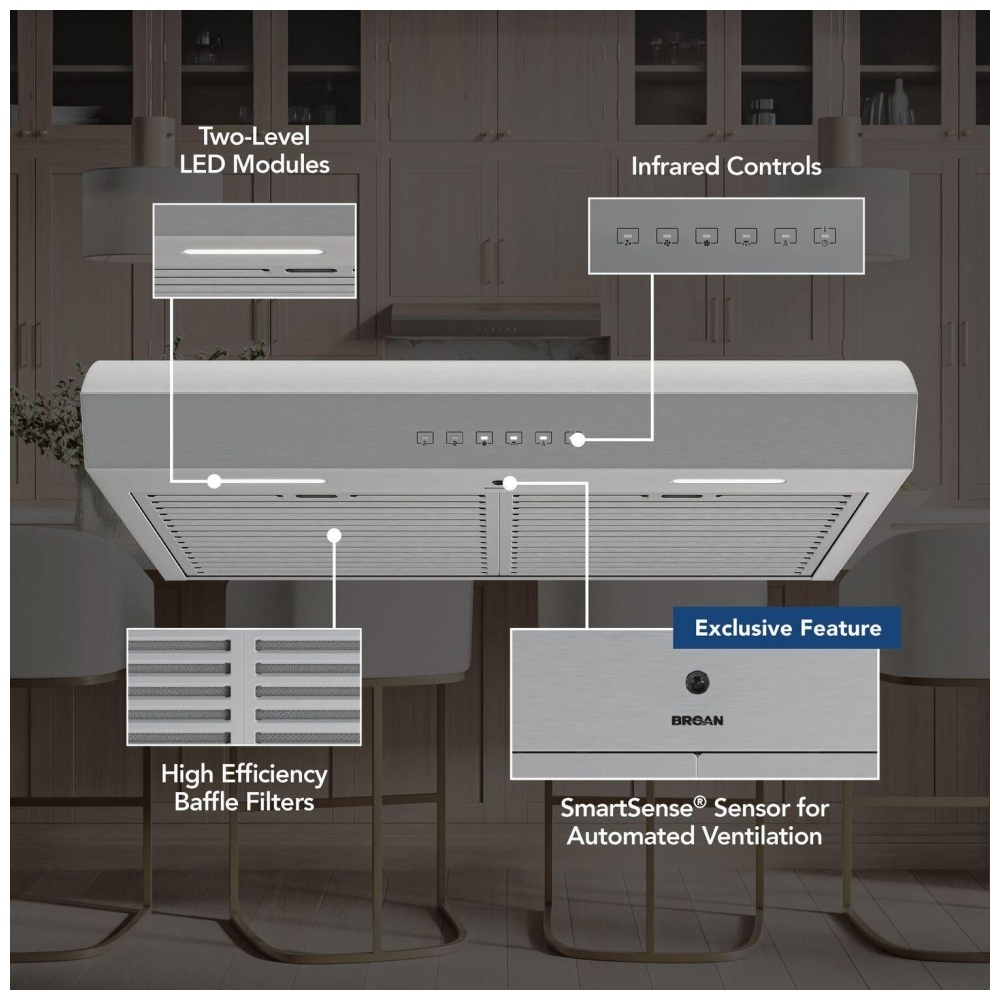

• Touch infrared controls – sleek front controls allow quick, precise adjustment of fan speed and lighting levels with minimal effort.

• Two‑level LED lighting – bright, heat‑resistant LED modules provide high and low settings to illuminate the cooktop while using less energy than halogen bulbs.

• Hybrid baffle filters – high‑efficiency baffle‑style grease filters capture airborne grease effectively while maintaining strong airflow.

• Dishwasher‑safe filters – removable hybrid baffle filters can be placed in the dishwasher for easy, thorough cleaning and reduced maintenance time.

• Fully enclosed bottom – smooth underside design helps contain grease and makes it easier to wipe clean compared with exposed mechanical components.

• Convertible venting options – supports top or rear ducted installation, or non‑ducted (recirculating) operation when used with optional charcoal filters.

• Optional charcoal filters (Model HPF30) – enable ductless installation by filtering and recirculating air when exterior venting is not possible.

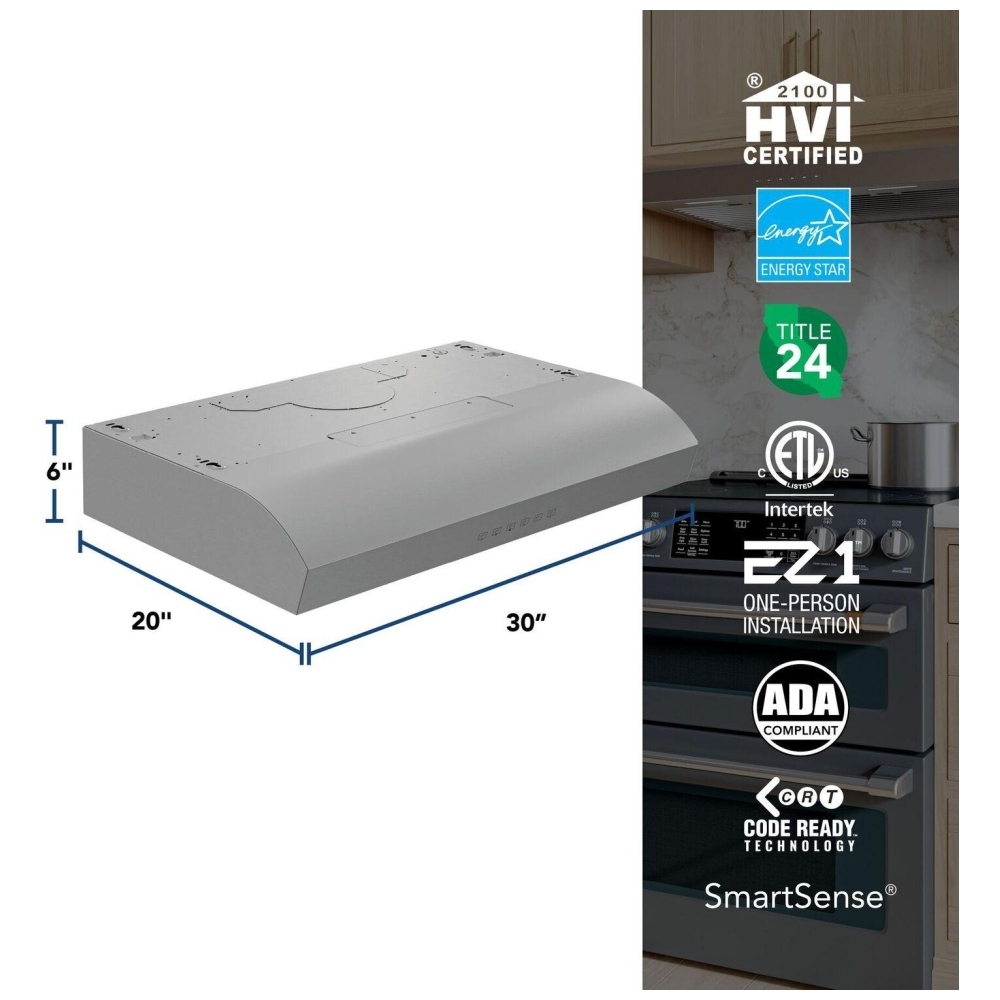

• Under‑cabinet 30" width – sized to match most 30‑inch cooktops and ranges for proper coverage of front and rear burners.

• Low‑profile 5.1" height – shallow body height maximizes headroom over the cooking surface and fits in tighter cabinet spaces.

• Stainless steel finish – durable, easy‑to‑clean exterior resists staining and complements a wide range of kitchen appliance styles.

• 50‑point inspection quality – factory‑tested at multiple checkpoints to ensure long‑term reliability and consistent ventilation performance.

• Standard 120V operation – plugs into typical North American household electrical systems for straightforward installation.

• Hardwire or corded installation – can be hardwired directly or used with an optional power cord kit (Model HCK44, sold separately) for plug‑in convenience.

• Optional make‑up air damper compatibility – works with Universal make‑up air dampers (Models MD6TU, MD8TU, MD10TU) to automatically balance air exhausted from the home when the hood is running.

• ADA‑compliant capable – can be installed for ADA compliance when paired with the optional low‑voltage wall switch kit (Model HAWRK5, sold separately).

• Convertible vertical or horizontal ducting – supports 3¼" x 10" rectangular or 7" round duct connections to match existing ductwork layouts.

• Standard 3‑1/4" x 10" or 7" round duct size – uses common duct dimensions to simplify new installations and replacements.

• 1.1–7.5 sones sound range – provides quiet operation on working speeds with higher airflow available when needed for heavy cooking.

• Three fan speed options – lets users fine‑tune the balance between noise level and ventilation power for different cooking tasks.

• Under‑cabinet mounting style – installs directly beneath wall cabinets, freeing overhead space and integrating with standard kitchen layouts.

• Improved indoor air quality – continuously removes smoke, odors, and airborne contaminants from the cooking area to help maintain a fresher, healthier kitchen.

• Grease and odor reduction – combination of baffle filters and, when used, charcoal filters helps reduce lingering cooking smells and sticky residue on nearby surfaces.

• LED module warranty coverage – LED lighting modules include extended manufacturer warranty (typically longer than base product warranty) for added peace of mind.

• Residential kitchen application – engineered specifically for everyday home cooking, from light simmering to high‑heat frying.
