Description & Features

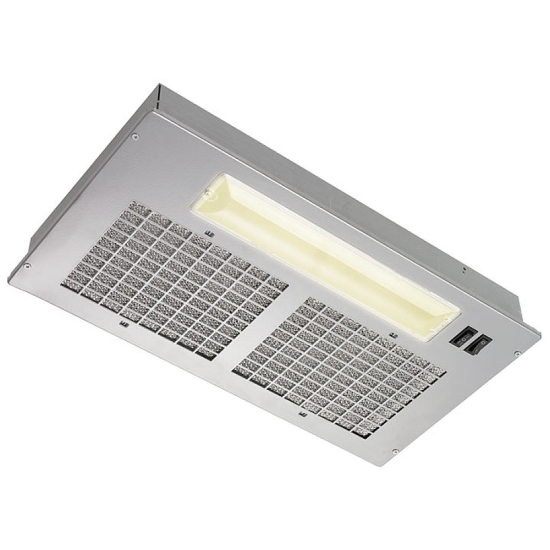

Broan PM250 Cabinet Insert, 20" Exterior Width, 300 CFM, Accepts Both, Incandescent, Dishwasher Safe Filters, Aluminum Mesh, Silver colour Blower Included

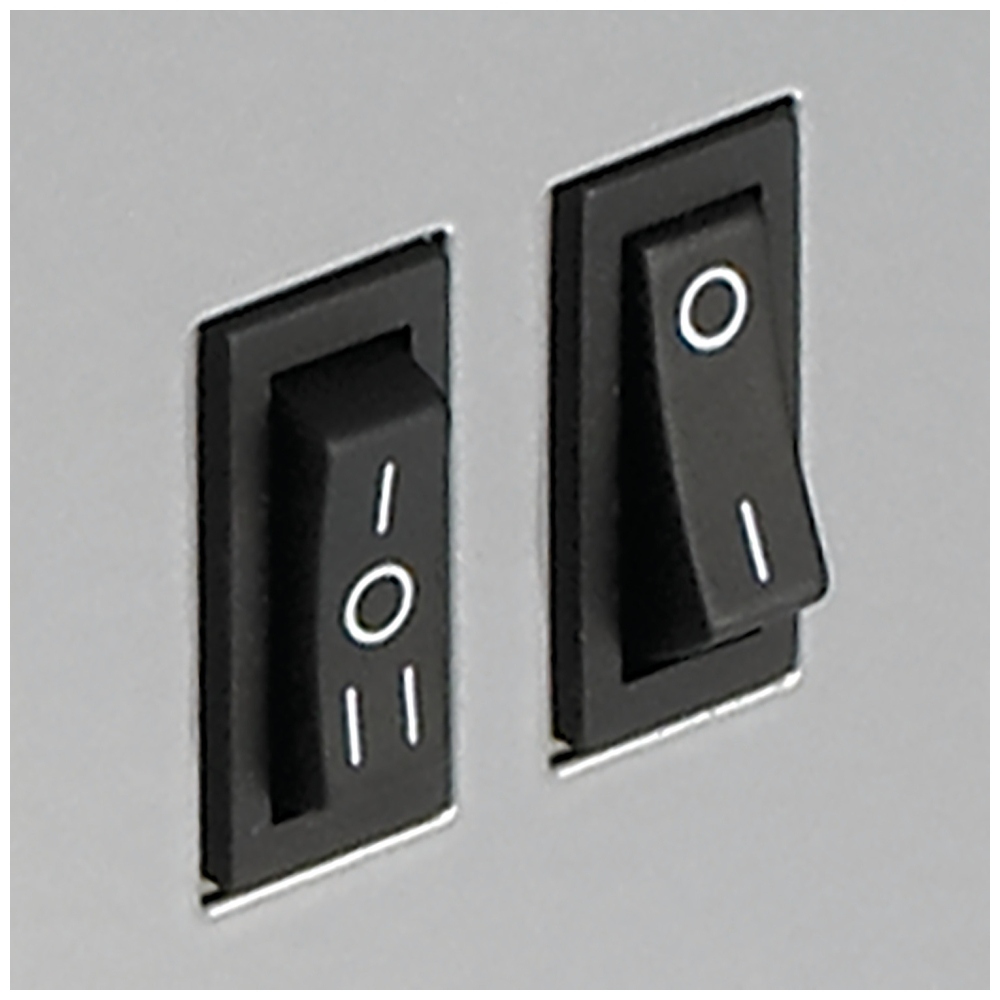

Broan PM250 20'' Custom Hood Power Module with 300 CFM Fan, 2 Speed Rocker Control, Dishwasher-Safe Aluminum Filters and Convertible to Non-Ducted Operation
High-performance ventilation solutions. These integrated units provide the ventilation and lighting you need for your custom application. Broan "T" and "B" liners provide an elegant way to finish a traditional wood hood and protect cabinetry. Smooth surfaces clean easily and quick-release filters can go in the dishwasher.

  • Recommended for se with Models LB30, LB36, LT30 & LT36 Liners
  • Two-speed motor
  • 6-5/8" Fan, 300 CFM, 8.0 Sones
  • 7" round duct or non-ducted discharge
  • Enclosed light
  • Accepts two incandescent max. 40-watt candelabra bulb.
  • One-piece, washable aluminum mesh filter.
  • Optional, disposable charcoal filter kit- #B08999040
  • Durable, powder coated silver finish
  • Fully enclosed bottom

UPC: 026715172955

Filter Type Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type Incandescent
Sound Level (Sones) 8
UL Listed Yes
ADA Compliance No
Damper Included No
ENERGY STAR® certified No
Light Bulbs Included No
Light Levels 1
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Switch Control Type Rocker
Rated Voltage 120
Boost Mode No
Color Finish Silver
Minimum Height Above Cook Top 24
Rated Amps 2.1
Product Depth 11.25
Product Height 2.5
Product Width 20.5
Built-In Timer No
Capture Efficiency -
CFM 300
Diameter -
Duct Direction Vertical
Bulb (Recommended Type) A19
Light Color Temp -
Manufacturer Warranty 1 Year
Wattage 252

Height: 2 1/2"
Width: 20 1/2"
Depth: 11 1/4"
Weight: 40 lbs.
Width: 20 1/2
Depth: 11 1/4
Height: 2 1/2
Weight: 40 Lbs.
Type: Cabinet Insert
Venting Type: Ducted
Blower Type: Internal
CFM: 250
Dishwasher Safe Filters: Yes
Speeds: 2
Lighting Levels: 2
Volts: 120
