GENERAL
Series Name	• Chef • VCQDD1
Blower Included	Yes
Airflow	375 CFM
Style	Standard
Color	White
Manufacturer Color	White
Installation	Under-Cabinet
FEATURES
Technologies	• CapturTM exclusive system that provides faster smoke and odor removal • EZ 1 brackets make it easy for single-person installation in less than half the time of traditional methods
Ducting Information	3-1/4" x 10" (Horizontal-Vertical) or 7" round
Speeds	3
Additional Information	• Tap-touch control • Two built-in LED modules • Lighting intensities: 2 • Sound level: 1.2 sones • Two deluxe high-efficiency micro filters • Recirculation • Use charcoal filter HPF30 for a non-ducted installation • Performant blower • Quieter range hood • Filter clean reminder • ADA compliant, remote operation is possible using a standard UL approved momentary wall switch. Requires ADA Wiring Kit (sold separately)
BLOWERS AND ACCESSORIES
Optional	• Replacement filters: HPFA3A30 • Charcoal replacement filters: HPF30 • ADA wiring kit: HAWRK3
CERTIFICATIONS AND APPROVALS
Hvi Certified	Yes
Energy Star	No
ELECTRICAL INFORMATION
Information	• 120V • 0.65A
DIMENSIONS
Class Width	30"
Width	29.87 inch(es) / 75.88 cm
Height	5 inch(es) / 12.7 cm
Depth	22 inch(es) / 55.88 cm
WARRANTY
Warranty	• 3-Year limited on the LED modules • 5-Year on parts and labor

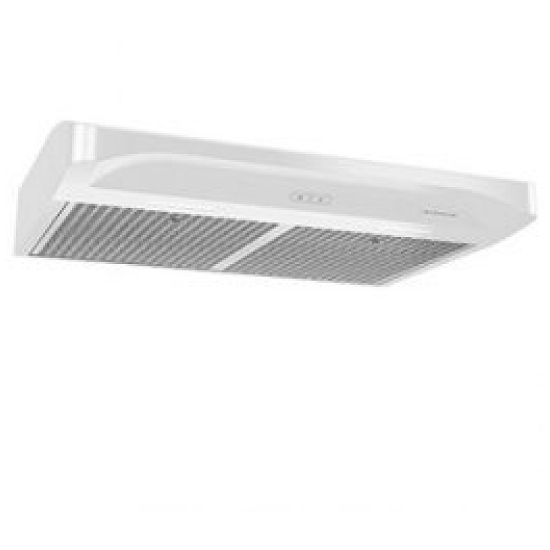

Broan VCQDD130WW

Broan VCQDD130WW Range Hood, 30 inch Exterior Width, Under-Cabinet, 375 CFM, LED, Aluminum Mesh Filter, White colour Blower Included
