MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
$2,119 | (15% off) | if you buy 1 or 2 items. |
$1,995 | (20% off) | if you buy 3 or 4 items. |
$1,869 | (25% off) | if you buy 5+ items. |
Manufacturer's Warranty: 1 year

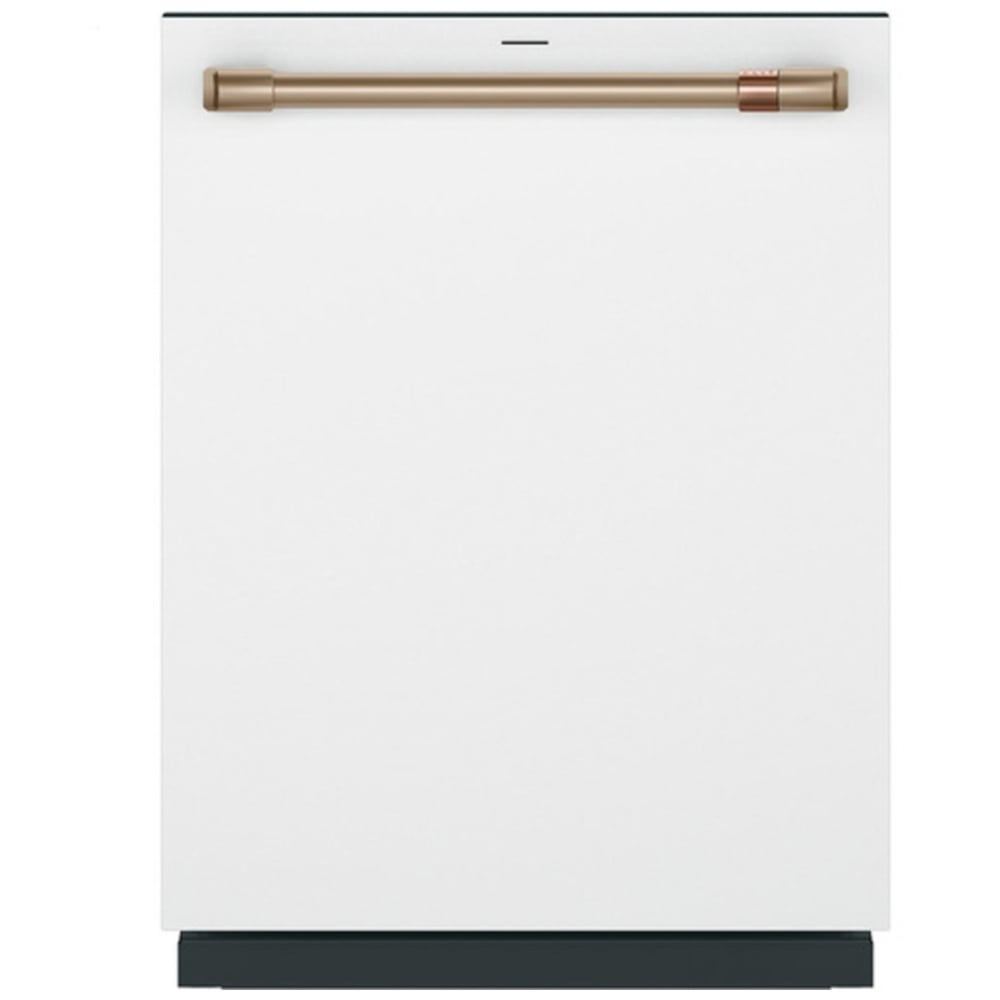

APPEARANCE | |
Handle | Café™ |
Installation | Built-Up Floor Capable Flush Cabinet Installation Side Installation or Top Installation Included |
Handle Color | Brushed Bronze |
Door Style | Long Door with Top Controls |
Door Appearance | Full-length flat door |
Color Appearance | Matte White |
Control Panel Color | Matte Dark Slate, Fingerprint Resistant |
Handle Design | Customizable |
POWER / RATINGS | |
Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
Calrod Heater Watts | 1200/400 |
Volts/Hertz/Amps | 120V; 60Hz; 10.2A |
WARRANTY | |
Labor Warranty | Limited 1-year entire appliance |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET | |
Door Insulation | Insulation Mastic |
Quiet Package | 39 dBA |

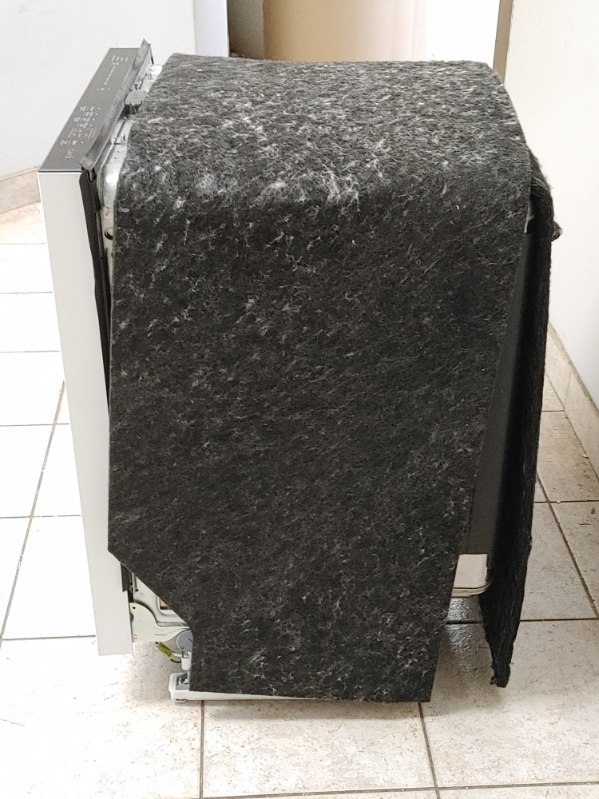

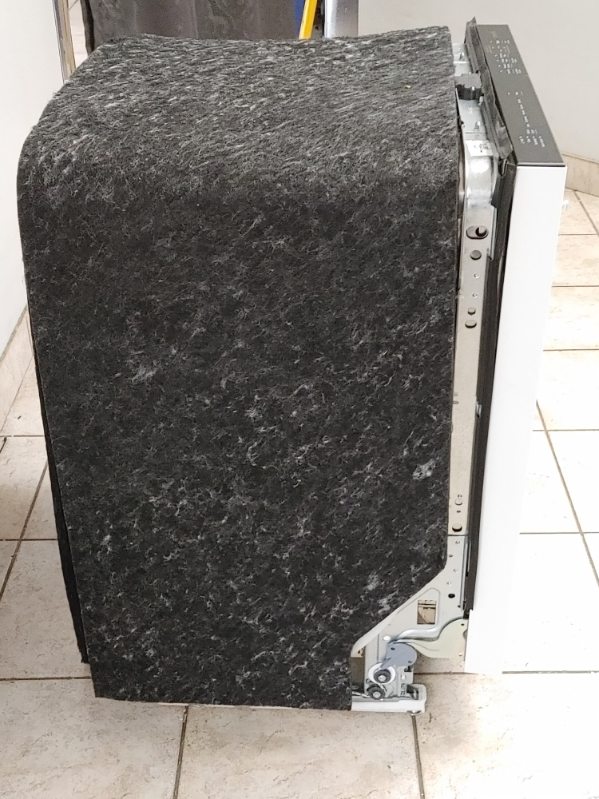

Outer Wrap | Bitumen Full-wrap Blanket |
Motor Type | Variable Speed |
Quiet Features | Quiet Water Valve Sealed Toe Kick Tub Collar Trim |
ACCESSORIES | |
Optional 12' Drain Hose | Optional hose kit (WD24X10065) |
Optional Kits | CXADTH1PVBT Brushed Black CXADTH1PVBZ Brushed Bronze CXADTH1PVCG Brushed Brass CXADTH1PVCU Brushed Copper CXADTH1PVFB Flat Black CXADTH1PVSS Brushed Stainless |
WEIGHTS & DIMENSIONS | |
Height w/ Legs Retracted - Minimum Height | 33.375 in |
Cutout Height (in) | 33 1/2 in |
Cutout Width (in) | 24 in |
Overall Depth | 24 in |
Cabinet Width | 24 in |
Net Weight | 124 lb |
Overall Width | 23.75 in |
Approximate Shipping Weight | 137 lb |
Overall Height | 34 in |
Overall Depth with Handle | 27.4 in |
Cutout Depth (in) | 24 in |
Height w/Legs Extended - Maximum Height | 34.625 in |
Depth with Door Open | 27.5 in |
FEATURES | |
Wash System | 4-Level 800 Series |
Sensor | Clean Sensor |
Lower Rack | 1 Rack handle 1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines |
Tub Type | Tall Tub |
Leveling System | 3 Point Leveling |
OU Certified | No |
Additional Protection | Active Flood Protect Leak Defense with Active Flood Protect |
Number of Place Settings | 16 |
Dishwasher Options | Bottle Wash (on app) Delay Start 1-12 Hr. Favorites Favorites (on app) Heated Dry Off Hi-Temp Wash Lock Controls Normal Dry Presoak + Sanitize (Certified to NSF Standard 184) Sabbath Mode Silverware Wash Start/Cancel Ultra Dry Wash Zones/Half Load (on app) WiFi/Remote Enabled |
Latch | Pull with Handle |
Number of Options | 15 |

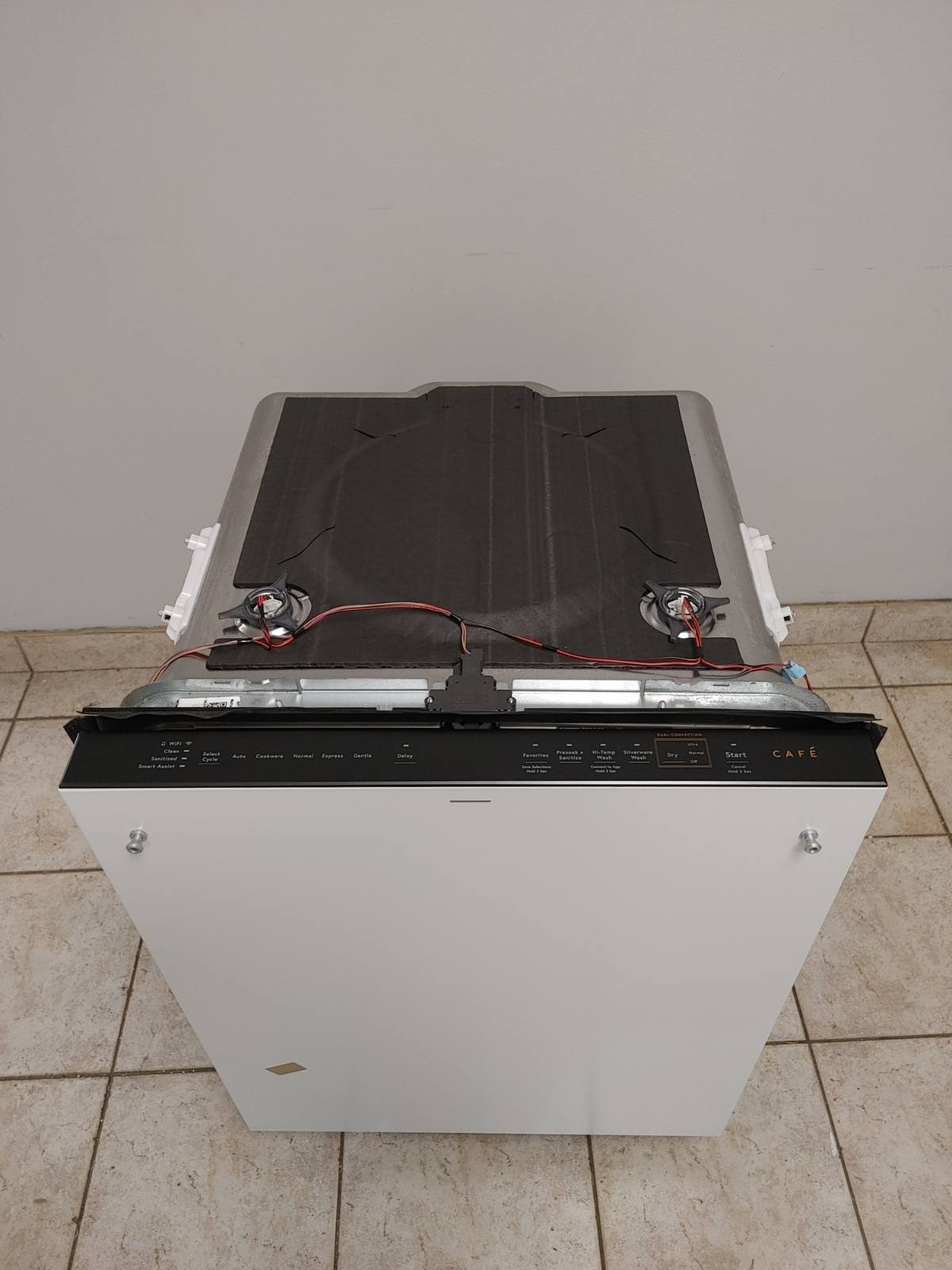

Style | Built-In Top Control |
Water Filtration System | 100% Filtration with Hard Food Disposer and Removable Filter |
Cutlery Tray | One piece removable 3rd rack |
Rack Features | Adjustable Upper Rack Ball-Tipped Tines Cafe Flex Silverware Basket Full Extension Slides - Upper Lid Manager |
Racking Material | Nylon |
Smart Assist | Yes |
Floor Protection | Leak Defense with Active Flood Protect - Leak Pan with Sensor |
Dishwasher Cycles | Auto Wash Cascade Platinum Plus (on app) Cookware Express Gentle Normal |
Rack Color | Black Pearl |
Dispenser | Electronic Low Rinse Aid Sensor Rinse Aid with Indicator and Adjustment |
WiFi Connect | Built-In |

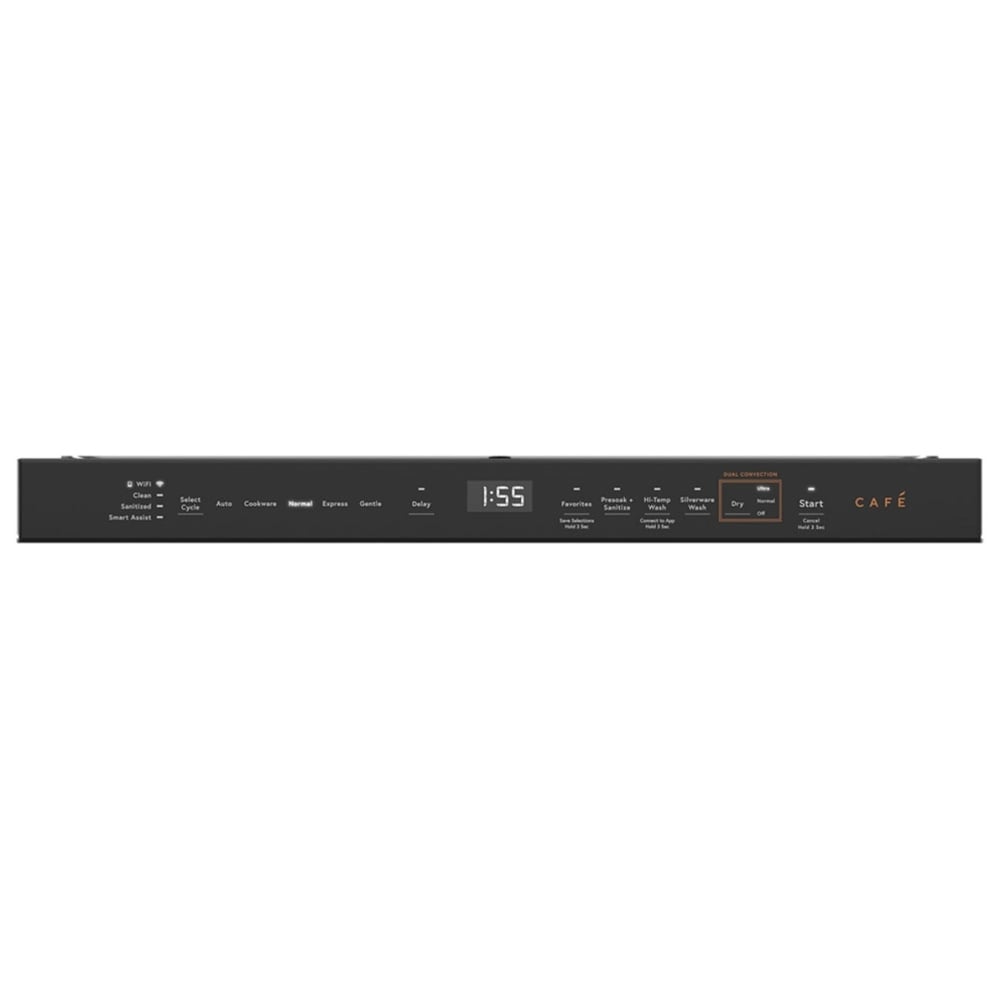

Control Type | 8 Touchpads Cap Touch Controls Top Controls |

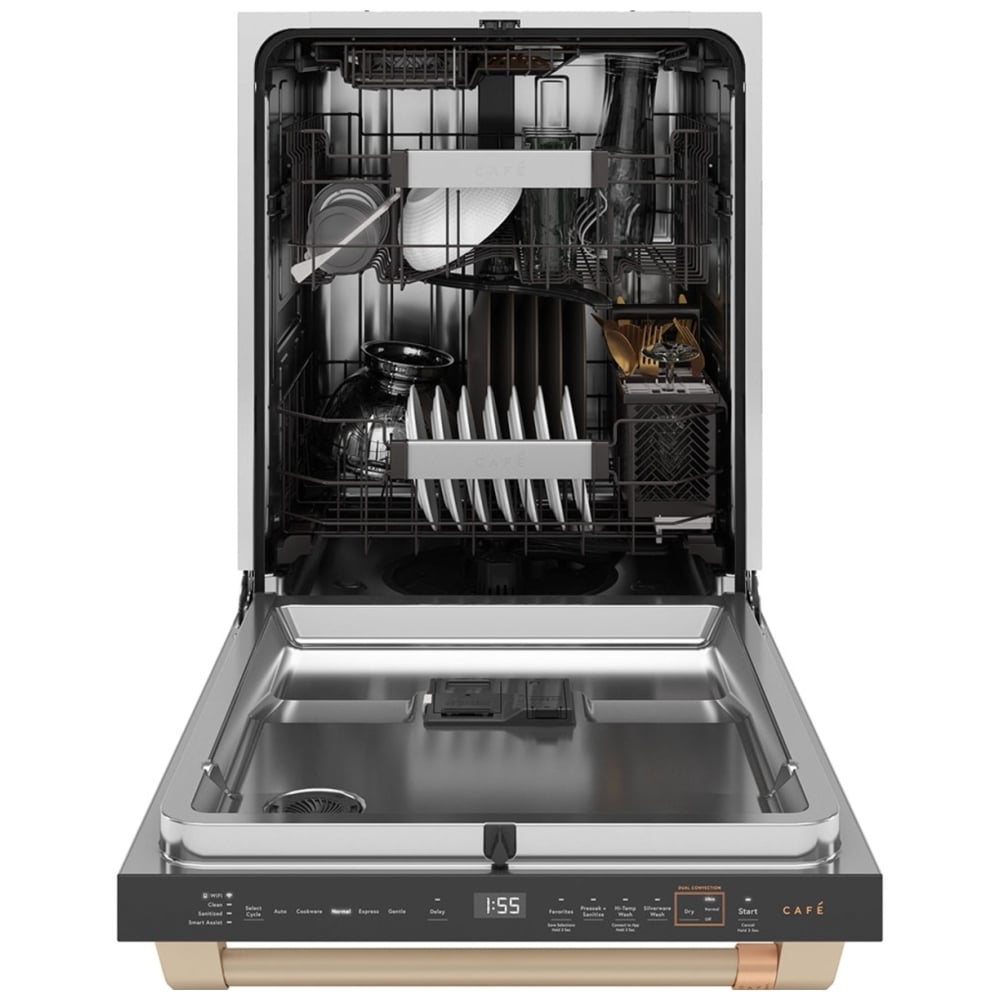

Racking System | Full 3rd rack |
Dishwasher Drying Features | Dual Convection Ultra Dry Fan Assist Dry Ultra/Normal/Off |
Interior Lighting | Yes - 4 - Café Expression |
Wash Arms | 3rd Rack 4 Wash Levels Bottle Jets Deep Clean Silverware Jets Lower Middle Upper |
Wash System Features | 90+ Spray Jet Wash System Automatic HotStart Automatic Temperature Control Bottle Jets (4) Deep Clean Silverware Jets Drain Pump Hard Food Disposer with removable filter Hidden Heater Lower Wash Arm Middle Wash Arm Side Jets Variable Speed Dual Pumps and Motors |
Top Rack/3rd Rack | Washing, Sliding 3rd Rack w/ removable caddy |
Exterior Style | Customizable Professional |
Upper Rack | 1 Rack handle 1/2 fixed tines, 1/2 fold down tines Ball-Tip Tines Fixed tines with Bottle Jets Lid Manager Premium Height Adjustable Smooth Glide Upper Rack |
Dishwasher Control Features | Audible End-of-Cycle Signal Cycle Countdown with Bi-Color LED Status Light on door Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled Last Cycle Memory |
Number of Cycles | 6 |
Tub and Door Liner | Stainless Steel |
Sabbath Mode | Yes |
Showroom Power Mode | Yes |
