Manufacturer's Warranty: 1 year

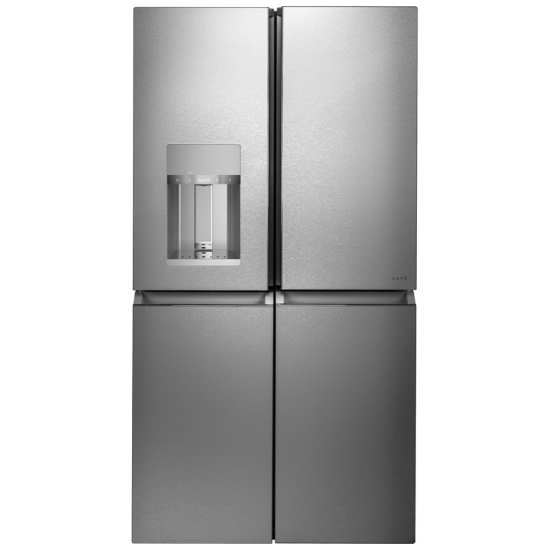

Canadian model: CQE28DM5NS5
Canadian UPC: 084691844082
EAN: 0084691844082
| CAPACITY | |
| Fresh Food Capacity | 15.62 cu ft |
| Total Capacity (cubic feet) | 27.4 cu ft |
| Convertible Drawer Capacity | 5.87 cu ft |
| Freezer Capacity | 11.79 cu ft |
| FILTER | |
| App Filter - Autofill | No |
| App Filter - Icemaker | Yes |
| App Filter - Product Type | Refer French Door |
| App Filter - WiFi Connect | Built-In |
| App Filter - Capacity | Refer Extra Large (25 cu. ft. and above) |
| App Filter - Dispenser | Yes |
| App Filter - Hot Water | Yes |
| APPEARANCE | |
| Case Color | Black |

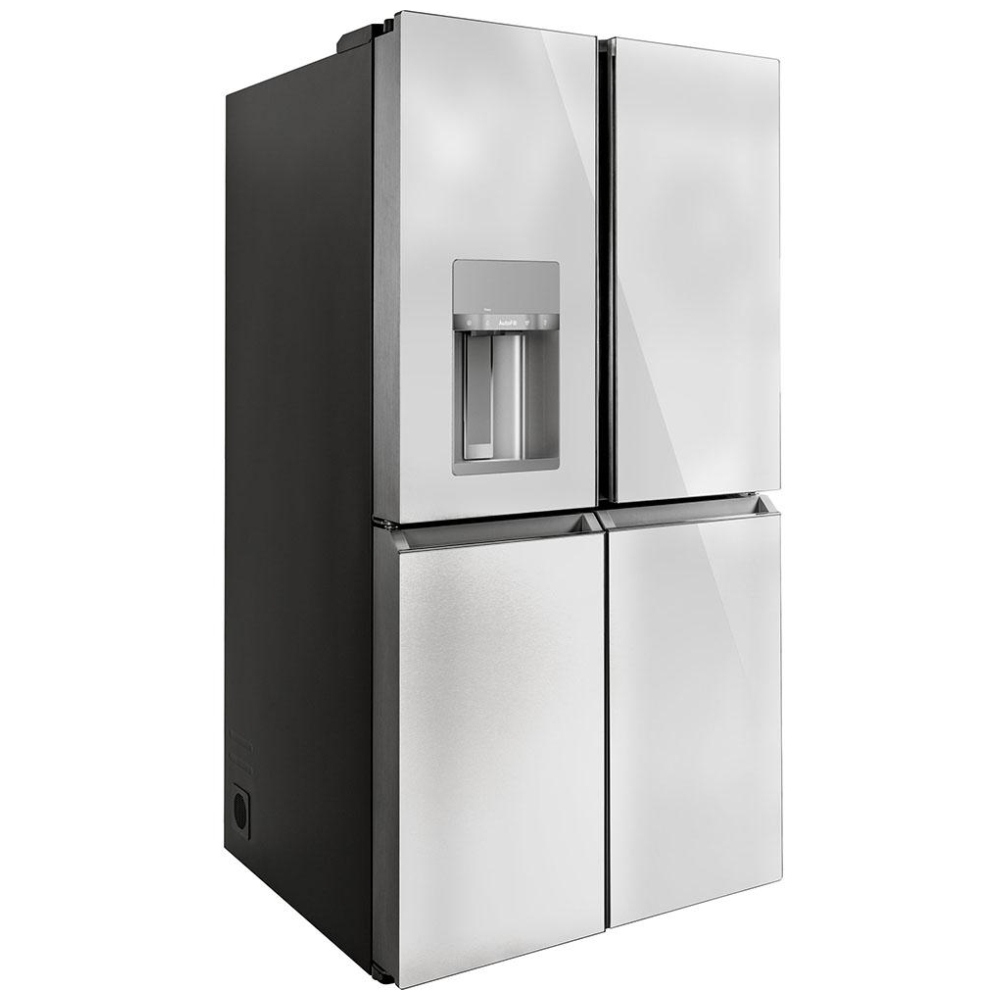

| Exterior Design | Flat Glass Doors Hidden Door Hinges |
| Door Stops | Yes |
| Textured Steel Case | Case Only - Dark Gray |
| Handle Color | Gray |
| Door Swing | Hinges on Left & Right |
| Handle Design | CAFé™ Minimal |

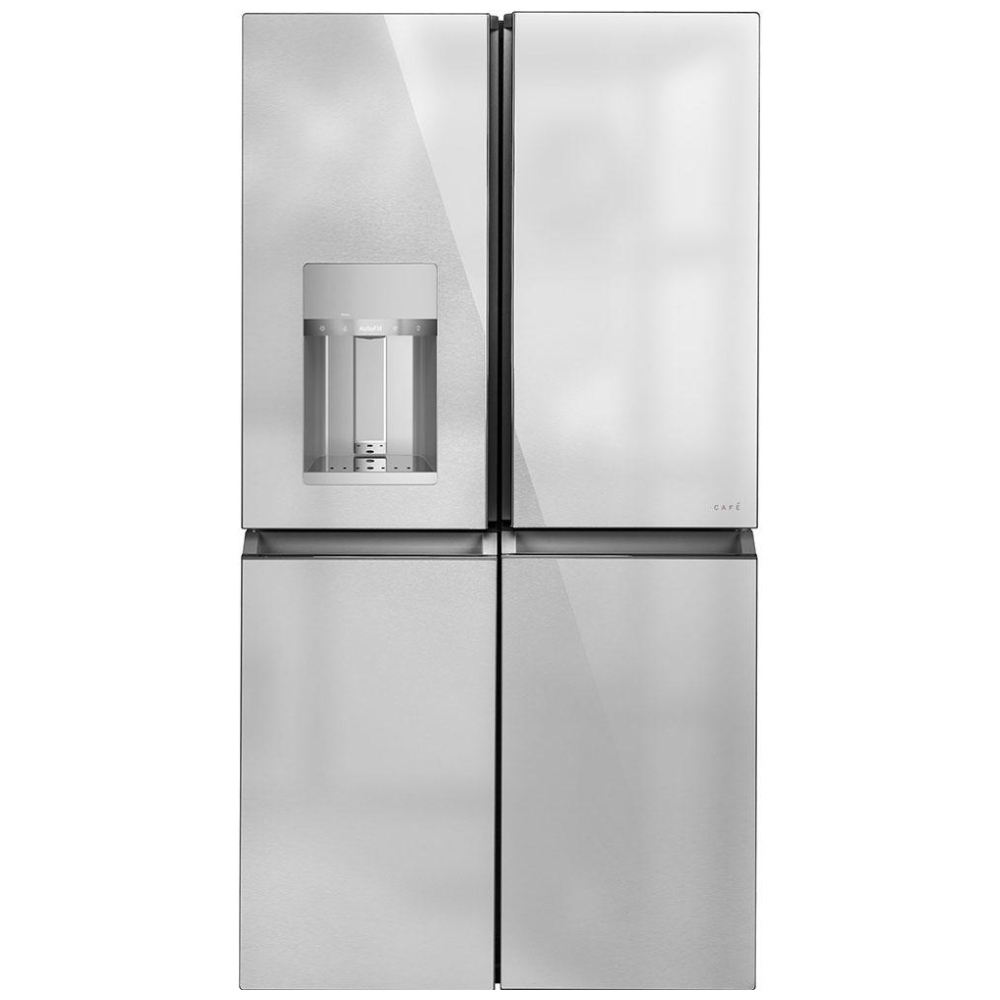

| Color Appearance | Platinum Glass |
| Handle | Extruded Aluminum Integrated Pocket |
| Hidden Door Hinge(s) | Yes |
| POWER / RATINGS | |
| Energy Consumption (kWh/year) | 776 |
| Electrical Requirements | 120V |
| Hertz | 60 |
| Volts/Hertz/Amps | 120V ; 60Hz ; 15A |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Overall Depth | 34.25 in |
| Height to Top of Hinge | 69.75 in |
| Net Weight | 390 lb |
| Overall Width | 35.625 in |
| Back Air Clearances | 2 in |
| Approximate Shipping Weight | 425 lb |
| Depth with Door Open 90° | 48.375 in |
| Width w/Door Open 90 Degrees Incl. Handle | 39.875 in |
| Case Depth Without Door | 29 in |
| Top Air Clearances | 1 in |
| Side Air Clearances | 0.125 in |
| Depth Without Handle | 34.25 in |
| Height to Top of Case | 68.625 in |
| Overall Height | 69.875 in |
| FEATURES | |
| Temperature Management Features | Multiflow Air System |
| Center Drawer Features | 2 Tuck Away Sliding Glass Bin Dividers Convertible Drawer Electronic Temp Control with 5 Settings (Soft Freezer, Meats, Beverages, Snacks, Wine & Control Lock) Full-Extension Slides Removable Drawer Liner |
| Dispenser Features | Door Alarm Hands-Free AutoFill Proximity Activated LED Dispenser Light Water Filter Indicator Light |
| Control Type | Electronic Temperature Controls |
| Icemaker | Space Saving Ice |
| Number of Doors | 4 |
| WiFi Connect | Built-In |
| Performance Features | Deluxe Quiet Design Easily Removable Door Gaskets Triple Evaporator Cooling |
| Sabbath Mode | Optional |
| Filter Location | Left door |
| Freezer Storage Baskets | 1 Beverage Rack 5 Slide-Out Bins (2 Deep Bulk Storage) 6 Total |
| Temperature Management System | Triple Evaporator |
| Connected Capabilities | Amazon Alexa DSM Capable Google Home IFTTT |
| Freezer Door Bins | 1 Fixed 2 Tilt Out 3 Adjustable 6 Total |
| Defrost Type | Frost Guard |
| Fresh Food Door Features | Dairy Compartment |
| Leveling System | 2 Point Front Adjustable |

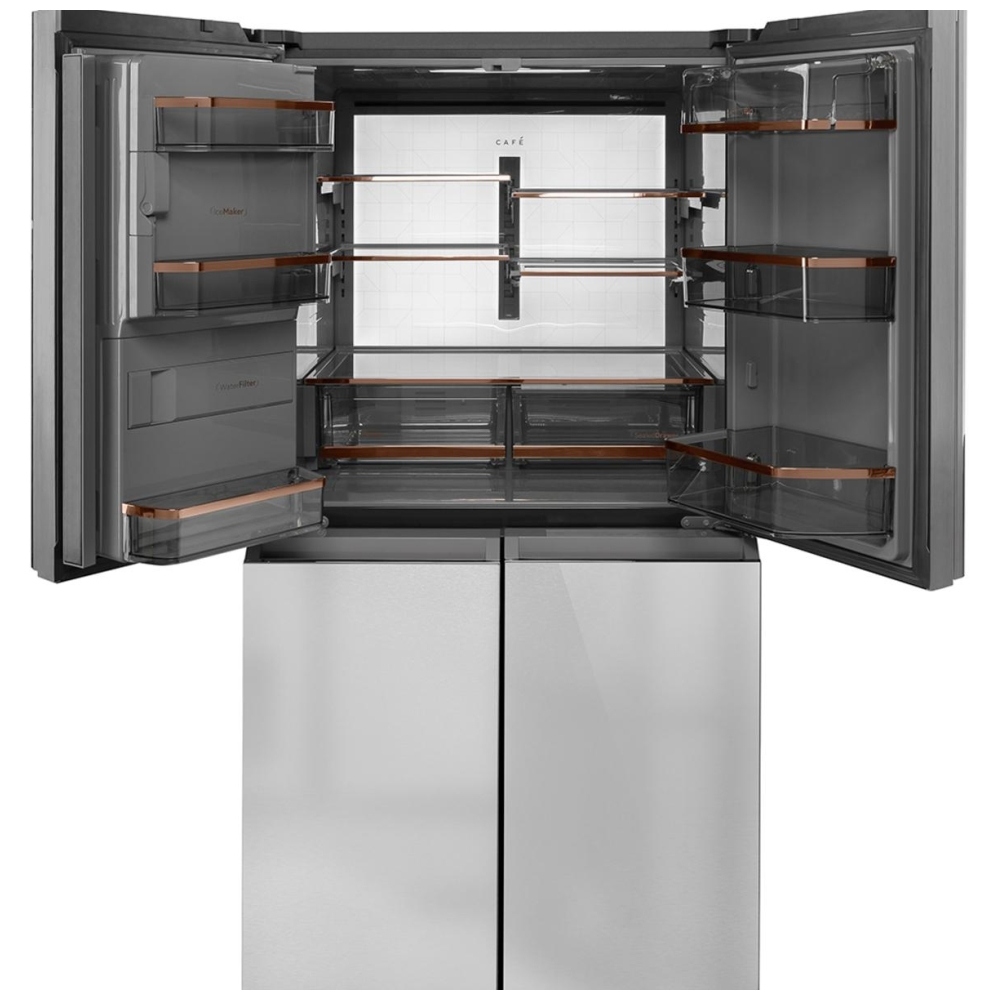

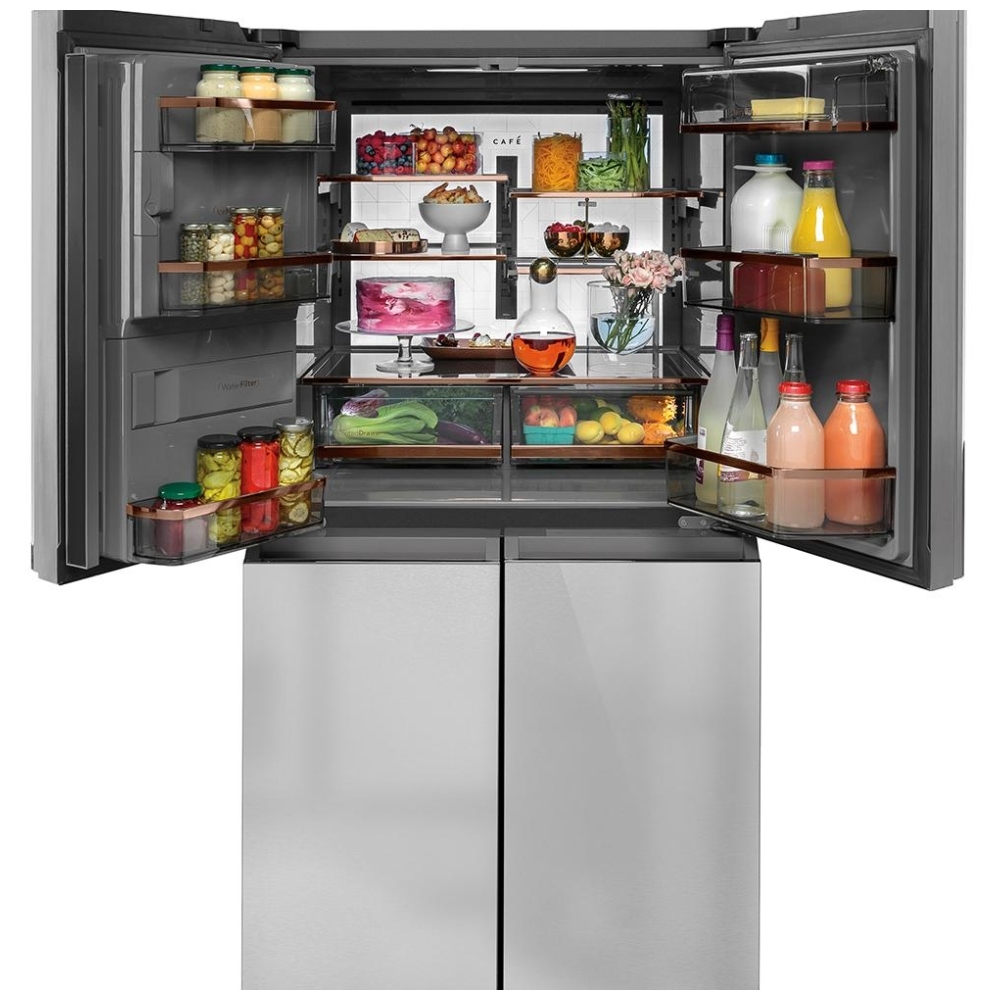

| Fresh Food Cabinet Shelves | 1 Quick Space Shelf 4 Glass Split |
| Mobility Rollers | Yes |
| Fresh Food Door Bins | 2 Adjustable 2 with Gallon Storage 6 Total |
| Standard Zone Quad Door | 3 Door Bins (1 Fixed, 1 Short Tilt-Out and 1 Tall Tilt-Out) Bottom Left Electronic Temp Control Freezer: -6 to 5 (Recommended 0) LED Lighting Two 9" Drawers and One 11" Deep Drawer |
| Freezer Features | 1 Convertible Compartment LED Lighting |
| Exterior Style | Free-Standing Standard Depth |
| Temperature Display | External Digital |
| Fresh Food Features | LED Back Lit Wall |
| Configuration | Quad Door |
| Refrigerant Type | R600a |
| Dispenser | Cubes, Crushed Ice and Chilled Water Large Stainless Steel |
| Fresh Food Cabinet Drawers | 1 Sealed High Humidity 1 Sealed Low Humidity 2 Total |
| Water Filtration | GE Water Filtration (XWFE Filter) Water Filter Indicator Light |

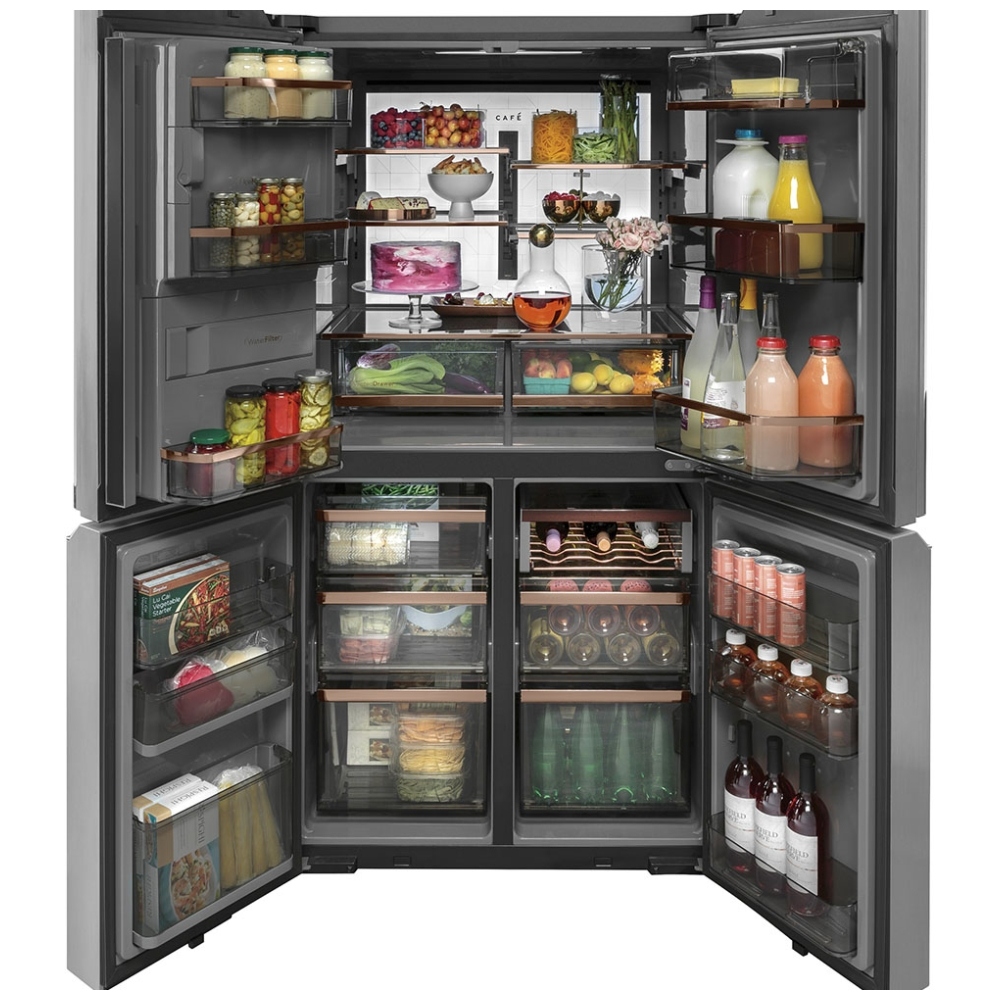

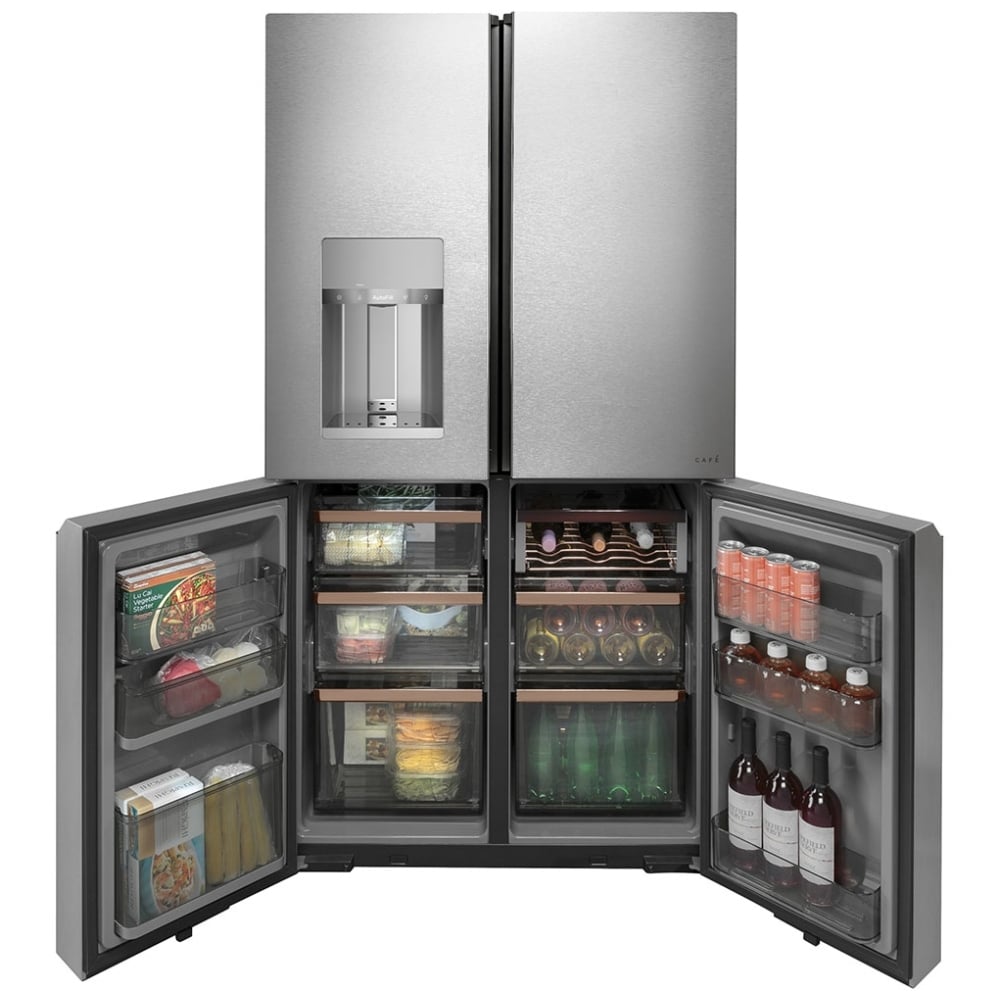

| Freezer Storage | 1 Fixed Door Bin 2 Tilt-Out Door Bins 3 Adjustable Door Bins One Slide Out Wine/Pizza Rack Three 9" Deep Bins Two 11" Deep Bulk Bins |
| Product Type | Bottom Freezer Refrigerator French-Door Refrigerator |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Select Zone Quad Door | 3 Adjustable Bins 3 Temperature Modes (Freezer, Refrigerator, Chiller) 9" and 11" Deep Drawers Bottom Right Chiller: 41 to 43 (Recommend 42) Electronic Temperature Control Freezer: -6 to 5 (Recommend 0) Full Convertible Zone LED Lighting Refrigerator: 34 to 40 (Recommend 37) Slide Out Pizza/Bottle Rack |
