The slim Allasio with 4 3/4" height is ideal where under-cabinet space is limited, plus the contemporary styling and gleaming colors will compliment other appliances and most cabinetry.
Technical features
Allasio is equipped qith a 300 CFM internal blower, which provides sufficient ventilating power for most kitchens. The attractive, backlit push button controls illuminate an elegant blue glow when activated and allows the user to manage blower speeds and dual LED lamps.Dishwasher-safe anodized aluminum mesh filters are easy to clean and a snap to remove and replace. Available in 30" or 36" widths, Allasio is designed for standard ducted installation, and can be installed as a recirculating system, using the Recirculating Kit.
300 CFM, 3 speed
1.6 sones (min.)- 5.0 sones (max.)

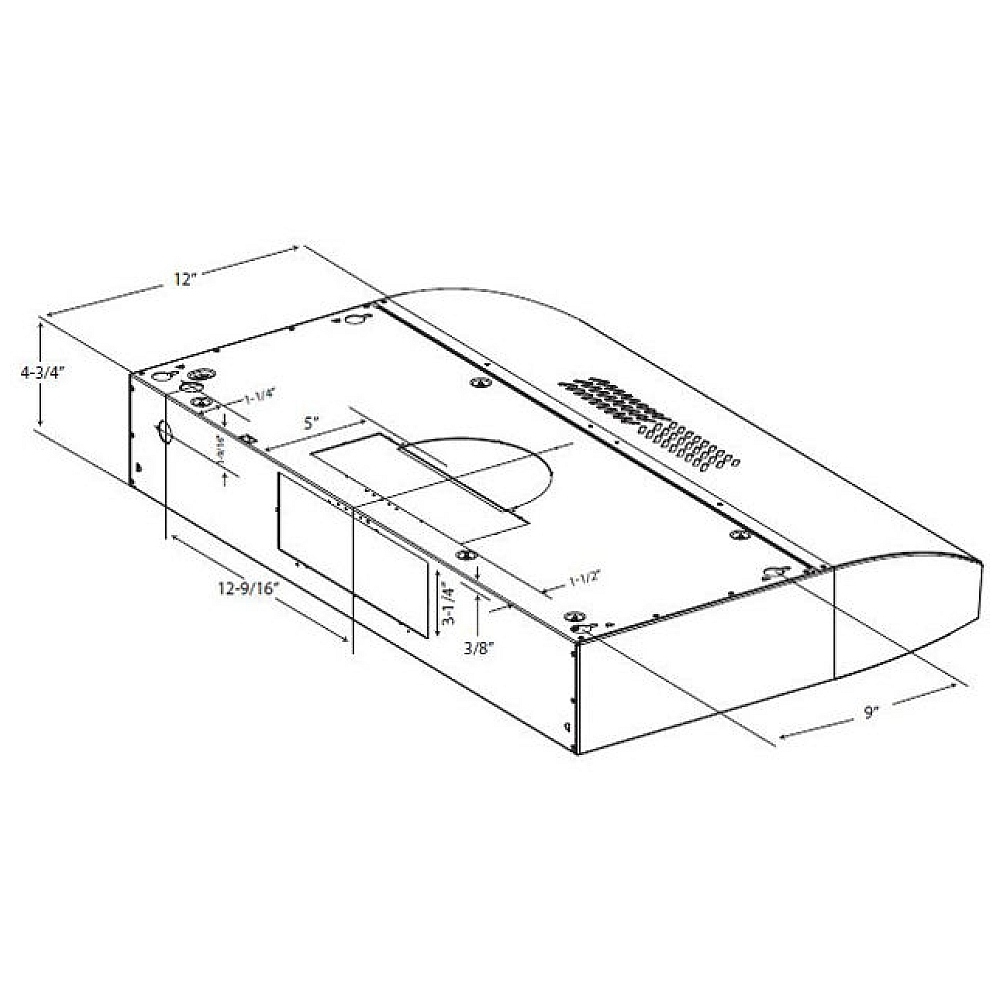

Ducting: Rectangular 3¼'' X 10'' (Top or Rear)
Optional 7'' round duct transition (sold separately)
Halogen lighting, 1 intensity (lightbulbs included)
Dishwasher-safe, Anodized Aluminium Mesh
2 years Warranty | Parts and labour
30'' (W) x 20'' (D) x 4 3/4'' (H)
Manufacturer's Warranty: 2 years
Canadian model: EAL330BL
Canadian UPC: 190603000665
EAN: 0190603000665
| Technical features | |
| Width | 30'', 36'' |
| Sones | 3.8 |
| Extraction capacity | 300 CFM |
| Model | EAL330BL |
| Features | |
| Controls | Soft Touch, illuminated |
| Illumination | 2, 50 Watt Halogen Lamps (Bulbs Not Included) |
| Blower Type | 3-speed, 300 CFM |
| Blower Performance | Speed 1, 120 CFM, 1.6 Sones Speed 2, 210 CFM, 3.5 Sones Speed 3, 300 CFM, 5.0 Sones |
| Filter Type | Dishwasher-Safe, Anodized Aluminium Mesh |
| Ducting | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Duct transition | 3¼’’ X 10’’ (Top or Rear) |
| Exterior Appearence | |
| Stainless Steel grade | 430 |
| Electrical Requirements | |
| Electrical requirements | 120V-60 HZ / 445 Watt at 3.6 Amps |
| Dimensions | |
| Dimensions | 30'' (W) X 20'' (D) X 4¾'' (H) |
| Accessories (optionnal) | |
| 30'' Upgraded Filter | EBLGFK30 | Stainless Steel Mesh Filter Optional, one filter |
| 7'' round duct transition (top) | EXXNRVRD | Backdraft Damper Included |
| Recirculating Kit 30'' | EBLRCK02 |
Install Guide (2.41MB) (EAL330BL-install-guide-canada.pdf)
