Warranty	3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg)	15.20
NET WEIGHT (kg)	11.00
CARTON LENGHT (mm)	389.00
CARTON HEIGHT (mm)	426.00
CARTON WIDTH (mm)	837.00
VOLUMEN (M3)	0.10
SHIPPING WEIGHT (lb)	33.51
NET WEIGHT (lb)	24.25
CARTON LENGHT	15.31
CARTON HEIGHT	16.77
CARTON WIDTH	32.95
COUNTRY OF MANUFACTURE	MX
QTY PACKAGE	1.00
INTENDED APPROVED USE	Residential use
Finish	Stainless Steel
Material	Stainless Steel
Color	inox
Type of Ventilation	Convertible
HOODS FEATURES	Led light Super easy installationTop or rear outlet
WIDTH (IN)	30"
WIDTH (CM)	76.00
AIRFLOW (M3/H)	680.00
CFM (MAX)	400.00
db (min)	11.00
db (max)	51.00
SONES	0.3 - 5.0
EXHAUST VERSION	Convertible with Kit
EXHAUST SIZE	Round 6"
DUCT SHAPE	Round
EXHAUST LOCATION	Top or Rear
RECTANGULAR DUCTH HEIGHT	NA
RECTANGULAR DUCT WIDTH	NA
Round duct diameter	6"
ELECTRIC (VOLTS)	120.00
AMPERAGE	2.2 A
HERTZ	60.00
WATTS	260.00
LIGHTING	LED 2 x 6.5 ww 3000 KK
BULB TYPE	LED
BULB INCLUDED	YES
NUMBER OF LIGHTS	2.00
BULB WATTS	6.50
KELVINS	3000.00
GREASE FILTER TYPE	Dishwasher-safe, Aluminum Mesh + Stainless Steel Layer
DISHWASHERSAFE FILTER	YES
FILTER MATERIAL	Aluminum Mesh
BLOWER TYPE	Interior Unit
CONTROL TYPE	Mechanical Push Button
SPEED CONTROL	YES
NUMBER OF SPEEDS	3.00
REMOTE CONTROL	NO
POWER SOURCE	Power Cord
OUTDOOR USE	NO
SMUDGE RESISTANT	NO
PANEL READY	NO
RECIRCULATION KIT NEEDED	YES
CFM REDUCTION	Yes w/kit
DIMENSIONS (CM)	76 x 30 x 24
DIMENSIONS_x000D_ (INCH)	30" x 12 x 9 1/2
ADJUSTABLE HEIGHT	NO
Minimum Overall Height - Top to Bottom	9 1/2"
Maximum Overall Height - Top to Bottom	14 1/2
Overall Height - Top to Bottom	9 1/2"
Overall Width - Side to Side2	30"
Overall Depth - Front to Back	12"
Hood Height	9 1/2"
Min - Max Compatible Ceiling Height (Cover electronic cooking)	NA
Min - Max Compatible Ceiling Height ( Cover gas cooking)	NA
Minimum Height Above Cooktop (ELECTRIC)	= 24
Minimum Height Above Cooktop (GAS)	= 30
Maximum Height Above Cooktop	36"
Chimney Width - Side to Side	NA
Chimney Depth - Front to Back	NA
Chimney Height - Top to Bottom	NA
RECIRCULATION KIT NUMBER	KIT02770
CHIMNEY EXTENTION NUMBER	NA
TELESCOPIC DUCT COVER	-
DUCT TRANSITION	-
TRANSITION REDUCER KIT	-
BACKDRAFT DAMPER	-
NON RETURN VALVE	-
UPGRADE FILTER	-
CFM REDUCTION KIT	KIT0175561
BACKSPLASS KIT	-
INTERNAL BLOWER	-
INLINE BLOWER	-
EXTERNAL BLOWER	-
INLINE BLOWER SHELL KIT	-
EXTERNAL BLOWER SHELL KIT	-
HEAT LAMPS	-
SPACER/LINER	-
WALL MOUNT BRACKET	-
HIGH CEILING EXTENSION KIT	-
REMOTE CONTROL KIT	-
ETL	YES
UL listed	YES
AHAM verified	YES
TITLE 24	YES
Prop65_x000D_ Disclosure	YES
ENERGY STAR	NO
WIFI CAPABLE	NO
COMERCIAL USE APPROVED	NO
ADA COMPLIANT	NO
APP CAPABLE	NO
VENTILATION DIRECTION	HORIZONTAL
SMART COMPATIBLE	NO
FITLER INDICATOR LIGHT	NO
HEAT SENSOR	NO
CHAROCAL FILTER	YES

Elica EAS430S1

Elica EAS430S1

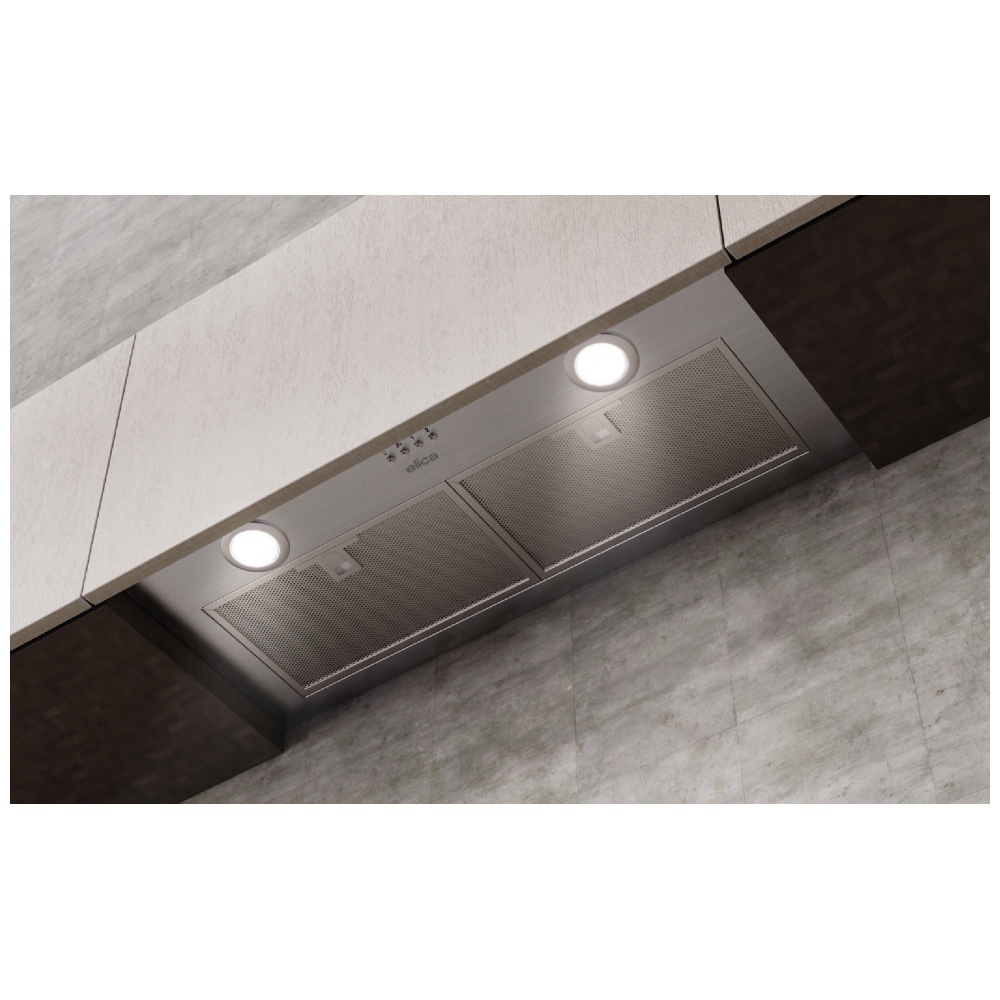

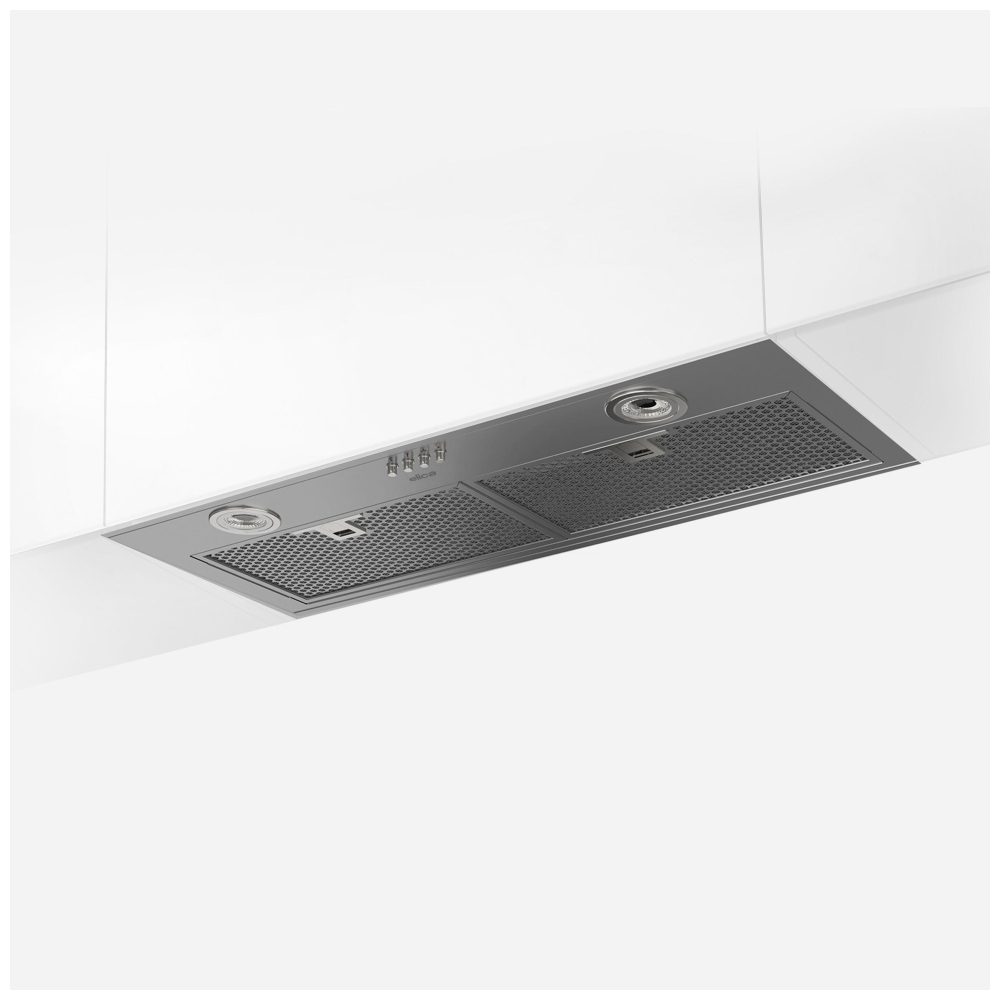

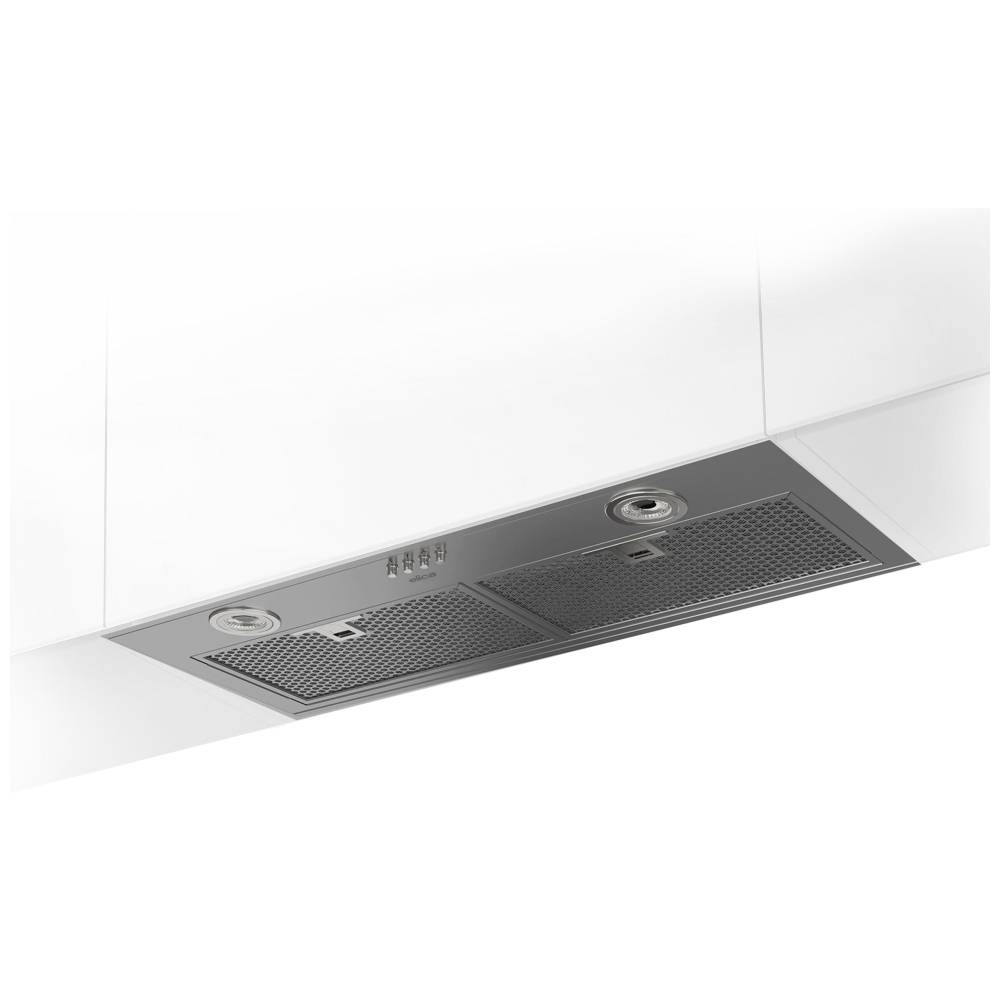

Elica EAS430S1 Cabinet Insert, 30 inch Exterior Width, 400 CFM, LED, Aluminum Mesh Filter, Stainless Steel colour
