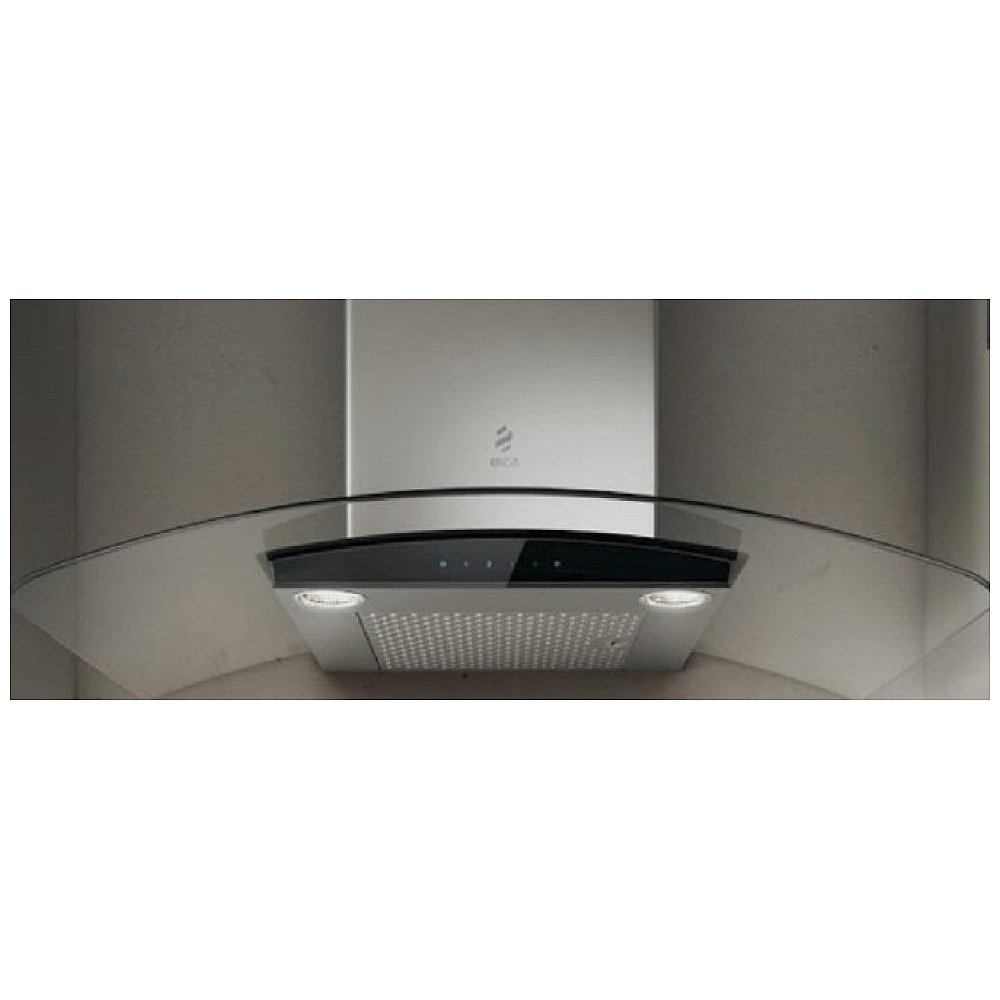

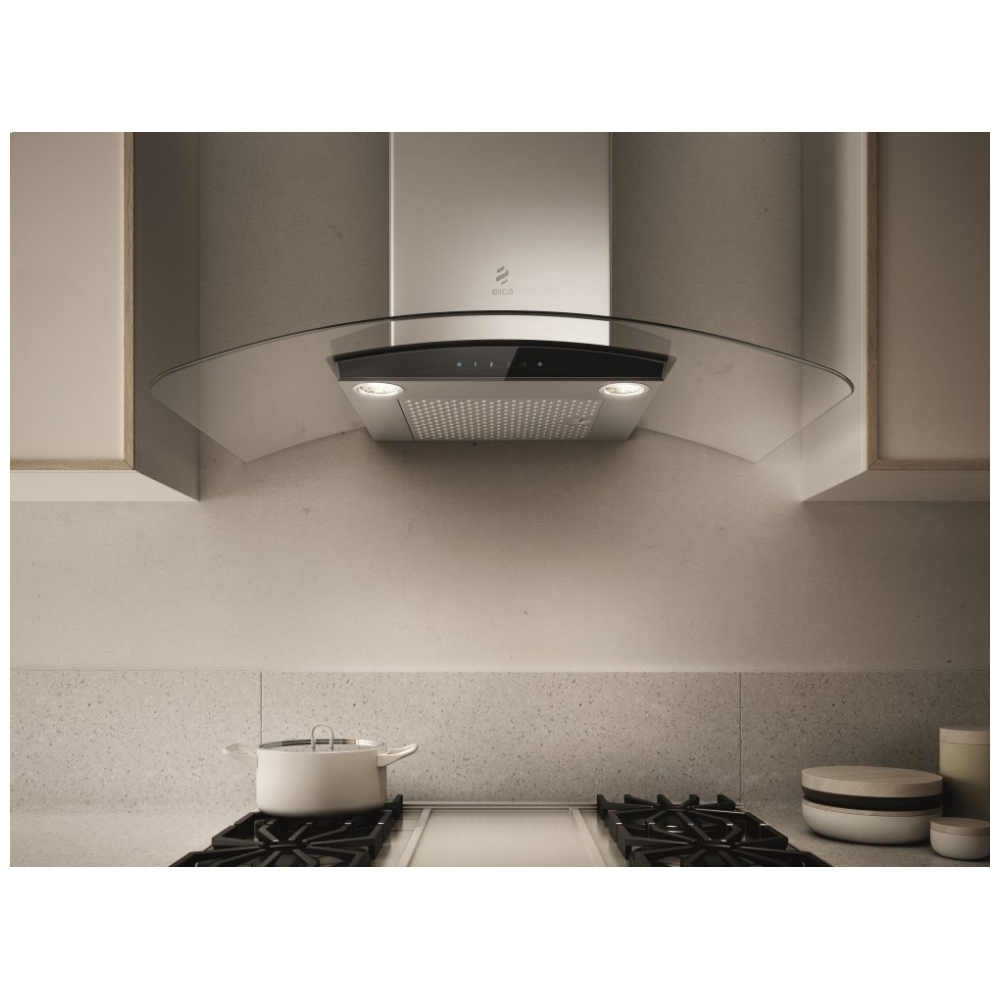

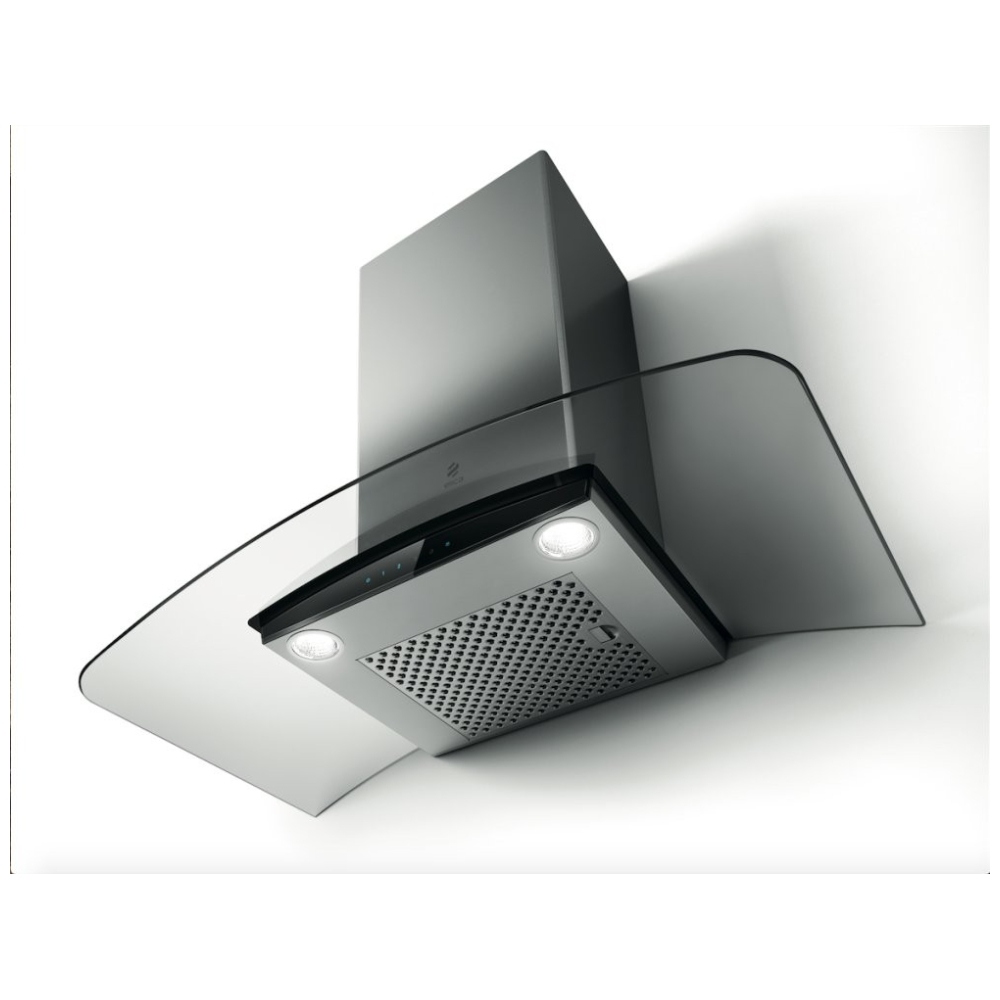

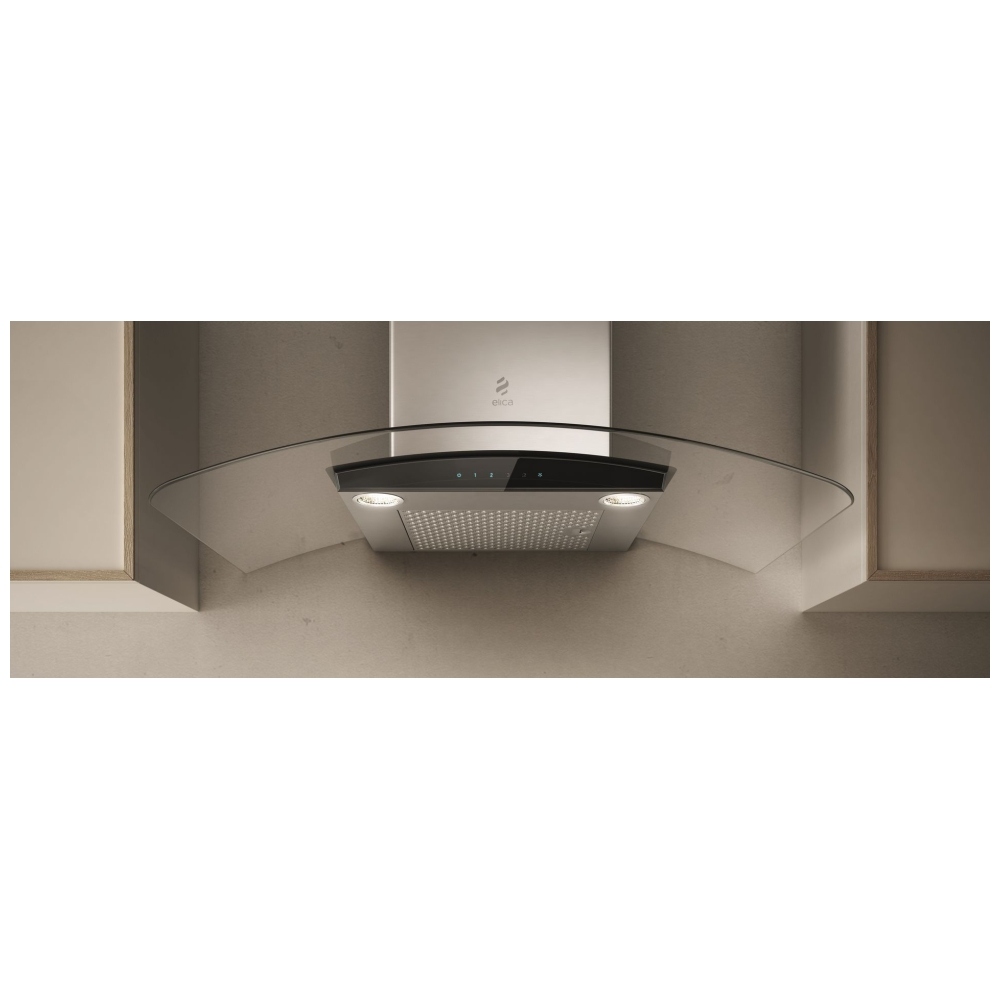

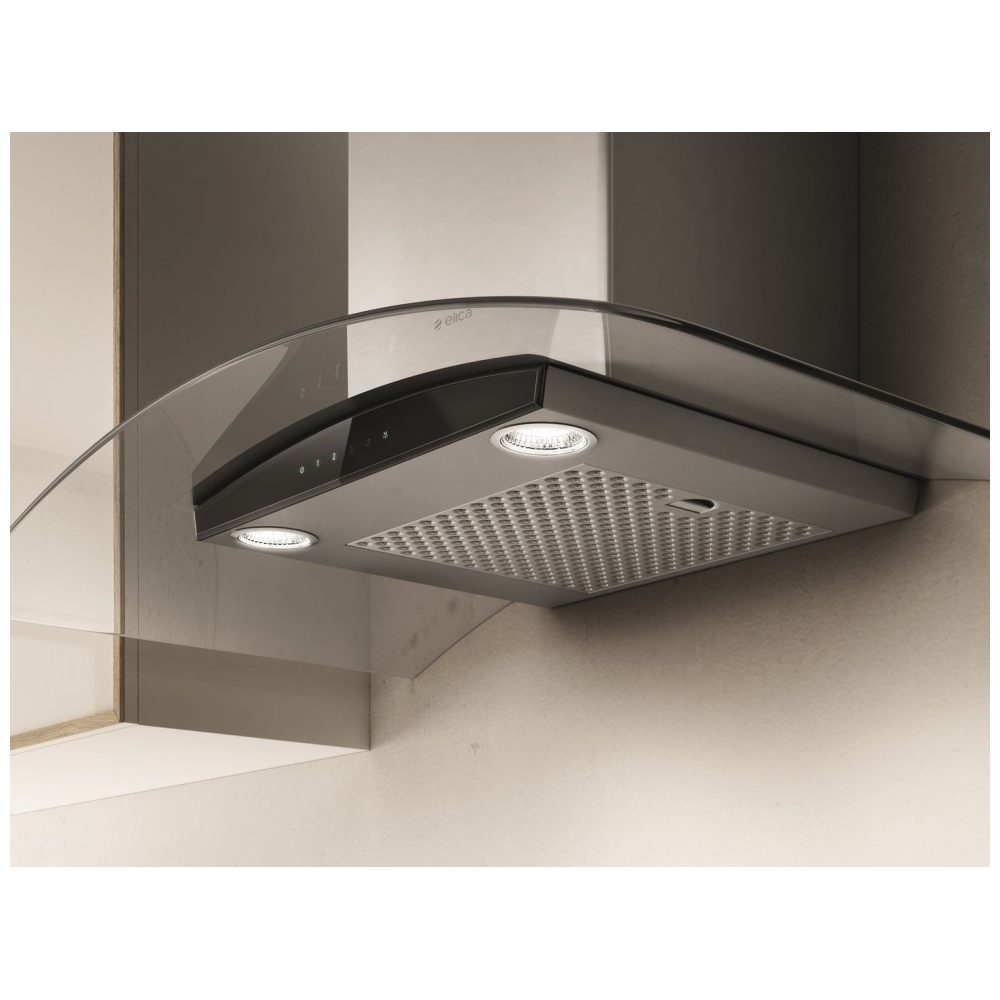

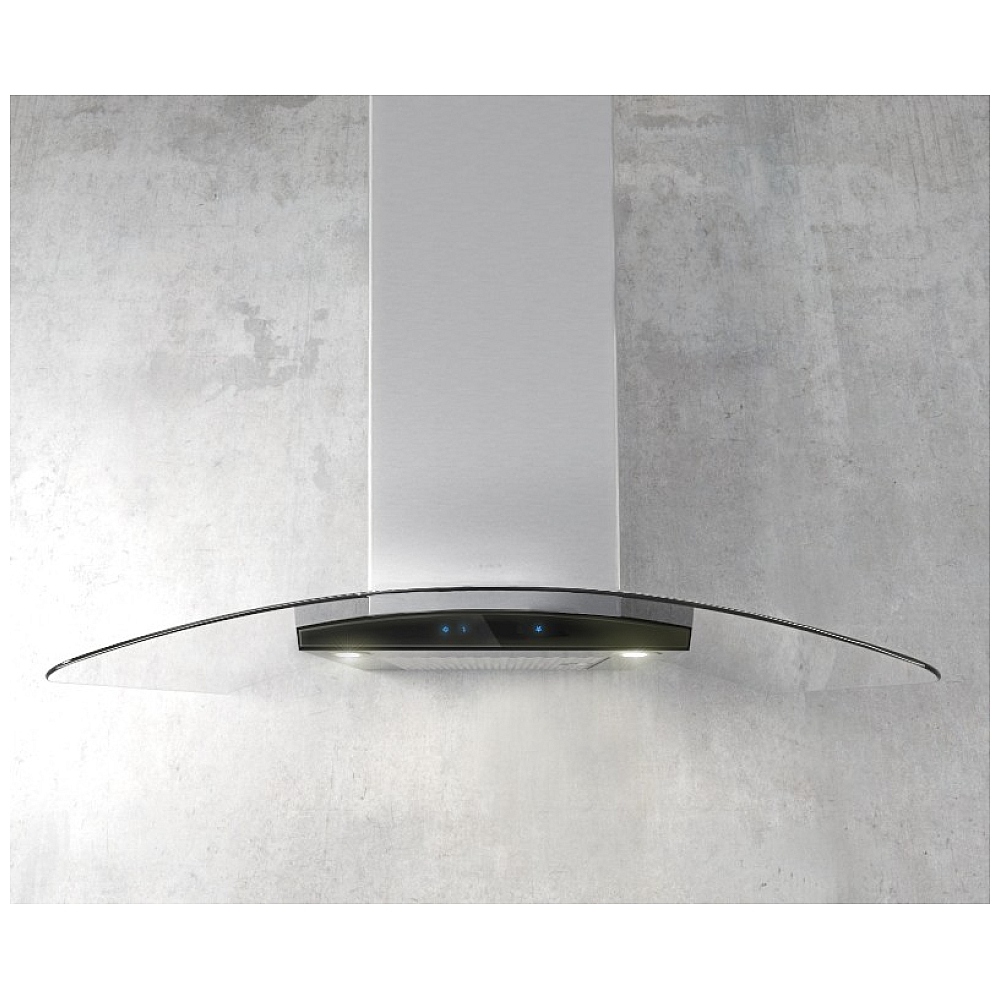

Como combines arched glass wings and stainless steel to create a light and airy environment, making it the perfect centerpiece for any contemporary kitchen. This gently flowing design is powered by a 600 CFM blower that can handle the demands of today s cooktops. Como is equipped with glass touch controls, dimmable LED lighting, and a dishwasher-safe stainless steel microhole filter. Designed for standard ducted installation, Como can also be installed as a recirculating system using the optional recirculating kit.
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- Dim-light
- The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Microhole Filter
- A multi-layered stainless steel filter that uses an offset hole pattern to effectively capture grease with high efficiency, plus offers large volume capacity at ALL blower speeds, silent operation and durability that will last the life of the hood.
- Touch Control
- Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
- Top Performance
- Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
Manufacturer's Warranty: 2 years
Canadian model: ECM630S3
Canadian UPC: 190603001686
EAN: 0190603001686
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 25.60 |
| NET WEIGHT (kg) | 19.90 |
| CARTON LENGHT (mm) | 870.00 |
| CARTON HEIGHT (mm) | 673.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.30 |
| SHIPPING WEIGHT | 56.44 |
| NET WEIGHT | 43.87 |
| CARTON LENGHT | 34.25 |
| CARTON HEIGHT | 26.50 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel + Black Glass |
| Color | inox + glass |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light,Dim light,Top performance,CFM reduction system,Touch controls,Hush system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 36.00 |
| db (max) | 55.00 |
| SONES | 1.7 - 6.8 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3.8 A |
| HERTZ | 60.00 |
| WATTS | 395.00 |
| LIGHTING | Premium Dimmable LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with black glass touch display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS | 76 x 51 x 75 |
| DIMENSIONSinches | 30" x 19 11/16 x 29 11/16" |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 29 11/16" |
| Maximum Overall Height - Top to Bottom | 54 1/6" |
| Overall Height - Top to Bottom | 29 11/16 -54 1/6 |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 19 11/16 |
| Hood Height | 3 7/16 |
| Minimum Compatible Ceiling Height | 7'10" |
| Maximum Compatible Ceiling Height | 10'5" |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13 |
| Chimney Depth - Front to Back | 10 3/4" |
| Chimney Height - Top to Bottom | 50 47/64 " |
| RECIRCULATION KIT NUMBER | KIT02721 |
| CHIMNEY EXTENSION NUMBER | KIT0100315 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| CERTIFICADO NOM | NA |
| Model | ECM630S2 |
| Features | |
| Controls | Electronic Touch Multi-Function Electronic Touch Controls |
| Illumination | 2, 2.5W Premium LED lamps, Infinitely dimmable (bulbs included) |
| Blower Type | 4-speed, 600 CFM |
| CRS CFM Reduction (< 300 CFM) | Included Function |
| Blower Performance | Speed 1, 160 CFM, 1.6 Sones Speed 2, 280 CFM, 3.5 Sones Speed 3, 470 CFM, 6.5 Sones Speed 4, 600 CFM, 8.7 Sones |
| Filter Type | Dishwasher-Safe, Stainless Steel Micro Hole Filter (X1) |
| Ducting | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Duct transition | 6” Round with Back Draft Damper (top) |
| Chimney (ducted out) | For ceiling heights 7'5'' to 10'0'' |
| Chimney (recirculating) | For ceiling heights 7'9'' to 10'9'' |
| Special features | Hush Silence System |
| Exterior Appearence | |
| Stainless Steel grade | 430 |
| Electrical Requirements | |
| Electrical requirements | 120V-60 HZ / 530 Watt at 4.4 Amps |
| Dimensions | |
| Dimensions | 30'' (W) X 19 5/8'' (D) X 1 15/16'' (H) |
| Accessories (optionnal) | |
| Extension Chimney Kit (ducted out) | KIT0100315 | For celling heights 8'5'' to 12'5'' (with appropriate accessories) |
| Extension Chimney Kit (recirculating) | KIT0100315 | For celling heights 8'9'' to 12'9'' (with appropriate accessories) |
| Recirculating Kit | KIT02721 |
