Not available for sale at CAS.
BOW7XA
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Clearance (Floor Models Only)
MSRP Price
$259
Out of Box / Floor Model Sale
from
$55.45
Vaughan Showroom
$55.45
27 Director Crt. Unit 1, Vaughan ON
| Condition: | Perfect (Floor Display) | |
| Purchase: | In store or over the phone | |
| Delivers: | Anywhere in our ON (except Ottawa) delivery zones |
Why Buy This at CAS?
Ratings & Reviews
BOW7XA
Region Availability:
Not Available
When will I get this?
Description & Features
Specs
Manuals
Video
Reviews
Rebates
Warranty
Financing
Install
Delivery

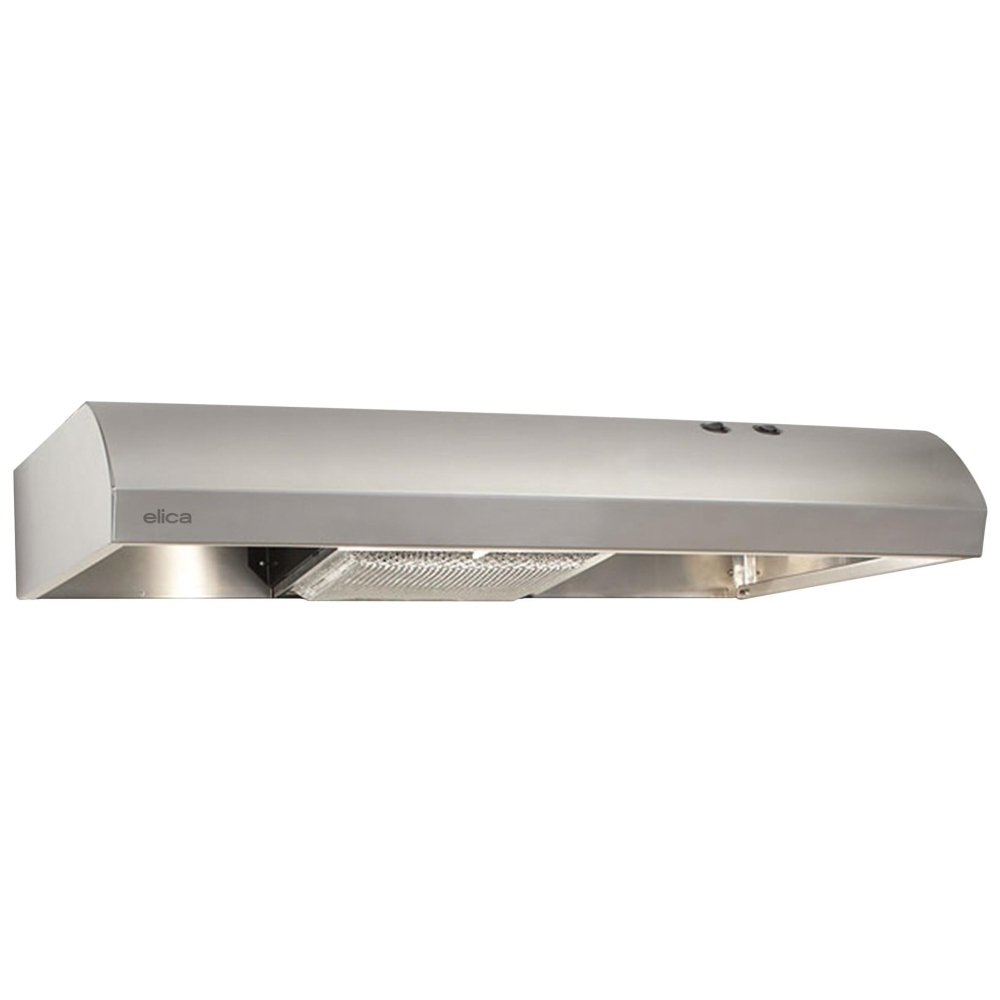

Fusaro has a slender 5 height and soft curves, designed to modernize and perfectly fit kitchens where space is premium. A 2-speed, 190 CFM internal blower provides sufficient ventilating power for most kitchens. Color-coordinated rocker switches control blower speeds and 75W incandescent lightning. The anodized aluminum mesh grease filter is dishwasher-safe and simple to remove and re-install. With a 2 in 1 grease and carbon filter, Fusaro is designed for standard ducted or recirculating installations.
Manufacturer's Warranty: 2 years
Canadian model: EFS130S1
Canadian UPC: 190603005585
EAN: 0190603005585
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 5.80 |
| NET WEIGHT (kg) | 4.90 |
| CARTON LENGHT (mm) | 173.00 |
| CARTON HEIGHT (mm) | 536.00 |
| CARTON WIDTH (mm) | 803.00 |
| VOLUMEN (M3) | 7.2999999999999995E-2 |
| SHIPPING WEIGHT (lb) | 12.79 |
| NET WEIGHT (lb) | 10.80 |
| CARTON LENGHT | 6.81 |
| CARTON HEIGHT | 21.10 |
| CARTON WIDTH | 31.61 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Vented |
| HOODS FEATURES | 3x layer mesh |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 322.00 |
| CFM (MAX) | 190.00 |
| db (min) | 11.00 |
| db (max) | 48.00 |
| SONES | 0.3 - 4.0 |
| EXHAUST VERSION | Convertible |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 7" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 1.1 A |
| HERTZ | 60.00 |
| WATTS | 110.00 |
| LIGHTING | Incandescent lamp 1 x 1.75 ww |
| BULB TYPE | Incandescent lamp |
| BULB INCLUDED | NO |
| NUMBER OF LIGHTS | 1.00 |
| BULB WATTS | 1.75 |
| KELVINS | NA |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Rocker Switches |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 2.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | NO |
| CFM REDUCTION | NA |
| DIMENSIONS (CM) | 76 x 47 x 12.5 |
| DIMENSIONS (INCH) | 30" x 18 5/8" x 5" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 4 15/ |
| Maximum Overall Height - Top to Bottom | 4 15/ |
| Overall Height - Top to Bottom | 4 15/ |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 18 5/8" |
| Hood Height | 4 15/ |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | NA |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | NA |
| CHIMNEY EXTENTION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | KIT02722 |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | KIT02723 |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
Model
- Brand:Elica
- Warranty Info:
Appearance
Details
- Duct Type:Both
- Venting Type:Ducted
- Blower Type:Internal
- Mounting Type:Under Cabinet
- Commercial:No
- Vent Location:Top or Rear
- CFM:190 CFM
- Approved for Outdoor Use:No
- Make-Up Air Compliant:No
- Number of Light Bulbs:1
- Light Bulb Type:Incandescent
- Number of Fan Speeds:2
- Filter Type:Mesh
- Fan:Yes
- Light:Light Bulbs Not Included
Electrical Specifications
Certification
- Energy Star:No
Dimensions
- Exterior Width:30"
- Duct Length:10"
- Duct Width:3.25"
- Height:4.9375"
- Depth:18.75"
- Width:29.9375"
Technical Details
- Weight:40.00 lbs
INSTALL INSTRUCTIONS (EFS130S1-install-instructions-canada.pdf)
