Elica EIL640WH
Discontinued
AFP1BG
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Ratings & Reviews
AFP1BG
When will I get this?

Description & Features
First panel-ready ceiling hood in the market, perfectly fitting the ceiling texture of the living space, disappearing like a true Illusion. Also naturally saves valuable kitchen space and frees the area of inconvenient obstructions cleverly hiding a powerful extraction system that guarantees always clean air in the living space. Combining discreet shapes and high performance, Illusion has been created for consumers who ask for an essential and bespoke style without compromising on functionality.

  • Special Material
  • In the quest for attractive products to show off but which have a functional, everyday use, materials play a key role. They can make the difference by becoming an attractive signature feature or by disappearing into the background and by being easy to maintain in the long term. They are fundamental in the process of innovation, forming the basis of an attractive look and a fulfilling user experience. Elica selects materials in which sturdiness, easy cleaning and aesthetic impact are combined in a perfect balance. The wide selection of finishes available offers maximum freedom of choice whatever the setting.
  • Super Easy Installation
  • With the exclusive Elica system, installation can be done in total safety in just a few steps, safeguarding the look of the product and the space in which it is positioned. After the hood is automatically locked in position, the fastening points can be finely adjusted to preserve the linear design of the kitchen and ensure perfect integration of the hood in the room. A simple, hard-wearing and safe solution.
  • Dim Light
  • The light in the kitchen, as in any room, is a key design feature for improving the home living experience. Achieving the right intensity becomes fundamental in creating the desired atmosphere. Which is why Elica has designed the Dim light function which allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.
  • Remote Control
  • Elica s ADA compliant Remote Control, provides added convenience to the typical user, as well as, full function access for those with limited mobility.
  • Tune-White
  • Elica is at the top also with the customization of kitchen lighting, thanks to the use of the led strip with the GK Changing feature which, during the installation phase, allows you to choose to adapt the hood light with other lighting in the kitchen, by adjusting the temperature of leds, choosing from a range that goes from yellow light (2700 K) to white light (6000 K). The kitchen, thanks to the hood, will have uniform cool lightning.

Manufacturer's Warranty: 2 years

Canadian model: EIL640WH

Canadian UPC: 190603003994

EAN: 0190603003994

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 32.60
NET WEIGHT (kg) 23.90
CARTON LENGHT (mm) 678.00
CARTON HEIGHT (mm) 385.00
CARTON WIDTH (mm) 1108.00
VOLUMEN (M3) 0.27
SHIPPING WEIGHT (lb) 71.87
NET WEIGHT (lb) 52.69
CARTON LENGHT 26.69
CARTON HEIGHT 15.16
CARTON WIDTH 43.62
COUNTRY OF MANUFACTURE PL
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel White
Material Stainless Steel
Color white
Type of Ventilation Convertible
HOODS FEATURES Special materials, Tune white, Long life filter, Dim light, Total integration, Super easy installation, Remote control, Perimeter aspiration
WIDTH (IN) 40"
WIDTH (CM) 101.60
AIRFLOW (M3/H) 1020.00
CFM (MAX) 600.00
db (min) 36.00
db (max) 55.00
SONES 1.8 - 6.8
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 6"
DUCT SHAPE Round
EXHAUST LOCATION Multidirectional
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 6"
ELECTRIC (VOLTS) 120.00
AMPERAGE 4A
HERTZ 60.00
WATTS 578.00
LIGHTING Dimmable Strip LED 2 x 14 W 3500 K
BULB TYPE Strip LED
BULB INCLUDED YES
NUMBER OF LIGHTS 2.00
BULB WATTS 14.00
KELVINS 3500.00
GREASE FILTER TYPE Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Aluminum Mesh
BLOWER TYPE Interior Unit
CONTROL TYPE Remote control
SPEED CONTROL YES
NUMBER OF SPEEDS 3 + booster
REMOTE CONTROL YES
POWER SOURCE Power Cord
OUTDOOR USE NO
SMUDGE RESISTANT NO
PANEL READY NO
RECIRCULATION KIT NEEDED YES
CFM REDUCTION No

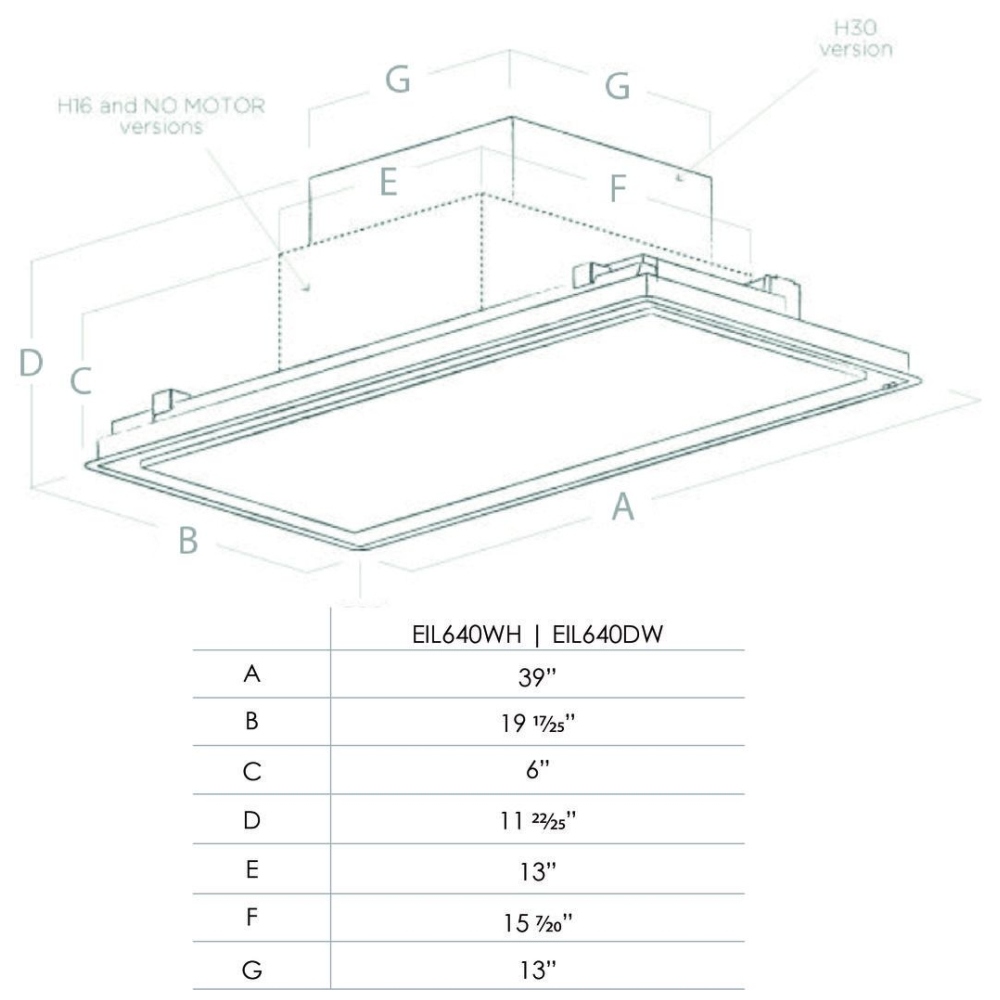

DIMENSIONS (CM) 101.6 W x 50.01 D x 28.58 H
DIMENSIONS (INCH) 40" W x 19 11/16 D x 11 /4 H
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom NA
Maximum Overall Height - Top to Bottom NA
Overall Height - Top to Bottom NA
Overall Width - Side to Side2 40"
Overall Depth - Front to Back 19 11/16
Hood Height 11 1/4"
Min - Max Compatible Ceiling Height (Cover electronic cooking) NA
Min - Max Compatible Ceiling Height ( Cover gas cooking) 10'0"
Minimum Height Above Cooktop (ELECTRIC) 24
Minimum Height Above Cooktop (GAS) 30
Maximum Height Above Cooktop 9'
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT0167875
CHIMNEY EXTENTION NUMBER NA
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT -
BACKSPLASS KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT -
EXTERNAL BLOWER SHELL KIT -
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT KIT0121469
ETL YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65 Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT YES
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT YES
HEAT SENSOR NO
CHAROCAL FILTER YES
