Not available for sale at CAS.
BRVPFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Ratings & Reviews
BRVPFF
Region Availability:
Not Available
When will I get this?
Description & Features
Specs
Manuals
Video
Reviews
Rebates
Warranty
Financing
Install
Delivery

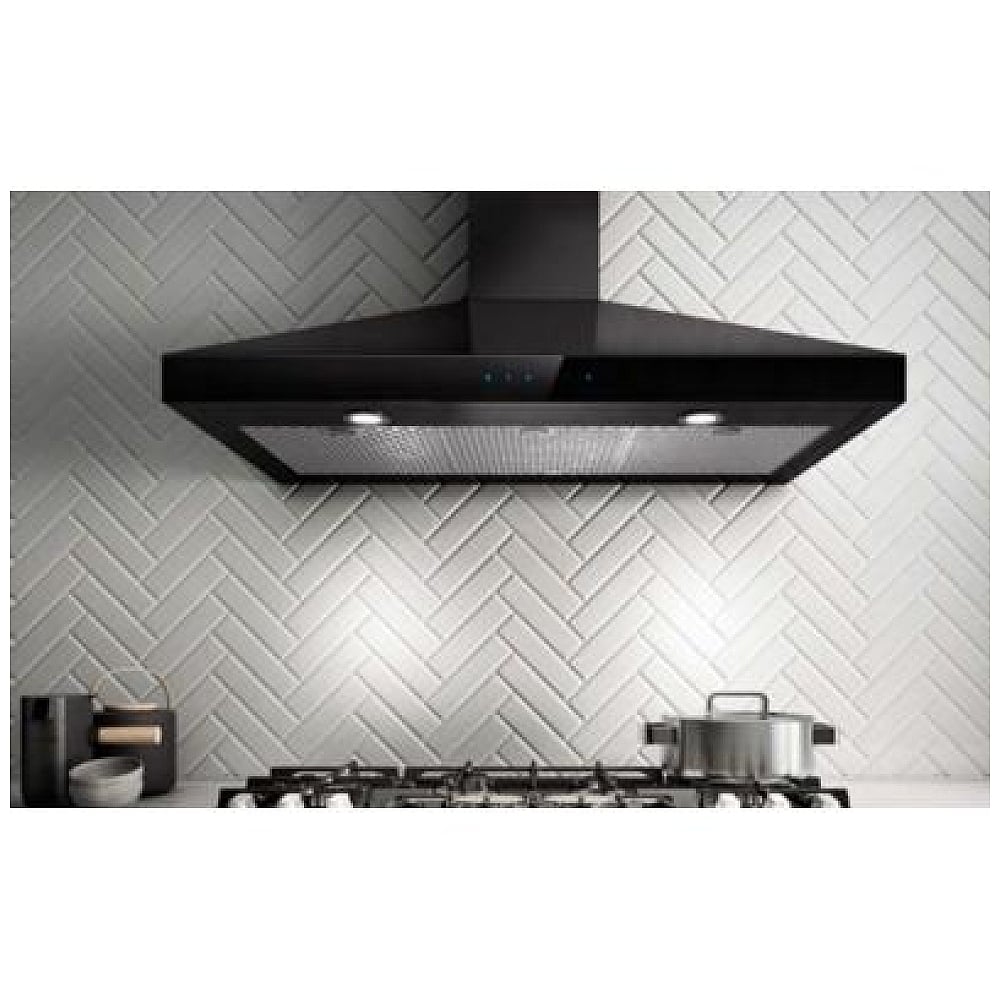

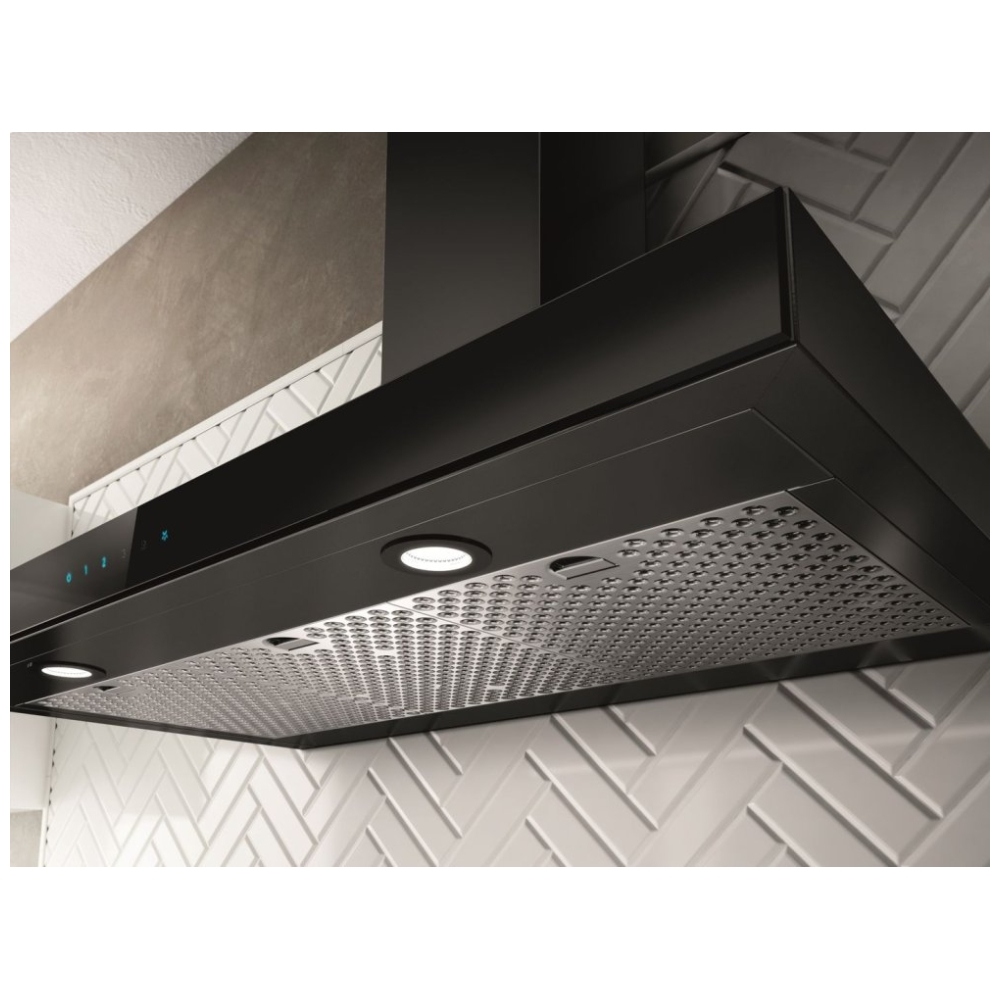

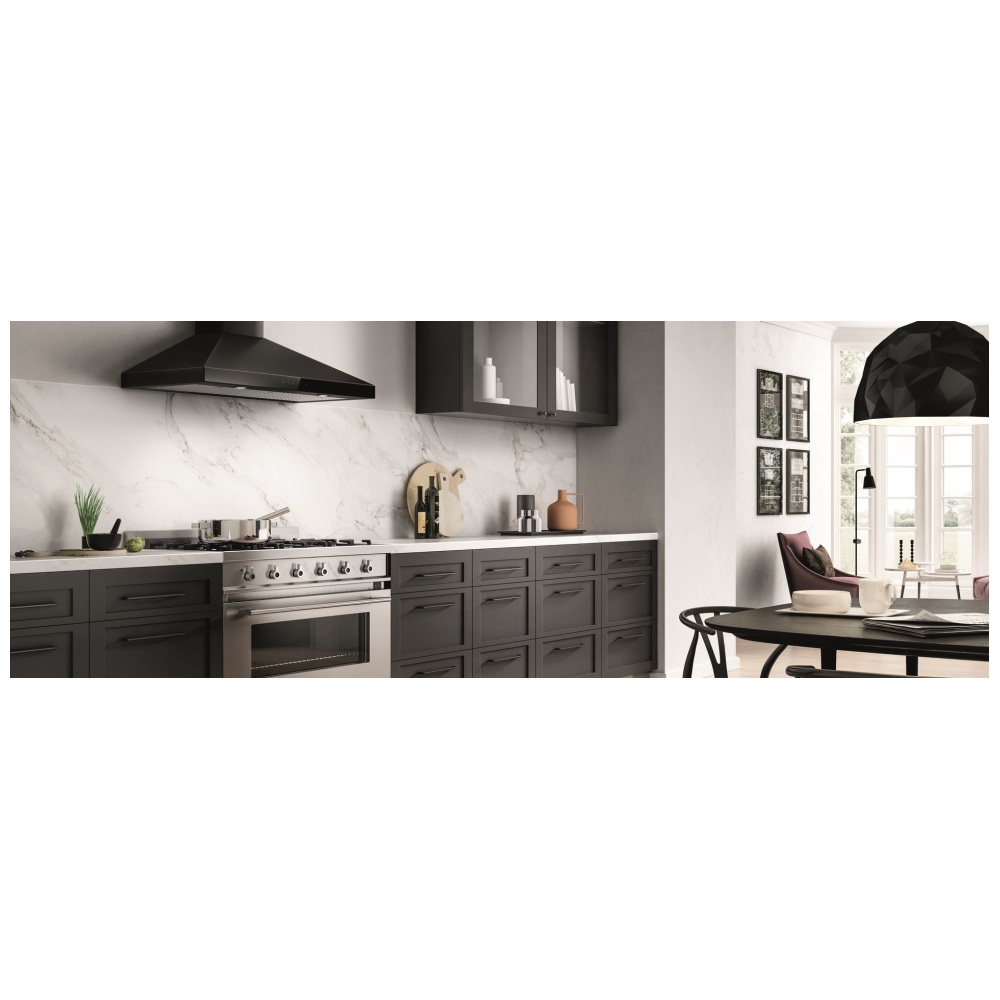

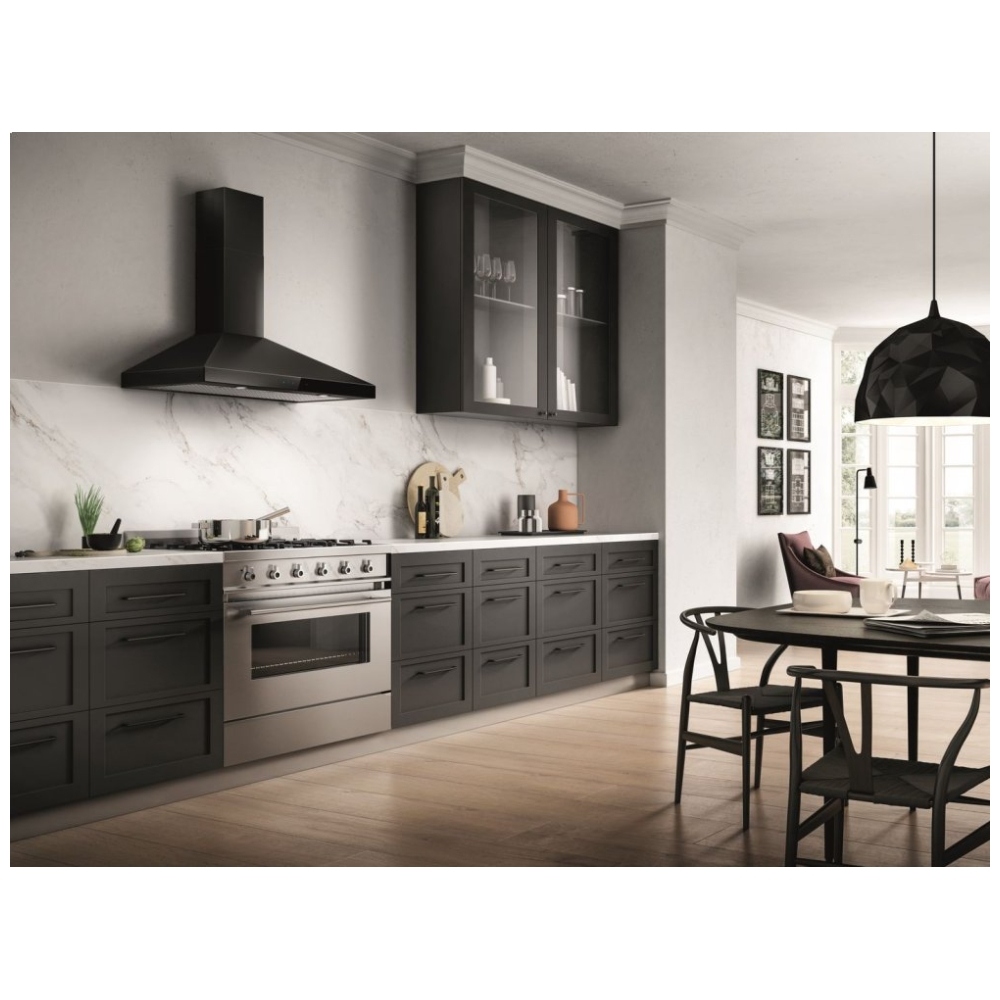

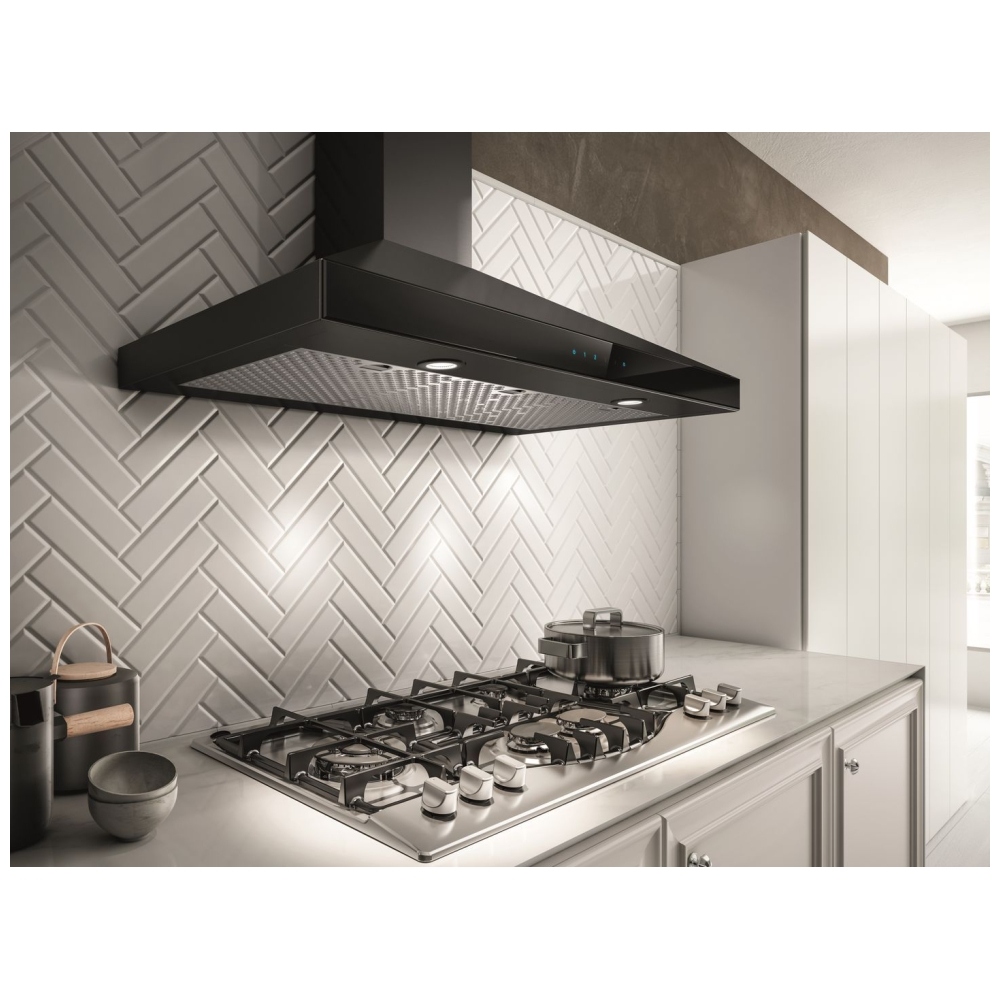

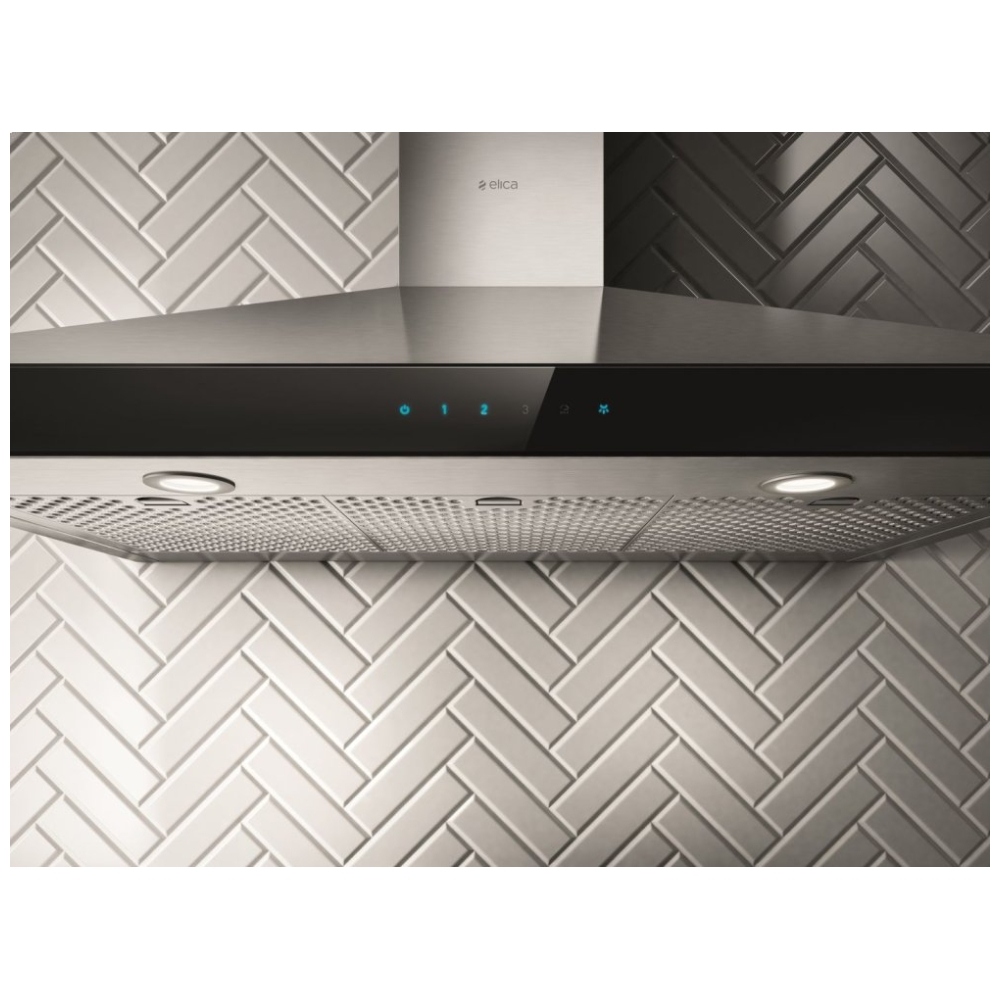

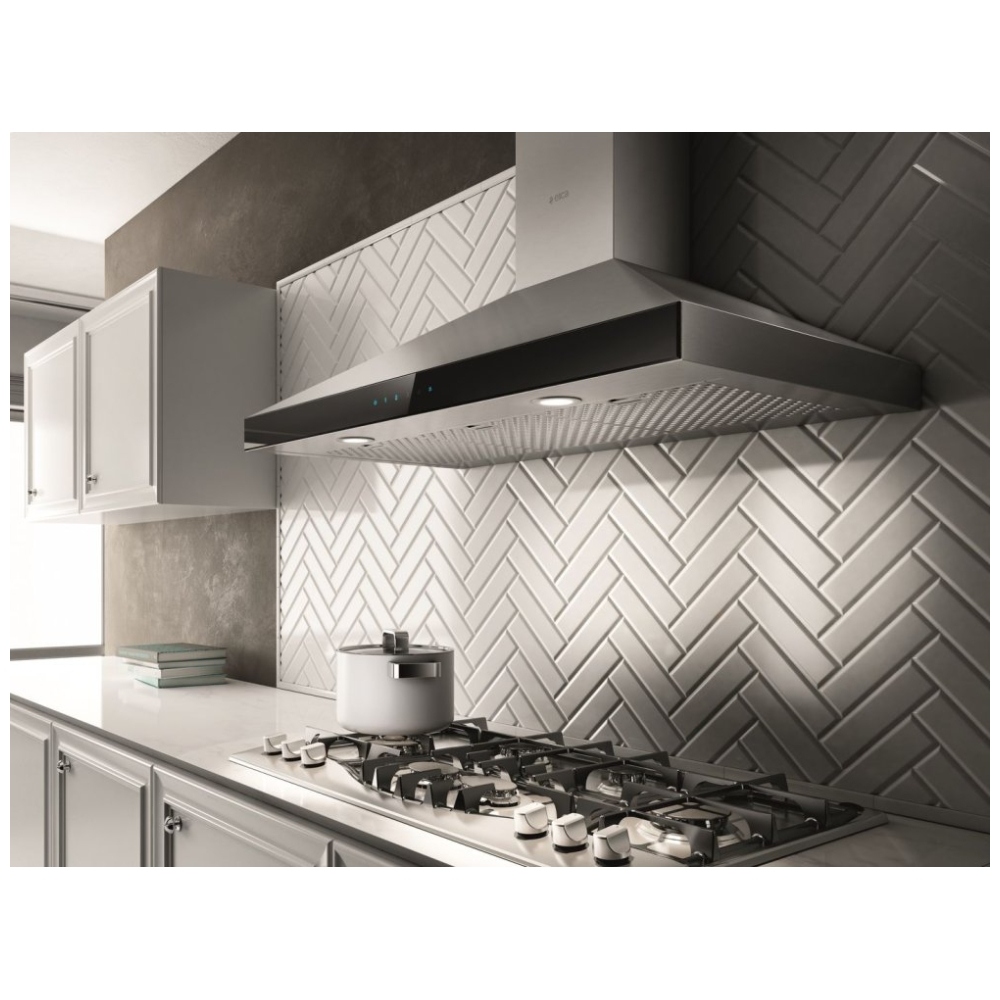

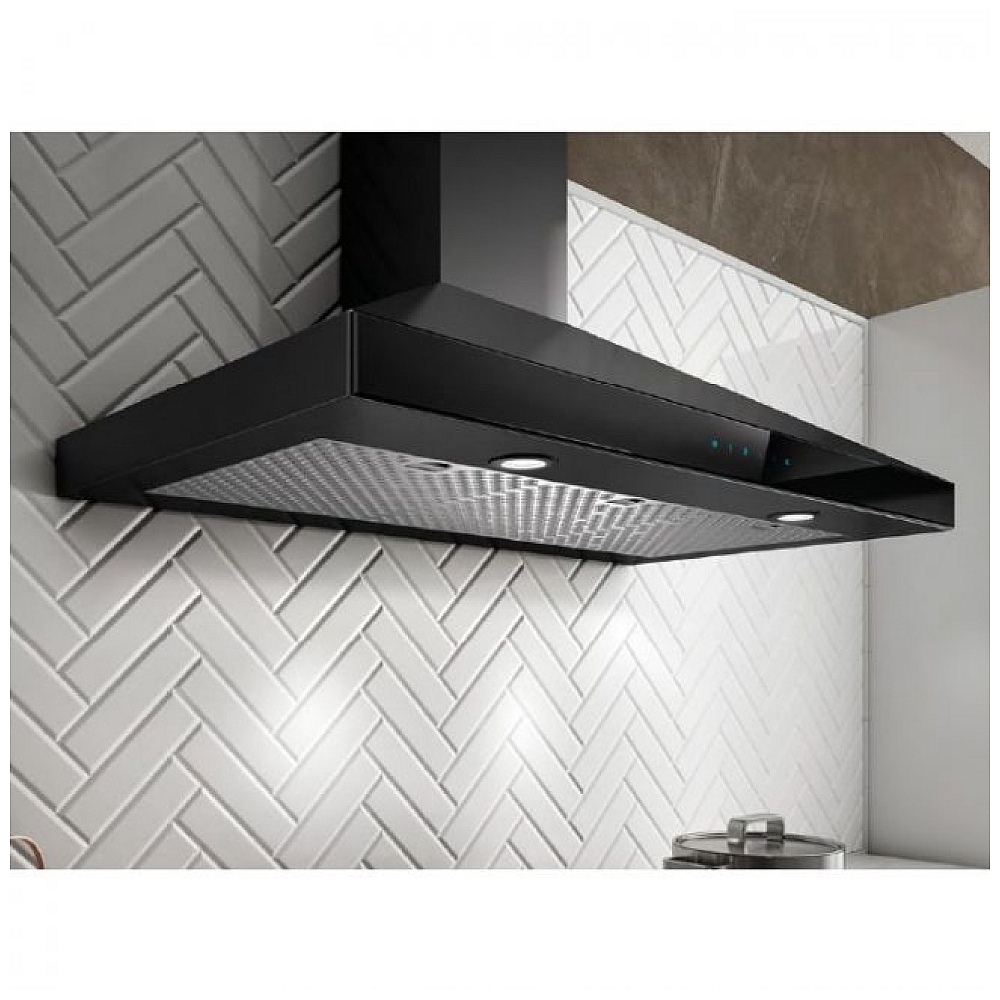

The clean lines, beautiful sloping angles, and stainless-steel finish of Varna make a striking visual statement. Available in 30" and 36" widths, Varna features a powerful 600 CFM blower, dimmable LED lighting, a dishwasher-safe stainless steel micro hole filter, and easy-to-use glass capacitive touch controls for convenience and safety. Designed for standard ducted installation, Varna can also be installed as a recirculating system using the optional kit
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- Dim-light
- The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
- Hush System
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- Touch Control
- Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.
- Top Performance
- Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.
Manufacturer's Warranty: 2 years
Canadian model: EVR636BL
Canadian UPC: 190603002102
Similar to USA UPC: 190603002102
EAN: 0190603002102
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 21.90 |
| NET WEIGHT (kg) | 16.40 |
| CARTON LENGHT (mm) | 1027.00 |
| CARTON HEIGHT (mm) | 675.00 |
| CARTON WIDTH (mm) | 369.00 |
| VOLUMEN (M3) | 0.26 |
| SHIPPING WEIGHT (lb) | 48.28 |
| NET WEIGHT (lb) | 36.16 |
| CARTON LENGHT | 40.43 |
| CARTON HEIGHT | 26.57 |
| CARTON WIDTH | 14.53 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Black Stainless Steel + Glass |
| Material | Stainless Steel |
| Color | black |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Touch controls, Hush system Led light, Top performance, CFM reduction system, Dim light |
| WIDTH (IN) | 36" |
| WIDTH (CM) | 90.00 |
| AIRFLOW (M3/H) | 1020.00 |
| CFM (MAX) | 600.00 |
| db (min) | 15.00 |
| db (max) | 52.00 |
| SONES | 0.4 - 5.2 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 3,7 A |
| HERTZ | 60.00 |
| WATTS | 265.00 |
| LIGHTING | Premium Dimmable LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Stainless Steel Microhole Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Multi-function Electronic with black glass touch display |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3 + booster |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS (CM) | 91 x 50 x 75 |
| DIMENSIONS (INCH) | 36" x 19 11/16" x 28 3/8" |
| ADJUSTABLE HEIGHT | YES |
| Minimum Overall Height - Top to Bottom | 28 3/8" |
| Maximum Overall Height - Top to Bottom | 42 1/8" |
| Overall Height - Top to Bottom | 28 3/8"-42 1/8" |
| Overall Width - Side to Side2 | 36" |
| Overall Depth - Front to Back | 19 11/16" |
| Hood Height | 10" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | 7'5" |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 9'1 |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 8 3/16" |
| Chimney Depth - Front to Back | 7 3/16" |
| Chimney Height - Top to Bottom | 32 1/4" |
| RECIRCULATION KIT NUMBER | KIT02766 |
| CHIMNEY EXTENTION NUMBER | KIT0140998 |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| Selected Model | |
| Color | Stainless Steel |
| Model number | EVR636BL |
| Model also available | |
| Stainless Steel | EVR636S2 |
| Dimensions | |
| Dimensions | 36'' (W) X 19 11/16'' (D) X 10 1/4'' (H) |
| Exterior Appearence | |
| Stainless Steel grade | 430 |
| Features | |
| Controls | Multi-Function Electronic Touch Controls with LCD display |
| Illumination | 2, 2.5W Premium LED lamps, Infinitely dimmable (bulbs included) |
| Blower Type | 4-speed, 600 CFM |
| CRS CFM Reduction (< 300 CFM) | Included Function |
| Blower Performance | Speed 1, 160 CFM, 1.7 Sones Speed 2, 280 CFM, 3.3 Sones Speed 3, 475 CFM, 6.0 Sones Speed 4, 600 CFM, 8.2 Sones |
| Filter Type | Dishwasher-Safe, Stainless Steel Micro Hole Filters (X3) |
| Ducting | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Duct transition | 6” Round with Back Draft Damper (top) |
| Chimney (ducted out) | For ceiling height 7'5'' to 9'1'' |
| Chimney (recirculating) | For Ceiling height 7'5'' to 9'6'' |
| Special features | Hush Silence System |
| Electrical Requirements | |
| Electrical requirements | 120V-60 HZ / 265 Watt à 2 Amps |
| Accessories (optionnal) | |
| Extension Chimney Kit (ducted out) | KIT0140998 | For ceiling height 8.5'' à 11'3'' (with appropriate accessories) |
| Extension Chimney Kit (recirculating) | KIT0140998 | for ceiling height 8'6'' to 11'17'' (with appropriate accessories) |
| Recirculating Kit | KIT02766 (For 30'' &36'' includes 6 deflectors and 2 carbon filters) |
| Warranty | |
| Complete 2 years warranty | Entire Appliance; In-Home; Parts & Labour |
INSTALLATION MANUAL (EVR636BL-manual-de-instalacin-canada.pdf)
