The stylish 30-inch Frigidaire CFES3025PS slide-in electric range is an outstanding appliance to enhance the look and flexibility of your kitchen. Create delicious meals with its large 4.2 cubic foot capacity oven and four-element cooktop. For additional convenience, this range features a powerful self-clean function with 2, 3 and 4-hour cleaning cycles. Frigidaire designed the smooth cooktop surface for quick and easy cleaning with its elegant, smooth ceramic glass surface. If you are on the market for a high-performance electric range that is quick and easy to clean, this Frigidaire range deserves careful consideration.
The modern design of the sleek stainless steel Frigidaire CFES3025PS slide-in electric range complements any kitchen décor nicely. Its stunning upswept black ceramic glass cooktop adds a flair of elegance to your home while delivering the cooking power and flexibility you need. Thanks to Frigidaire you will have no problem preparing mouth-watering family meals in a snap.
The cooktop setup:
Left front element: 6 to 9 inches with 1,400/3,000-Watt output
Left rear element: 6-inches with 1,500-Watt output
Right front element: 12-inches with 2,700-Watt output
Right rear element: 6-inches with 1,200-Watt output
For all of you baking, roasting, and broiling needs, this Frigidaire range features a 4.2 cubic foot capacity oven. The oven cavity is equipped with two standard oven racks and five rack guides so you can reconfigure the interior set up to meet your cooking, baking, and roasting needs. Thanks to Frigidaire you will have no problem preparing multiple casserole dishes simultaneously, or a large 25+ pound roast with ease.
To make clean up as simple as 1-2-3, Frigidaire design the impressive 4.2 cubic foot capacity. This oven cavity features a convenient self-cleaning oven with 2-3-4 hour cycles. The self-cleaning cycle uses high heat temperatures to reduce food particles and spillovers to ash. When the self-cleaning cycle ends, simply grab a damp cloth or sponge to wipe away ash from the oven cavity.
For your convenience, the elegant, smooth cooktop is just as simple to clean. The smooth cooking surface wipes clean, without the need for scrubbing. It is important to avoid using abrasive cleaning materials to avoid scratching the elegant cooking surface. On occasion, you may run into spillovers that are more difficult to clean than others. When this situation arises, use a cleansing cream to lift the cooked on mess from the cooking surface.
As a safety bonus, Frigidaire equipped the CFES3025PS with a hot surface indicator. The hot surface indication illuminates with a red light when the cooking elements are turned on, and hot. For safety purposes, the hot surface indicator will remain lit until the cooking elements are free from residual heat.
If you are shopping for a new electric range for your home, the Frigidaire CFES3025PS is the solution you need. This outstanding slide-in range upgrades the look of your home while providing the cooking power and flexibility to your kitchen. For convenience, Frigidaire made clean up as simple as 1-2-3 with a smooth cooktop surface, and self-cleaning oven cavity. No matter what your cooking needs, Frigidaire has got you covered.
Frigidaire CFES3025PS 30in Slide-In Self Clean Electric Range 4.2 Cu. Ft. with Ceramic Glass Cooking Surface, 6 Pass Broil Element 3400w, 2 Handle Oven Racks, 1 Oven Light, Large Door Window
- Quick Clean
- For a quick, light oven cleaning.
- Power Clean
- Power clean gives your oven a heavy-duty clean with 25% more cleaning power.
- Extra-Large Element
- With our extra-large 12" element, you have more flexibility to fit larger pots and pans.

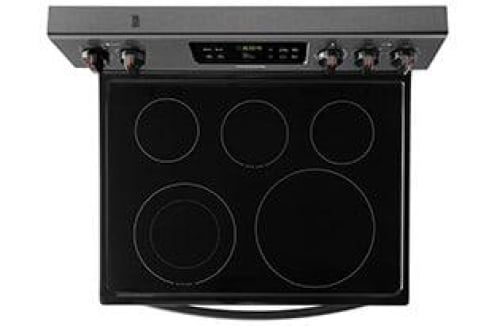

- SpaceWise® Expandable Elements
- Flexible elements expand to meet your cooking needs - big or small.
- Oven Rack Handles
- Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
- Delay Clean
- Set the oven to begin cleaning on your schedule.
- Large Capacity
- Our large capacity oven gives you room to cook more at once.

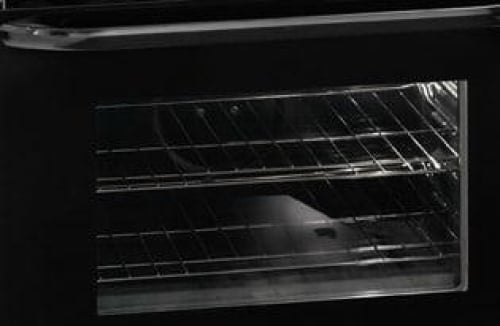

- Color-Coordinated Oven Door with Large Window
- Our large oven window makes it easier to check on the status of your dish without having to open the oven door.

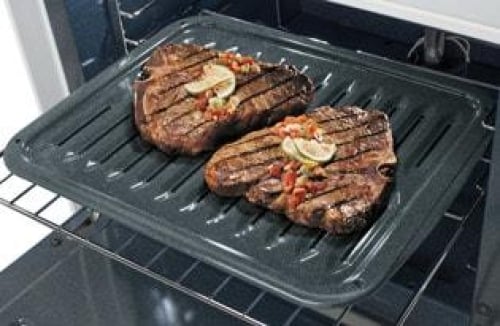

- Multiple Broil Options
- A variety of broil options to meet your needs.
Features: 4.2 Cu. Ft, 30" Slide in Electric, Self Clean, Smoothtop Ceramic Glass Cooking Surface, 1x 12" 2700w Element, 1x9" 2500w Element, 2x6" 1200w Elements, 6 Pass Bake Element 2750w, 6 Pass Broil Element 3400w, 2 Handle Oven Racks, 1 Oven Light, Large Visualite Door Window, Storage Drawer w/Integrated Handle (W/B). Timed Cook Option. ltiple Broil Options. Delay Start Baking Option. Extra-Large Window. Delay Clean. Sabbath Mode (Star-K Certified): Yes. Cooktop Configuration: Surface Type: Ceramic Glass. Hot-Surface Indicator Light: Yes. Front Right Element: 12" 2700 watts. Front Left Element: 9" 2500 watts. Rear Right Element: 6" 1200 watts. Rear Left Element: 7" 1500 watts.
Manufacturer's Warranty: 1 year
Canadian model: CFES3025PS
Similar to USA model: FFES3025PS
Canadian UPC: 012505800313
Similar to USA UPC: 012505800382
EAN: 0012505800313
| General Specifications | |
| Adjustable Leveling Legs | Yes |
| Product Weight (lbs) | 175 |
| Made In USA | Yes |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Oven Specifications | |
| Oven 1 Cleaning System | Self-Clean |
| Oven 1 Interior Lighting | 1 Halogen (round) |
| Drawer | |
| Drawer Functionality | Utility |
| Certifications & Approvals | |
| ADA Compliant | Yes |
| Agency Approval | UL |
| Sabbath Mode | No |
| Cooktop | |
| Hot-Surface Indicator Light | Yes |
| Knob Type | Plastic |
| Left Front | 6/9" - 1050/3000 Watts |
| Left Rear | 7" - 1125/1500 Watts |
| Right Front | 12" - 2025/2700 Watts |
| Right Rear | 6" - 900/1200 Watts |
| Cooktop Surface Type | smooth surface |
| Exterior Specifications | |
| Door Finish | Stainless Steel |
| Cooking Controls | |
| Bake | Yes |
| Cook Duration | Yes |
| Broil | Variable |
| Cancel | Yes |
| Clock | Yes |
| Convection Conversion | No |
| Automatic Oven (Delay Cook & Off) | Multiple Functions |
| Lockout | Yes |
| Up/Down Keypad | Yes |
| Self-Clean | 2 3 4 Hours |
| Timer | Yes |
| Cooktop Specifications | |
| Knob Color | Black |
| Electrical Specifications | |
| Amps @ 240 Volts | 49.2 / 42.8 |
| Connected Load (kW Rating) @ 240V | 11.8 / 8.9 |
| Minimum Circuit Required (Amps) | 40A |
| Power Supply Connection Location | Left Rear Bottom |
| Voltage Rating | 240 V / 208V 60Hz |
| Oven | |
| Bake | 6 pass 2750 Watts |
| Broil | 6 pass 3400 Watts |
| Broil System | High - Low |
| Oven 1 Convection System | none |
| Oven 1 Interior Color | Slate Blue |
| Oven 1 Interior Depth | 18-3/4" |
| Oven 1 Interior Height | 17-1/2" |
| Oven 1 Interior Width | 24-1/8" |
| Oven 1 Rack Configuration | 2 Handle |
| Oven 1 Rack Positions | 5 positions |
| Oven 1 Type | Main |
| Oven 1 Window | Large |
| Dimensions: Exterior | |
| Height | 36-5/8" |
| Width | 30" |
| Depth | 28-5/16" |
| Capacities | |
| Oven 1 Capacity | 4.6 |
Oven Interior Dimensions: Interior Width: 24-1/8". Interior Depth: 18-1/32". Interior Height: 16-1/2". Exterior Dimensions: Exterior Width: 30", Exterior Depth: 28-5/16", Exterior Depth (to Center of Arc): 28-5/16". Exterior Depth (with 90 Door Open): 45-1/2'', Exterior Height: 35-5/8" - 36-5/8", Power Supply Connection Location: Rear Bottom Left, Connected Load (kW Rating) @ 240/ 208 Volts: 10.5/ 7.9, Voltage Rating: 240 / 208V/ 60Hz. Amps: 43.7/ 38. Minimum Circuit Required (Amps): 40. Product Weight: 145 lbs. Shipping Weight: 165 lbs. Cut-Out Dimensions: Cut-out Width: 30-1/16", Cut-out Depth: 21-3/4" - 22-1/8", Cut-out Height: 35-7/8" - 36-5/8", Size: 30".
Wiring Diagram (English) (CFES3025PS-wiring-diagram-english-canada.pdf)
