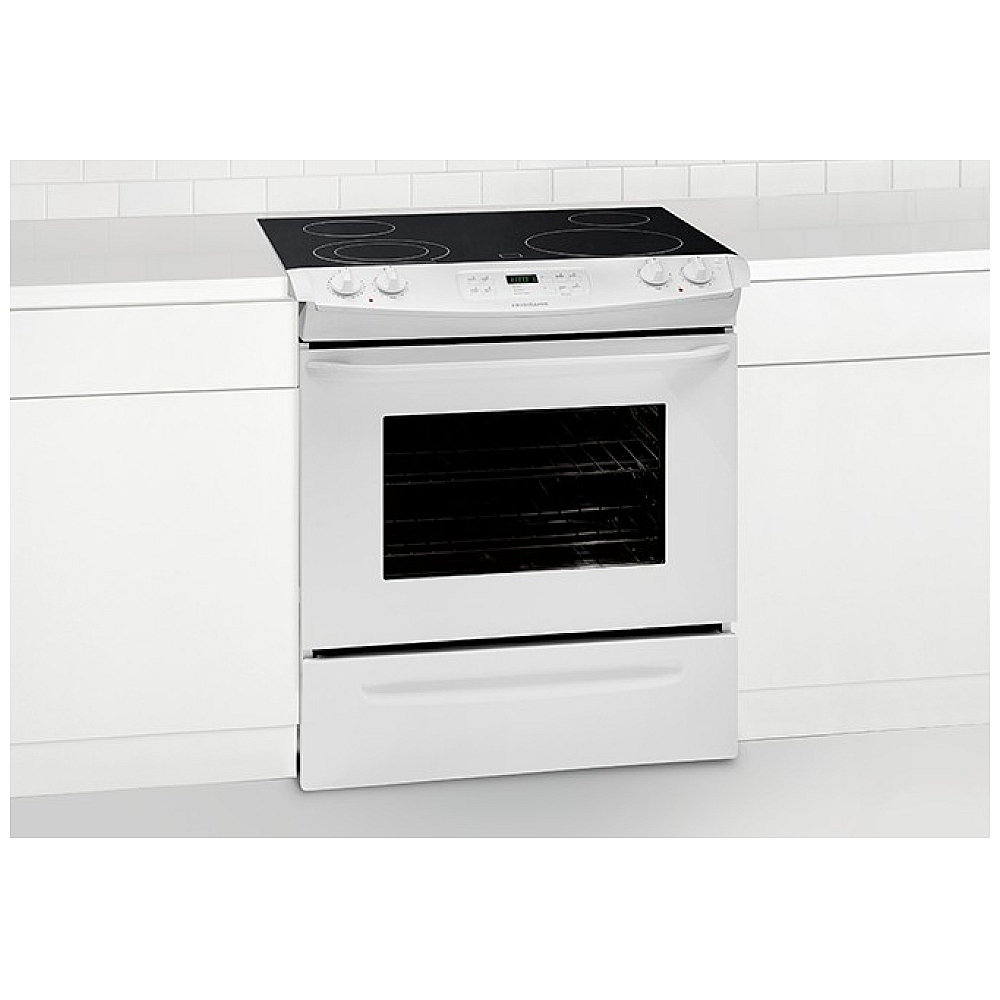

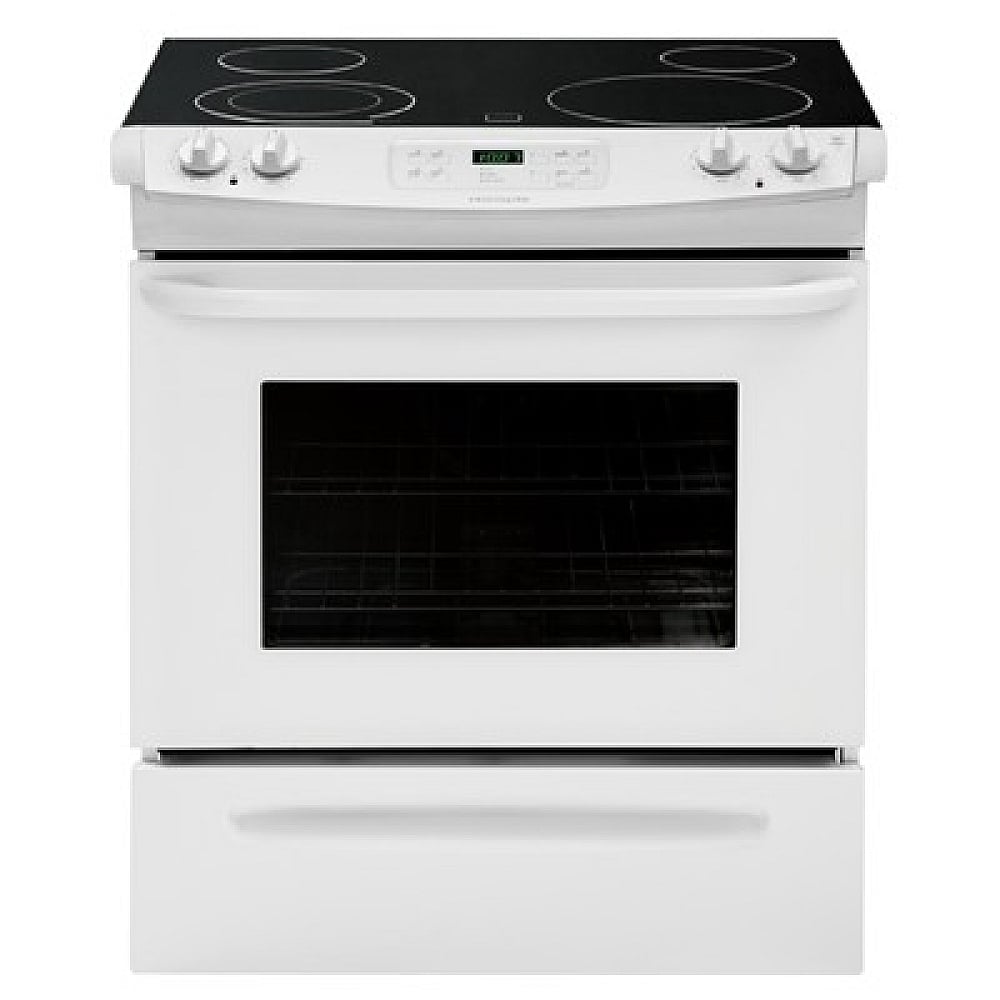

Frigidaire CFES3025PW 30in Slide-In Self Clean Electric Range 4.2 Cu. Ft. with Black Ceramic Glass Cooking Surface, 6 Pass Broil Element 3400w, 2 Handle Oven Racks, 1 Oven Light, Large Door Window

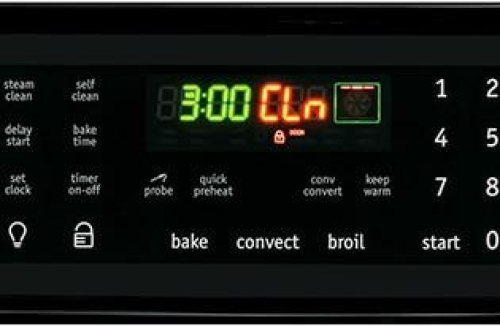

- Quick Clean
- For a quick, light oven cleaning.

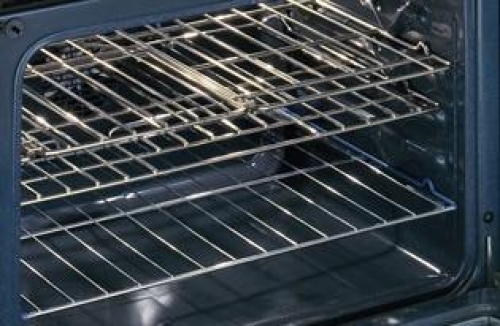

- Power Clean
- Power clean gives your oven a heavy-duty clean with 25% more cleaning power.

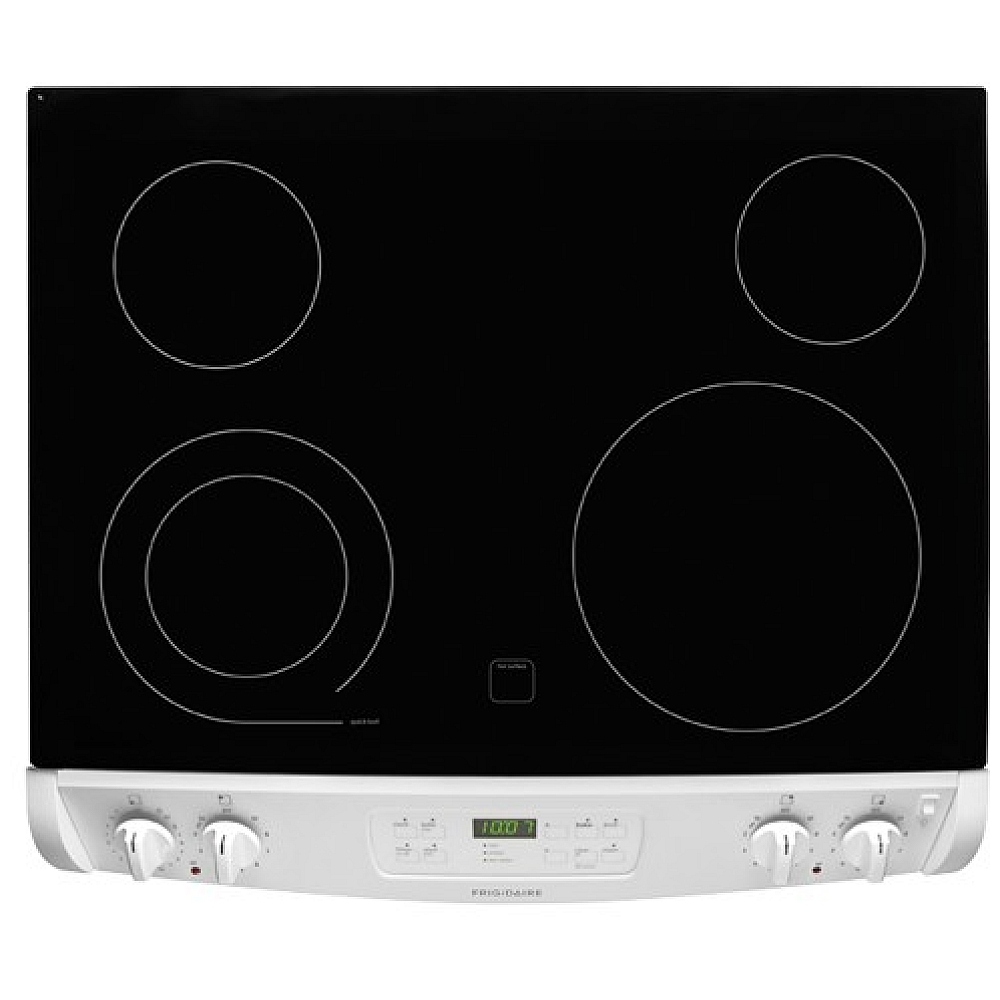

- Extra-Large Element
- With our extra-large 12 element, you have more flexibility to fit larger pots and pans.

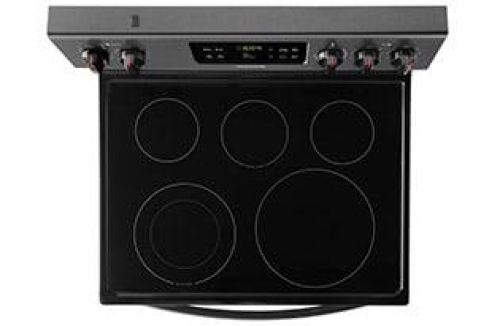

- SpaceWise® Expandable Elements
- Flexible elements expand to meet your cooking needs - big or small.

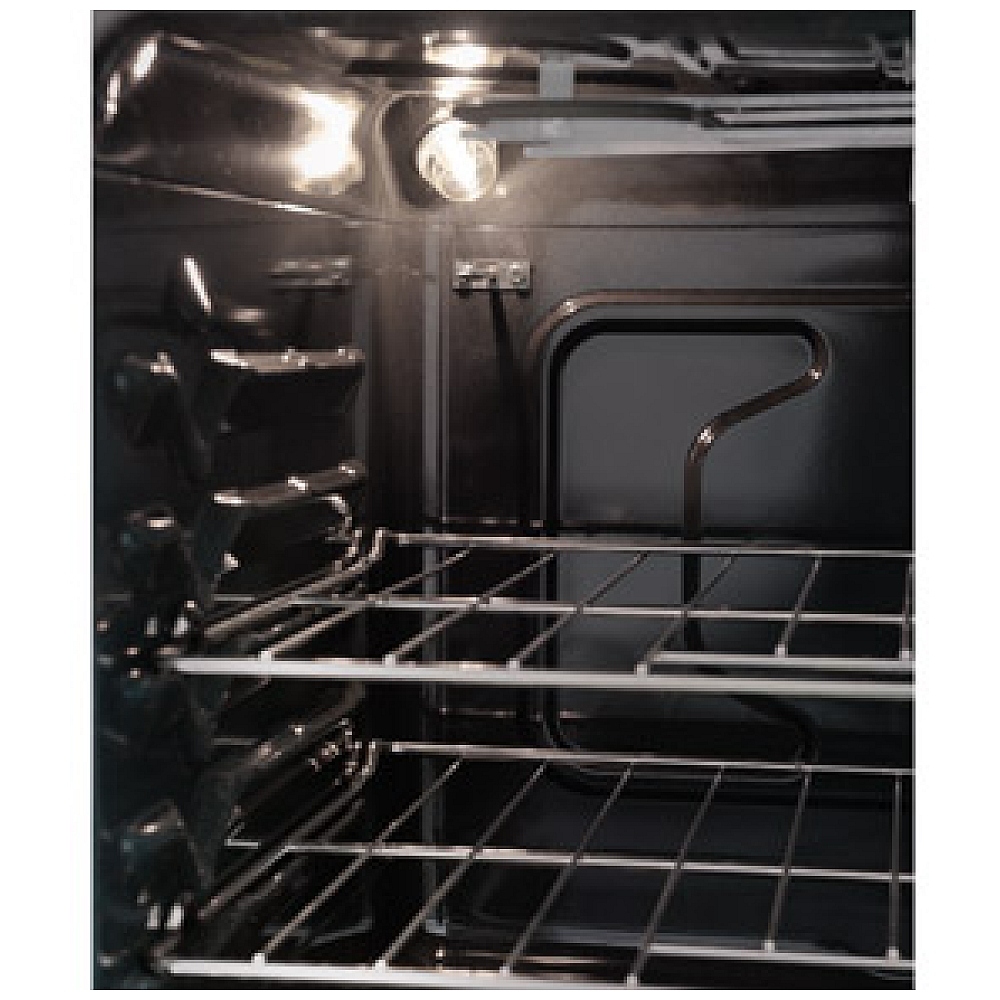

- Oven Rack Handles
- Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.

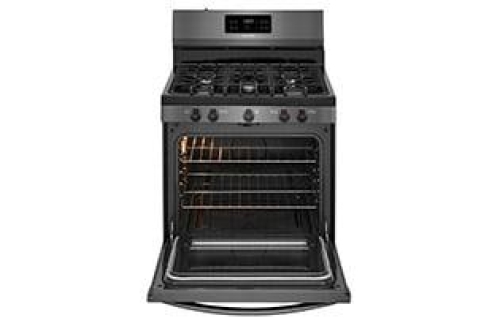

- Delay Clean
- Set the oven to begin cleaning on your schedule.

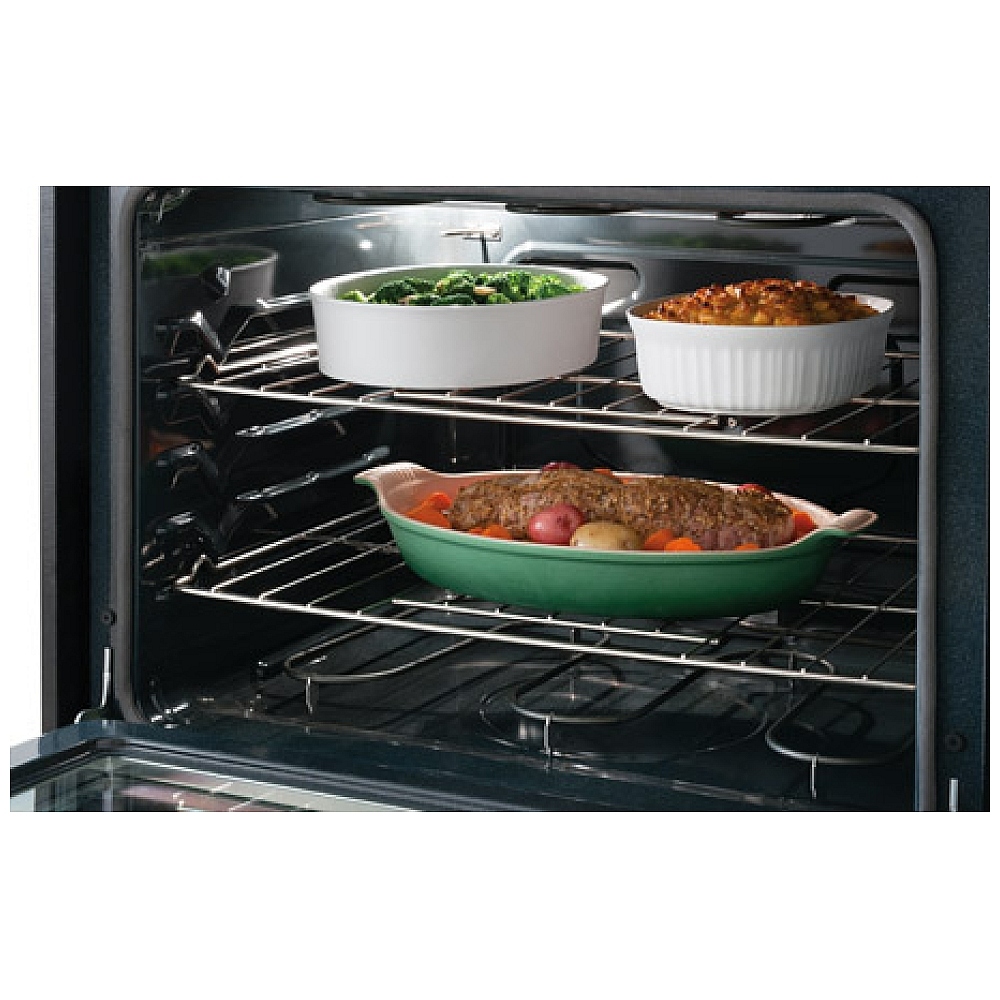

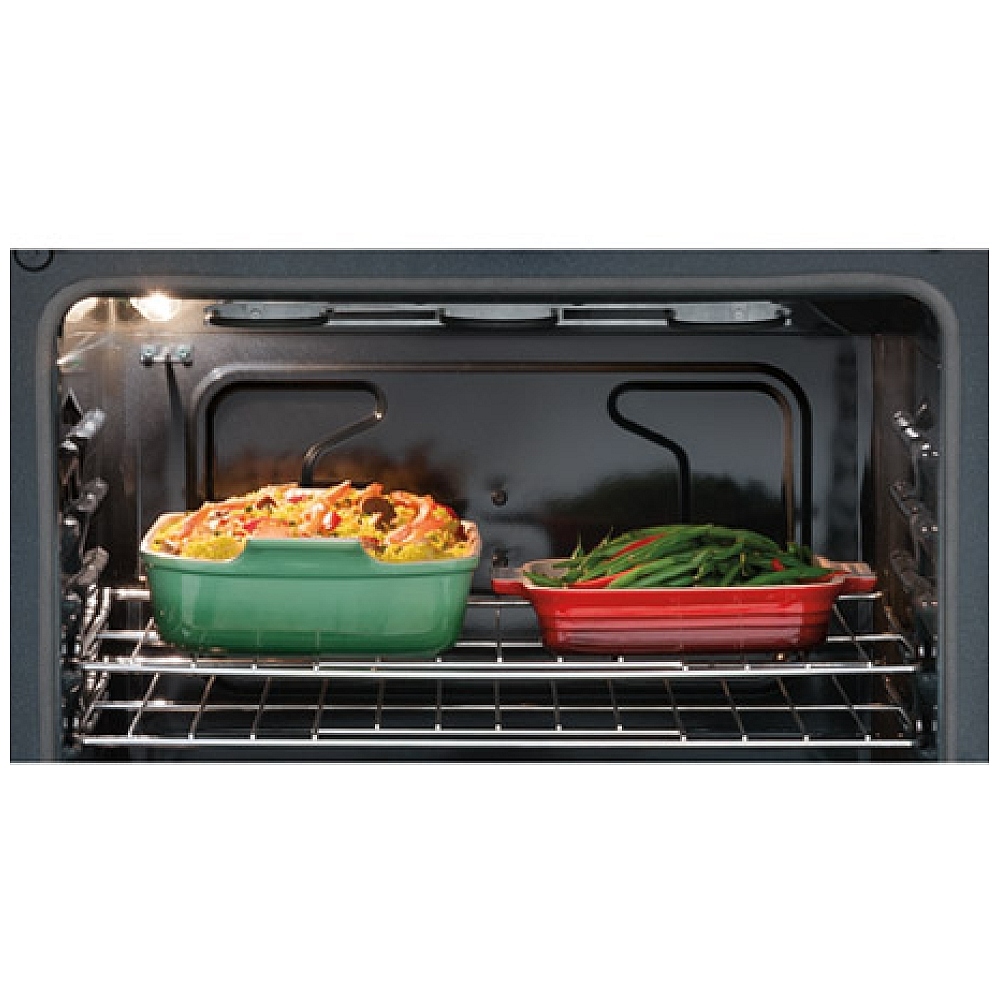

- Large Capacity
- Our large capacity oven gives you room to cook more at once.

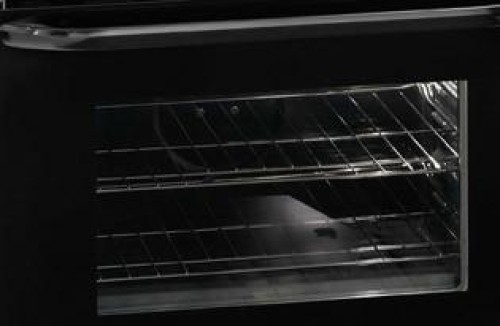

- Color-Coordinated Oven Door with Large Window
- Our large oven window makes it easier to check on the status of your dish without having to open the oven door.
- Multiple Broil Options
- A variety of broil options to meet your needs.
Features: 4.2 Cu. Ft, 30" Slide in Electric, Self Clean, Smoothtop Black Ceramic Glass Cooking Surface, 1x 12" 2700w Element, 1x9" 2500w Element, 2x6" 1200w Elements, 6 Pass Bake Element 2750w, 6 Pass Broil Element 3400w, 2 Handle Oven Racks, 1 Oven Light, Large Visualite Door Window, Storage Drawer w/Integrated Handle (W/B). Timed Cook Option. ltiple Broil Options. Delay Start Baking Option. Extra-Large Window. Delay Clean. Sabbath Mode (Star-K Certified): Yes. Cooktop Configuration: Surface Type: Ceramic Glass. Hot-Surface Indicator Light: Yes. Front Right Element: 12" 2700 watts. Front Left Element: 9" 2500 watts. Rear Right Element: 6" 1200 watts. Rear Left Element: 7" 1500 watts.
Manufacturer's Warranty: 1 year
Canadian model: CFES3025PW
Similar to USA model: FFES3025PW
Canadian UPC: 012505800290
Similar to USA UPC: 012505800368
EAN: 0012505800290
| General Specifications | |
| Adjustable Leveling Legs | Yes |
| Product Weight (lbs) | 175 |
| Made In USA | Yes |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire |
| Oven Specifications | |
| Oven 1 Cleaning System | Self-Clean |
| Oven 1 Interior Lighting | 1 Halogen (round) |
| Drawer | |
| Drawer Functionality | Utility |
| Certifications & Approvals | |
| ADA Compliant | Yes |
| Agency Approval | UL |
| Sabbath Mode | No |
| Cooktop | |
| Hot-Surface Indicator Light | Yes |
| Knob Type | Plastic |
| Left Front | 6/9" - 1050/3000 Watts |
| Left Rear | 7" - 1125/1500 Watts |
| Right Front | 12" - 2025/2700 Watts |
| Right Rear | 6" - 900/1200 Watts |
| Cooktop Surface Type | smooth surface |
| Exterior Specifications | |
| Control Panel Finish | Color-Coordinated Plastic |
| Door Finish | Color-Coordinated Glass |
| Drawer Finish | Color-Coordinated with Integrated Handle |
| Handle Color | Color-Coordinated Plastic |
| Cooking Controls | |
| Bake | Yes |
| Cook Duration | Yes |
| Broil | Variable |
| Cancel | Yes |
| Clock | Yes |
| Convection Conversion | No |
| Automatic Oven (Delay Cook & Off) | Multiple Functions |
| Lockout | Yes |
| Up/Down Keypad | Yes |
| Self-Clean | 2 3 4 Hours |
| Timer | Yes |
| Cooktop Specifications | |
| Knob Color | Color-Coordinated |
| Electrical Specifications | |
| Amps @ 240 Volts | 49.2 / 42.8 |
| Connected Load (kW Rating) @ 240V | 11.8 / 8.9 |
| Minimum Circuit Required (Amps) | 40A |
| Power Supply Connection Location | Left Rear Bottom |
| Voltage Rating | 240 V / 208V 60Hz |
| Oven | |
| Bake | 6 pass 2750 Watts |
| Broil | 6 pass 3400 Watts |
| Broil System | High - Low |
| Oven 1 Convection System | none |
| Oven 1 Interior Color | Slate Blue |
| Oven 1 Interior Depth | 18-3/4" |
| Oven 1 Interior Height | 17-1/2" |
| Oven 1 Interior Width | 24-1/8" |
| Oven 1 Rack Configuration | 2 Handle |
| Oven 1 Rack Positions | 5 positions |
| Oven 1 Type | Main |
| Oven 1 Window | Large |
| Dimensions: Exterior | |
| Height | 36-5/8" |
| Width | 30" |
| Depth | 28-5/16" |
| Capacities | |
| Oven 1 Capacity | 4.6 |
Oven Interior Dimensions: Interior Width: 24-1/8". Interior Depth: 18-1/32". Interior Height: 16-1/2". Exterior Dimensions: Exterior Width: 30", Exterior Depth: 28-5/16", Exterior Depth (to Center of Arc): 28-5/16". Exterior Depth (with 90 Door Open): 45-1/2'', Exterior Height: 35-5/8" - 36-5/8", Power Supply Connection Location: Rear Bottom Left, Connected Load (kW Rating) @ 240/ 208 Volts: 10.5/ 7.9, Voltage Rating: 240 / 208V/ 60Hz. Amps: 43.7/ 38. Minimum Circuit Required (Amps): 40. Product Weight: 145 lbs. Shipping Weight: 165 lbs. Cut-Out Dimensions: Cut-out Width: 30-1/16", Cut-out Depth: 21-3/4" - 22-1/8", Cut-out Height: 35-7/8" - 36-5/8", Size: 30".
Installation Instructions (English) (CFES3025PW-wiring-diagram-english-canada.pdf)
