Frigidaire CGEF308TNF Electric Double Oven 30 in,7.0 Cu. Ft. with Smoothtop Ceramic Glass Cooking Surface and Express-Select Precision Touch Controls, 7/7 in Bridge 4400w Element Symmetry Double Oven
- Symmetry Double Ovens
- Two large ovens, each big enough to cook a 28-pound turkey, provide the flexibility to cook multiple dishes at the same time at different temperatures.
- Quick Preheat
- True Convection
- Single convection fan distributes heat throughout the oven for faster and more even multi-rack baking
- Quick Clean
- For a quick, light oven cleaning.
- Largest Range Capacity with Second Oven
- Cook a large meal effortlessly with our double oven range, offering the largest cooking capacity available so you can cook two meals, at different temperatures, at once.
- Quick Boil
- Boils water faster.
- One-Touch Options
- Our ovens feature easy-to-use one touch buttons so you can cook pizza or chicken nuggets - or even add a minute to the timer - with the touch of a button.
- One-Touch Keep Warm Setting
- Just one touch of a button keeps food warm until everything - and everyone - is ready.
- Keep Warm Zone
- Keep food warm until everything - and everyone - is ready.
- Double Oven Range
- A second oven gives you more space to cook multiple dishes at once.
- Express-Select® Controls
- Easily go from warm to boil with just a touch.
- Add-a-Minute
- Easily add a minute to the oven timer in the middle of a cycle without resetting.
- Auto Shut-Off
- As an extra safety measure, the oven will automatically shut off after six hours.
- Delay Start
- Set your oven to begin cooking on your schedule. It can be programmed from one to 24 hours.
- SpaceWise® Expandable Elements
- Flexible elements expand to your cooking needs.
- Sabbath Mode (Star-K® Certified)
DUAL CONVECTION
SYMMETRY DOUBLE OVEN MODEL 50/50
7.0 Cu. Ft. Total Capacity
30" Electric
Express-Select Precision Touch Controls
Knobless Design (ESEC)
Auto Shut-Off
Quick Clean Option

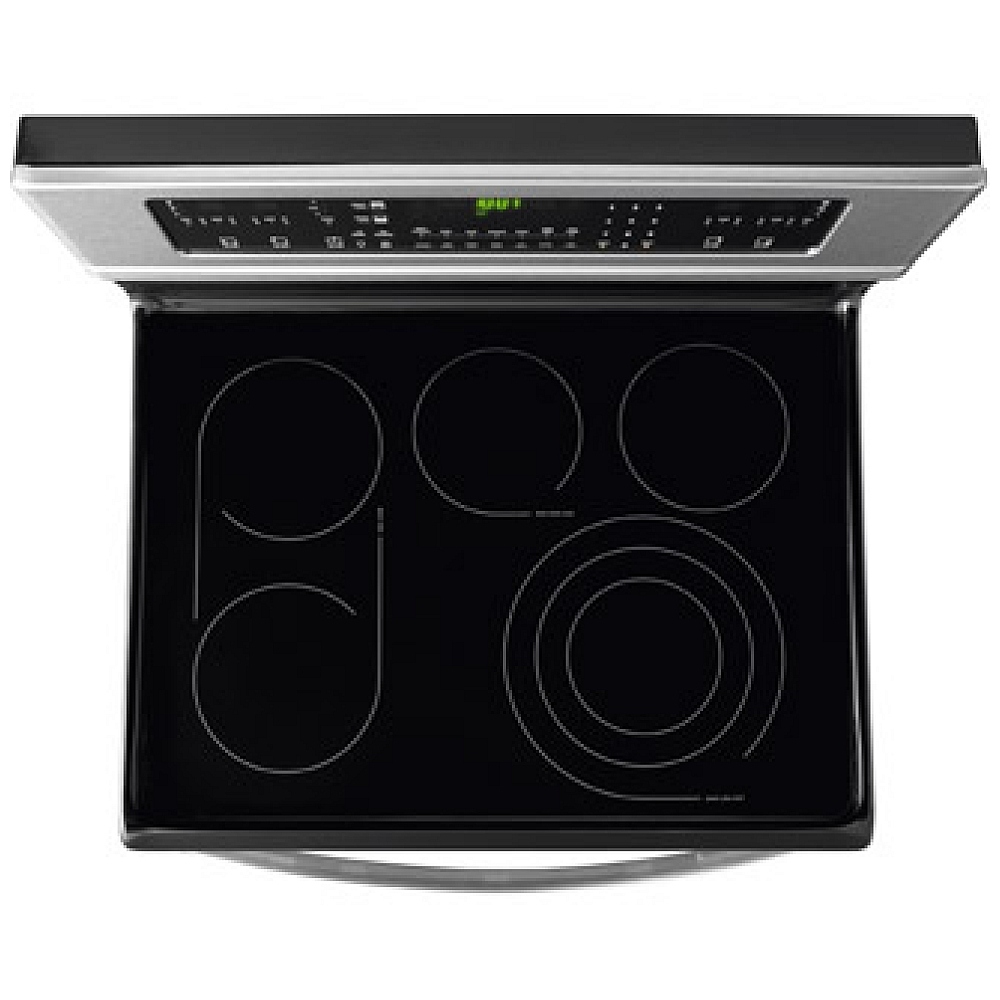

Smoothtop Ceramic Glass Cooking Surface
7/7" Bridge 4400w Element
1x6/9/12 SpaceWise Element 3000w, 2x6 1200w Elements, 1xKeep Warm Zone (100 W)
UPPER & LOWER OVEN:
3.5 Cu. Ft.
One Touch Options - Slow Cook, Pizza, Keep Warm, Add-a-
Minute, One-Touch Self Clean, Delay Start, 8 Pass Bake
Element 2500w, 6 Pass Broil Element 3400w, True Hidden Bake
Element, Quick Preheat
Effortless Meat Probe
1 Oven Light, 1 Handle Rack, 1 Heavy Duty Offset Rack, 3 Rack Positions
True Convection w/350 watt element
Both Windows - Wide-View Window w/Tint
Star-K Certified
Real Stainless Steel with Fingerprint Coating w/Gallery Stainless Steel Handles
Manufacturer's Warranty: 1 year
Canadian model: CGEF308TNF
| General Specifications | |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Free-Standing |
| Collection | Frigidaire Gallery |
| Oven 2 Specifications | |
| Oven 2 Bake | 8 pass 2500 Watts |
| Oven 2 Baking System | True Hidden |
| Oven 2 Broil | 6 pass 3400 Watts |
| Oven 2 Broiling System | Variable (400°F to 550°F) |
| Oven 2 Cleaning System | Self-Clean |
| Oven 2 Convection | 350 Watts |
| Oven 2 Convection System | Single Fan |
| Oven 2 Interior Colour | Marlin Blue |
| Oven 2 Interior Depth | 19-1/2" |
| Oven 2 Interior Height | 12-3/4" |
| Oven 2 Interior Lighting | Incandescent |
| Oven 2 Interior Width | 24-1/8" |
| Oven 2 Rack Configuration | 1 Handle (flat) 1 Offset |
| Oven 2 Rack Positions | 3 positions |
| Oven 2 Type | Upper |
| Oven 2 Window (Size) | Large |
| Electrical Specifications | |
| Minimum Circuit Required (Amps) | 40A |
| Power Supply Connection Location | Rear Bottom |
| Voltage Rating | 240V / 208V 60Hz |
| Certifications & Approvals | |
| ADA Compliant | No |
| Agency Approval | CUL |
| Sabbath Mode (Star-K® Certified) | Yes |
| Cooktop Specifications | |
| Centre | 100 Watts (Keep Warm) |
| Cooking Surface | Black Ceramic Glass |
| Hot-Surface Indicator Light | 4 (integrated in display) |
| Left Front | 7" Bridge - 1800/2600 Watts |
| Left Rear | 7" - 1800 Watts |
| Right Front | 6/9/12" - 800/1900/3000 Watts |
| Right Rear | 6" - 1200 Watts |
| Accessories | |
| Griddle | Optional |
| Cooking Controls | |
| Bake | Yes |
| Broil | Broil Variable (400 - 500°F) |
| Cooktop Lock-out | Yes |
| Delay Bake | Yes |
| Delay Clean | Yes |
| Start Time | Yes |
| Keep Warm | Yes |
| Lockout | Yes |
| Lower Drawer Controls | Storage |
| Main Oven | Self Clean |
| Numerical Keypad | Yes |
| Pizza Button | Yes |
| Quick Preheat | Yes |
| Self-Clean | 2 3 4 Hours |
| Temperature Probe | Yes |
| Timed Cook Option | Yes |
| Timer Shut-off | 6 hours |
| Timer | Yes |
| Timer Lockout | Yes |
| Exterior Dimensions | |
| Height | 48" - 49" |
| Width | 30" |
| Depth | 25-3/4" |
| Oven Specifications | |
| Oven 1 Bake | 8 pass 2500 Watts |
| Oven 1 Baking System | True Hidden |
| Oven 1 Broil | 6 pass 3400 Watts |
| Oven 1 Broiling System | Variable (400°F to 550°F) |
| Oven 1 Cleaning System | Self-Clean |
| Oven 1 Convection | 350 Watts |
| Oven 1 Convection System | Single Fan |
| Oven 1 Hidden Bake Element | Yes |
| Oven 1 Interior Colour | Marlin Blue |
| Oven 1 Interior Depth | 19-1/2" |
| Oven 1 Interior Height | 12-3/4" |
| Oven 1 Interior Lighting | Incandescent |
| Oven 1 Interior Width | 24-1/8" |
| Oven 1 Rack Configuration | 1 Handle (flat) 1 Offset |
| Oven 1 Rack Positions | 3 positions |
| Oven 1 Type | Lower |
| Oven Window | Large |
| Exterior Specifications | |
| Control Panel Finish | Aluminum with Stainless Steel Finish |
| Cooktop Finish | Black Porcelain |
| Door Finish | Smudge-Proof Stainless Steel |
| Exterior Finish | Smudge-Proof Stainless Steel |
| Handle Colour | Stainless Steel |
Product Dimensions:
Width: 29 7/8"
Depth: 28 1/4"
Depth with Door Open: 42"
Height: 49" max
Cutout Width: 30" min
Cutout Depth: 24" min
Cutout Height: 36" standard
Upper Oven Interior Dimensions:
Width: 24 1/8"
Depth: 19 1/2"
Height: 12 3/4"
Lower Oven Interior Dimensions:
Width: 24 1/8"
Depth: 19 1/2"
Height: 12 3/4"
Shipping Weight: 256 lbs
Power Supply Connection Location: Left Bottom Rear Voltage
Rating: 240V/ 208V/ 60 Hz Connected Load (kW Rating) @ 240/208 Volts: 15.6/ 11.8
Minimum Circuit Required: 40 Amps
Complete Owner's Guide (English) (CGEF308TNF-complete-owners-guide-english-canada.pdf)
