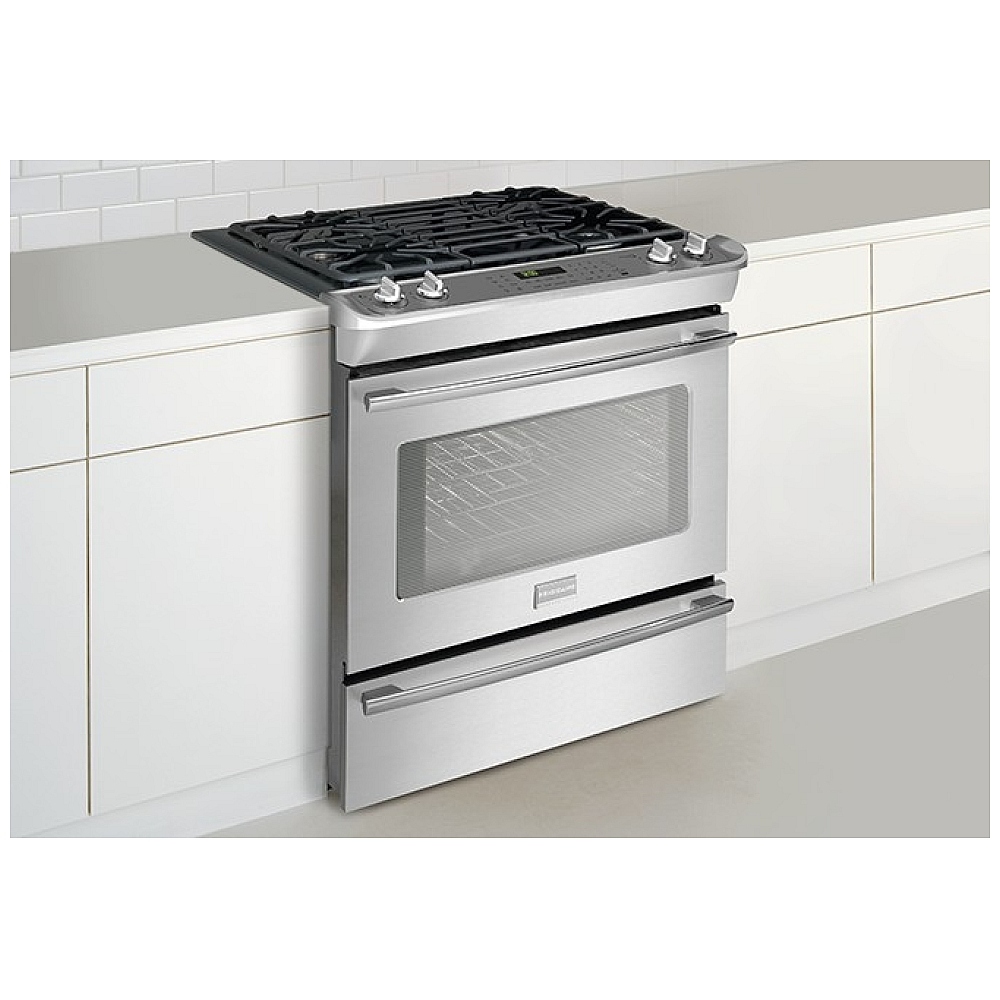

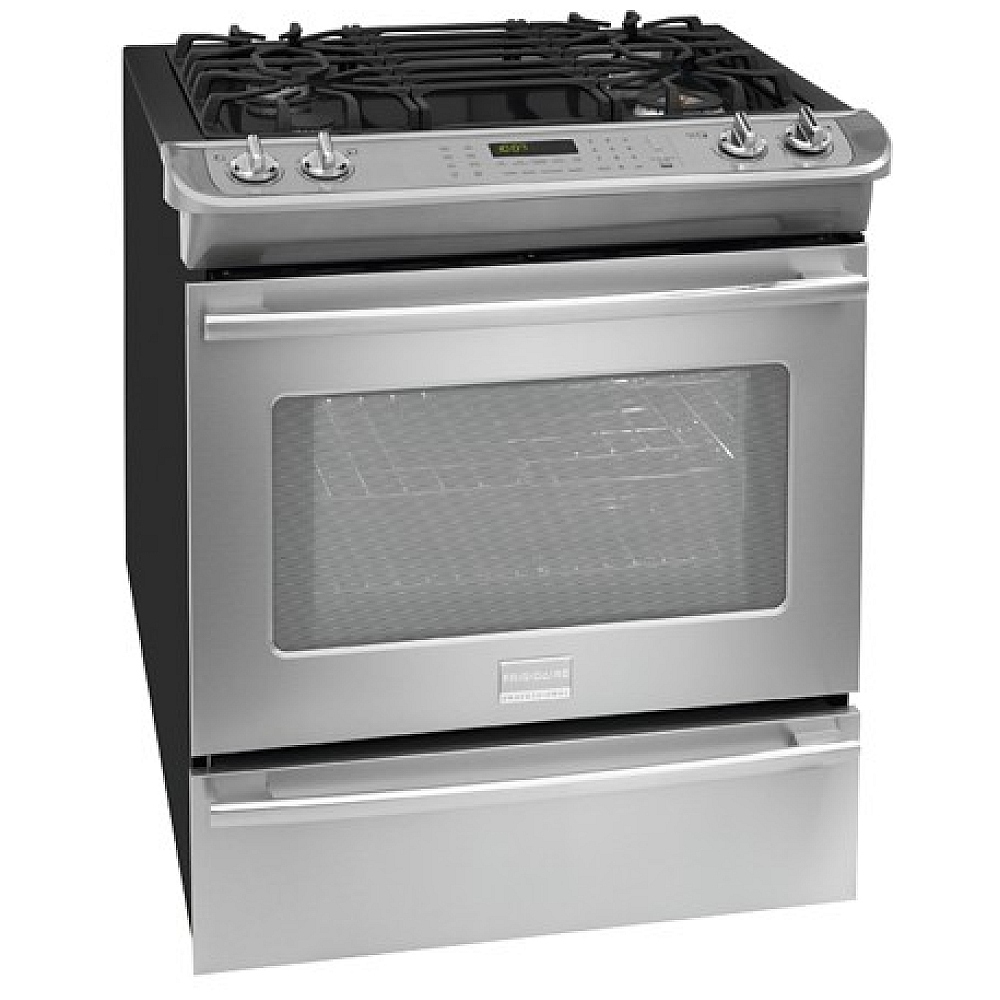

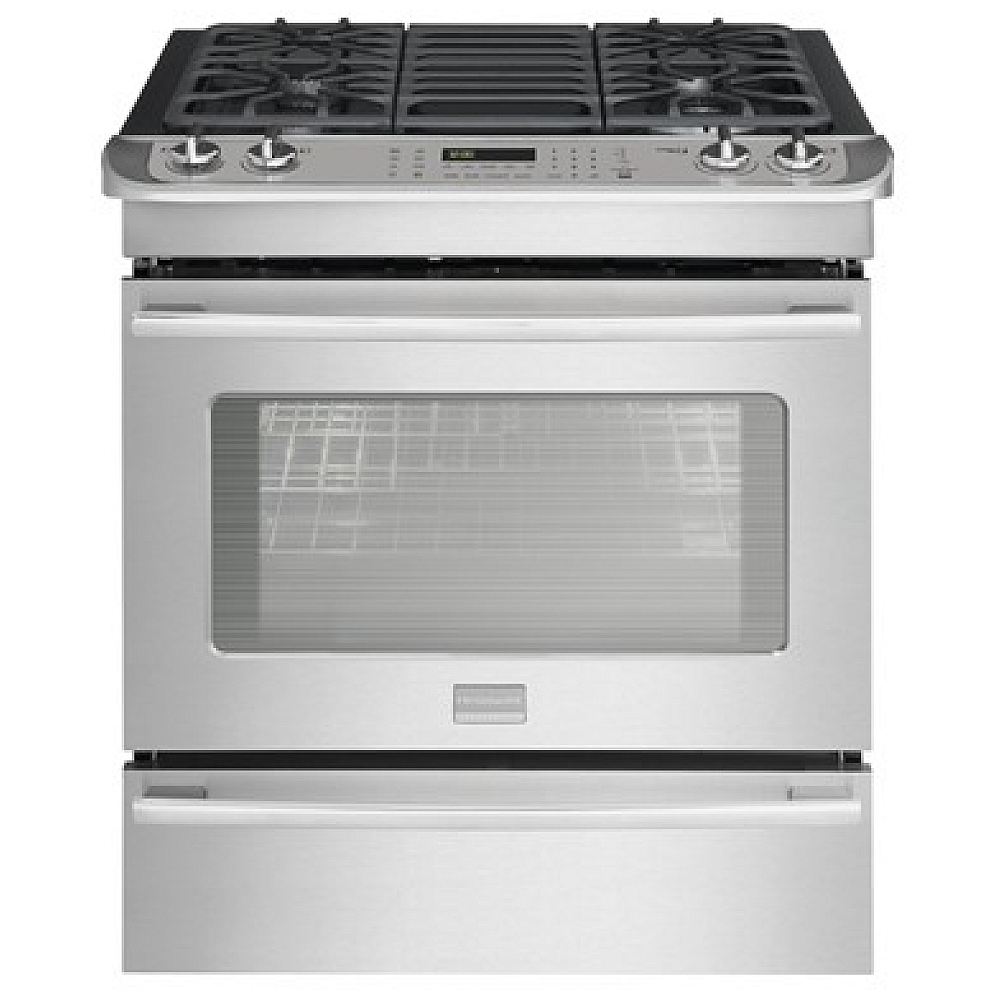

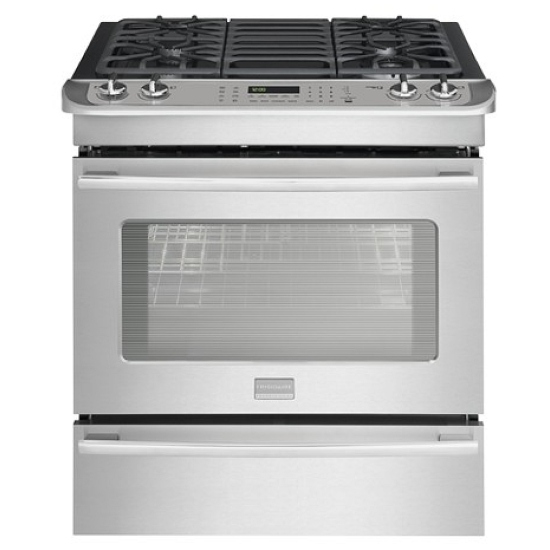

Frigidaire Professional CPDS3085KF Slide-In Range, 4.2 Cu. Ft, 30” Dual Fuel, Auto Shut-Off, PowerPlus™ Clean, Continuous Cast Iron Grates with Black Matte Finish, 1x500-17K BTU PowerPlus™ FullRange Power Burner, 1X15K BTU, 1x9.5K BTU, Low-Simmer Burner (5,000 – 500 BTU). One-Touch Options - Keep Warm, My Favourite, Chicken Nuggets, Pizza, Add-a-Minute, One-Touch Self Clean, 1.6 Cu. Ft Keep Warm Drawer with SpaceWise™ Half Rack, Delay Start, True Hidden Bake Element, 8 Pass Bake Element 2500w, 6 Pass Broil Element 3400w, PowerPlus™ Preheat, Single Fan True Convection w/350 watt Element, 1 Effortless™ Oven Rack, 1 Spacewise™ Half Rack, 2 Oven Lights, Extra Large Visualite® Door Window w/Pro-Tint™ Finish, Star-K® Certified.
- PowerPlus® Preheat
- Preheat in just a few minutes.
- True Convection
- Single convection fan circulates hot air throughout the oven for faster and more even multi-rack baking
- Smudge-Proof Stainless Steel
- Resists fingerprints and cleans easily.
- PowerPlus® Clean
- Heavy-duty self cleaning with 25% more cleaning power.
- Built with American Pride
- Designed, enginereed and assembled in the U.S.A.
- "My Favorite" Setting
- Easily program your most used setting with the touch of a button.
- One-Touch Options
- Our ovens feature easy-to-use one touch buttons so you can add a minute to the timer, or keep foods warm - with the touch of a button.
- SpaceWise® Half Rack
- Flexible rack system that adjusts to cook multiple dishes at once. Remove the half rack and you'll have extra height for tall dishes.
- Heavy-Duty Grates and Professional-Style Knobs
- Dual-Fuel Technology
- Features the power of a gas cooktop and the precision of an electric oven for baking, so you get maximum versatility.

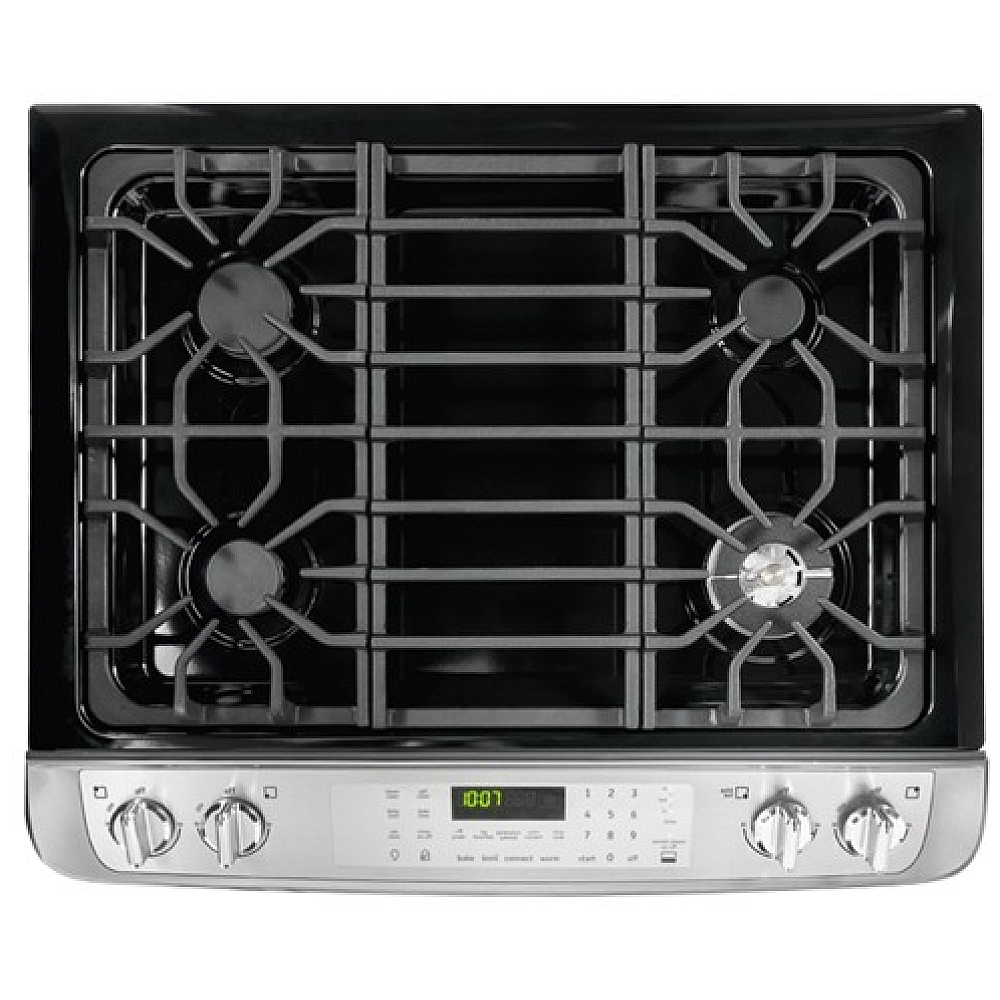

- Continuous Grates
- Continuous Grates make it easy to move heavy pots and pans across burners without lifting.
- ADA Compliant
Dual Fuel Technology
Features the power of a gas cooktop and the precision of an electric oven for baking, so you get maximum versatility.
PowerPlus™ Preheat
Pre-heat in less than 6 minutes¹.
PowerPlus™ Boil
Boil water fast.

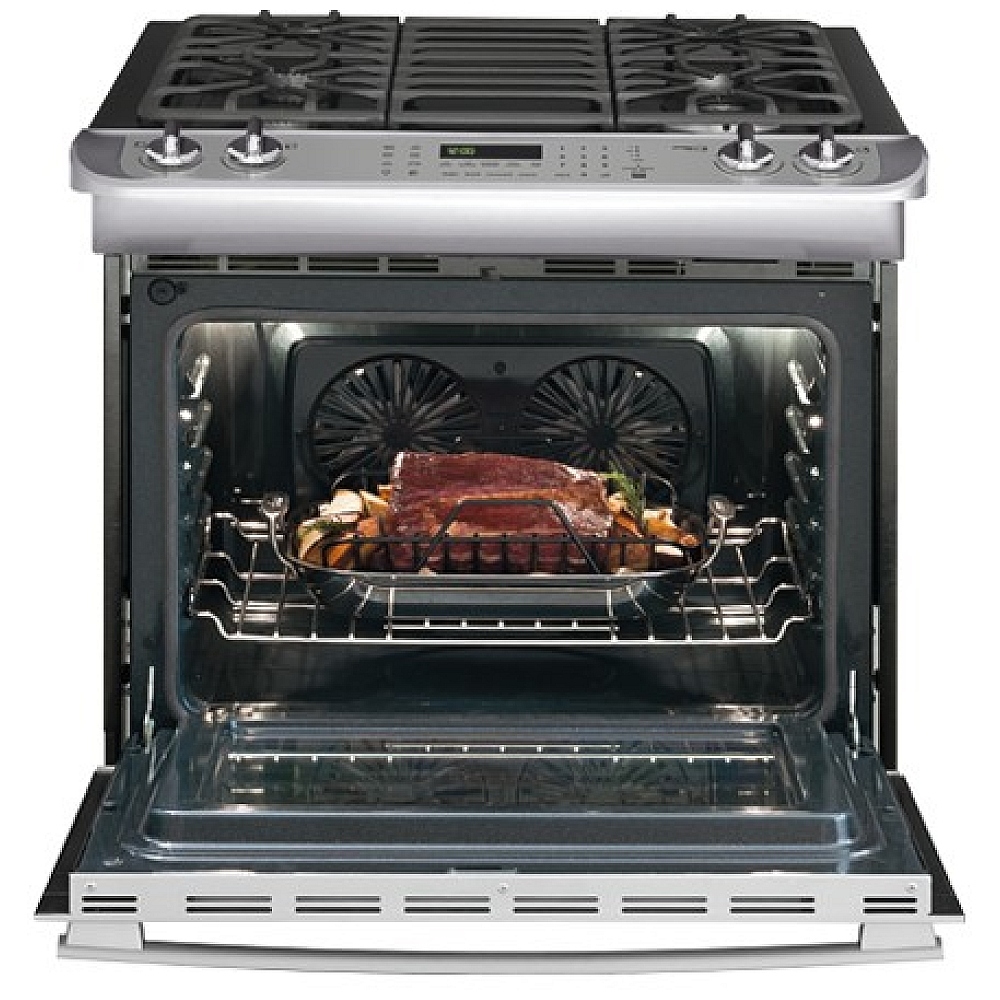

True Convection
Multi-rack baking is faster and more even with True Convection.

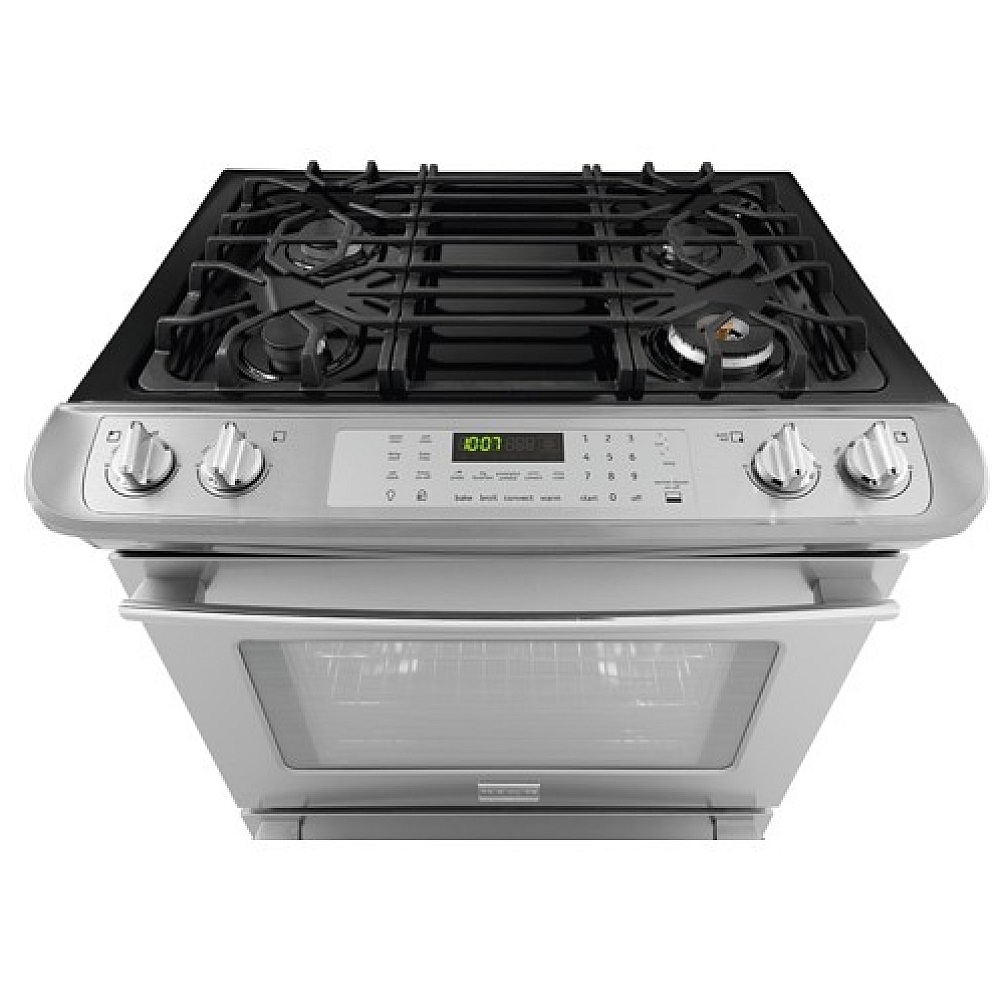

Pro-Select® Controls
Precise control at your fingertips.
Keep Warm Setting
Keep food warm until everything - and everyone - is ready.
Real Stainless Steel
Real stainless steel with a protective coating that reduces fingerprints and smudges so it's easy to clean.
Heavy-Duty Grates and Professional-Style Knobs

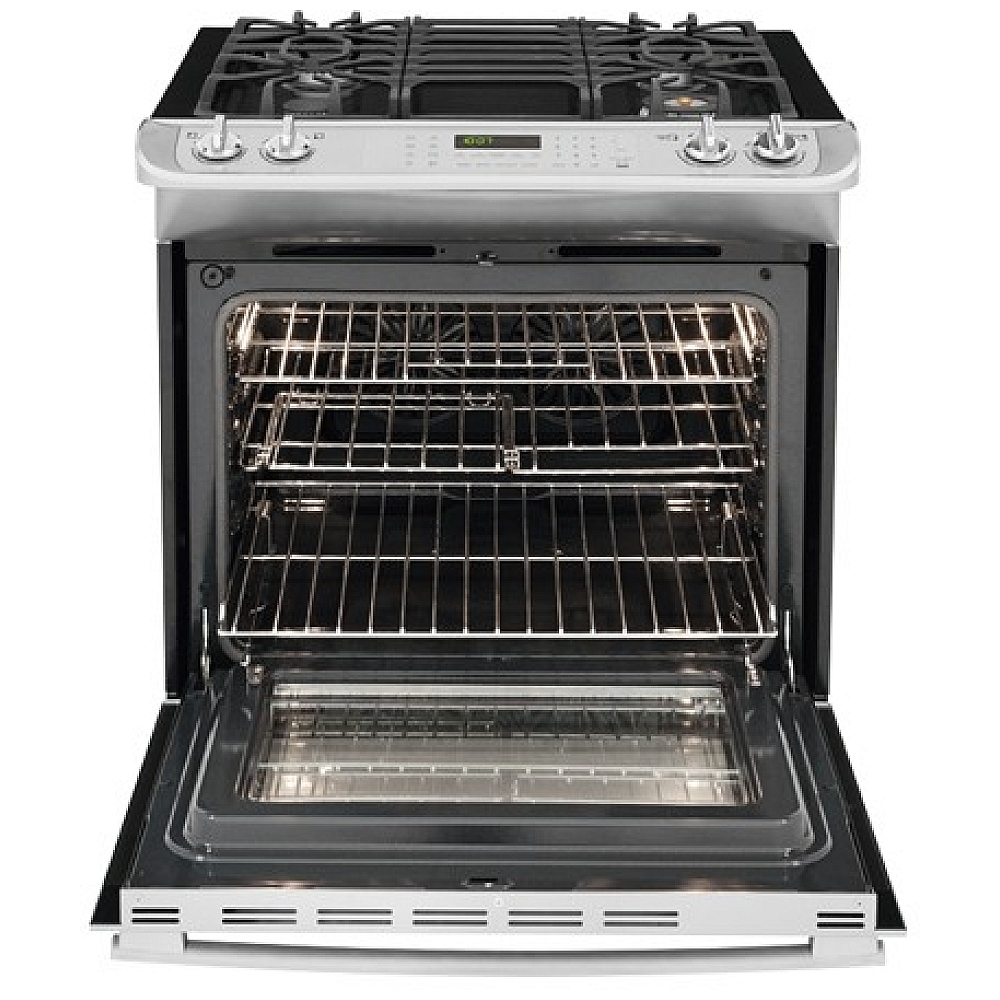

SpaceWise™ Half Rack
Flexible rack system that adjusts to cook multiple dishes at once. Remove the half rack and you’ll have extra height for tall dishes.
Effortless™ Oven Rack
Bottom rack extends when you open the door for easy access.
Effortless™ Convection
Takes the guesswork out of convection cooking - our oven does the converting for you.
My Favourite Setting
Easily program your most used setting to the touch of a button.
Chicken Nugget Button
Easily bake perfect chicken nuggets with the touch of a button.
Pizza Button
Easily bake perfect pizza at the touch of a button.
Continuous Grates
Continuous Grates make it easy to move heavy pots and pans between burners without lifting.
Add-a-Minute
Easily add a minute to the oven timer in the middle of a cycle without resetting.
Low Simmer Burner
Perfect for delicate foods and sauces.
PowerPlus™ Clean
For a heavy-duty clean with 25% more cleaning power.
Rapid Clean
For a quick, light oven cleaning.
Manufacturer's Warranty: 1 year
Canadian model: CPDS3085PF
Similar to USA model: FPDS3085PF
| General Specifications | |
| Gas Supply Connection Location | Right Bottom Rear |
| Product Weight (lbs) | 240 |
| Power Type | Dual Fuel |
| Size | 30'' |
| Installation Type | Slide-In |
| Collection | Frigidaire Professional |
| Cooktop Specifications | |
| Cooking Surface | Deep-Sump Formed Cooktop |
| Electronic Ignition | Electronic Pilotless |
| Grate Color | Black Matte |
| Grate Material | Cast Iron |
| Grates | 3 Continuous Grates |
| Knob Color | Stainless Steel |
| Knob Type | Cast Metal |
| Left Front | 9500 BTU |
| Left Rear | 15000 BTU |
| Right Front | 750 - 17000 BTU (Dual Flame) |
| Right Rear | 5000 BTU |
| Control Panel Finish | |
| Exterior Specifications | Silver Grey with Stainless Steel Overlay |
| Handle Color | |
| Exterior Specifications | Stainless Steel |
| Certifications & Approvals | |
| ADA Compliant | Yes |
| Agency Approval | UL |
| Sabbath Mode (Star-K® Certified) | Yes |
| Exterior Dimensions | |
| Height | 36-5/8" |
| Width | 30" |
| Depth | 28-5/16" |
| Exterior Specifications | |
| Cooktop Finish | Black Porcelain |
| Drawer Finish | Stainless Steel |
| Electrical Specifications | |
| Amps @ 240 Volts | 17.9 / 15.4 |
| Connected Load (kW Rating) @ 240V | 4.3 / 3.2 |
| Minimum Circuit Required (Amps) | 30A |
| Power Supply Connection Location | Left Rear Bottom |
| Voltage Rating | 240V / 208V 60Hz |
| Cooking Controls | |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Variable |
| Cancel Button | Yes |
| Chicken Nugget Button | Yes |
| Set Clock | Yes |
| Convection Conversion | Yes |
| Delay Start | Multiple Functions |
| Keep Warm | Yes |
| Oven Lockout | Yes |
| My Favorite | Yes |
| Up/Down Keypad | Yes |
| Pizza Button | Yes |
| Quick Preheat | Yes |
| Self-Clean | 2 3 4 Hours |
| Start Button | Yes |
| Temperature Probe | Yes |
| Timer On-Off | Yes |
| Drawer | |
| Drawer Functionality | Warming Drawer |
| Door Finish | |
| Exterior Specifications | Stainless Steel |
| Accessories | |
| LP Conversion Kit | Included |
| Oven Specifications | |
| Oven 1 Bake | 2500 Watts |
| Oven 1 Baking System | True Hidden |
| Oven 1 Broil | 8 pass 4000 Watts |
| Oven 1 Broiling System | Variable (400°F to 550°F) |
| Oven 1 Cleaning System | Self Clean w/Steam Clean Option |
| Oven 1 Convection | 2500 Watts |
| Oven 1 Convection System | Dual Fan Convection |
| Oven 1 Interior Color | Slate Blue |
| Oven 1 Interior Depth | 18-3/4" |
| Oven 1 Interior Height | 17-1/2" |
| Oven 1 Interior Lighting | 2 Halogen |
| Oven 1 Interior Width | 24-1/8" |
| Oven 1 Rack Configuration | 1 HD Handle 1 HD Auto Rack 1 Half Rack |
| Oven 1 Rack Positions | 5 positions embossed |
| Oven 1 Type | Main |
| Oven Window | Large |
| Warmer Drawer | |
| Drawer Glide | Full Extensible |
| Exterior | |
| Exterior Finish | Smudge-Proof Stainless Steel |
Base_Model: CPDS3085K
Control Panel
Cooktop Configuration
Oven Features
Drawer Features
Oven Interior Dimensions
Exterior Dimensions
Cut-Out Dimensions
Complete Owner's Guide (English) (CPDS3085PF-complete-owners-guide-english-canada.pdf)
