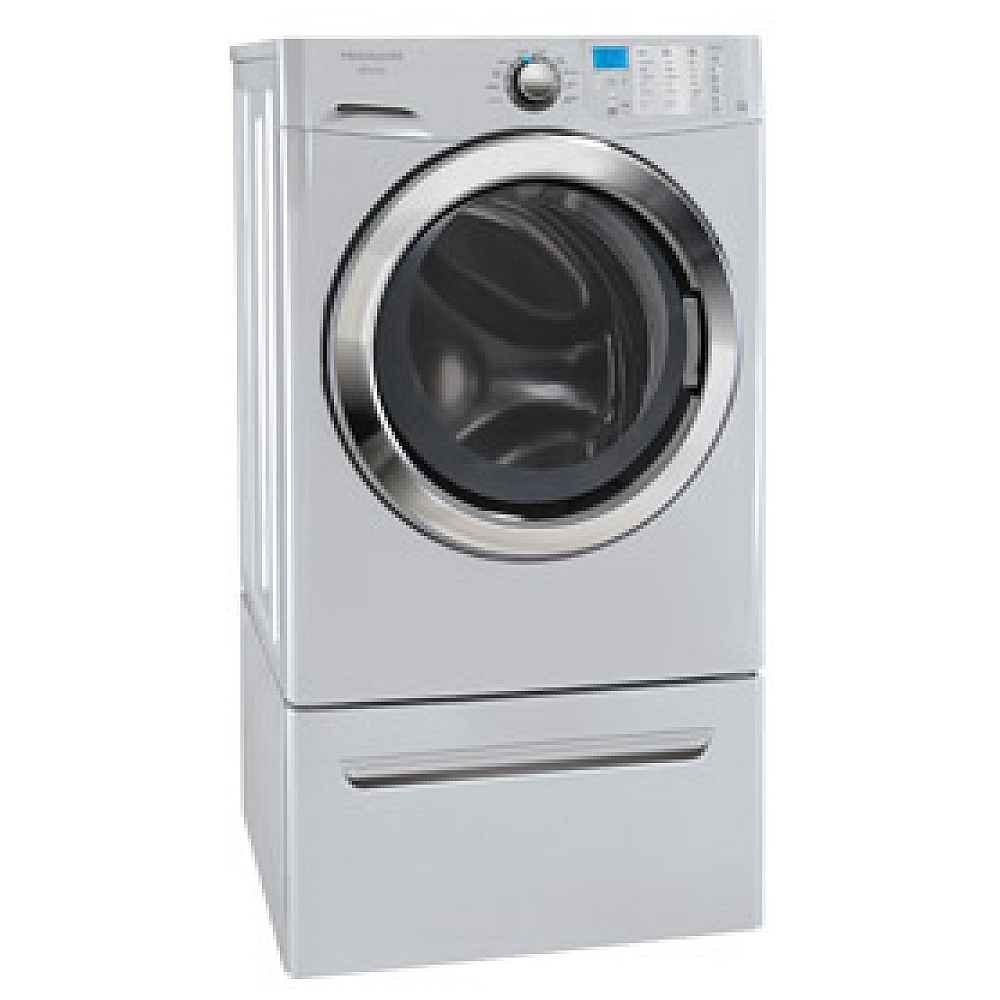

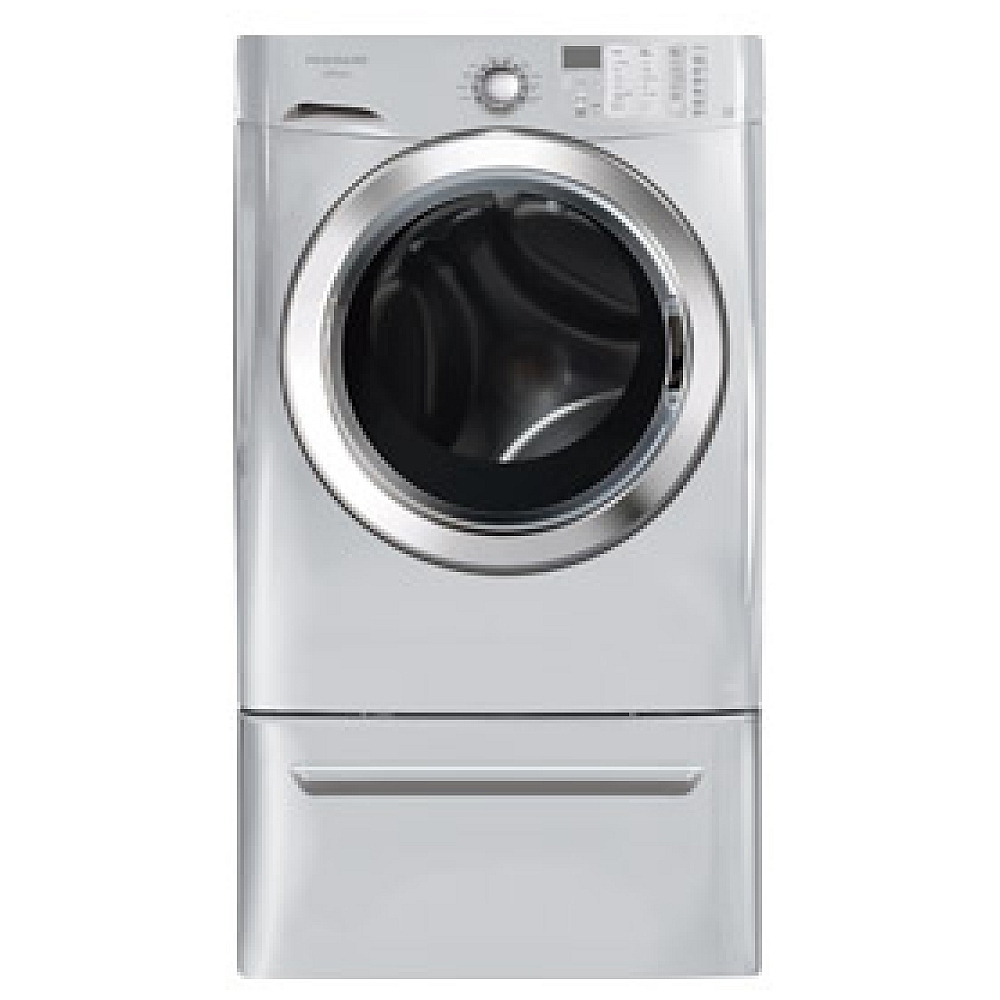

Frigidaire Affinity FAFS174N Front Load Steam Washer, 27in, 4.5 Cu.Ft, with 15 Cycles, ENERGY STAR, Bleach, Detergent and Fabric Softener and 1,300 RPM Spin Speed
- A Better Clean
- Our Ready Clean system gently cleans your clothes and uses a Fresh Water Rinse resulting in a better clean.
- Better Stain Removal
- "Ready Steam " option improves stain removal, ensuring cleaner clothes.
- Fastest Full Load Wash¹
- Wash a full load the fastest. With Quick Wash , a full load is finished in just 20 minutes.
- ENERGY STAR® Most Efficient
- Recognized as the Most Efficient of ENERGY STAR® in 2012.
- Specialty Cycles
- Features cycles to wash everything from stuffed animals to pet beds and active wear.
- Energy Saver Option
- Option further reduces energy use up to 60%. 2
- Quick Sanitize
- Remove 99.9% of bacteria from items like kids' gloves and stuffed animals four times faster than other washers.
- NSF® Certified Allergen Cycle
- Removes up to 95% of allergens.
- NSF® Certified
- Stain Pretreat
- A 10-minute special soak cycle that removes even the toughest stains.
- Vibration Control System
- Advanced vibration control keeps even oversized loads balanced for smooth, quiet operation. Ideal for second floor installation.

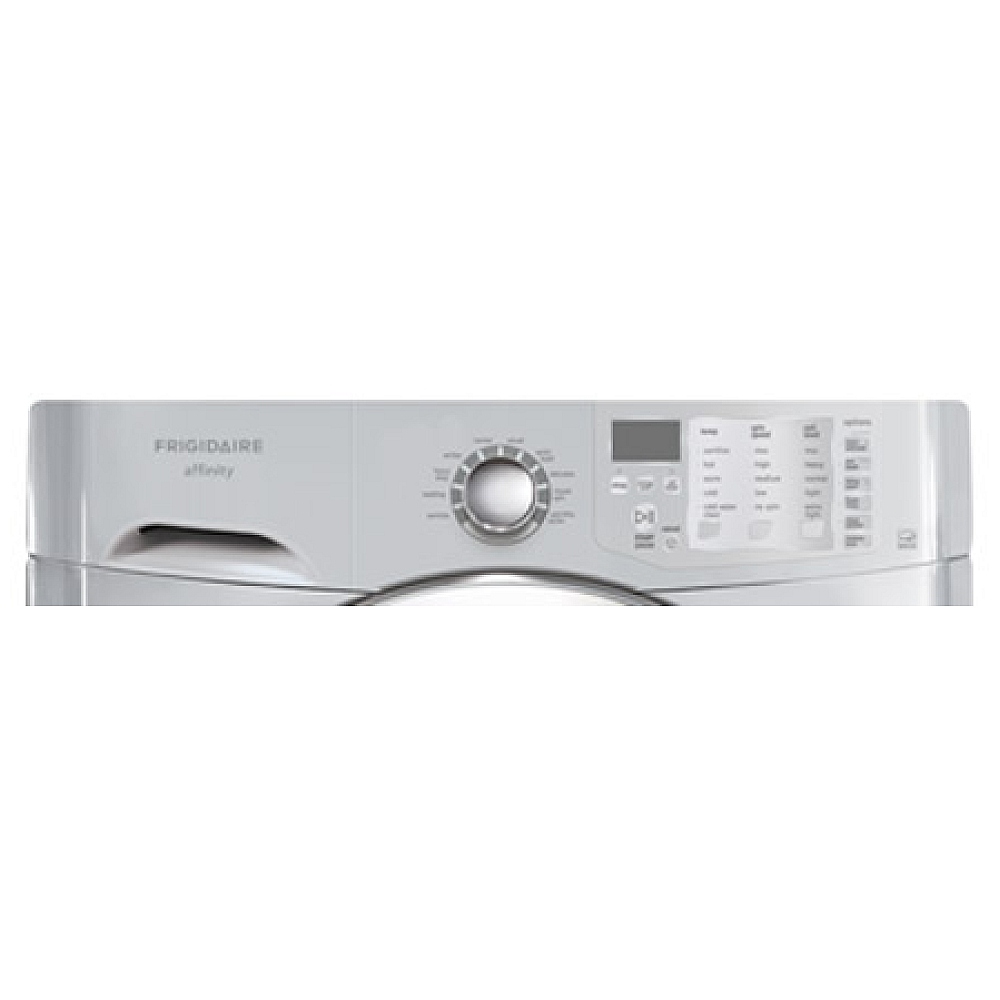

- Express-Select® Controls
- Easily select options and cycles with the touch of a button.
- Fresh Water Rinse Option
- An additional rinse cycle uses advanced rinse technology to effectively reduce detergents and additives.
- SilentDesign
- Designed for quiet operation.
- Stay-Fresh Door Seal
- Optional Pedestal Drawer
- Most Installation Options in its Class
- TimeWise® Technology
- TimeWise® Technology ensures wash time equals dry time - so you don't wait for clothes to dry.
A Better Clean
Our Ready Clean™ system gently cleans your clothes and uses a Fresh Water Rinse resulting in a better clean.
Better Stain Removal
"Ready Steam™" option improves stain removal, ensuring cleaner clothes.
Fastest Full Load Wash¹
Wash a full load the fastest. With Quick Wash™, a full load is finished in just 20 minutes.
ENERGY STAR® Most Efficient²
Rated ENERGY STAR® Most Efficient, our washers are eco-friendly: up to 60% more energy-efficient.
Specialty Cycles
Features cycles to wash everything from stuffed animals to pet beds and active wear.
Energy Saver Option
Option further reduces energy use up to 60%.³
Quick Sanitize
Remove 99.9% of bacteria from items like kids' gloves and stuffed animals four times faster than other washers.
NSF® Certified Allergen Cycle
Removes up to 95% of allergens.
NSF® Certified
Stain Pretreat
A 10-minute special soak cycle that removes even the toughest stains.
Vibration Control System
Advanced vibration control keeps even oversized loads balanced for smooth, quiet operation. Ideal for second floor installation.
Express-Select® Controls
Easily select options and cycles with the touch of a button.
Fresh Water Rinse Option
An additional rinse cycle uses advanced rinse technology to effectively reduce detergents and additives.
SilentDesign™
Designed for quiet operation.
Stay-Fresh™ Door Seal
Optional Pedestal Drawer
Most Installation Options in its Class
TimeWise® Technology
TimeWise® Technology ensures wash time equals dry time — so you don't wait for clothes to dry.
|
| Product Code |
FAFS4174NA |
| Product Type |
Front Load |
| Power Type |
Electric |
| Installation Type |
Free-Standing |
| UPC Code |
0-12505-38493-6 |
| Colour |
Classic Silver |
|
| Bedding |
Yes |
| Casual |
Yes |
| Delicates |
Yes |
| Hand Wash |
Yes |
| Heavy |
Yes |
| Normal |
Yes |
| Quick Cycle |
Yes - 20 minutes |
| Rinse & Spin |
Yes |
| Quick Sanitize |
Yes |
| Whitest Whites |
Yes |
|
| Automatic Temperature Control |
Yes |
| Cold |
Yes |
| Cold Water Clean |
Yes |
| Hot |
Yes |
| Sanitize |
Yes |
| Warm |
Yes |
|
| Depth |
30-3/10" |
| Depth (with Door 90° Open) |
51-2/5" |
| Height |
36" |
| Width |
27" |
|
| Adjustable Leveling Legs |
Yes |
| Product Weight (lbs) |
235 |
|
| ENERGY STAR® Certified |
Yes |
| ENERGY STAR® Most Efficient |
Yes |
| NSF® Certified |
Yes |
|
| Add Steam |
Yes |
| Allergy |
Yes |
| Clean Washer |
Yes |
| Delay Start (Hours) |
Yes |
| Energy Saver |
Yes |
| Freshwater Rinse |
Yes |
| Light |
Yes, Press&Hold |
| Max Fill |
Yes |
| Prewash |
Yes |
| Stain Pretreat |
Yes |
|
| Control Lock |
Yes |
| Cycle Status Lights |
Yes, LCD |
| Time Remaining Indicator |
Yes, LCD |
| Start/Pause/Cancel Function |
Push 'Start/Pause' button to Start / Push 'Start/Pause' button to Pause / Push 'Cancel' button to Cancel |
|
| Amps @ 120 Volts |
10.0 |
| Connected Load (kW Rating) @ 120V |
1.10 |
| Minimum Circuit Required (Amps) |
15A |
| Power Supply Connection Location |
Rear |
| Voltage Rating |
120V, 60Hz |
|
| CEE Tier Level |
3 |
| kWh/year |
104 |
| Modified Energy Factor |
3.37 |
| Water Factor |
2.7 |
| Water Usage/Year |
4085 |
|
| Jeans |
Yes |
| Kids Wear |
Yes |
| Pet Beds |
Yes |
| Quick Sanitize |
Yes |
| Stuffed Animals |
Yes |
|
| Extra Light Soil |
Yes |
| Heavy Soil |
Yes |
| Light Soil |
Yes |
| Max Soil |
Yes |
| Normal Soil |
Yes |
| Stain Pretreat |
Yes |
|
| Bleach Dispenser |
Yes |
| Detergent Dispenser |
Yes |
| Drum Light |
Yes, LED |
| Drum Material |
Stainless Steel |
| Fabric Softener Dispenser |
Yes |
| Internal Water Heater |
Yes |
| Maximum Spin Speed (RPM) |
1,300 |
| Prewash Detergent Dispenser |
Yes |
| Stay Fresh Antimicrobial Seal |
Yes |
| Stay Fresh Door Seal |
Yes |
|
| Cabinet Colour |
White |
| Console Colour |
White |
| Door Lock Light |
Yes, LED |
| Door Style |
Affinity |
| Knob, Button, Switch Colour |
Chrome |
| Lens Ring |
Chrome |
|
| Drain Hose Extension Kit |
Optional, order item no. 137098000 |
| Dryer Stacking Kit |
Optional, order item no. STACKIT4X |
| Mobile Home Installation Kit |
Optional, order item no. 137067200 |
| Pedestal |
Optional, order item no. CFPWD15 |
Product Type: Front Load
Power Type: Electric
Installation Type: Free-Standing
UPC Code: 0-12505-38491-2
Colour: Classic White
Colour Code: W
Exterior Specifications
Cabinet Colour: White
Console Colour: White
Lens Ring: Chrome
Knob, Button, Switch Colour: Chrome
Door Style: Affinity
Door Lock Light: Yes, LED
Controls
Control Location: Front
Timer Offs/Different Cycle Selections: 10
Cycle Status Lights: Yes, LCD
Time Remaining Indicator: Yes, LCD
Controls Lock: Yes
Delay Start (hours): Yes
Time: Up to 20 Hours
On/Off: Yes
Washer: Specifications
Drum Capacity: 3.9 Cu. Ft.
Drum Material: Stainless Steel
Prewash Detergent Dispenser: Yes
Bleach Dispenser: Yes
Detergent Dispenser: Yes
Fabric Softener Dispenser: Yes
Water Level Adjustment: Automatic
Wash Speeds (RPM): Variable
Maximum Spin Speed: 1,300
Drum Light: Yes, LED
General Specifications
Trim Tag Line: None
Water Inlet Location: Left Top Rear
Sound Package: SilentDesign™
Literature: English/French
Trim Language: English
Shipping Weight (lbs): 222
Product Weight (lbs): 235
Washer: Cycles
Cycle Count: 15
Sanitize: Yes
Heavy: Yes
Whitest Whites: Yes
Normal: Yes
Casual: Yes
Quick Cycle: Yes - 20 minutes
Hand Wash: Yes
Delicates: Yes
Bedding: Yes
Rinse & Spin: Yes
Cycle Signal: Chime
Washer: Specialty Cycles
Quick Sanitize: Yes
Pet Beds: Yes
Kids Wear: Yes
Jeans: Yes
Stuffed Animals: Yes
Washer: Soil Level Selections
Soil Level Selections: 5
Max Soil: Yes
Heavy Soil: Yes
Normal Soil: Yes
Light Soil: Yes
Extra Light Soil: Yes
Temperature Settings
Automatic Temperature Control: Yes
Sanitize: Yes
Hot: Yes
Warm: Yes
Cold: Yes
Cold Water Clean: Yes
Options
Add Steam: Yes
