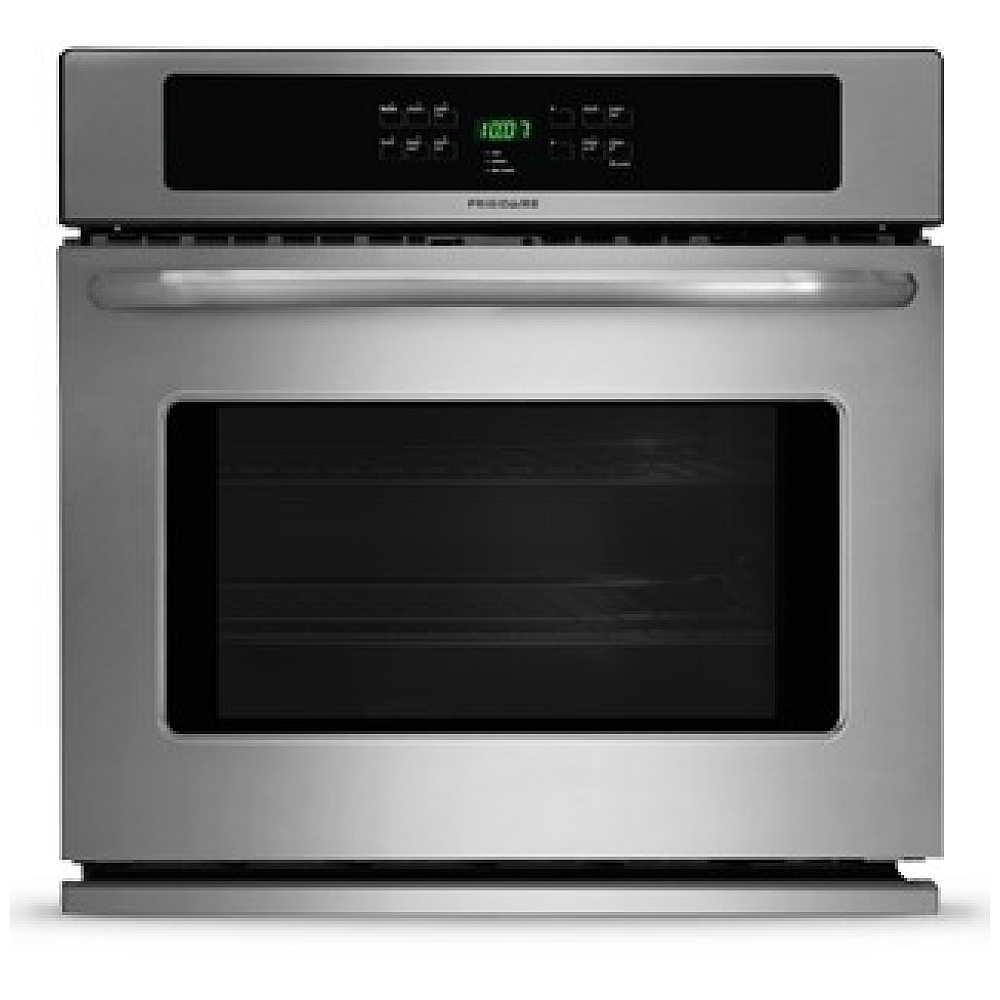

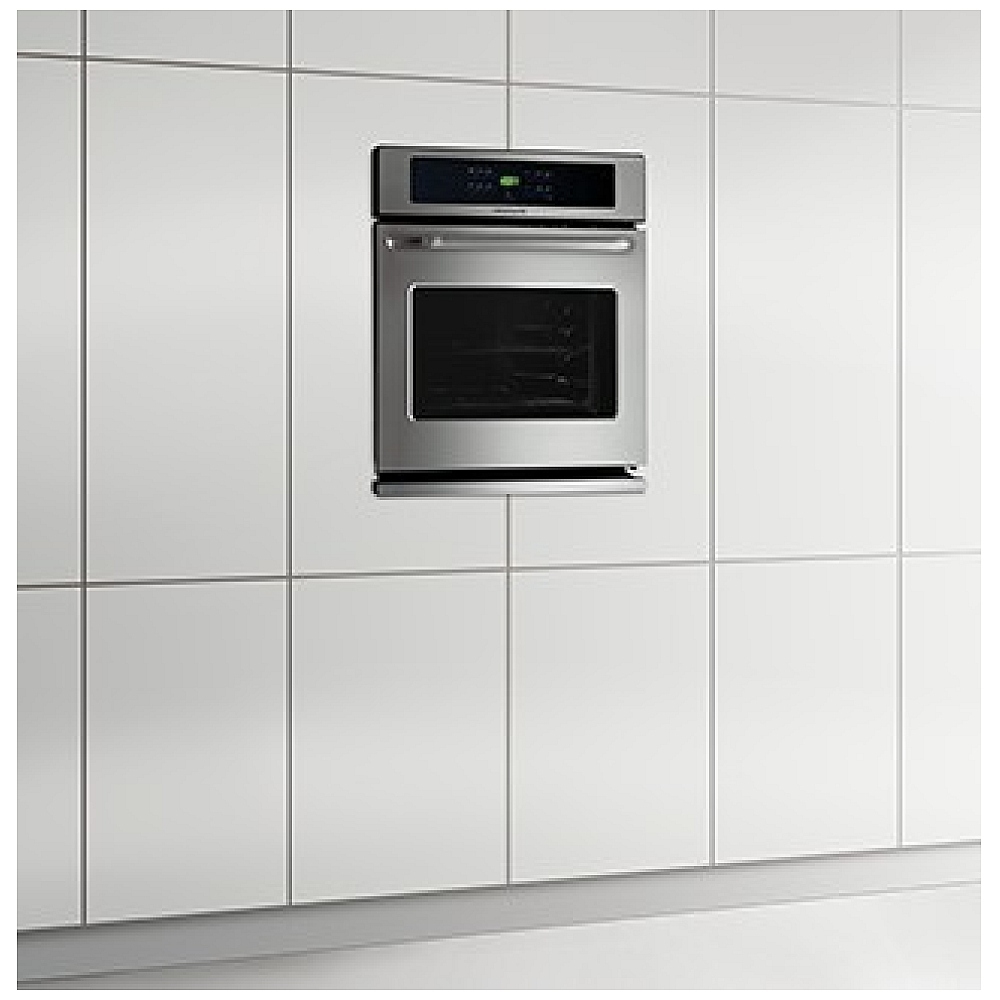

Frigidaire FFEW3025PS Self Clean Wall Oven, 30 in, 4.6 Cu.Ft. with 6 Pass Bake 2750w, 6 Pass Broil 3400w, 2 Handle Oven Racks, 1 Oven Light, Large Visualite Door Window, Star-K Certified
- Even Baking Technology
- Our Even Baking Technology ensures even baking every time.
- Self-Cleaning
- Your oven cleans itself - so you dont have to. Self clean options available in 2, 3, and 4-hour cycles.

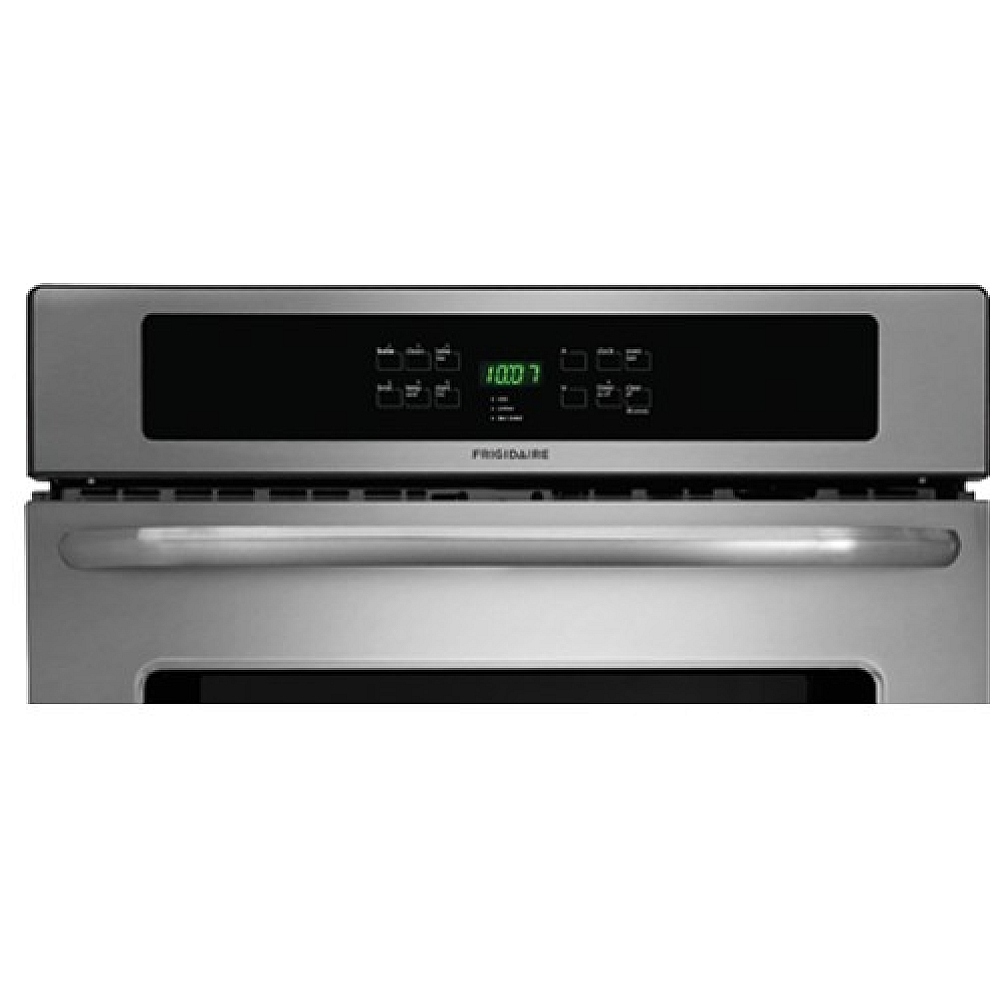

- Ready-Select® Controls
- Easily select options or control cooking temperature with our easy-to-use controls.

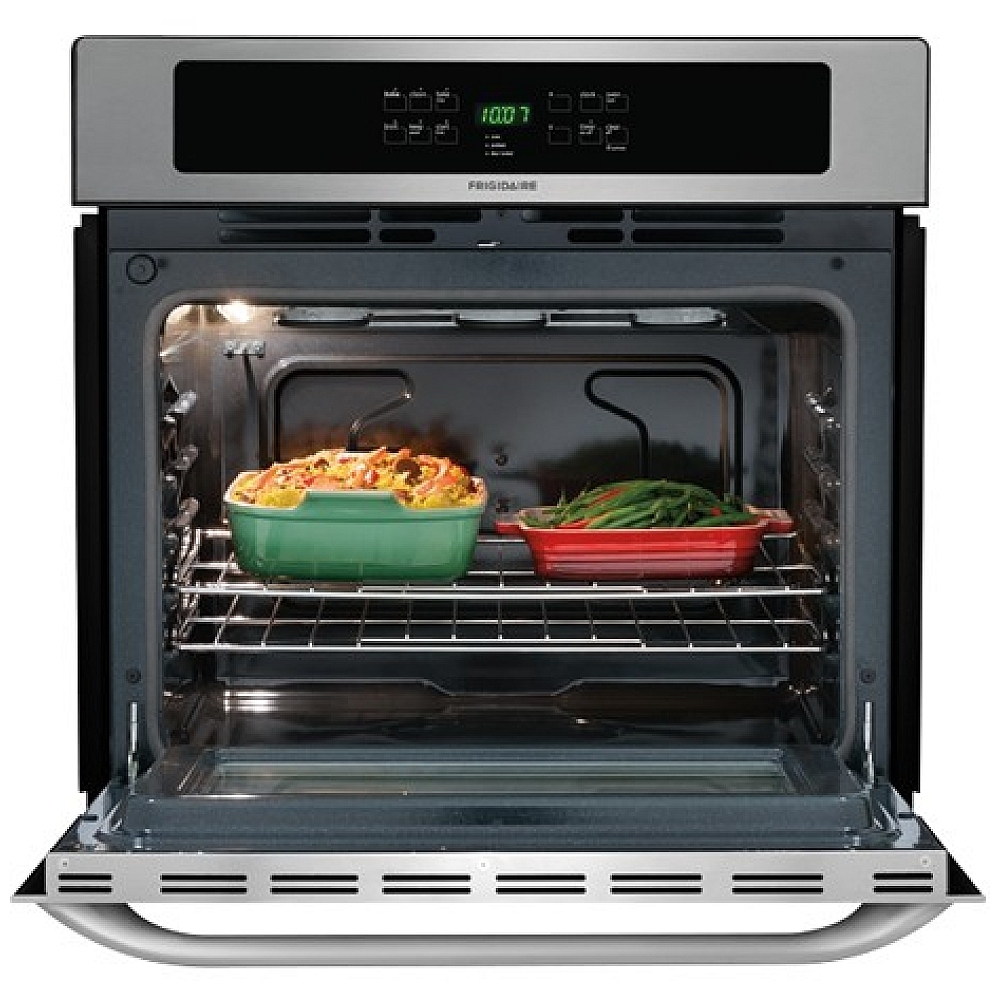

- Oven Rack Handles
- Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
- Large Capacity
- Our large capacity oven gives you room to cook more at once.
4.6 Cu.Ft, 30in Electric Wall Oven, Self Clean, 6 Pass Bake 2750w, 6 Pass Broil 3400w, 2 Handle Oven Racks, 1 Oven Light, Large Visualite Door Window. Star-K Certified. Oven Features: Interface: Membrane. Broil: Low and High. Preheat: Integrated with Bake Keep Warm, Self-Clean: 2, 3 Hours (Scroll thru), Delay Clean, Timed Shut-off: 12 hours Timer Function, Timer Lock-out, Bake Element (Watts): 6 pass 2750w, Broil Element (Watts): 6-pass 3400 Watts, Oven Capacity (Cu. Ft.): 4.2, Oven Light: 1, Oven Rack Configuration: 2 Handle Rack, Oven Window: Large Visualite.
Manufacturer's Warranty: 1 year
Canadian model: FFEW3025PS
Canadian UPC: 012505800047
EAN: 0012505800047
| General Specifications | |
| Product Weight (lbs) | 120 |
| Shipping Weight (lbs) | 140 |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Built-In |
| Collection | Frigidaire |
| Handle Color | |
| Handle Color | Stainless Steel |
| Exterior Dimensions | |
| Height | 29" |
| Width | 30" |
| Depth | 24-3/4" |
| Depth (with Door 90° Open) | 45-3/4" |
| Certifications & Approvals | |
| Sabbath Mode (Star-K® Certified) | Yes |
| ADA Compliant | Yes |
| Agency Approval | UL/CSA |
| Cooking Controls | |
| Bake | Yes |
| Broil | Variable |
| Keep Warm | Yes |
| Preheat | Integrated with Bake |
| Self-Clean | 3 hours |
| Interface | Membrane |
| Oven Light | Oven Light |
| Lockout | Yes |
| Start Time | Multiple Functions |
| Timer | Yes |
| Cook Duration | Yes |
| Up/Down Keypad | Up & Down (Slew Control) |
| Electrical Specifications | |
| Power Supply Connection Location | Left Rear Bottom |
| Voltage Rating | 240V / 208V 60Hz |
| Connected Load (kW Rating) @ 240V | 3.7 / 2.8 |
| Amps @ 240 Volts | 15.4 / 13.5 |
| Minimum Circuit Required (Amps) | 20A |
| Control Panel Finish | |
| Control Panel Finish | Plastic Black with Stainless Steel Overlay |
| Capacities | |
| Oven 1 Capacity | 4.6 |
| Installation | |
| Under Counter Approved | Approved |
| Door Finish | |
| Door Finish | Stainless Steel |
| Oven Specifications | |
| Oven 1 Type | Main |
| Oven 1 Bake | 2000 Watts |
| Oven 1 Baking System | True Hidden Bake |
| Oven 1 Broil | 6 pass 3400 Watts |
| Oven 1 Broiling System | Variable (400°F to 550°F) |
| Oven 1 Interior Lighting | 1 Halogen (round) |

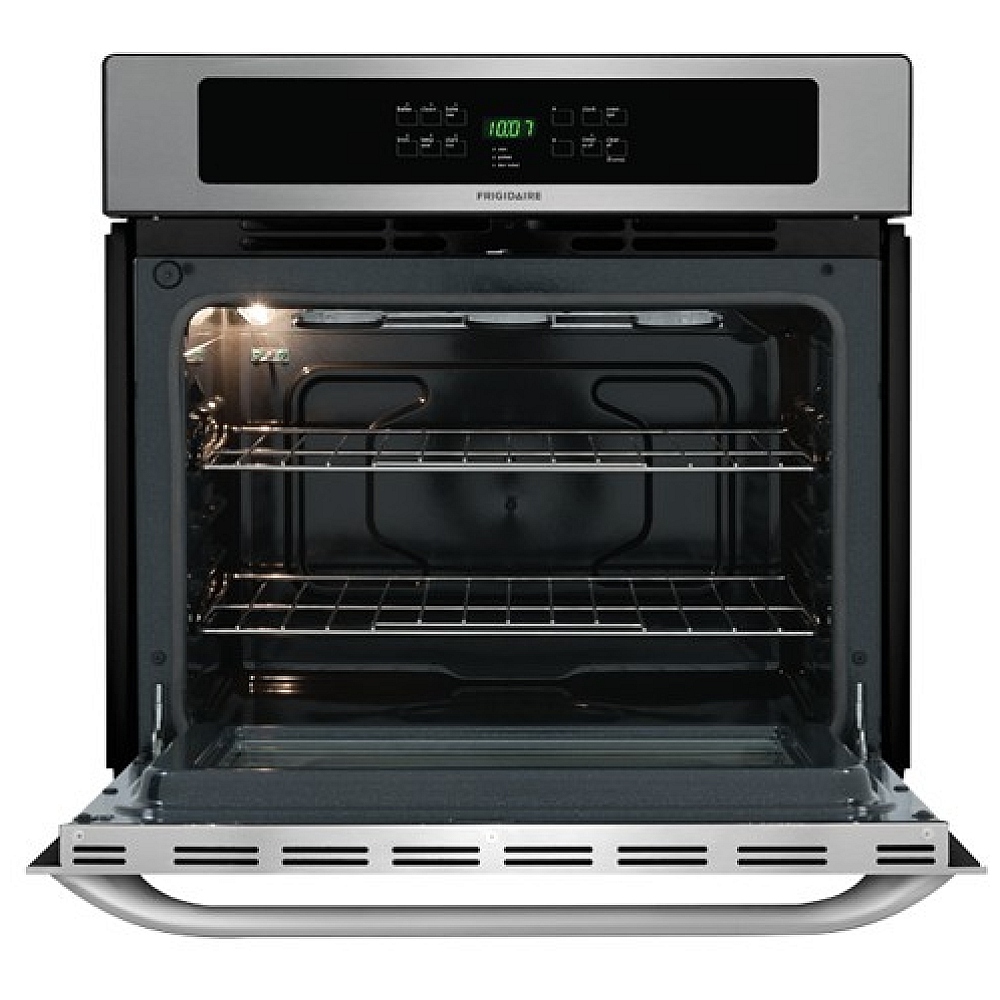

| Oven 1 Rack Configuration | 2 Handle |
| Oven 1 Rack Positions | 5 positions |
| Oven 1 Interior Height | 17-1/2" |
| Oven 1 Interior Width | 24-1/8" |
| Oven 1 Interior Depth | 18-3/4" |
| Oven 1 Interior Color | Slate Blue |
| Oven 1 Cleaning System | Self-Clean |
| Oven Window | Large |
| Cut-Out Dimensions | |
| Cut-Out Height | 27-1/4" - 28-1/4" |
| Cut-Out Width | 28-1/2" - 29" |
| Cut-Out Depth | 24" |
Poduct Dimensions: Depth: 24-1/2", Depth (with 90 Door Open): 44-1/2", Height: 29", Width: 30". Cut-Out Dimensions: Depth: 23-1/2", Height: 27-1/4" - 28-5/8", Width: 28-1/2" - 29". Oven Interior Dimensions: Width: 24-1/8", Depth: 18-1/32", Height: 16-1/2", Amps (240 / 208 Volts): 14.5 / 12.5, Power Supply Location: Rear Bottom Left Connected Load (kW Rating) @ 240 / 208 Volts: 3.4 / 2.6, Under Counter Approved. Shipping Weight (Approx.): 175 lbs. Product Weight: 160 lbs.
Complete Owner's Guide (English) (FFEW3025PS-complete-owners-guide-english-1.pdf)
