Frigidaire FFFH17F4QT Freezer
The classic design of the striking black Frigidaire FFFH17F4QT upright freezer works well anywhere in your home. Its large 16.6 cubic foot capacity frozen food cavity with SpaceWise® organization system, and adjustable baskets make it easy to keep your home fully-stocked on your family’s favorite frozen food items. Frigidaire’s revolutionary ArcticLock wall are thicker, retaining cold air for up to two days after a power outage, and allowing the freezer to be 24% more energy efficient.
The striking black Frigidaire FFFH17F4QT upright freezer allows for flexible installation with two leveling legs. With the level legs, this unit can be installed in a basement, laundry room, or garage without uneven flooring being an issue.

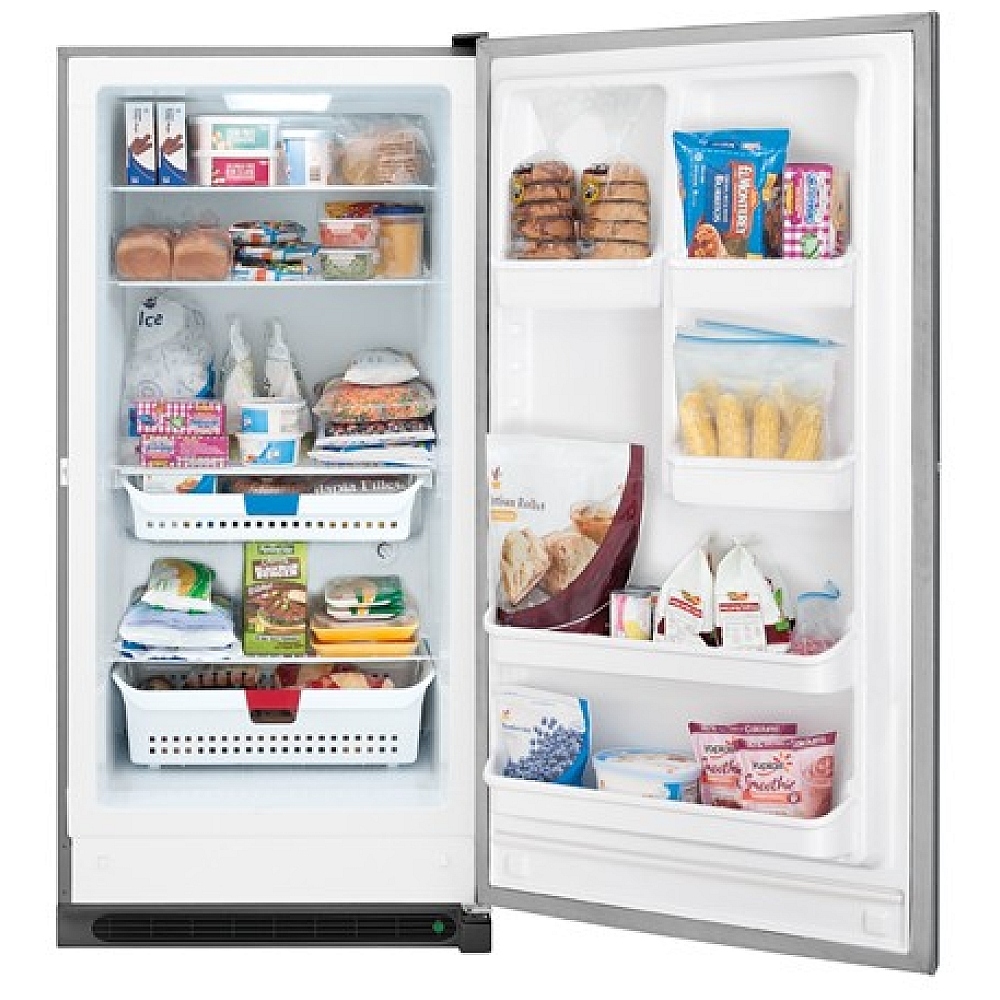

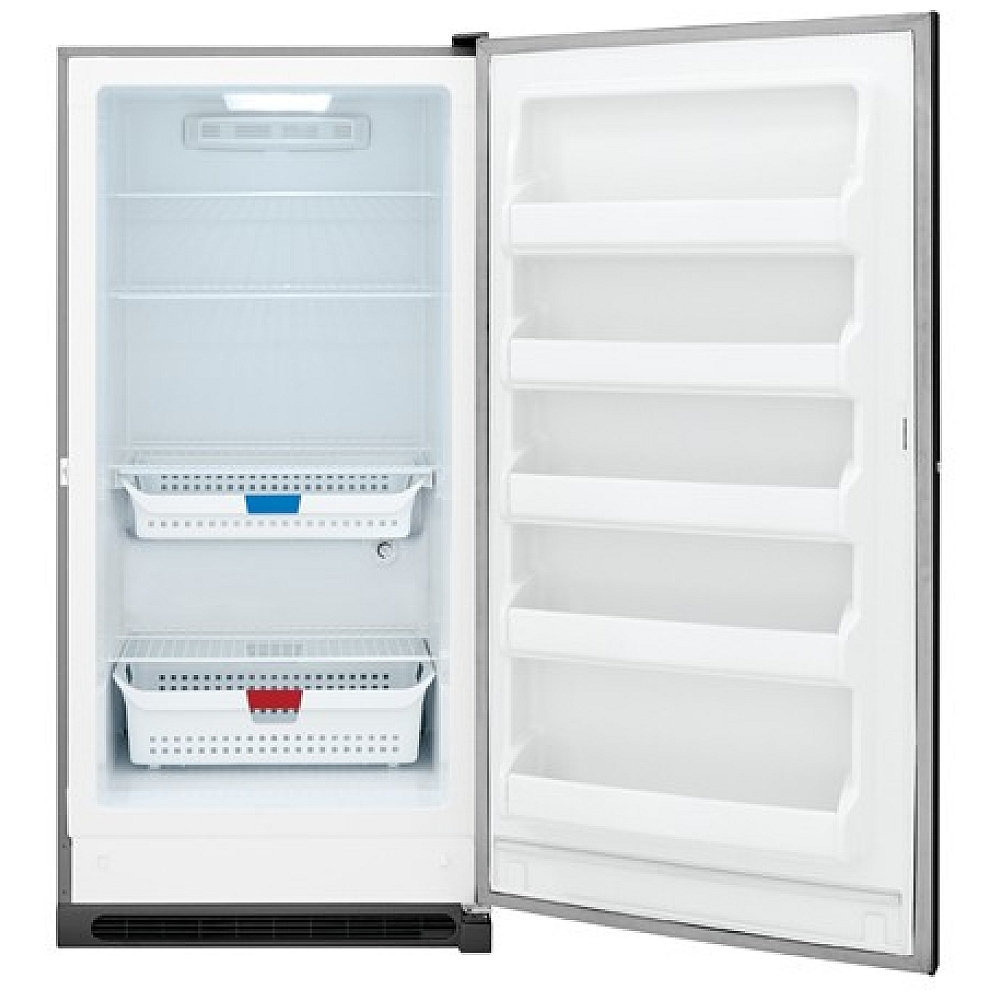

When the right swing door is opened, you are granted full access to the large 16.6 cubic foot frozen food compartment. For easy storage and organization this unit is equipped with two full-width adjustable shelves, 2 fixed wire shelves, 1 mid-level basket, 2 adjustable white door bins, and 1 fixed full-width door bin. With Frigidaire’s SpaceWise® organization system storing frozen meats, vegetables, ice cream, and more is quick and easy.
The SpaceWise® adjustable baskets offer color-coordinated clips. These color-coordinated clips make it easy to organized foods by category and date, so you can find foods quickly and use them in the order in which they were purchased.
For your convenience, Frigidaire designed the FFFH17F4QT with frost-free operations. The frost-free operation automatically defrosts the freezer, so you never have to worry about unloading, unplugging, and defrosting your freezer manually again. This defrost system monitors the freezer usage, automatically running the defrost cycle during ideal times.
Frigidaire’s ArcticLock thick walls are a saving grace during power outages. These thick walls keep food frozen for over two days without electricity. So when mother nature unleashes severe storms, power outages lasting two to three days will not cause your too spoil. In additional to preserving food when the power is out, the thick walls allow this unit to run 24% more energy efficient than other upright freezers.
The increased energy efficient has earned the FFFH17F4QT Energy Star qualifications. In fact this upright freezer run so efficiently, it is ranked amongst the most energy-efficient Frigidaire 2013 models. Energy Star appliances use fewer natural resources to operate with the same great functions top brands are known for. Operating with a reduced amount of natural resources, reduces the amount of carbon emissions given off into the environment.
The Frigidaire FFFH17F4QT upright freezer is the perfect addition to any home. It can be installed in a kitchen, or as a secondary unit in the basement, laundry area, or basement. Its leveling legs prevent uneven floors from causing a problem while the right swing door allows for a variety of installation options. Frigidaire’s ArcticLock walls keep foods perfectly preserved for over two days during power outages while allowing this upright freezer to operation 24% more energy efficient than other freezers.
- Adjustable Temperature Control
- Select the correct temperature for your needs.
- SpaceWise® Organization System
- Offers organizational solutions you can customize to fit your needs like our SpaceWise® Adjustable Dividers and our SpaceWise® Adjustable Baskets with color-coordinated clips.
- SpaceWise® Adjustable Baskets with Color-Coordinated Clips
- Find items faster with our heavy-duty color-coordinated plastic baskets that can help you organize items by categories or purchase date.
- Lock with Pop-out Key
- The freezer key automatically ejects after locking the door so you won't leave it in the door.
- Frost-Free Operation
- Never defrost your freezer again so you can spend time on more important things.
- ArcticLock Thicker Walls
- Keeps food frozen for over 2 days if there is a power outage.
- Bright LED lighting
- Bright LED lighting so you can spend less time digging through your freezer for items.
- Energy Efficient
- Over 24% more energy efficient than Frigidaire's 2013 models
- Power-on Indicator Light
- Know at a glance that your freezer is working.
- Classic Slate
- Available in a new modern color so it can work anywhere in your home.
Manufacturer's Warranty: 1 year
Canadian model: FFFH17F4QT
Canadian UPC: 012505229169
EAN: 0012505229169
| General Specifications | |
| Condenser Type | Hot-wall |
| Frost Free | Yes |
| ProductLaunch | NA |
| Interior Light | Yes |
| Annual Energy Cost (.12 / kWH) | 52 |
| Power On Light | Yes |
| Annual Energy (kWH) | 431 |
| Temperature Range | -10 to 10°F |
| Made In USA | Yes |
| Light Shield | Yes |
| Leveling Legs | 2 Adjustable |
| Reconditioned | No |
| Power Type | Electric |
| Size | 17 Cu. Ft. |
| Installation Type | Free-Standing |
| Collection | Frigidaire |
| Exterior Dimensions | |
| Depth with Doors and Handles | 32-1/8" |
| Depth with Doors (no Handles) | 28-1/2" |
| Case Height | 65-1/8" |
| Height with Hinges and Covers | 68-1/2" |
| Depth | 25-1/2" |
| Depth (with Door 90° Open) | 60-1/4" |
| Depth with Doors (no Handles) | 28-1/2" |
| Height with Hinges and Covers | 67-11/16" |
| Width | 34" |
| Height | 67-1/4" |
| Case Depth | 24-3/8" |
| Depth with Doors and Handles | 32-1/4" |
| Case Width | 32" |
| Weight and Dimensions | |
| Shipping Weight (lbs) | 193 |
| Product Weight (lbs) | 191 |
| Freezer Specifications | |
| Power Failure Alert | No |
| Freezer Lighting | LED |
| Retractable Pizza Shelf | No |
| Organization System | Yes |
| Mid-Level Baskets | 1 |
| Soft Freeze Zone | No |
| Directional Airflow Ports | 1 |
| Fixed Freezer Shelves | 2 Wire |
| Full-Width Door Bins | 1 White |
| LED Lighting | Yes |
| Adjustable Door Bins | 2 White |
| Color-Coordinated Plastic Basket | Yes |
| Fixed Door Racks | 5 Full-Width White |
| Defrost | Frost-Free |
| Door Ajar Alarm | No |
| Removable Trivet | No |
| Defrost Water Drain | No |
| Store-More Adjustable Door Bins | 2 |
| Full-Width Adjustable Shelves | 2 |
| Full-Width Bottom Basket | 1 |
| High-Temperature Alarm | No |
| Exterior Specifications | |
| Lock with Pop-out Key | Yes |
| Front Rollers | No |
| Door Hinge Covers | Grey |
| Name Badge | Frigidaire |
| Door Design | UltraSoft |
| Door Style | UltraSoft |
| Door Gasket | Grey |
| Handle Design | Stainless Steel |
| Door and Handle Design | New Frig Stainless |
| Reversible Door | No |
| Door Swing Type | Right-Hand Swing |
| Cabinet Color | Grey |
| Door Closers | Yes |
| Rear Rollers | No |
| Ice Maker | |
| Ice Maker | No |
| Controls | |
| Control Lock | No |
| Adjustable Temp. Control | Mechanical Dial |
| Control Location | Interior |
| Controls | Mechanical |
| Temperature Display Mode | 2015-01-07 |
| Front Digital Display | No |
| Supplemental Freeze | No |
| Electrical Specifications | |
| Power Supply Connection Location | Right Rear Bottom |
| Voltage Rating | 115V 60Hz |
| Amps @ 120 Volts | 5 |
| Plug Type | NEMA 5-15P |
| Minimum Circuit Required (Amps) | 15A |
| Connected Load (kW Rating) @ 120V | 0.6 |
| Door Finish | |
| Door Finish | Smooth |
| Certifications & Approvals | |
| CSA Listed | Yes |
| Sabbath Mode (Star-K® Certified) | No |
| CSA Rating | Household |
| ENERGY STAR® Most Efficient | No |
| ADA Compliant | No |
| ENERGY STAR® Certified | Yes |
| UL Listed | N-No UL Code Rating |
| ETL Listed | No |
| NSF® Certified | No |
| Capacities | |
| Total Shelf Area (Sq. Ft.) | 11.6 |
| Capacity (Cu. Ft.) | 16.6 |
| General Specifications | |
| PROP 65 Label | No |
General Specifications
- Annual Energy (kWH): 431
- Frost Free: Yes
- Interior Light: Yes
- Leveling Legs: 2, Adjustable
- Power On Light: Yes
- Product Weight (lbs): 185
- Temperature Range: -10 to 10°F
- Power Type: Electric
- Size: 17 Cu. Ft.
- Installation Type: Free-Standing
- Collection: Frigidaire
Freezer Specifications
- Adjustable Door Bins: 3, White
- Defrost: Frost-Free
- Directional Airflow Ports: 1
- Fixed Freezer Shelves: 2 Wire
- Freezer Lighting: LED
- Full-Width Adjustable Shelves: 2
- Full-Width Door Bins: 2
- Mid-Level Baskets: 1
Capacities
- Total Shelf Area (Sq. Ft.): 11.6
Electrical Specifications
- Amps @ 120 Volts: 5.0
- Connected Load (kW Rating) @ 120V: 0.60
- Minimum Circuit Required (Amps): 15A
- Plug Type: NEMA 5-15P
- Power Supply Connection Location: Right Rear Bottom
- Voltage Rating: 115V, 60Hz
Certifications & Approvals
- ADA Compliant: No
- CSA Rating: Household
- ENERGY STAR® Certified: Yes
Exterior Dimensions
- Case Depth: 24-3/8"
- Depth with Doors (no Handles): 28-1/2"
- Depth with Doors and Handles: 32-1/4"
- Case Height: 65-1/8"
- Height with Hinges and Covers: 67-11/16"
- Case Width: 32"
- Depth: 25-1/2"
- Depth (with Door 90° Open): 60-1/4"
- Height: 67-1/4"
- Width: 34"
Controls
- Adjustable Temp. Control: Mechanical Dial
- Control Location: Interior
- Controls: Mechanical
Wiring Diagram (English) (FFFH17F4QT-wiring-diagram-english-1.pdf)
