Frigidaire Gallery FGEC3045PS Electric Cooktop 30 in, Smudge-Proof Stainless Steel, 4 Elements, SpaceWise Expandable Element, Hot Surface Indicators and Express-Select Controls
- SpaceWise® Expandable Elements
- Flexible elements expand to your cooking needs.

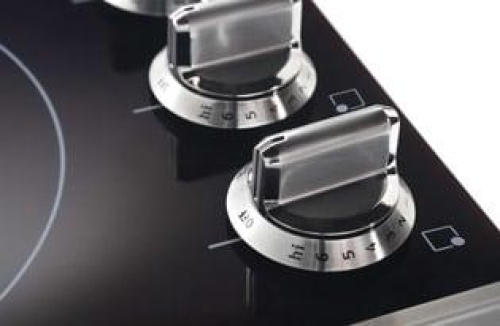

- Express-Select® Controls
- Easily go from warm to boil.
- Ceramic Glass Cooktop
- For a more beautiful cooktop that's easy to clean.
- Hot Surface Indicators
- Approved Over Frigidaire® Electric Wall Ovens
- Cooktops are approved for installation above any of our Single Electric Wall Ovens.
30in Electric Cooktop, Ceramic Glass Surface, Right Side Controls, Hot Surface Indicator Light, 1x12 2700w Element, 1x6/9" 3000w SpaceWise Expandable, 2x6 1200w Element, Bevelled Edges on Non Trimmed Sides, Approved For Single Oven Combination Installation. Cooktop Surface Type: Ceramic Glass. Front Left Element: 12" 2700 Watts. Rear Left Element: 6" 1200 Watts. Front Right Element: 6"/9" 1600/3000 Watts. Rear Right Element: 7" 1500 Watts. Hot-Surface Indicator Light: Yes.
Manufacturer's Warranty: 1 year
Canadian model: FGEC3045PS
Canadian UPC: 057112991276
EAN: 0057112991276
| General Specifications | |
| ProductLaunch | NA |
| Reconditioned | No |
| Shipping Weight (lbs) | 60 |
| Product Weight (lbs) | 55 |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Drop-In |
| Collection | Frigidaire Gallery |
| Controls | |
| Control Location | Right Side |
| Control Type | Mechanical |
| Dimensions: Exterior | |
| Height | 2-5/8" |
| Width | 30-3/8" |
| Depth | 21-3/8" |
| Cooktop | |
| Cooking Surface | Black Ceramic Glass |
| Warming Zone | No |
| Right Front | 6/9" - 1600/3000 Watts |
| Right Rear | 7" - 1500 Watts |
| Knob Type | Cast Metal |
| Installed Over a Wall Oven | Yes |
| Left Rear | 6" - 1200 Watts |
| Knob Color | Stainless Steel |
| Left Front | 12" - 2700 Watts |
| Cooktop Surface Type | smooth surface |
| Hot-Surface Indicator Light | Yes |
| Installation Type | |
| Oven Combo Approved | Yes |
| Certifications & Approvals | |
| ADA Compliant - All Brands | No |
| ANSI Certified | No |
| ETL Listed | No |
| NSF® Certified | No |
| Agency Approval(All Brands) | UL/CSA |
| UL Listed | 4-UL Certified |
| Sabbath Mode | No |
| CSA Listed | Yes |
| General Specifications | |
| Carton Width | 2.750000 |
| Carton Depth | 2.040000 |
| Carton Height | 0.580000 |
| Electrical Specifications | |
| Min Circuit Required | 40A |
| Voltage Rating | 240V / 208V 60Hz |
| Connected Load @ 240V | 8.4 / 6.4 |
| Amps @ 240 Volts | 35.0 / 30.3 |
| Connection Location | Right Rear |
| Dimensions: Cut-Out | |
| Depth | 20-1/4" - 20-1/2" |
| Width | 29-5/8" - 29-7/8" |
| Height | 5" |
Exterior Dimensions: Width: 30-3/4", Depth: 21-1/2", Height: 2-3/4". Cut-Out Dimensions: Width: 29-5/8" - 29-3/4", Depth: 20-1/4" - 20-1/2". Height: 5". Connected Load (Kw Rating) @ 240/ 208 Volts: 8.4/ 6.3. Amps: 35/ 30. Minimum Circuit Required: 40 Amps. Voltage Rating: 240/ 208V/ 60Hz. Product Weight: 55 lbs. Shipping Weight: 60 lbs.
Complete Owner's Guide (English) (FGEC3045PS-complete-owners-guide-english-1.pdf)
