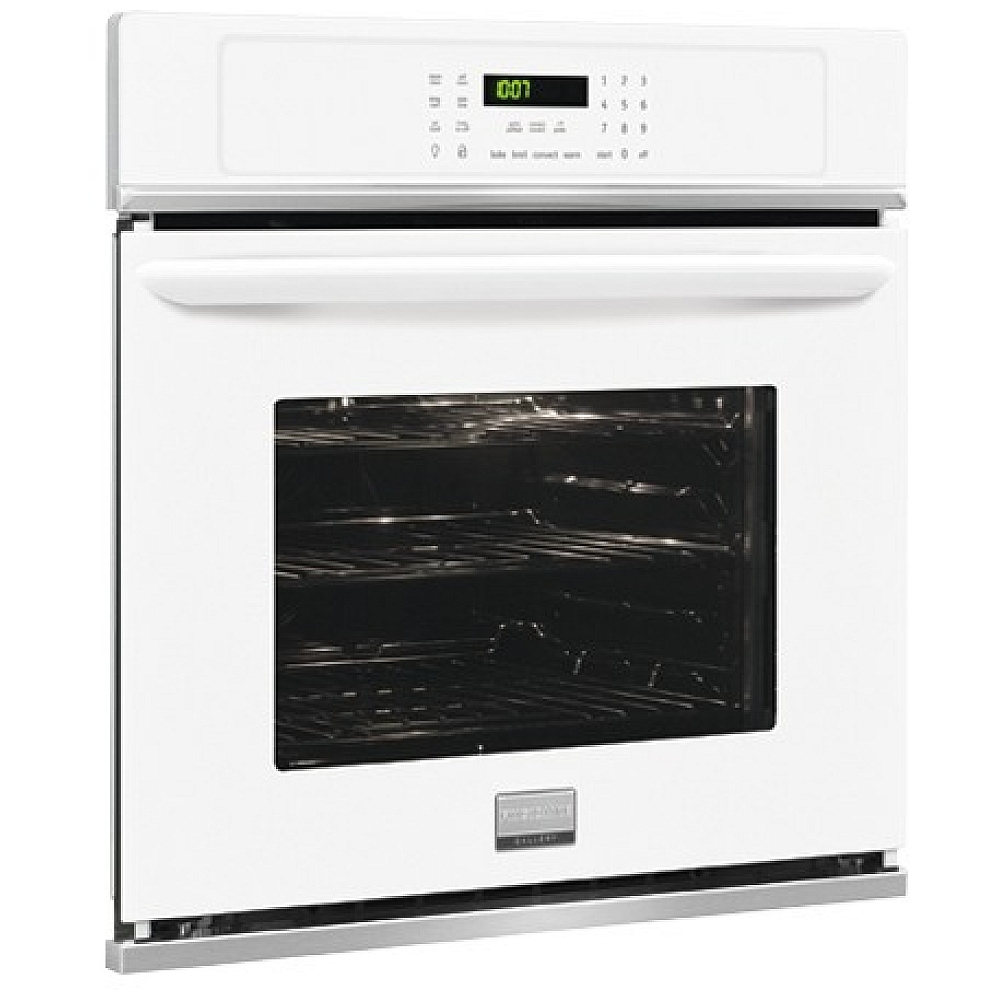

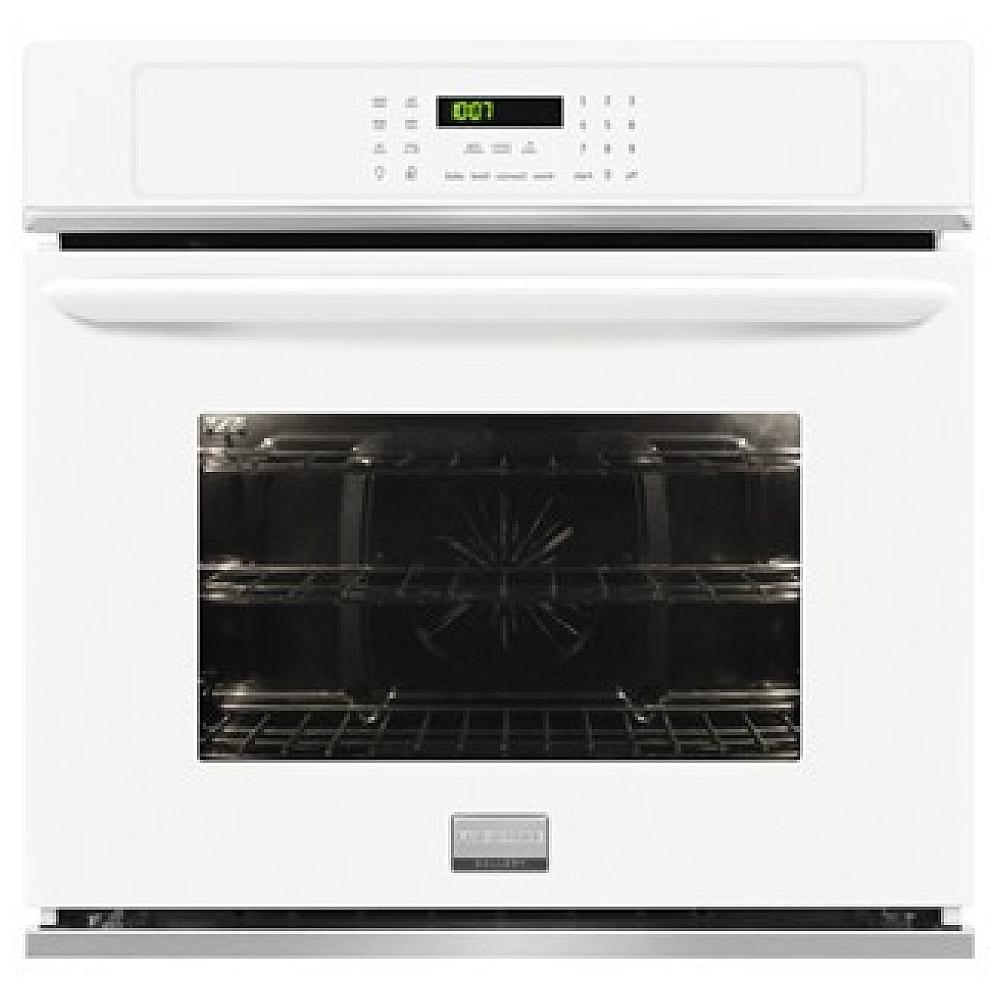

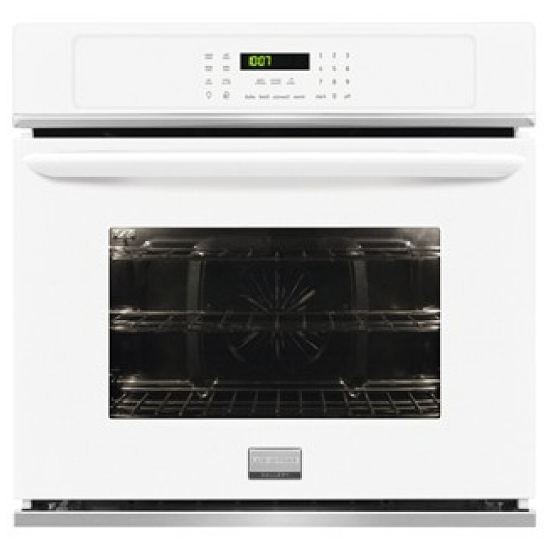

Frigidaire FGEW2765PW Wall Oven
Create a recently remodeled look in your home, while upgrading your cooking performance with the charming Frigidaire FGEW2765PW white wall oven. This high-performance oven is well-suited for any kitchen with its flush to cabinet installation and charming white color. Its impressive 3.8 cubic foot capacity oven cavity features Frigidaire’s innovative True Convection system with Effortless™ Convection. Now you prepare flawless meals, just like a master chef, right in your kitchen. Best of all when you are finished baking, roasting, and broiling in your new Frigidaire oven, cleanup is as simple as activating the powerful steam cleaning features.

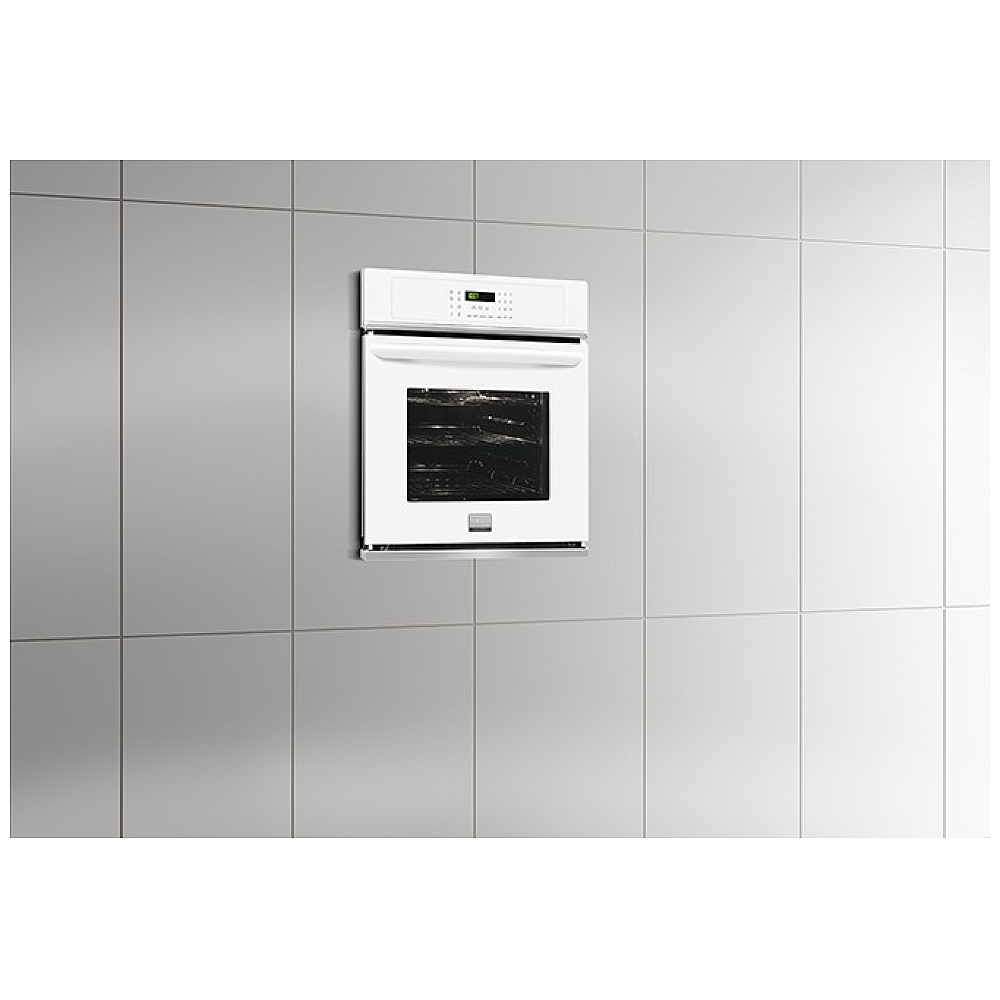

This 27-inch wall oven installs flush with your current cabinetry, with flexible installation options. You can install this oven as a single wall oven, or under the counter to create the ultimate cooking setups.

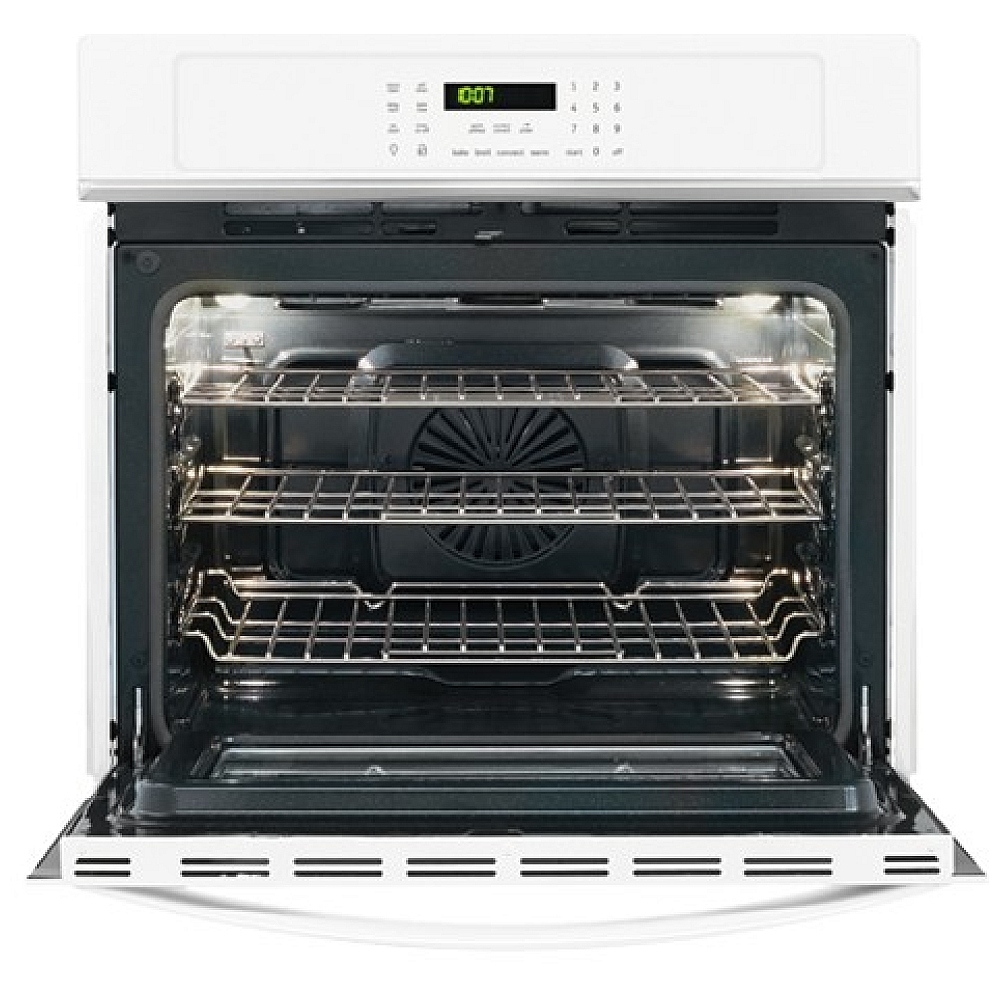

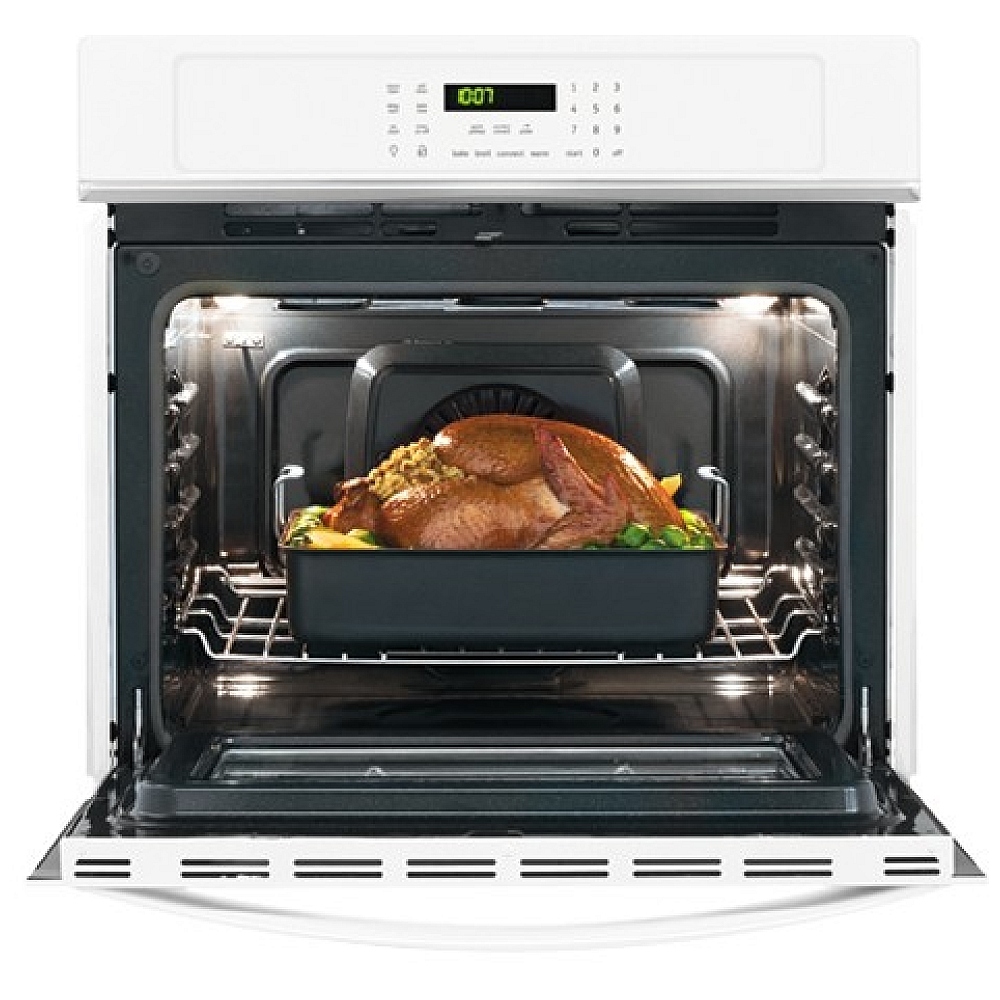

You will be blown away by the amount of cooking space offered in the impressive 3.8 cubic foot capacity oven cavity. With three oven racks and five positions, you will have no problem baking multiple trays of cookies, or a large roast with ease. Frigidaire took their design a step further with the hidden bake element, creating, even more, usable oven space for your use.
The hidden bake element does more than create additional usable storage space. Moving the baking element below the oven floor prevent spillovers from cooking on the baking element, making cleanup easier than ever before.
Rest easy knowing no matter what dish you are preparing in your Frigidaire wall oven will receive uniform heating, helping you achieve flawless cooking result with the True Convection System. The True Convection System uses a single convection fan, installed in the rear of the oven, to circulate heated air throughout the oven cavity evenly. Evenly distributing the heated air eliminates hot and cold spots, achieving uniform cooking, baking, and roasting results.
If you have never used a convection oven before, Frigidaire is here to help with the Effortless™ Convection System. The Effortless Convection System was designed to eliminate the guesswork from cooking. This intelligent conversion system is set up for you to input the traditional conventional cook time and temperature and converts it to the appropriate convection cook time and temperature automatically.
Frigidaire makes sure all of the dishes receive the same outstanding cooking performance with revolutionary Even Baking Technology. The Even Baking Technology works with the convection system to ensure the oven cavity is heated evenly with every use. Alternating the heat source between the broil element and baking element helps the oven deliver heat from the top and bottom of the oven cavity, effectively eliminate hot and cold spots.
When you are finished cooking or baking with the Frigidaire FGEW2765PW wall oven, cleanup is quick and easy with the Steam Clean Cycle. Frigidaire uses the power of steam to lift stuck-on, baked-on messes from the oven cavity. Toss those harsh cleaning chemicals in the trash, and watch as Frigidaire combines low-heat temperatures with the power of steam to clean the entire oven cavity.
Frigidaire FGEW2765PW 27'' Single Electric Wall Oven
- True Convection
- A third heating element and single convection fan circulate hot air throughout the oven for faster and more even multi-rack baking.
- Quick Preheat
- Preheat in just a few minutes.
- Steam Cleaning
- A 20-minute light oven cleaning thats chemical-free, odor-free, and fast.
- Quick Clean
- Quickly clean your oven in 2 hours with our quick self-clean cycle.
- Effortless Temperature Probe
- The Effortless Temperature Probe allows you to set the desired finished temperature and alerts you when that temperature has been reached. The oven then holds the desired temperature of the meat by switching to a keep warm function for better cooking results
- One-Touch Keep Warm Setting
- Just one touch of a button keeps food warm until everything - and everyone - is ready.
- Delay Start
- Set your oven to begin cooking on your schedule. It can be programmed from one to 24 hours.
- Even Baking Technology
- Our Even Baking Technology ensures even baking every time.

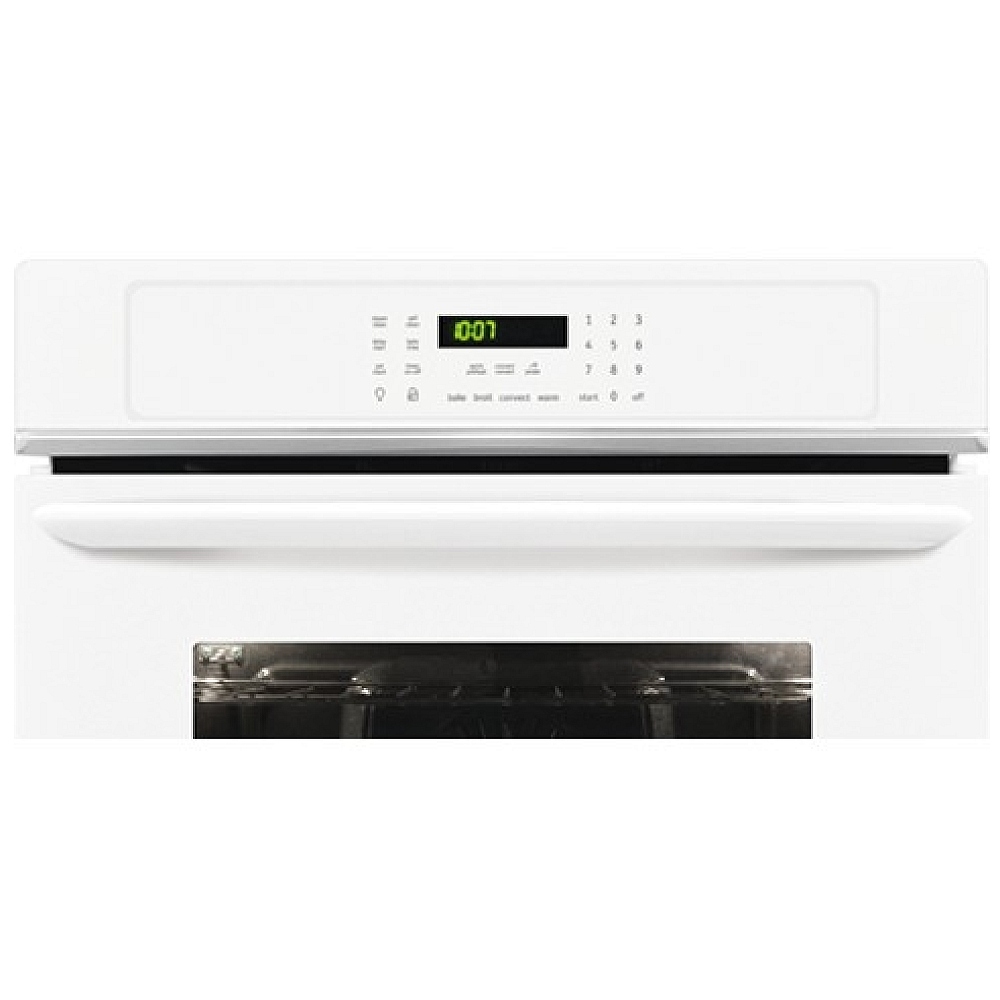

- Express-Select® Controls
- Easily set cooking temperature or choose one-touch cooking options.
- Power Broil
- Added power means you can broil food faster.
Manufacturer's Warranty: 1 year
Canadian model: FGEW2765PW
Canadian UPC: 012505800726
EAN: 0012505800726
| General Specifications | |
| Product Weight (lbs) | 110 |
| Shipping Weight (lbs) | 130 |
| Power Type | Electric |
| Size | 27'' |
| Installation Type | Built-In |
| Collection | Frigidaire Gallery |
| Handle Color | |
| Handle Color | Color-Coordinated Metal |
| Exterior Dimensions | |
| Height | 29" |
| Width | 27" |
| Depth | 24-3/4" |
| Depth (with Door 90° Open) | 45-3/4" |
| Certifications & Approvals | |
| Sabbath Mode (Star-K® Certified) | Yes |
| ADA Compliant | Yes |
| Agency Approval | UL |
| Cooking Controls | |
| Bake | Yes |
| Broil | Variable |
| Chicken Nugget Button | No |
| Convection Conversion | Yes |
| Keep Warm | Yes |
| Pizza Button | No |
| Quick Preheat | Yes |
| Self-Clean | 2 3 4 Hours |
| Delay Clean | Yes |
| Interface | Membrane |
| Oven Light | Yes |
| Lockout | Yes |
| Temperature Probe | Yes |
| Add-a-Minute | No |
| Start Time | Multiple Functions |
| Timer | Yes |
| Cook Duration | Yes |
| Numerical Keypad | Yes |
| Electrical Specifications | |
| Power Supply Connection Location | Left Rear Bottom |
| Voltage Rating | 240V / 208V 60Hz |
| Connected Load (kW Rating) @ 240V | 3.7 / 2.8 |
| Amps @ 240 Volts | 15.4 / 13.5 |
| Minimum Circuit Required (Amps) | 20A |
| Control Panel Finish | |
| Control Panel Finish | Color-Coordinated Plastic with Aluminum Overlay |
| Capacities | |
| Oven 1 Capacity | 3.8 |
| Installation | |
| Under Counter Approved | Approved |
| Door Finish | |
| Door Finish | Color-Coordinated Glass |
| Oven Specifications | |
| Oven 1 Type | Main |
| Oven 1 Bake | 1450 Watts |
| Oven 1 Baking System | True Hidden Bake |
| Oven 1 Broil | 6 pass 3400 Watts |
| Oven 1 Broiling System | Variable (400°F to 550°F) |
| Oven 1 Convection | 2500 Watts |
| Oven 1 Interior Lighting | 2 Halogen |
| Oven 1 Rack Configuration | 2 HD Handle 1 Offset |
| Oven 1 Rack Positions | 5 positions |
| Oven 1 Interior Height | 17" |
| Oven 1 Interior Width | 20-1/2" |
| Oven 1 Interior Depth | 18-3/4" |
| Oven 1 Interior Color | Midnight Black |
| Oven 1 Cleaning System | Self Clean w/Steam Clean Option |
| Oven Window | XL Window |
| Oven 1 Convection System | Single Fan |
| Cut-Out Dimensions | |
| Cut-Out Height | 27-1/4" - 28-1/4" |
| Cut-Out Width | 24-7/8" - 25-1/4" |
| Cut-Out Depth | 24" |
Complete Owner's Guide (English) (FGEW2765PW-complete-owners-guide-english-1.pdf)
