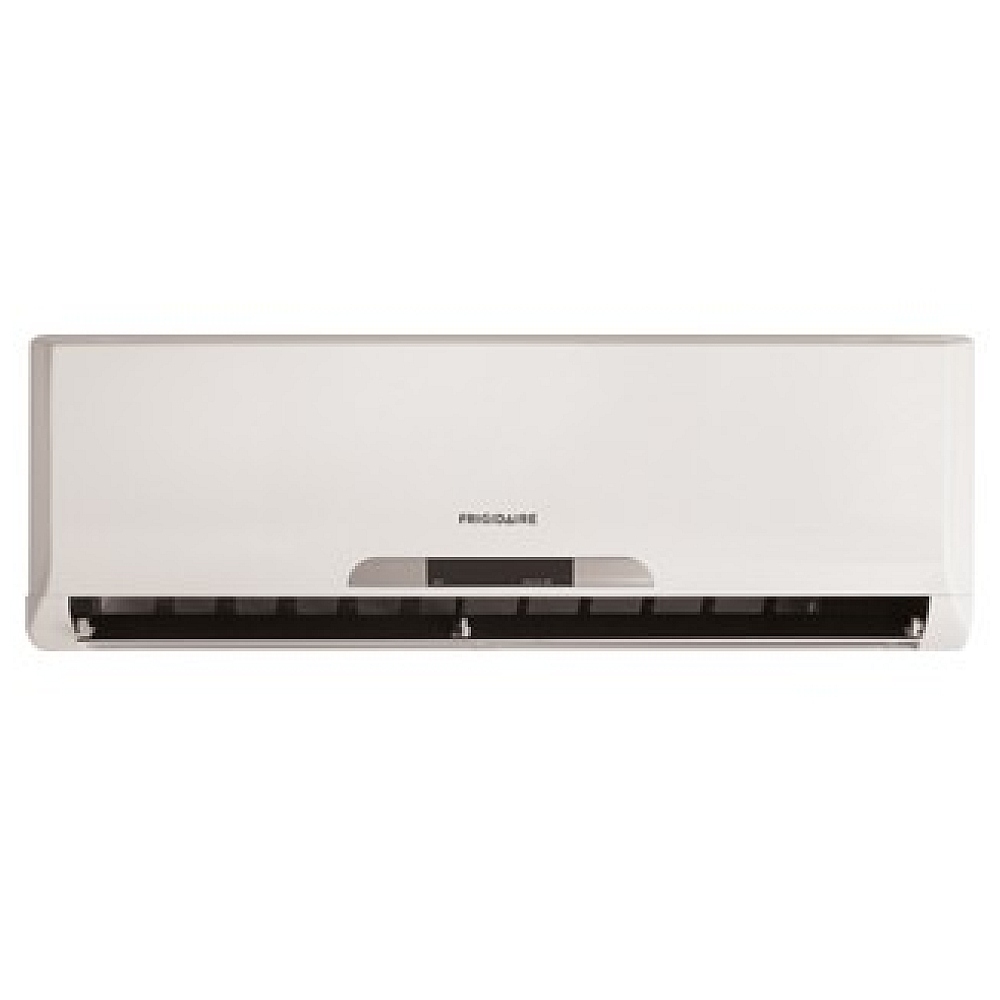

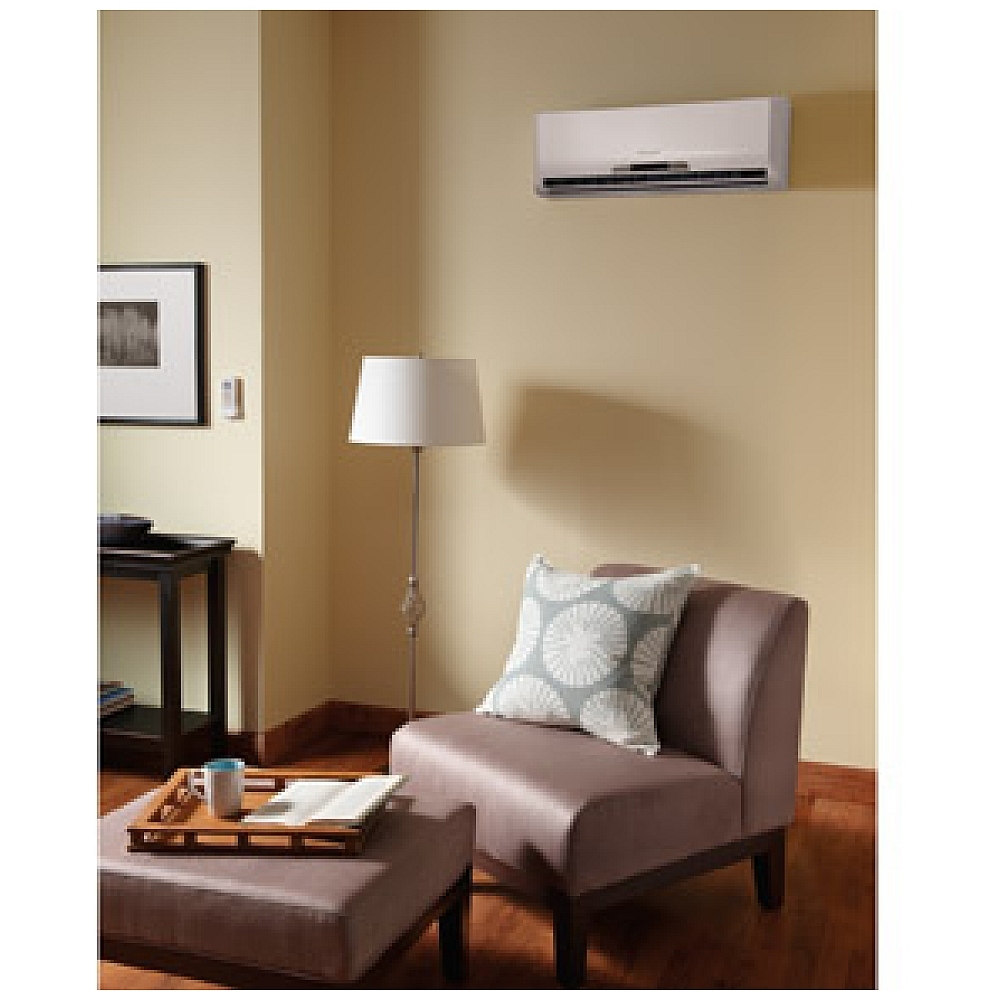

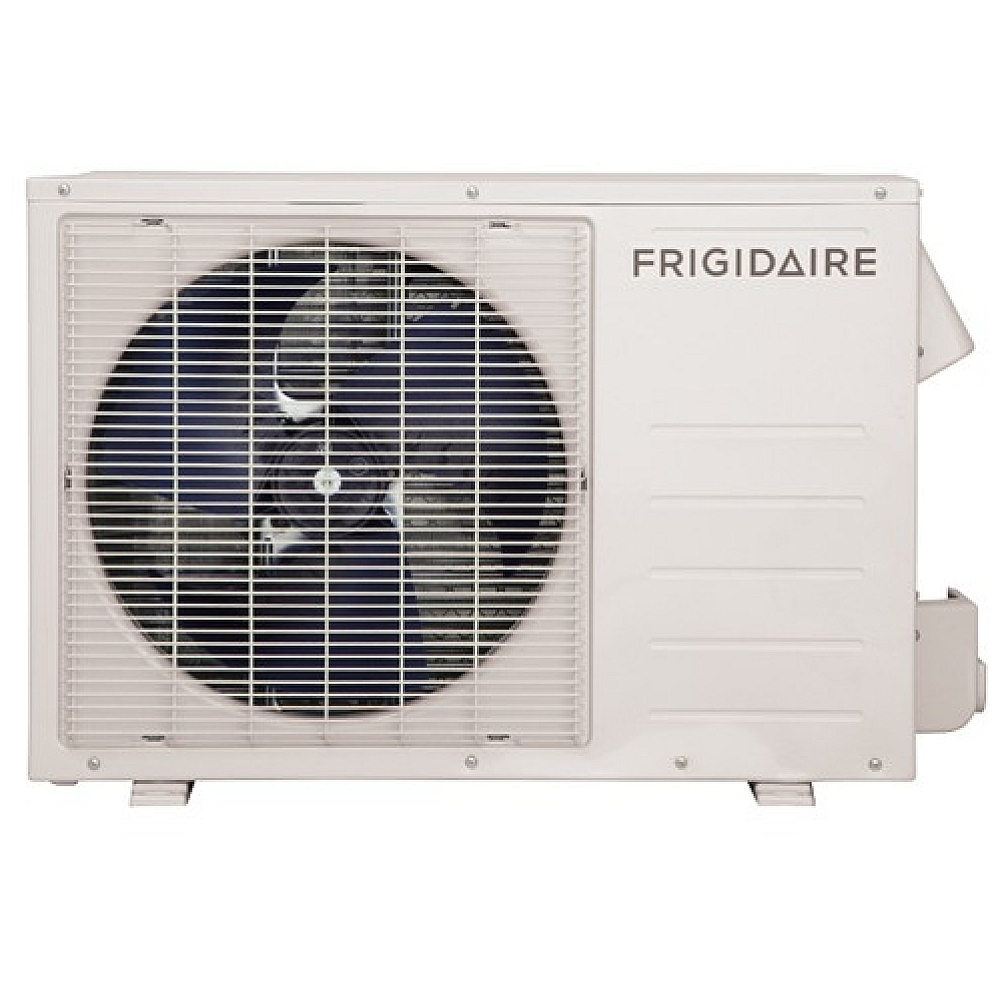

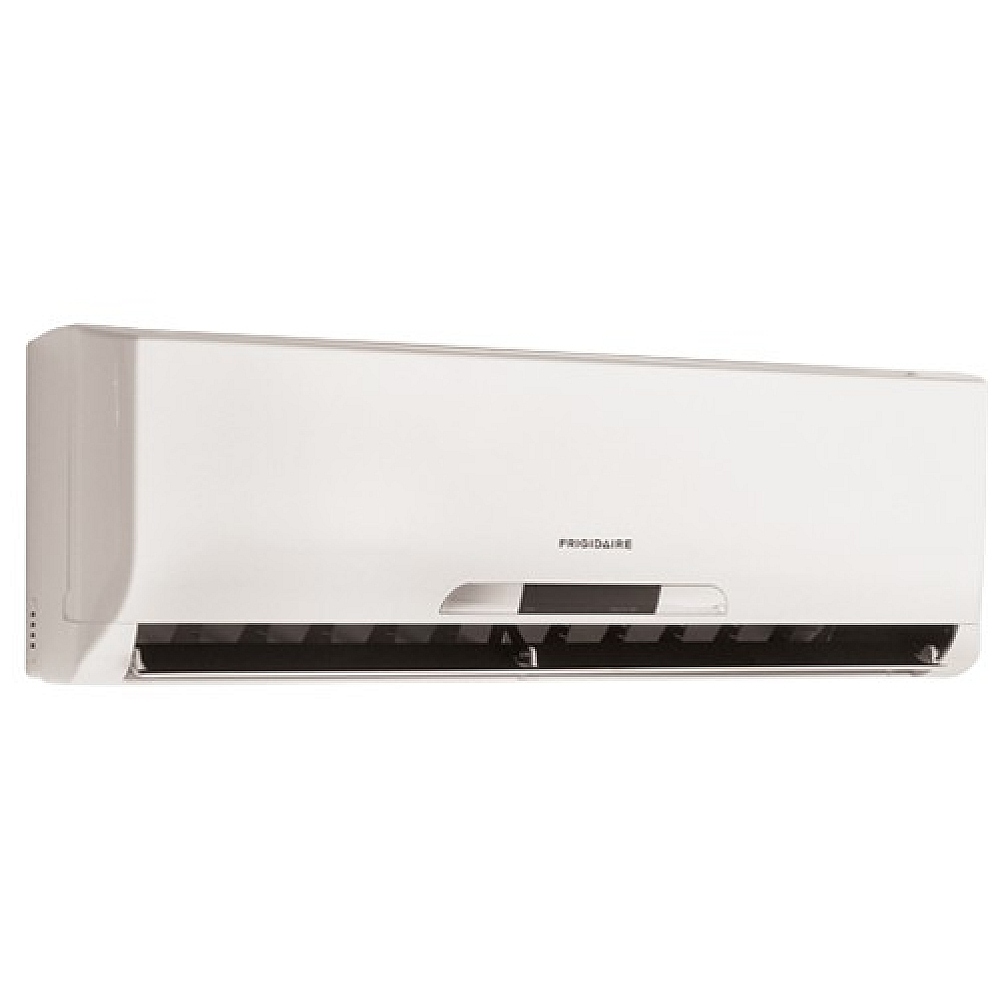

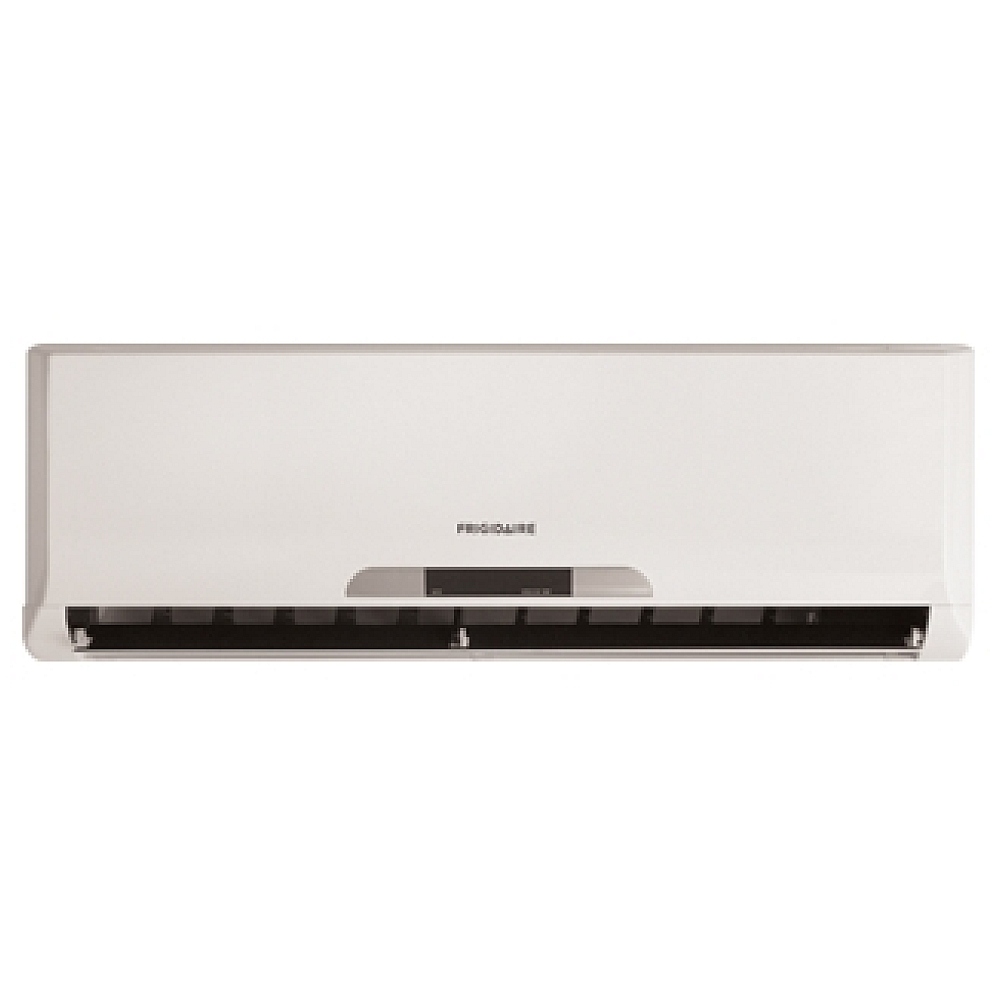

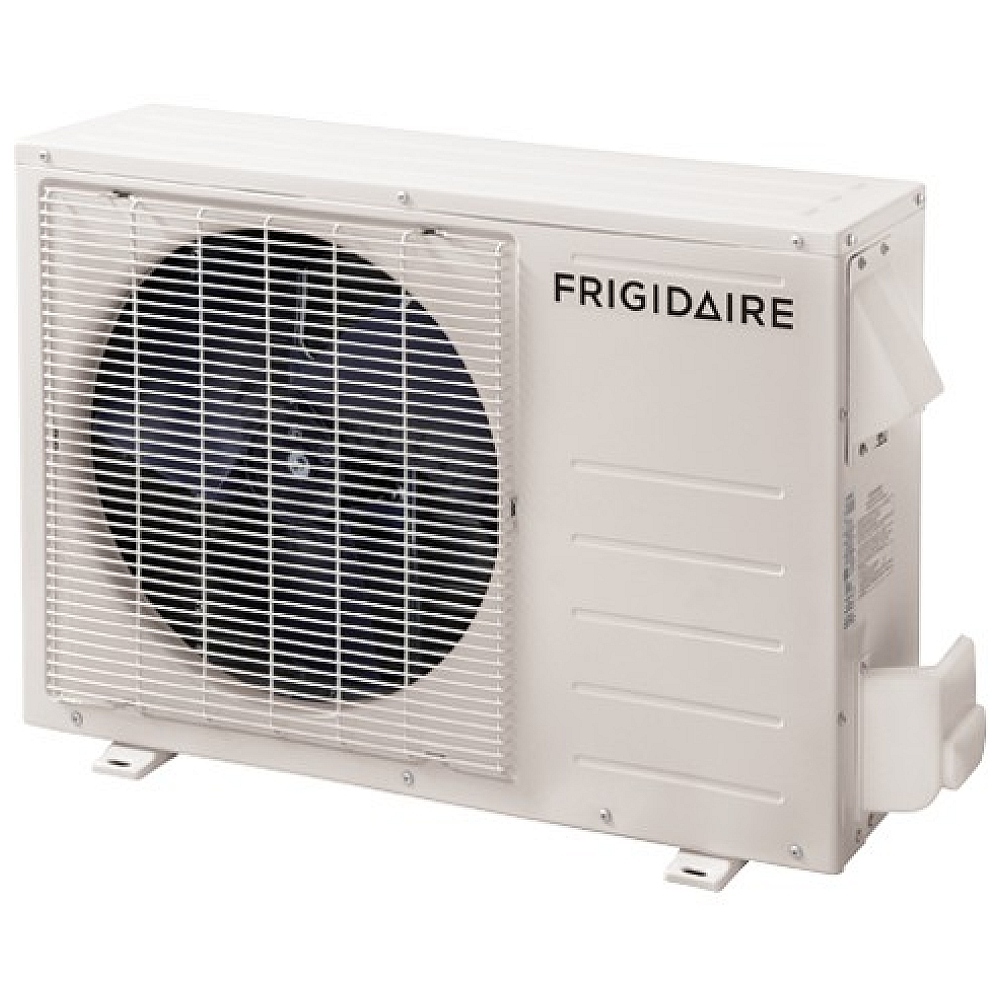

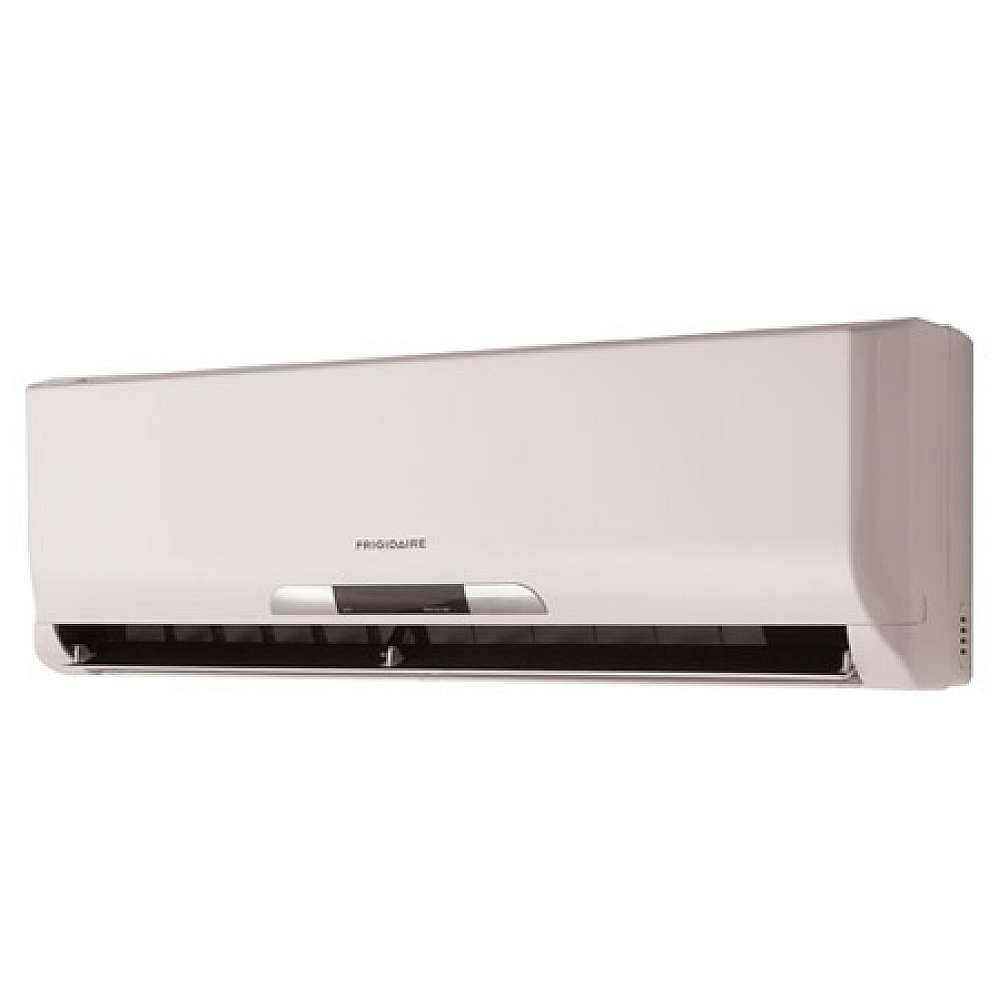

Frigidaire FRS123LS1 Ductless Mini-Split Air Conditioner, 12,000 BTU, with Electronic controls, 3 fan, 3 cool settings, effortless clean filter, effortless temperature control, remote control
- Quick Cool & Quick Warm
- When you need to cool down quickly or warm up faster, use the quick cool/warm mode to speed up the fan.
- Programmable 24-Hour On/Off Timer
- Customize times to fit your schedule for immediate comfort when you get home. The built in timer allows you to preset the unit to turn on and off in half hour increments.
- Effortless™ Temperature Control
- Our air conditioners maintain the preset room temperature, so you will remain comfortable at all times.
- Multi-Speed Fan
- Features three different fan speeds, for more cooling flexibility.
- Effortless™ Restart
- Automatically resumes operating at its previous settings when power is restored to your unit.
- Effortless™ Clean Filter
- Our antibacterial filter reduces bacteria, room odors and other airborne particles for a healthier, more comfortable environment.
- Ready-Select® Controls
- Easily select options with the touch of a button.
Ready-Select® Controls
Easily select options with the touch of a button.
Effortless™ Temperature Control
Our air conditioners maintain the preset room temperature, so you will remain comfortable at all times.

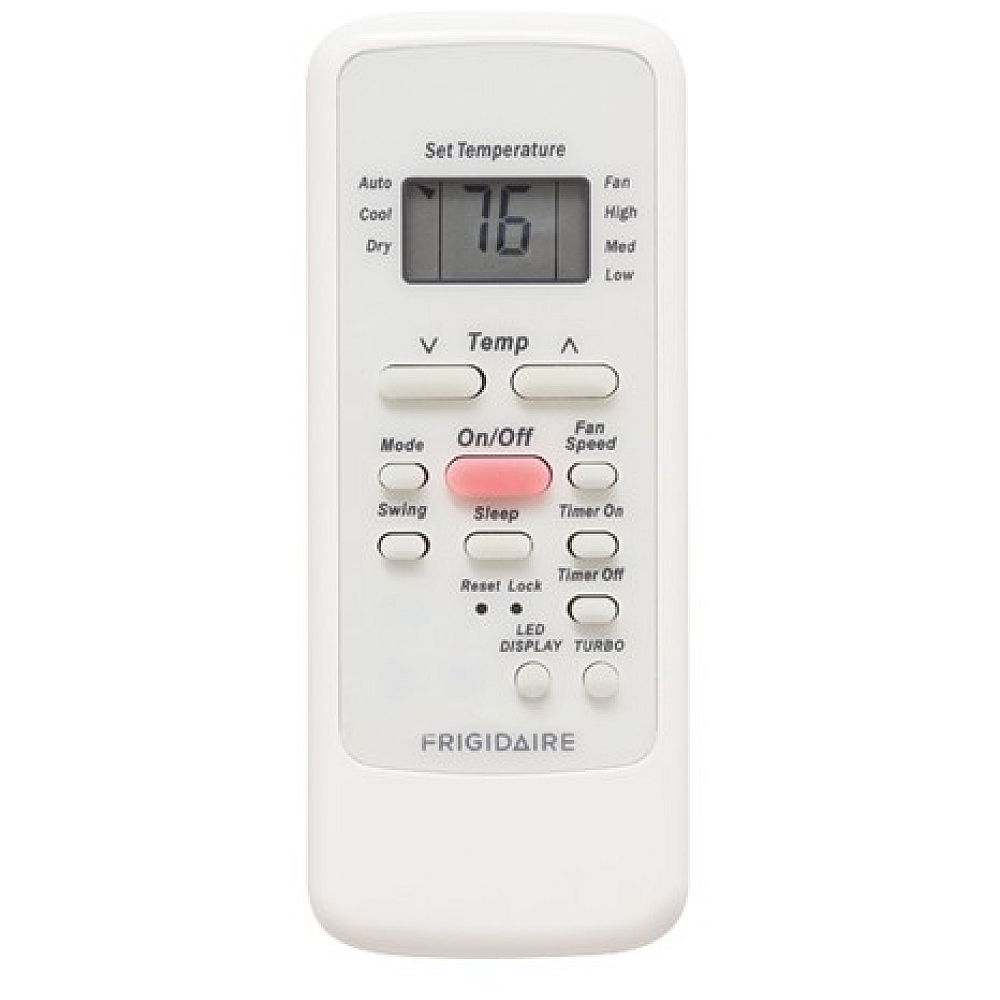

Remote Control
Allows you to precisely control the temperature and fan speed from across the room.
Effortless™ Clean Filter
Our anti-microbial filter cleans the air, removing harmful bacteria.
Sleep Mode
Quiet operation keeps you cool without keeping you awake. Plus, Sleep Mode gradually increases room temperature after being activated.
Quickly Cools
Quickly cool a room on hot days.
Comfort Control Design
Easily control the direction of your cool air, wherever your unit is.
Effortless™ Restart
Automatically resumes operating at its previous settings when power is restored to your unit.
Manufacturer's Warranty: 1 year
Canadian model: FRS123LS1
| General Specifications | |
| Warranty | 1 yr Full /5 yr sealed system |
| Refrigerant | R410a |
| Max Wall Thickness | 18" |
| Product Weight (lbs) | 108 |
| Unit Weight - indoor AC | 29 |
| Unit Weight (lbs) - Outdoor Unit | 79 |
| Shipping Wt - indoor AC | 33 |
| Shipping Wt - outdoor AC | 86 |
| BrandFamilyFrigidaire | Yes |
| ProductLaunch | NA |
| Power Type | Electric |
| Size | N/A |
| Installation Type | Built-In |
| Collection | Frigidaire |
| Electrical Specifications | |
| Voltage Rating | 115/60Hz |
| Watts (Cool) | 1090 |
| Fuse Type | 20 |
| Circuit Amps | 0.9 |
| Dimensions: Cut-Out | |
| Height | N/A |
| Width | N/A |
| AC | |
| Indoor Unit Part Number | FRS123LW1 |
| Outdoor Unit Part Number | FRS123LC1 |
| Indoor Unit UPC | 0-12505-27492-3 |
| Outdoor Unit UPC | 0-12505-27493-0 |
| Application | Cool Only |
| Air Volume (CFM) (Max/Med/Min) | 800/700/630 |
| Fan Speeds - Cool/Fan/Heat | 3/3/- |
| Noise Level dB (H/M/L) - indoor | 47/43/40 |
| Noise Level dB (H/M/L) - outdoor | 56 |
| Turbo Fan | Yes |
| Compressor Type | Inverter (variable speed) |
| Low Voltage Start-up | Yes |
| Energy Saver | Yes |
| Filter Access | Side Slide-Out |
| Remote Control | Full Function |
| Liquid Line Diameter | 1/4" |
| Suction Line Diameter | 1/2" |
| 24-Hour On/Off Timer | Yes |
| Filter Type | Anti-Bacterial Mesh |
| Filter Check | No |
| Controls | |
| Sleep Mode | Yes |
| Control Type | Electronic |
| Dimensions | |
| Cabinet Height - outdoor AC | 23-1/4" |
| Cabinet Depth -outdoor AC | 11-1/4" |
| Cabinet Width - indoor AC | 36-1/4" |
| Cabinet Depth - IndoorAC | 8-7/8" |
| Cabinet Height - indoor AC | 11-1/2" |
| Cabinet Wdth - outdoorAC | 29-15/16" |
| AC Specifications | |
| Motor RPM (High/Med/Low) | 1270/1100/1000 |
| Accessories | |
| Included Accessory | Installation Plate Drain Kit |
| Performance | |
| BTU (Cool) | 12000 |
| BTU (Heat) | 42500 |
| Dehumidification - Pints/Hr | 2.6 |
| Cool Area (Sq. Ft.) | 640 |
| SEER | 13 |
| HSPF | 9 |
| Performance Certification | AHRI |
| COP (Heat Pump) | 3 |
| Certifications & Approvals | |
| ENERGY STAR® Certified | No |
| Safety Certification | ETL |
Complete Owner's Guide English (FRS123LS1-complete-owners-guide-english-canada.pdf)
