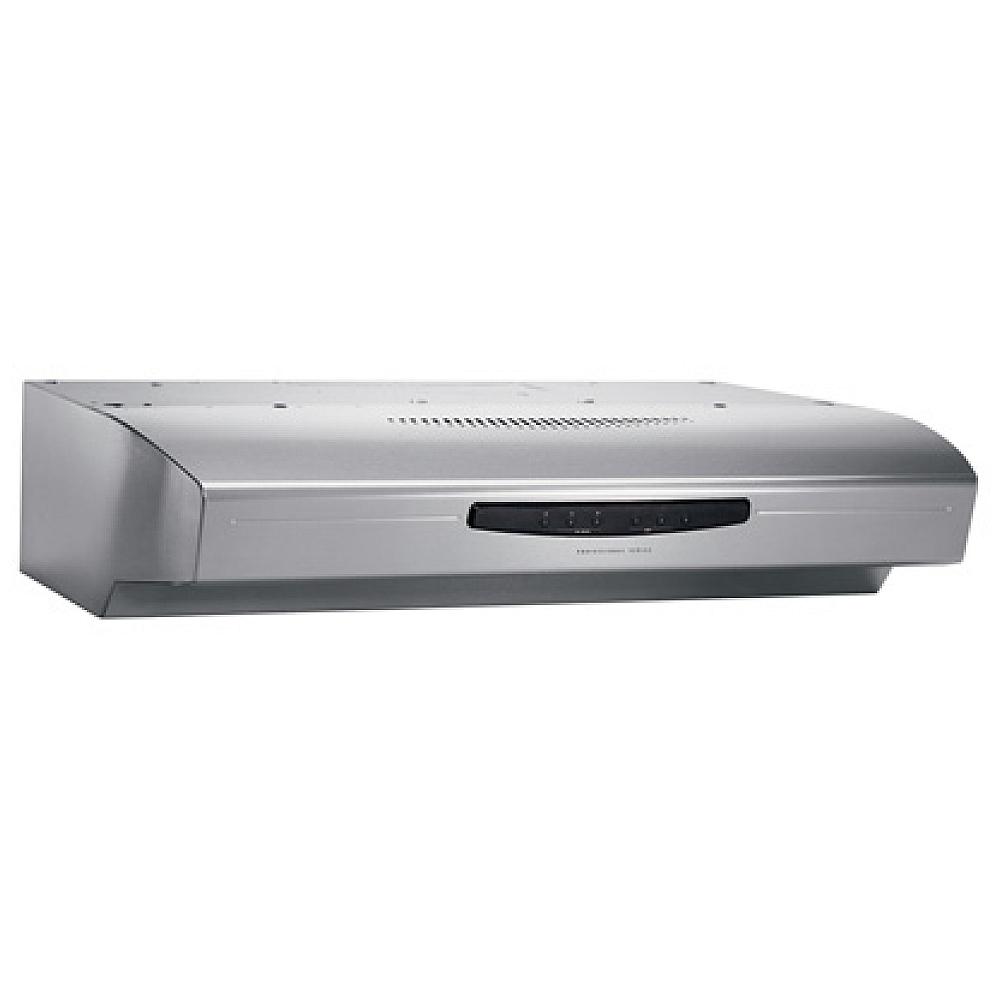

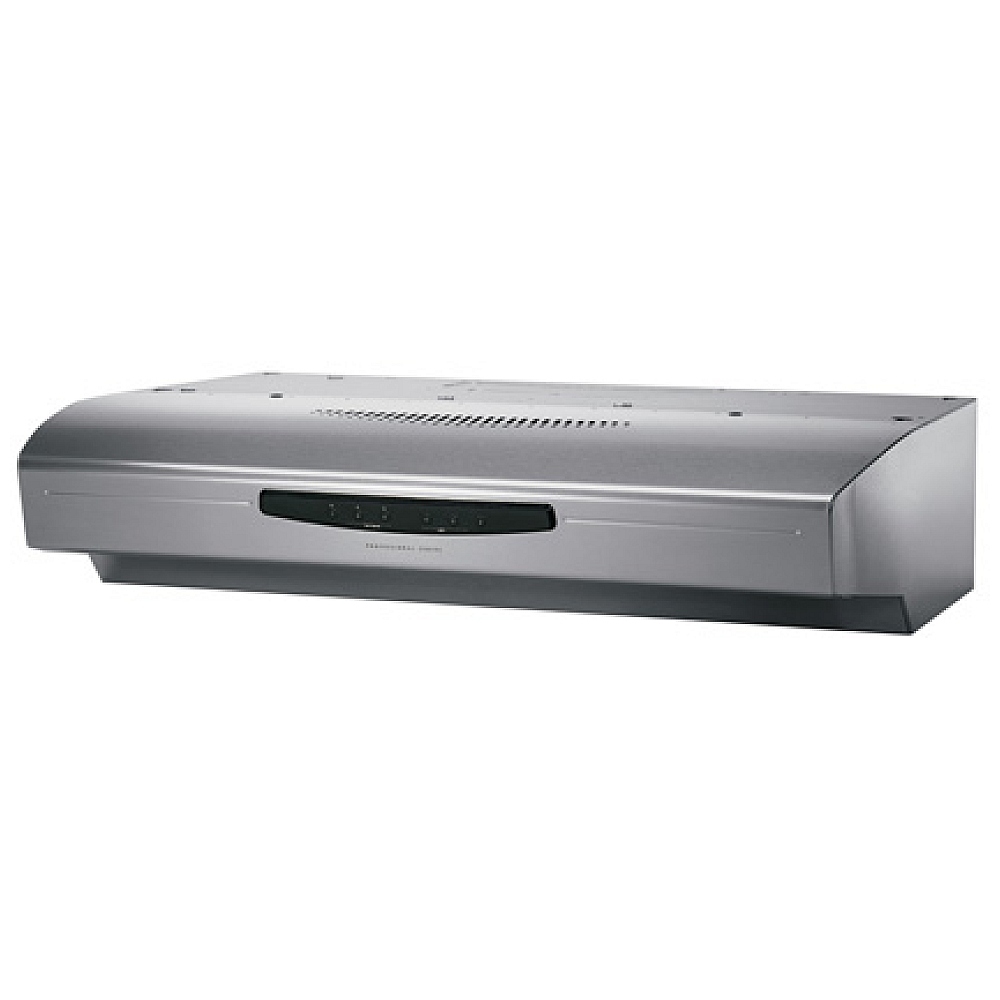

Frigidaire Profressional Professional PL36WC41EC Under Cabinet Hood, 36" Wall Hood, 400 CFM, Vertical or Horizontal Exhaust, 3 Speed Fan, Auto Start Heat Sensing, Halogen Lighting - 3 Levels, Dishwasher Safe Aluminum Filters, 4 Way Convertible
- Halogen Lighting
- For bright illumination of the cooktop surface.
- Washable Filters
- Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters.
- Convertible Exhaust System
- Our convertible hoods allow you to select between external or recirculating exhaust.
- Nonstick Coating
- The nonstick surface of the underside of the range hood allows for quick and easy removal of grease and soot.
Dishwasher-Safe Filters
Filters remove even the most persistent cooking odors and clean up easily by cycling through your dishwasher.
Nonstick Coating
The nonstick surface of the underside of the range hood allows for quick and easy removal of grease and soot.
Air Delivery at 400 CFM
Convertible Exhaust System
Our convertible hoods allow you to select between external or recirculating exhaust.
Centrifugal Blower Fan System
Centrifugal blower fan system with three separate fan speeds.
Manufacturer's Warranty: 1 year
Canadian model: PL36WC41EC
| General | |
| Product Code | PL36WC41EC |
| Product Type | Ventilation |
| Power Type | Electric |
| Size | 36" |
| Installation Type | Under Cabinet |
| UPC Code | 0-12505-55763-7 |
| Color | Stainless Steel |
| Electrical Specifications | |
| Controls | |
| Controls | Electromechanical Push Button |
| General Specifications | |
| Filter Type | Dishwasher-Safe |
| Exterior Dimensions | |
| Depth | 20" |
| Height | 7-1/4" |
| Width | 36" |
| Vent & Light System | |
| Air Discharge | Vertical or Horizontal |
| Auto-start Heat Sensor | Yes |
| Blower Type | Centrifugal |
| Duct Diameter | 7" Round or 3-1/4" x 10" |
| Exhaust Duct | Convertible |
| Exhaust Fan Capacity (CFM) | 400 |
| Exhaust Fan Speeds | 3 |
| Filters | 2 |
| Lights | 2 |
| Non-stick Coating | Yes |
| Work-Area Light | Halogen Lighting |
Features
Specifications
Wiring Diagram (English) (PL36WC41EC-wiring-diagram-english-canada.pdf)
