- 8600/8400 BTU
- 11.5/11.5 E.E.R.
- 3.4 Dehumidification (pints/hr)
- 230 CFM Indoor Fan (High)
- 200 CFM Indoor Fan (Low)
- 70/45 Vent CFM

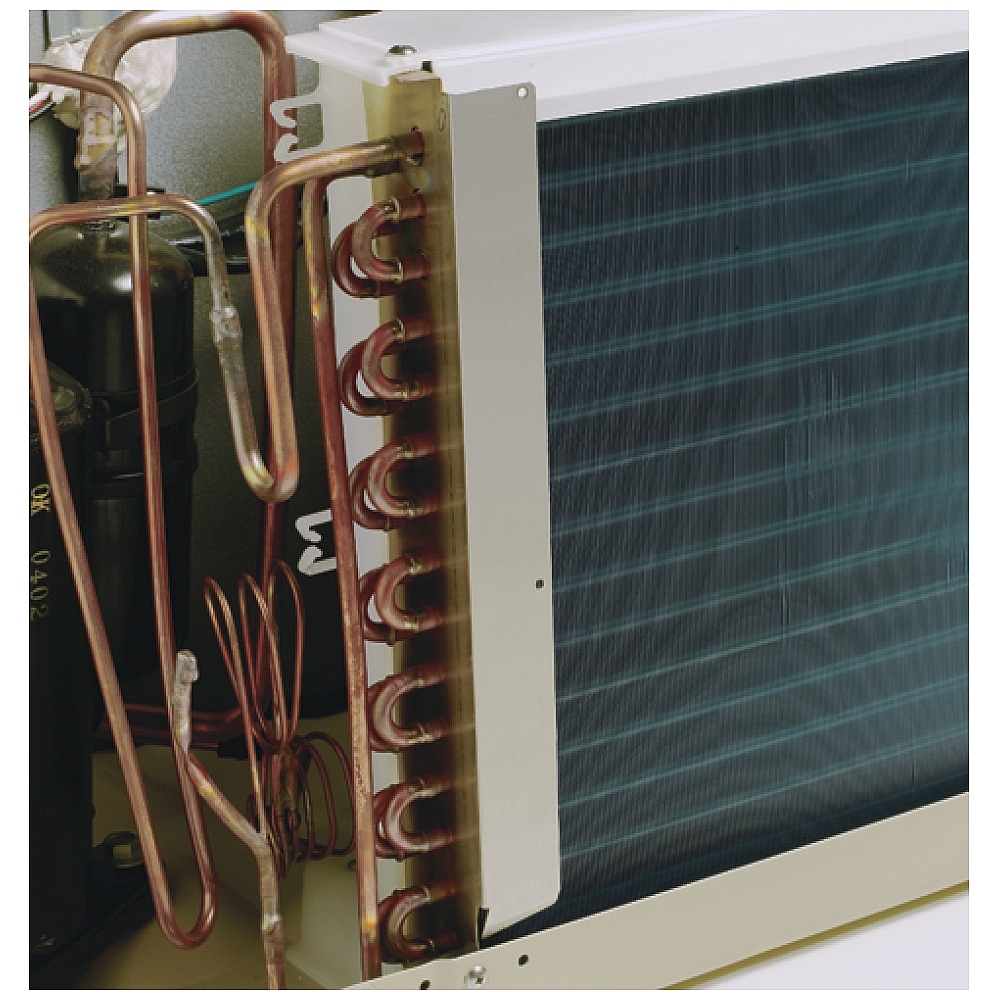

- Corrosion-Treated Chassis — Extends Life of the Unit in SeaCoast Areas
Manufacturer's Warranty: 1 year

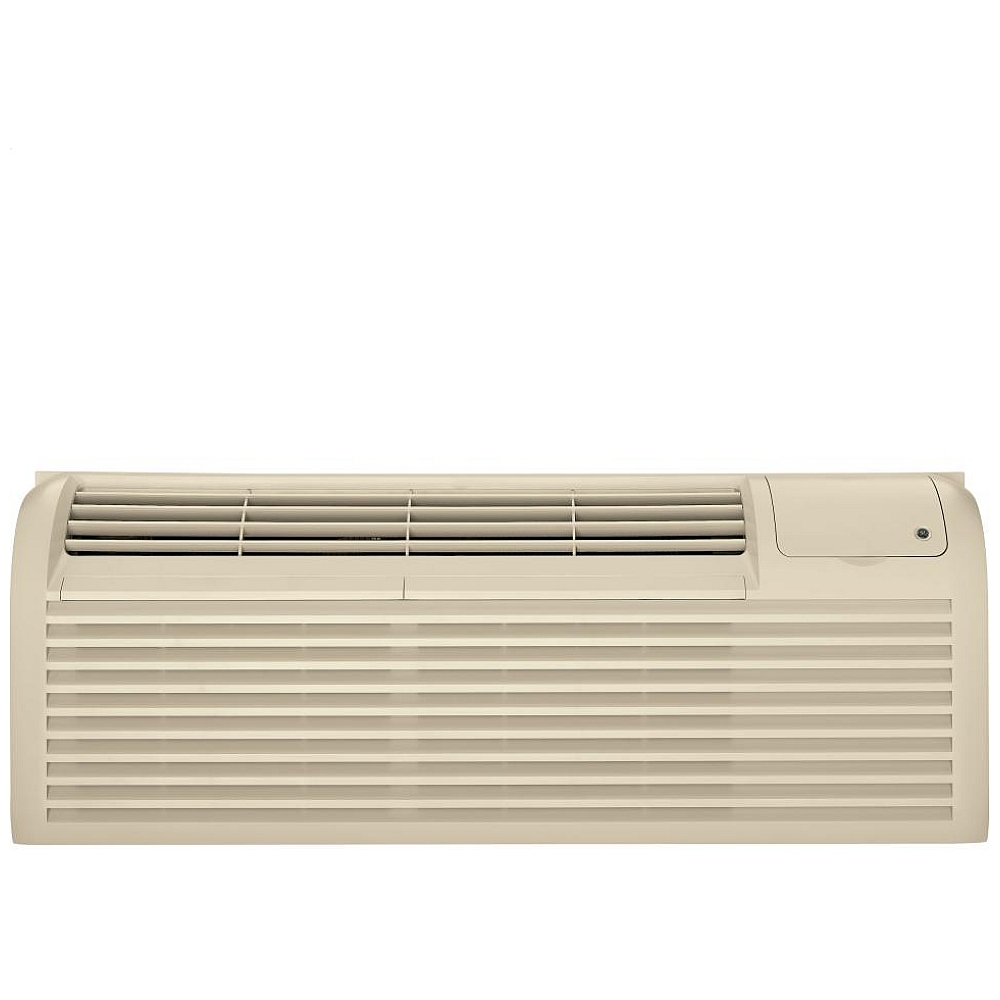

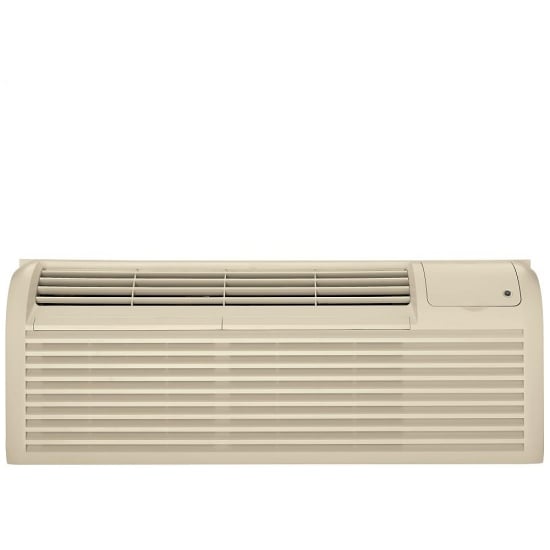

Canadian model: AZ28E09DAP
| CAPACITY | |
| CFM Indoor Fan Low | 200 |
| Vent CFM | 70/45 |
| CFM Indoor Fan High | 230 |
| Cooling E.E.R. (BTUH / Watt) | 11.5/11.5 |
| Dehumidification (pts./hr.) | 3.4 |
| Cooling BTUH | 8600 Btu |
| Sensible Heat Ratio at 230 Volts | 57% |
| FEATURES | |
| Auto Frost Control Monitor | Yes |
| Vent Control | 3-position |

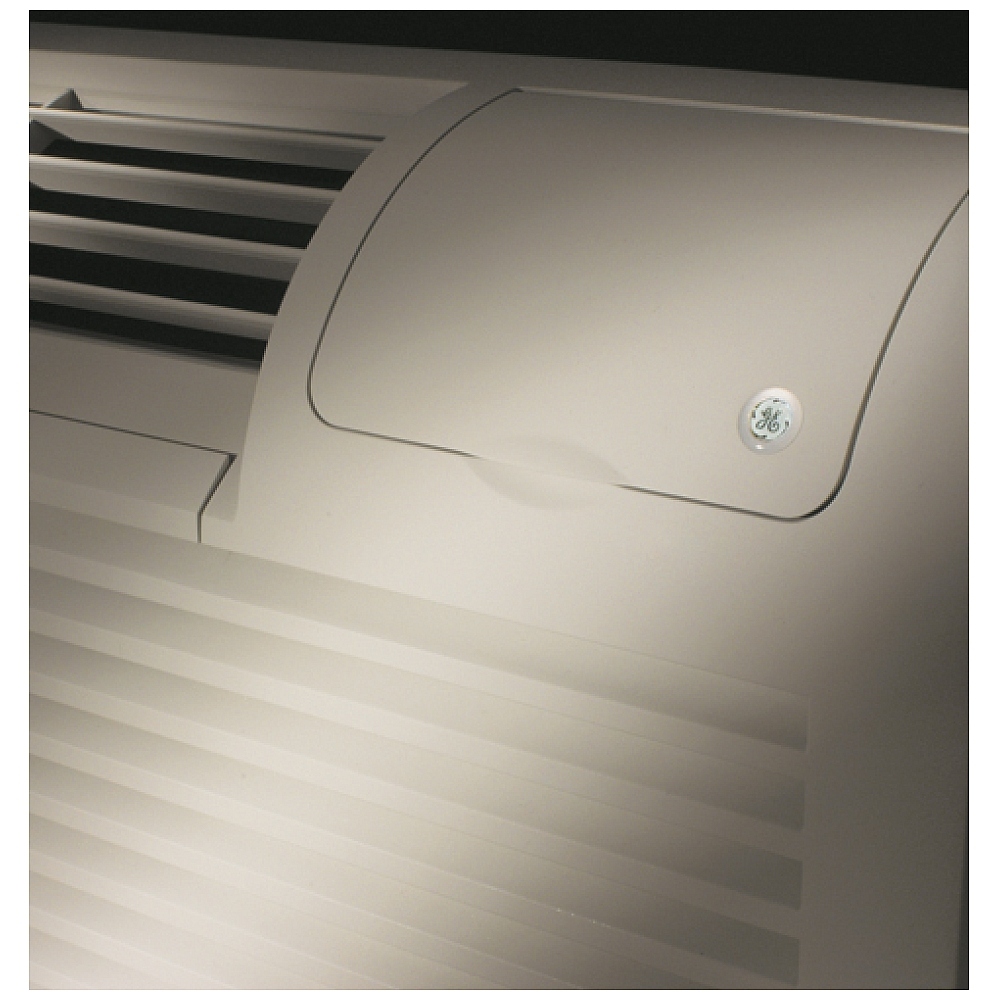

| Control Panel Door | Yes |
| Temperature Limiting | Electronic 7-Step |
| Weather Protected Electrical Components | Yes |
| Universal Heaters | Yes |

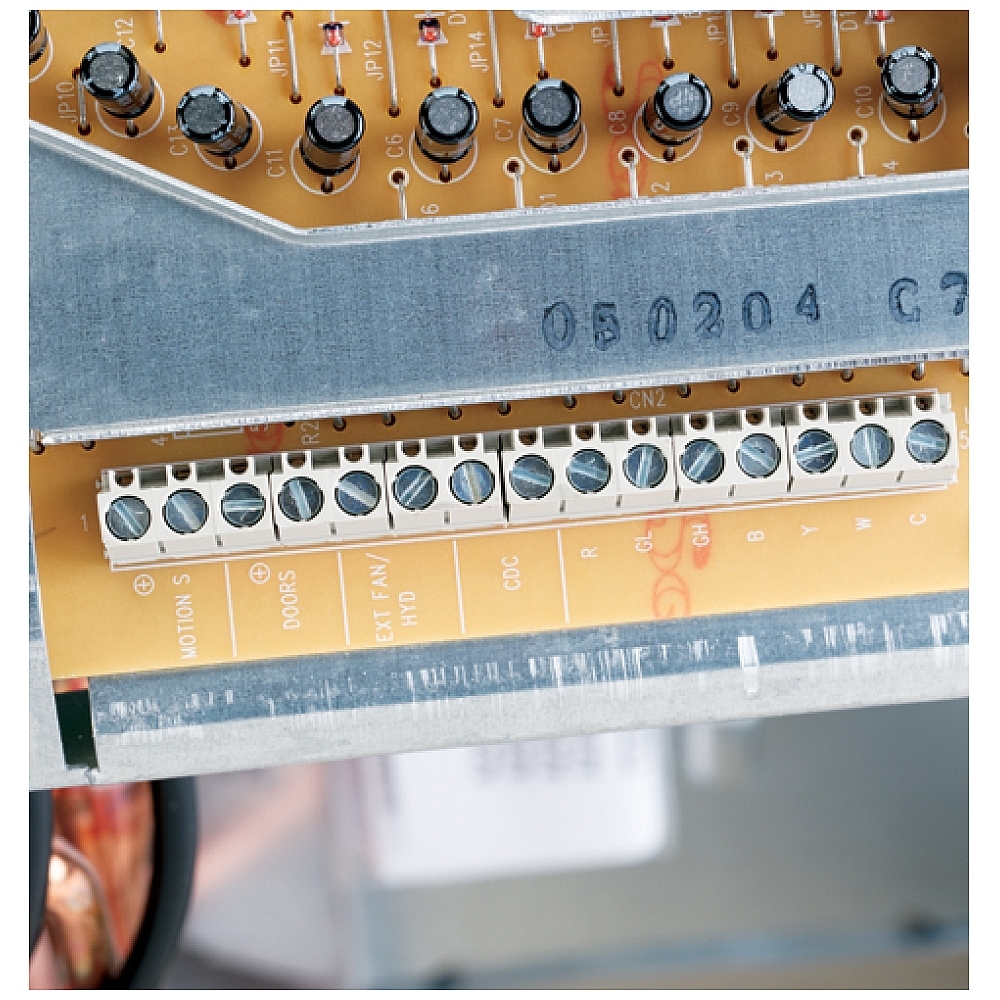

| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |

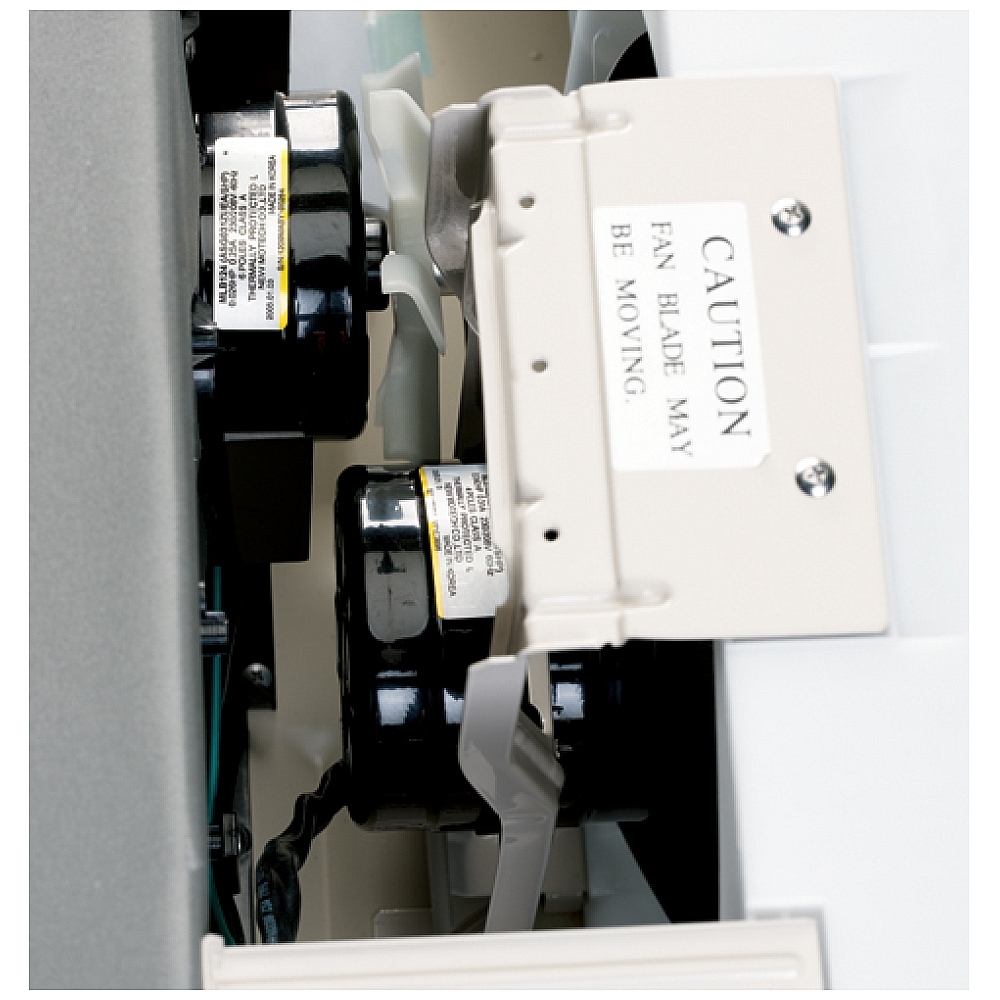

| Fan Motor | 2 |

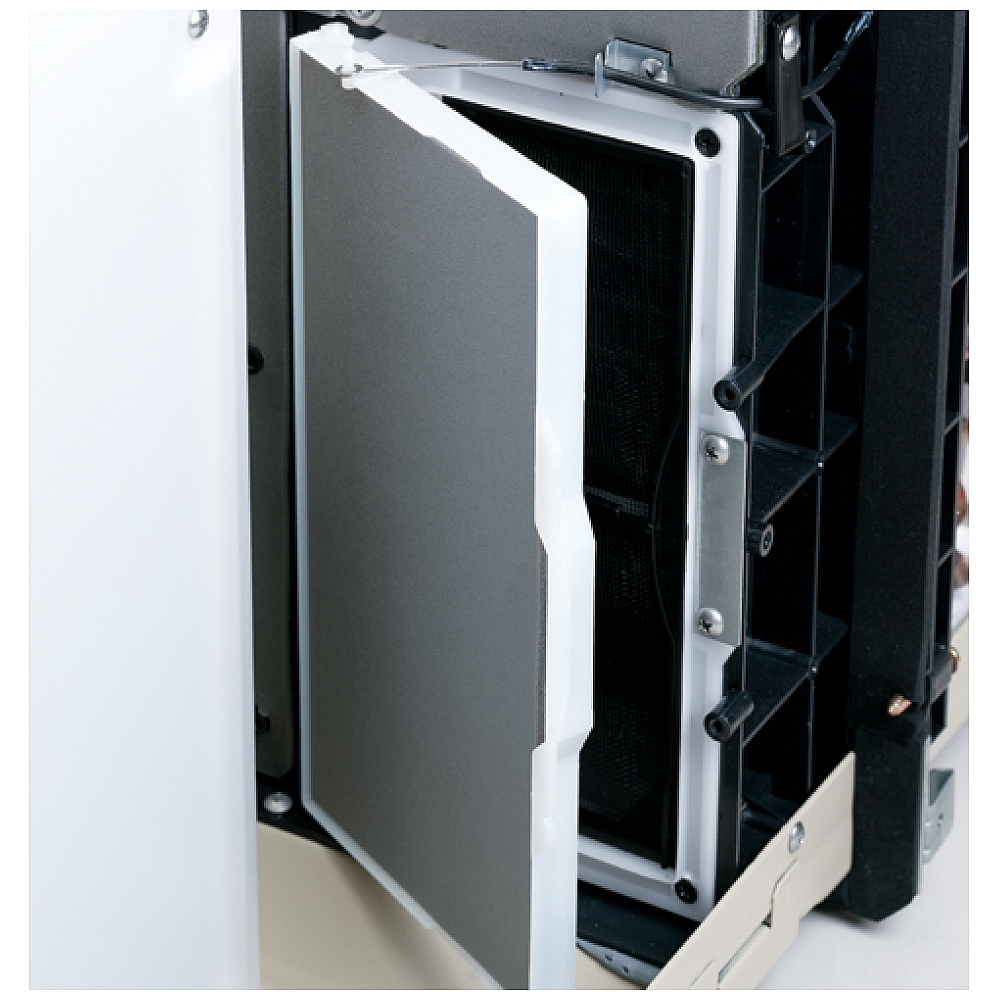

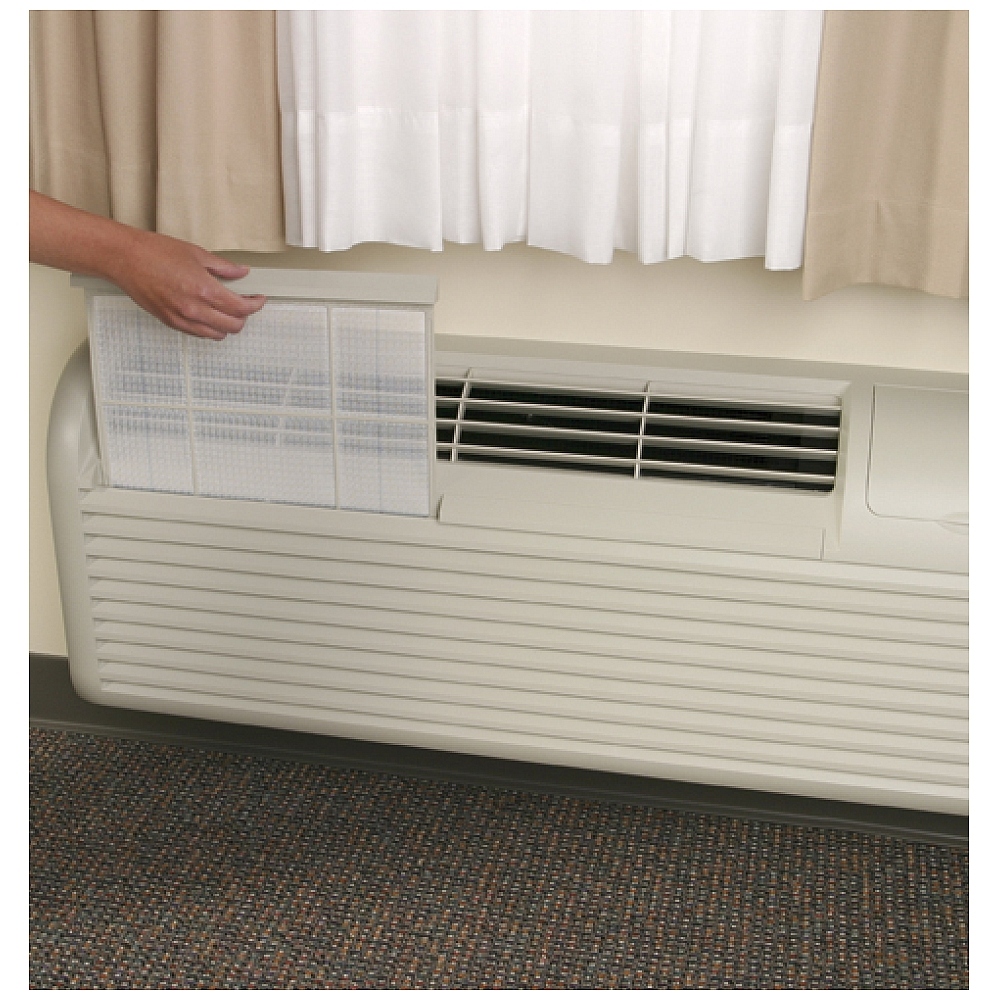

| Upfront Filter | Yes |
| Fan Speed Selections | Hi/Low Cooling 2 Fan Only Hi/Low Heating |
| Freeze Sentinel | Yes |
| Heat Sentinel | Yes |
| Louver Style | Reversible |
| Auto Power Recovery | Yes |

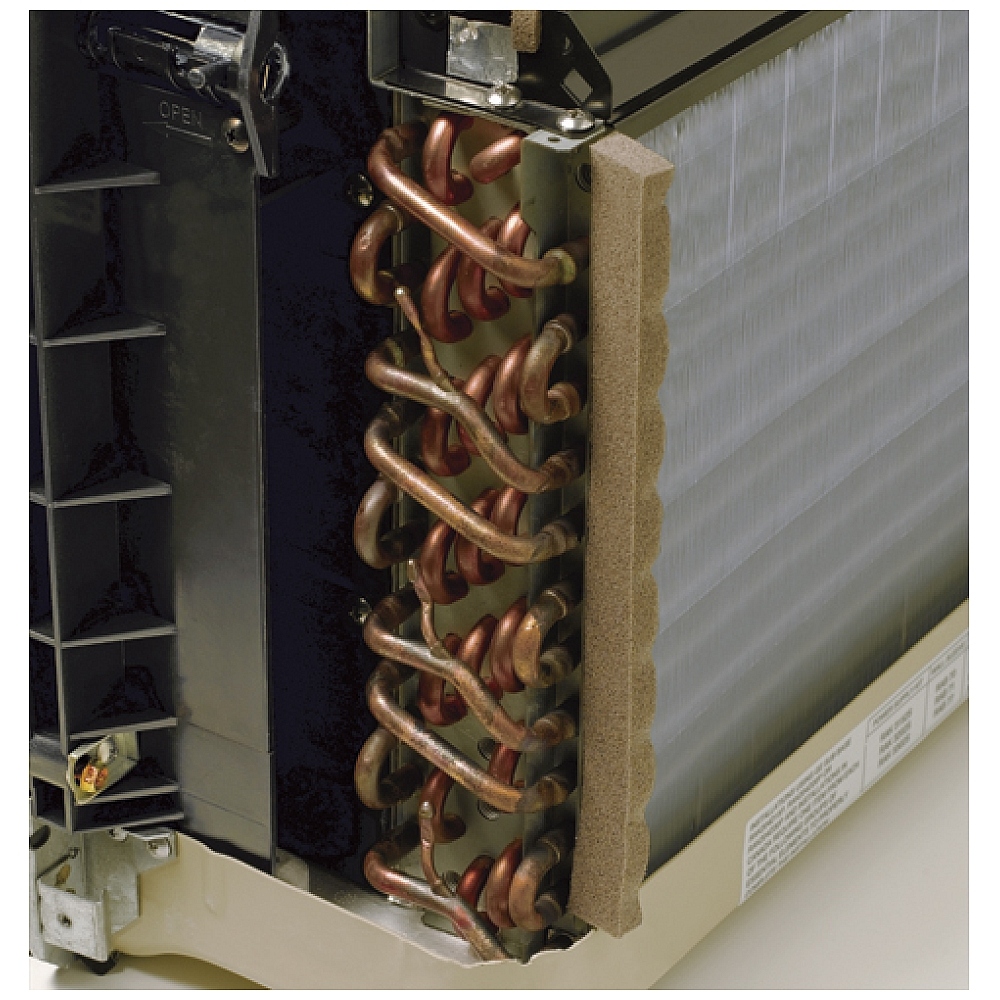

| Corrosion Treated | Yes |
| Solid State Thermostat Control | Yes |
| Discharge Grille | 2-position |
| Remote Control | Compatible |
| Room Occupancy Sensor | Compatible |
| Sound Transmission Class (STC) | 29 |
| "SmartFan" Fan Cycle | Yes |
| Control Type | Standard Microcomputer; Rotary Knobs |
| APPEARANCE | |
| Color Appearance | Warm Gray Beige |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 121 lb |
| Net Weight (lbs.) | 106 lb |
| Overall Height | 16 in |
| Overall Width | 42 in |
| Overall Depth | 13 3/4 in |
| POWER / RATINGS | |
| Cooling - Watts | 750/730 |
| Cooling - Amperes; L.R. | 21.0 |
| Voltage | 230 V |
| Power Factor | 86/86 |
| Cooling - Amperes; F.L. - Cooling | 3.6/3.9 |
| ACCESSORIES | |
| Extruded Aluminum | RAG67 |
| SMC Wall Case | RAB77 |
| Duct Adaptor | RAK6052 |
| Duct Extension | RAK601 |
| Insulated Wall Case | RAB71 |
| Exterior Architectural Louvers | RAG61(Beige); RAG62(Maple); RAG63(Bittersweet) |
| Stamped Aluminum Exterior Rear Grille | RAG60 |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Dimensions | |
|---|---|
| Height: | 16" |
| Depth: | 13 3/4" |
| Sleeve Width: | 1 |
| Sleeve Height: | 1 |
| Minimum Window Opening Width (in.): | 1 |
| Maximum Window Opening Width (in.): | 1 |
| Minimum Window Opening Height (in.): | 1 |
| Depth to Louvers (in.): | 1 |
| Interior Unit Height (Mini-split systems only): | 1 |
| Interior Unit Width (Mini-split systems only): | 1 |
| Interior Unit Depth (Mini-split systems only): | 1 |
| Weight: | 106 lbs. |
| Appearance | |

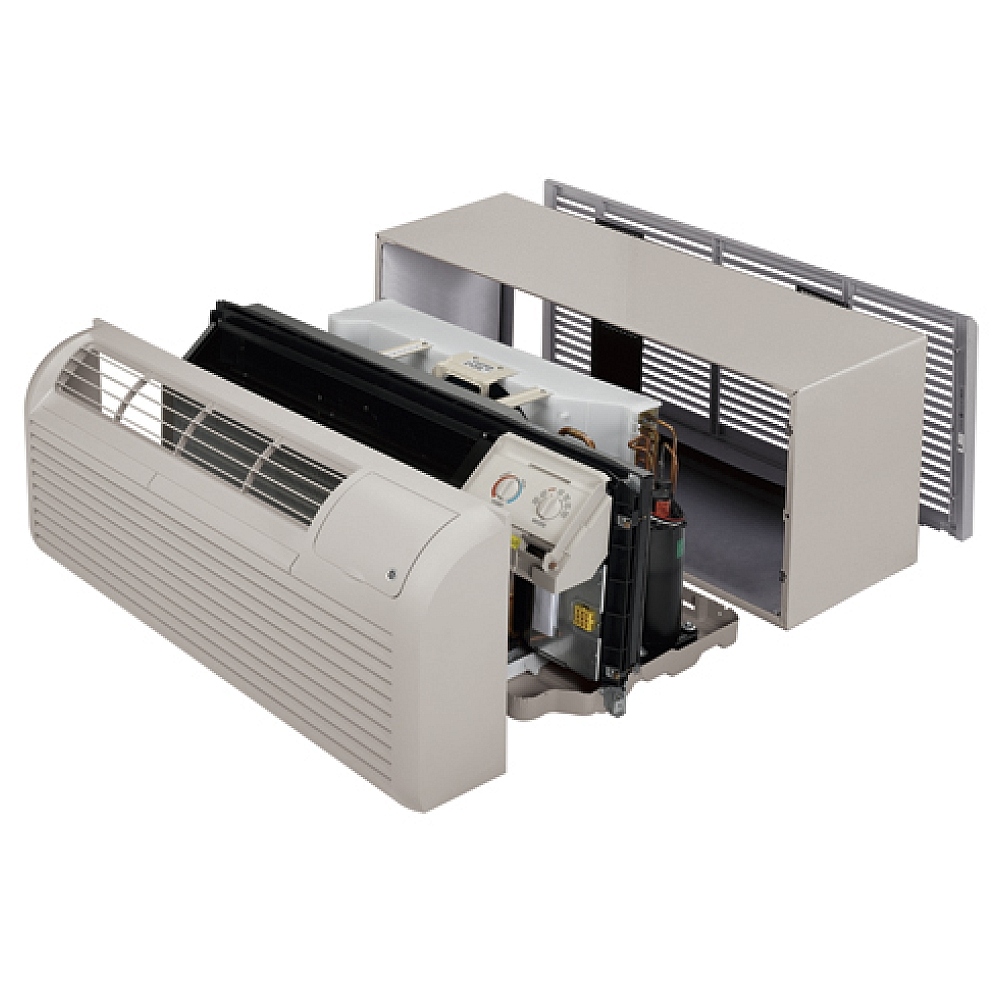

| Chassis: | slide out |
| Color: | warm gray beige |
| Control Type: | knobs |
| Performance | |
| Cooing BTU: | 8600 |
| Heating BTU: | 8600 |
| Features | |
| Fan Speed Selections: | 2 |
| Fan Speed Selections: | 2 |
| Heat: | electronic |
| Technical Details | |
| Airflow: | 230 |
| Cooling Amps: | 3.6 |
| Cooling EER: | 11.5 |
| Cooling Watts: | 750 |
| Dehumidification: | 3.4 |
| Heating Amps: | 11.6 |
| Heating EER: | 11.5 |
| Heating Watts: | 2550 |
| Volts: | 220 |
Quick Specs (AZ28E09DAP-quick-specs-canada.pdf)
