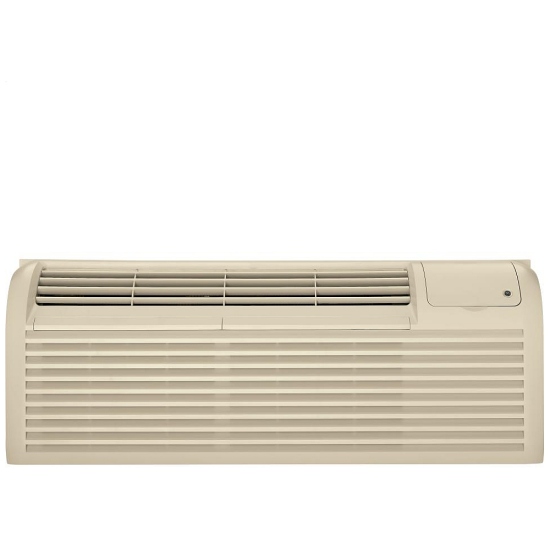

GE AZ28E12DAP
Discontinued
4TVJPU
Why Buy This at CAS?
4TVJPU
When will I get this?

Why Buy This at CAS?
Description & Features



  • 11,200/11,000 BTU
  • 11.0/11.0 E.E.R.
  • 4.5 Dehumidification (pts/hr)
  • 240 CFM (High)
  • 210 CFM Indoor Fan (Low)
  • 75/45 Vent CFM

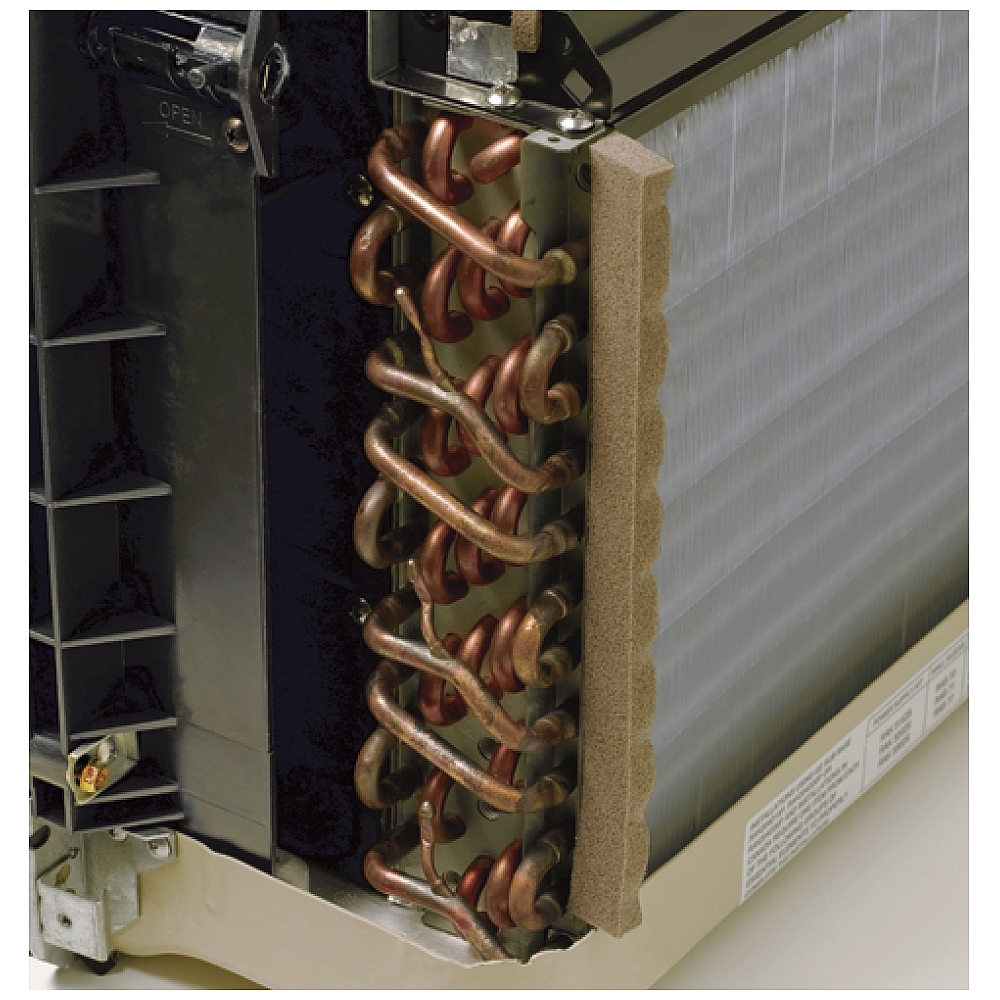

  • Corrosion-Treated Chassis Extends Life of the Unit in SeaCoast Areas

Manufacturer's Warranty: 1 year

Specs
CAPACITY
CFM Indoor Fan Low 210
Vent CFM 75/45
CFM Indoor Fan High 240
Cooling E.E.R. (BTUH / Watt) 11.0/11.0
Dehumidification (pts./hr.) 4.5
Cooling BTUH 11200 Btu
Sensible Heat Ratio at 230 Volts 55%
FEATURES
Auto Frost Control Monitor Yes
Vent Control 3-position
Control Panel Door Yes
Temperature Limiting Electronic 7-Step
Weather Protected Electrical Components Yes
Universal Heaters Yes
Central Desk Control Compatibility Yes
Rotary Compressor Yes
Fan Motor 2
Upfront Filter Yes
Fan Speed Selections Hi/Low Cooling 2 Fan Only Hi/Low Heating
Freeze Sentinel Yes
Heat Sentinel Yes
Louver Style Reversible
Auto Power Recovery Yes
Corrosion Treated Yes
Solid State Thermostat Control Yes
Discharge Grille 2-position
Remote Control Compatible
Room Occupancy Sensor Compatible
Sound Transmission Class (STC) 29
"SmartFan" Fan Cycle Yes
Control Type Standard Microcomputer; Rotary Knobs
APPEARANCE
Color Appearance Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 129 lb
Net Weight (lbs.) 114 lb
Overall Height 16 in
Overall Width 42 in
Overall Depth 13 3/4 in
POWER / RATINGS
Cooling - Watts 1020
Cooling - Amperes; L.R. 31.0
Voltage 230 V
Power Factor 91/91
Cooling - Amperes; F.L. - Cooling 4.9/5.3
ACCESSORIES
Extruded Aluminum RAG67
SMC Wall Case RAB77
Duct Adaptor RAK6052
Duct Extension RAK601
Insulated Wall Case RAB71
Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Stamped Aluminum Exterior Rear Grille RAG60
WARRANTY
Warranty Notes For models produced on or after January 1, 2006 See written warranty for full details
Labor Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Dimensions
Sleeve Width: 1
Sleeve Height: 1
Minimum Window Opening Width (in.): 1
Maximum Window Opening Width (in.): 1
Minimum Window Opening Height (in.): 1
Depth to Louvers (in.): 1
Interior Unit Height (Mini-split systems only): 1
Interior Unit Width (Mini-split systems only): 1
Interior Unit Depth (Mini-split systems only): 1
Weight: 150 lbs.
Appearance
Chassis: slide out
Color: warm gray beige
Control Type: knobs
Performance
Cooling BTU: 11200
Features
Fan Speed Selections: 2
Remote Control: yes
Filter Type: upfront
Technical Details
Airflow: 240
Cooling Amps: 4.9
Cooling EER: 11.0
Cooling Watts: 1020
Dehumidification: 4.5
Heating EER: 11.0
Volts: 220
