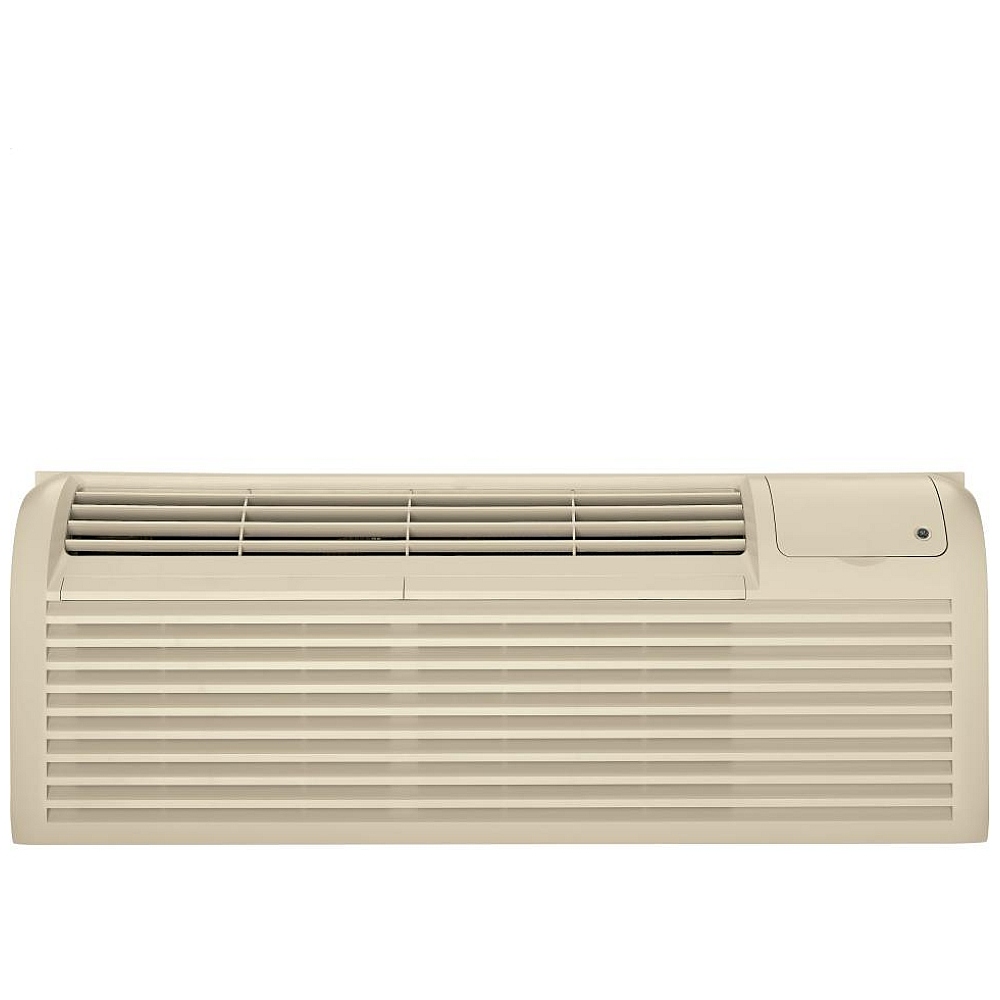

GE AZ29E12DAC
Discontinued
AFHO3S
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Ratings & Reviews
AFHO3S
When will I get this?

Why Buy This at CAS?
Description & Features
  • 11,700/11,500 BTU (Cooling)
  • 11.5/11.5 E.E.R.
  • Corrosion-Treated Chassis — Extends Life of the Unit in SeaCoast Areas
  • 3.6 Dehumidification (pints/hr)
  • 270 CFM Indoor Fan (High)
  • 240 CFM Indoor Fan (Low)
  • 75/45 Vent CFM

Manufacturer's Warranty: 1 year

Canadian model: AZ29E12DAC

Specs
CAPACITY
Cooling BTUH 11800 Btu
Cooling E.E.R. (BTUH / Watt) 11.5/11.5
CFM Indoor Fan High 290
CFM Indoor Fan Low 240
Dehumidification (pts./hr.) 3.6
Sensible Heat Ratio at 230 Volts 67%
Vent CFM 75/45
FEATURES
"SmartFan" Fan Cycle Yes
Auto Frost Control Monitor Yes
Auto Power Recovery Yes
Central Desk Control Compatibility Yes
Control Panel Door Yes
Control Type Standard Microcomputer Tactile touch pad with LED Display
Corrosion Treated Yes
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling 2 Fan Only Hi/Low Heating
Freeze Sentinel Yes
Heat - Cool Yes
Heat Sentinel Yes
Louver Style Reversible
Manual Vent Control Hidden
Remote Thermostat Compatible
Rotary Compressor Yes
Solid State Thermostat Control Yes
Sound Transmission Class (STC) 29
Temperature Limiting Electronic 7-Step
Universal Heaters Yes
Upfront Filter Yes
Vent Control 3-position
Weather Protected Electrical Components Yes
APPEARANCE
Color Appearance Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 120 lb
Net Weight (lbs.) 105 lb
Overall Depth 13 3/4 in
Overall Height 16 in
Overall Width 42 in
POWER / RATINGS
Cooling - Amperes; F.L. - Cooling 4.9/5.3
Cooling - Amperes; L.R. 31.0
Cooling - Watts 1020/1000
Power Factor 91/91
Voltage 230 V
ACCESSORIES
Duct Adaptor RAK6052
Duct Extension RAK601
Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Extruded Aluminum RAG67
Insulated Wall Case RAB71
Power Connection Kit RAK3153/3203/3303
SMC Wall Case RAB77
Stamped Aluminum Exterior Rear Grille RAG60
WARRANTY
Parts Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
Dimensions
Height: 16"
Depth: 13 3/4"
Sleeve Width: 42
Sleeve Height: 16
Minimum Window Opening Width (in.): 1
Maximum Window Opening Width (in.): 1
Minimum Window Opening Height (in.): 1
Depth to Louvers (in.): 1
Interior Unit Height (Mini-split systems only): 1
Interior Unit Width (Mini-split systems only): 1
Interior Unit Depth (Mini-split systems only): 1
Weight: 120 lbs.
Capacity
CFM Indoor Fan High: 290
CFM Indoor Fan Low: 240
Cooling E.E.R. (BTUH / Watt): 11.5/11.5
Dehumidification (pts./hr.): 3.6
Sensible Heat Ratio at 230 Volts: 67%
Vent CFM: 75/45
Features
Cooling BTUH: 11800/11500
Control Panel Door: Yes
Control Type: Standard Microcomputer; Tactile touch pad with LED Display
Auto Power Recovery: Yes
Corrosion Treated: Yes
Freeze Sentinel: Yes
Heat Sentinel: Yes
Louver Style: Reversible
Upfront Filter: Yes
Auto Frost Control Monitor: Yes
Central Desk Control Compatibility: Yes
Electronic Micro Computer Control: Yes
Manual Vent Control: Hidden
Remote Thermostat: Compatible
Rotary Compressor: Yes
Solid State Thermostat Control: Yes
Temperature Limiting: Electronic 7-Step
Weather Protected Electrical Components: Yes
Vent Control: 3-position
SmartFan Fan Cycle: Yes
Fan Motor: 2
Fan Speed Selections - Cooling: Hi/Low
Fan Speed Selections - Fan Only: 2
Fan Speed Selections - Heating: Hi/Low
Heat - Cool: Yes
Universal Heaters: Yes
Fan Speed Control: Yes
Discharge Grille: 2-position
Sound Transmission Class (STC): 29
Appearance
Color Appearance: Warm Gray Beige
Power / Ratings
Power Factor: 91/91
Voltage: 230/208
Cooling - Amperes; F.L. - Cooling: 4.9/5.3
Cooling - Amperes; L.R.: 31.0
Cooling - Watts: 1020/1000
