GE AZ38H07DAB
Discontinued
1LU5D4
Save An Additional 5% GST Instore, Chat or Phone
Save An Additional 5% GST Instore, Chat or Phone
1LU5D4
When will I get this?

Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
Description & Features




  • 7100/6900 BTU (Cooling)
  • 12.7/12.7 E.E.R.
  • 1.7 Dehumidification (pts/hr)
  • 6400/6200 BTU (Reverse Cycle Heat)
  • 250/215 CFM Indoor Fan (High/Low)
  • 50/40 Vent CFM
  • Electronic 7-Step Temperature Limiting To Prevent Overcooling or Overheating of Room
Specs
CAPACITY
Heating - Reverse Cycle - BTUH 6400/6200
CFM Indoor Fan Low 215
Vent CFM 50/40
CFM Indoor Fan High 250
Cooling E.E.R. (BTUH / Watt) 12.7/12.7
Dehumidification (pts./hr.) 1.7
Cooling BTUH 7100 Btu
Sensible Heat Ratio at 230 Volts 74%
FEATURES
Auto Frost Control Monitor Yes
Vent Control 3-position
Temperature Limiting Electronic 7-Step
Universal Heaters Yes
Automatic Emergency Heat Yes
Reverse Cycle Defrost Yes
Central Desk Control Compatibility Yes
Rotary Compressor Yes
Fan Motor 2
Electric Resistance Heat Lockout Yes
Freeze Sentinel Yes
Heat Sentinel Yes
Louver Style Reversible
Auto Power Recovery Yes
Solid State Thermostat Control Yes
Discharge Grille 2-position
Remote Control Compatible
Sound Transmission Class (STC) 29

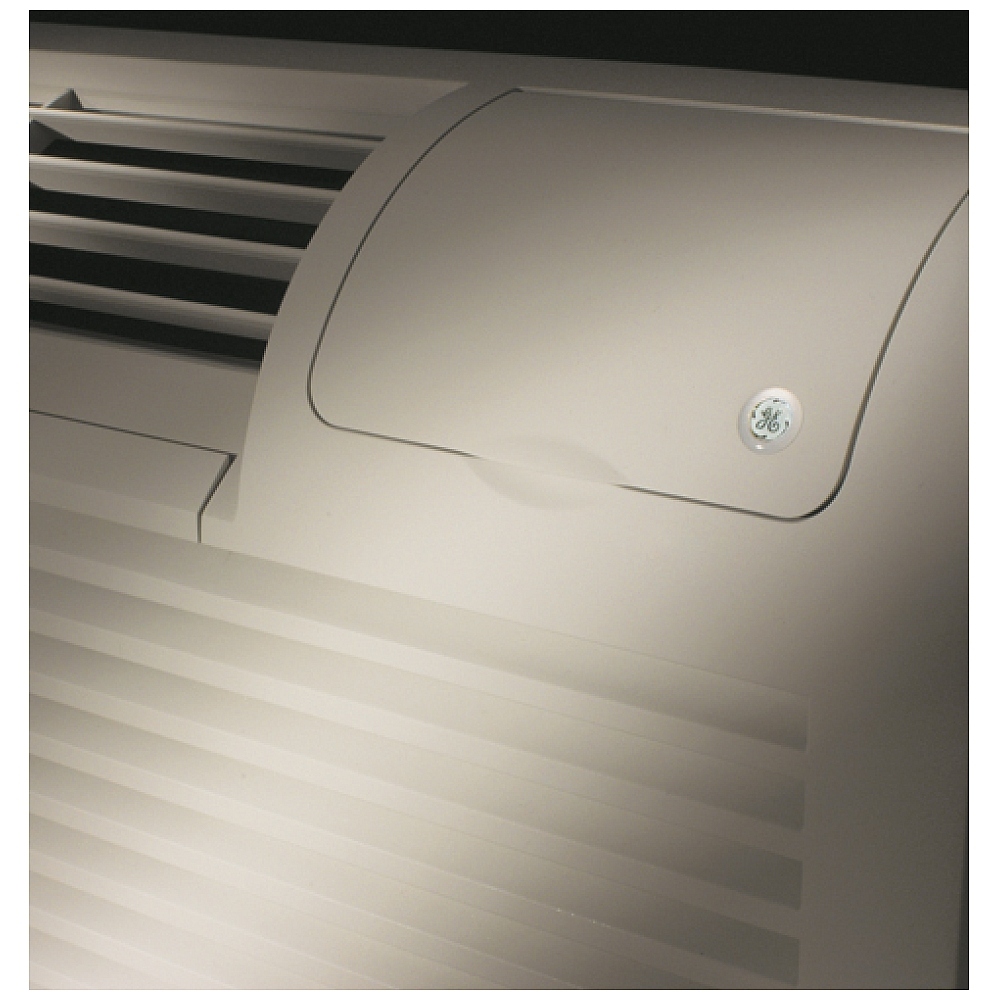

Control Panel Door Yes
Weather Protected Electrical Components Yes
Staged Heating 3-Stage

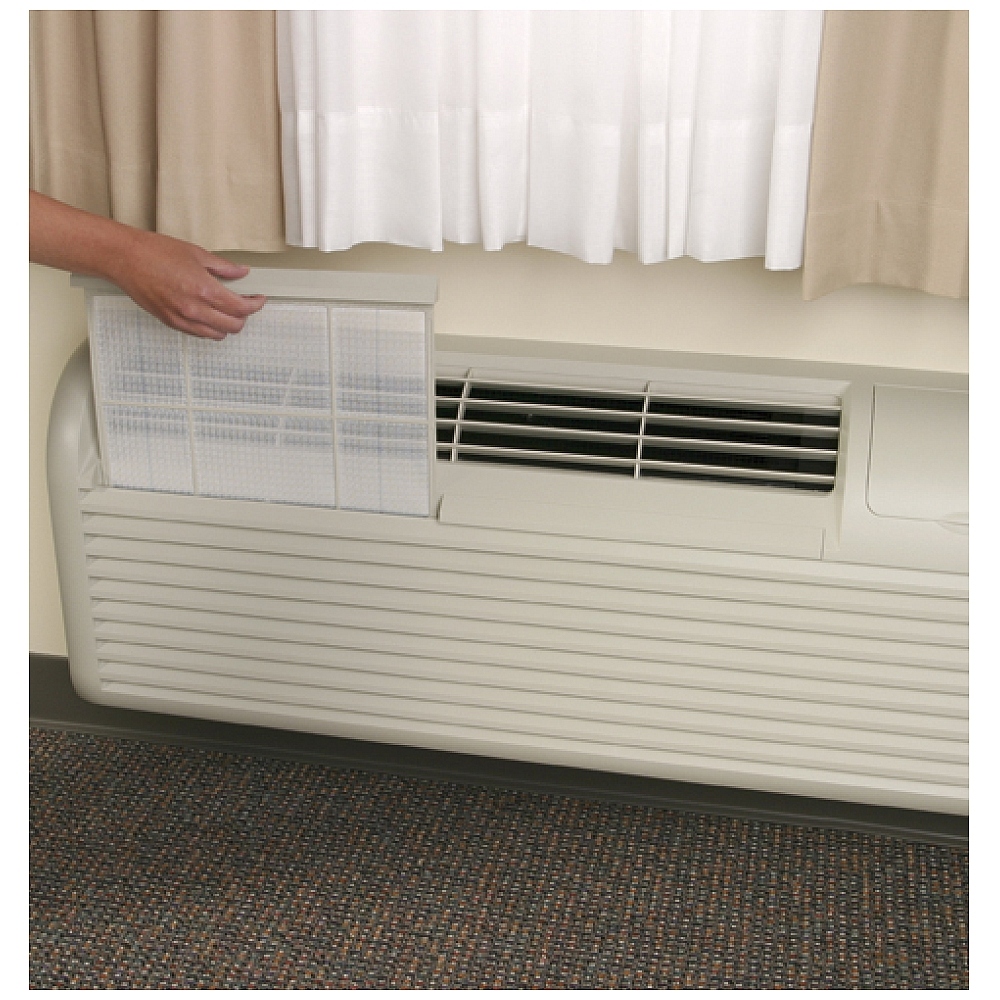

Upfront Filter Yes
Quick Heat Recovery Yes
Fan Speed Selections Hi/Low Cooling 2 Fan Only Hi/Low Heating
Heat Pump Heat Back-Up Resistance; Supplemental
Room Occupancy Sensor Compatible
Control Type Standard Microcomputer; Rotary Knobs
"SmartFan" Fan Cycle Yes
APPEARANCE
Color Appearance Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 117 lb
Net Weight (lbs.) 102 lb
Overall Height 16 in
Overall Width 42 in
Overall Depth 13 3/4 in
POWER / RATINGS
Heating - Reverse Cycle - Heater Amps 2.4/2.6
Heating - Reverse Cycle - COP 3.6
Cooling - Watts 560/545
Heating - Reverse Cycle - Heater Watts (max. connected load) 520/505
Cooling - Amperes; L.R. 19.0
Voltage 230 V
Power Factor 86/87
Cooling - Amperes; F.L. - Cooling 2.8/3.0
ACCESSORIES
Extruded Aluminum RAG67
SMC Wall Case RAB77
Duct Adaptor RAK6052
Duct Extension RAK601
Power Connection Kit RAK3153/3203/3303
Insulated Wall Case RAB71
Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Stamped Aluminum Exterior Rear Grille RAG60
WARRANTY
Warranty Notes For models produced on or after January 1, 2006 See written warranty for full details
Labor Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Dimensions
Height: 16"
Width: 42"
Depth: 13 3/4"
Sleeve Width: 1
Sleeve Height: 1
Minimum Window Opening Width (in.): 1
Maximum Window Opening Width (in.): 1
Minimum Window Opening Height (in.): 1
Depth to Louvers (in.): 1
Interior Unit Height (Mini-split systems only): 1
Interior Unit Width (Mini-split systems only): 1
Interior Unit Depth (Mini-split systems only): 1
Weight: 150 lbs.
Appearance
Chassis: slide out
Color: warm gray beige
Control Type: knobs
Performance
Cooling BTU: 7100
Heating BTU: 6400
Features
Fan Speed Selections: 2
Heat: electronic
Filter Type: upfront
Technical Details
Airflow: 250
Cooling Amps: 2.8
Cooling EER: 12.7
Cooling Watts: 560
Dehumidification: 1.7
Heating Amps: 2.4
Heating EER: 12.7
Heating Watts: 520
