Manufacturer's Warranty: 1 year
CAPACITY | |
Heating - Reverse Cycle - BTUH | 8400/8200 |
CFM Indoor Fan Low | 235 |
Vent CFM | 70/45 |
CFM Indoor Fan High | 270 |
Cooling E.E.R. (BTUH / Watt) | 12.0/12.0 |
Dehumidification (pts./hr.) | 2.7 |
Cooling BTUH | 9000 Btu |
Sensible Heat Ratio at 230 Volts | 67% |
FEATURES | |
Auto Frost Control Monitor | Yes |
Vent Control | 3-position |
Temperature Limiting | Electronic 7-Step |
Universal Heaters | Yes |
Automatic Emergency Heat | Yes |

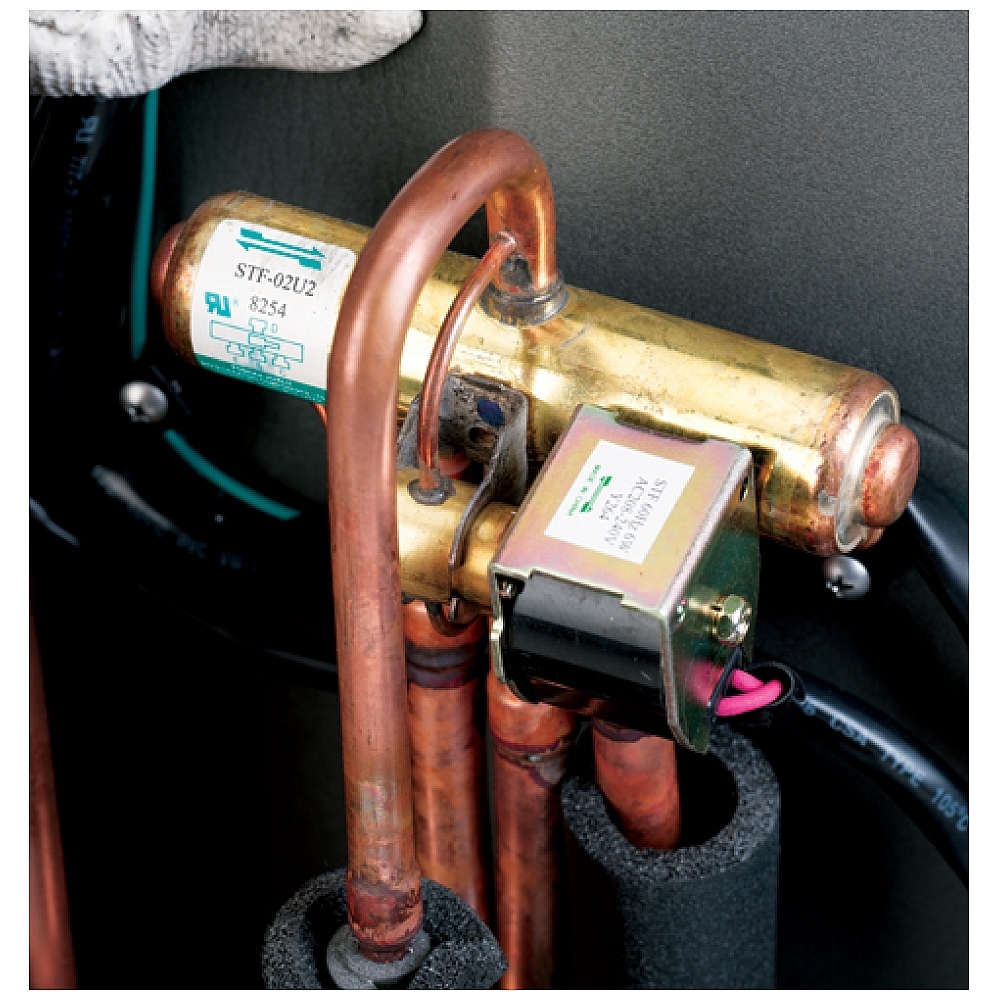

Reverse Cycle Defrost | Yes |
Central Desk Control Compatibility | Yes |

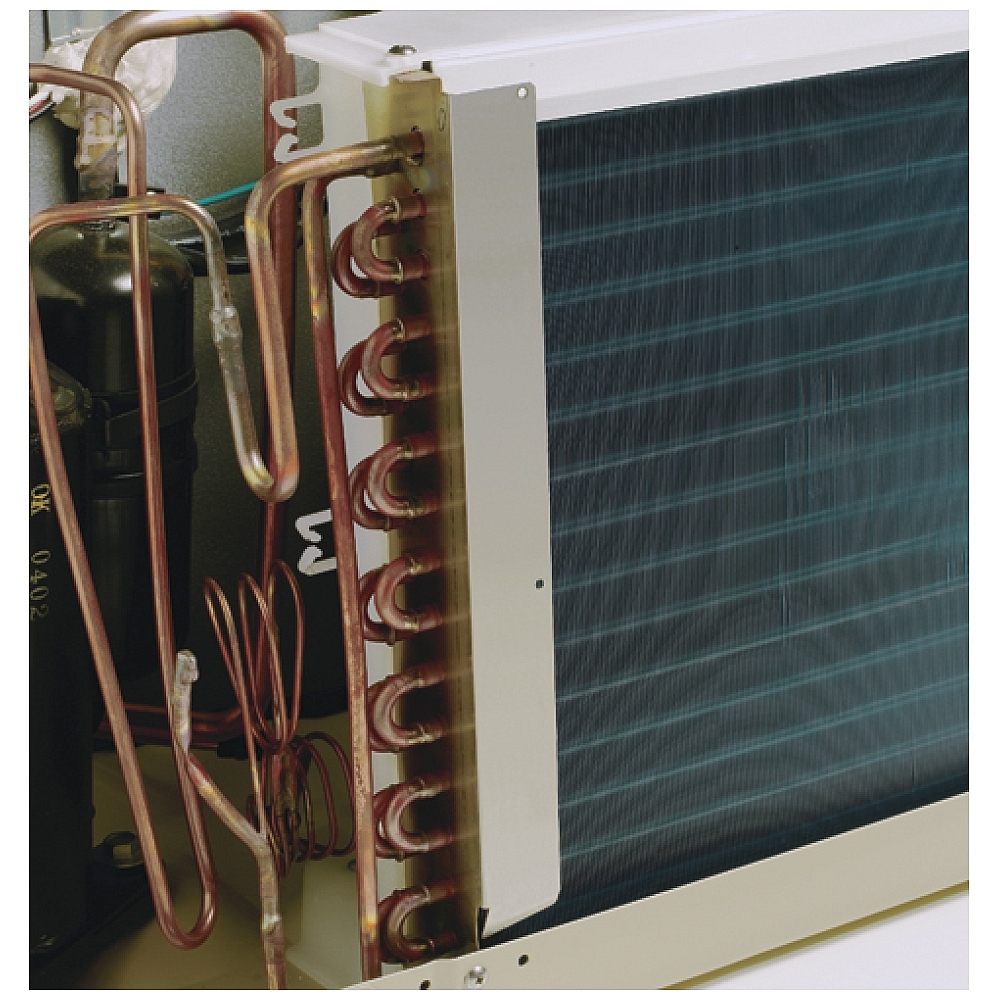

Rotary Compressor | Yes |
Fan Motor | 2 |
Electric Resistance Heat Lockout | Yes |
Freeze Sentinel | Yes |
Heat Sentinel | Yes |
Louver Style | Reversible |
Auto Power Recovery | Yes |
Solid State Thermostat Control | Yes |
Discharge Grille | 2-position |
Remote Control | Compatible |
Sound Transmission Class (STC) | 29 |

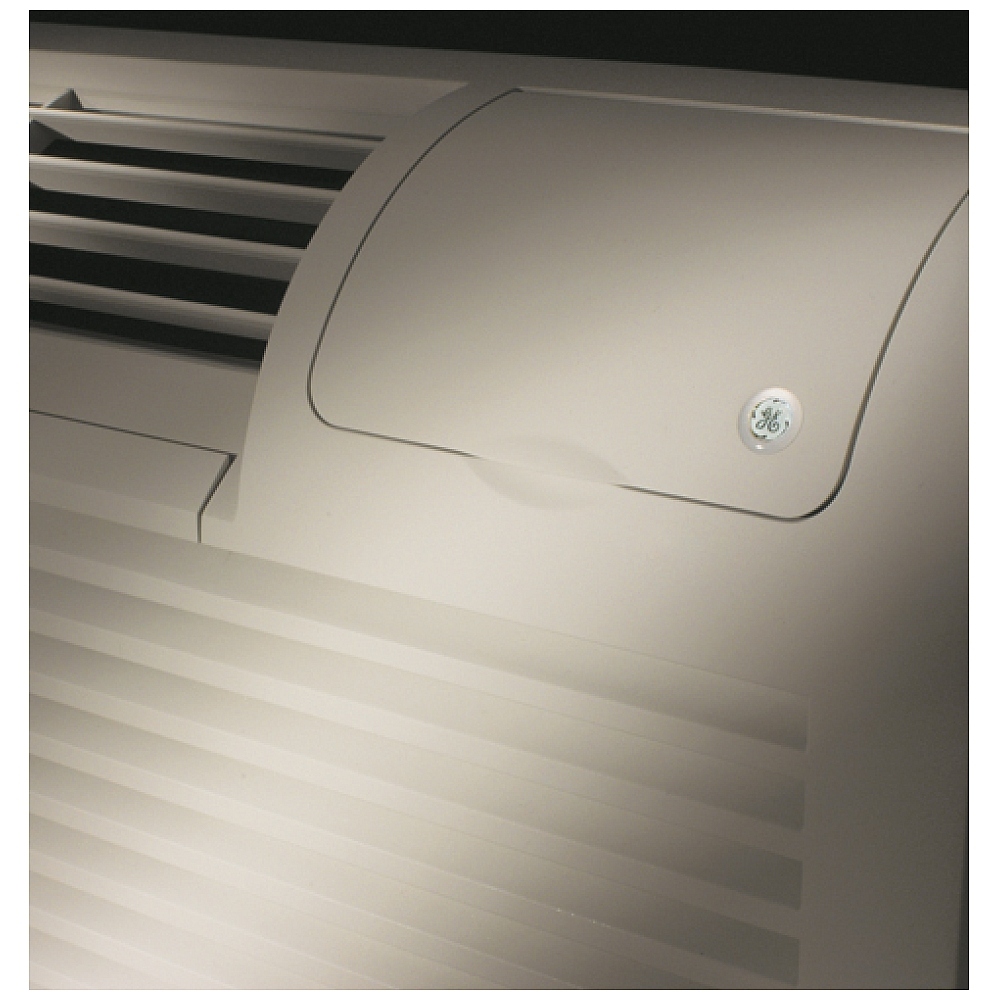

Control Panel Door | Yes |
Weather Protected Electrical Components | Yes |
Staged Heating | 3-Stage |

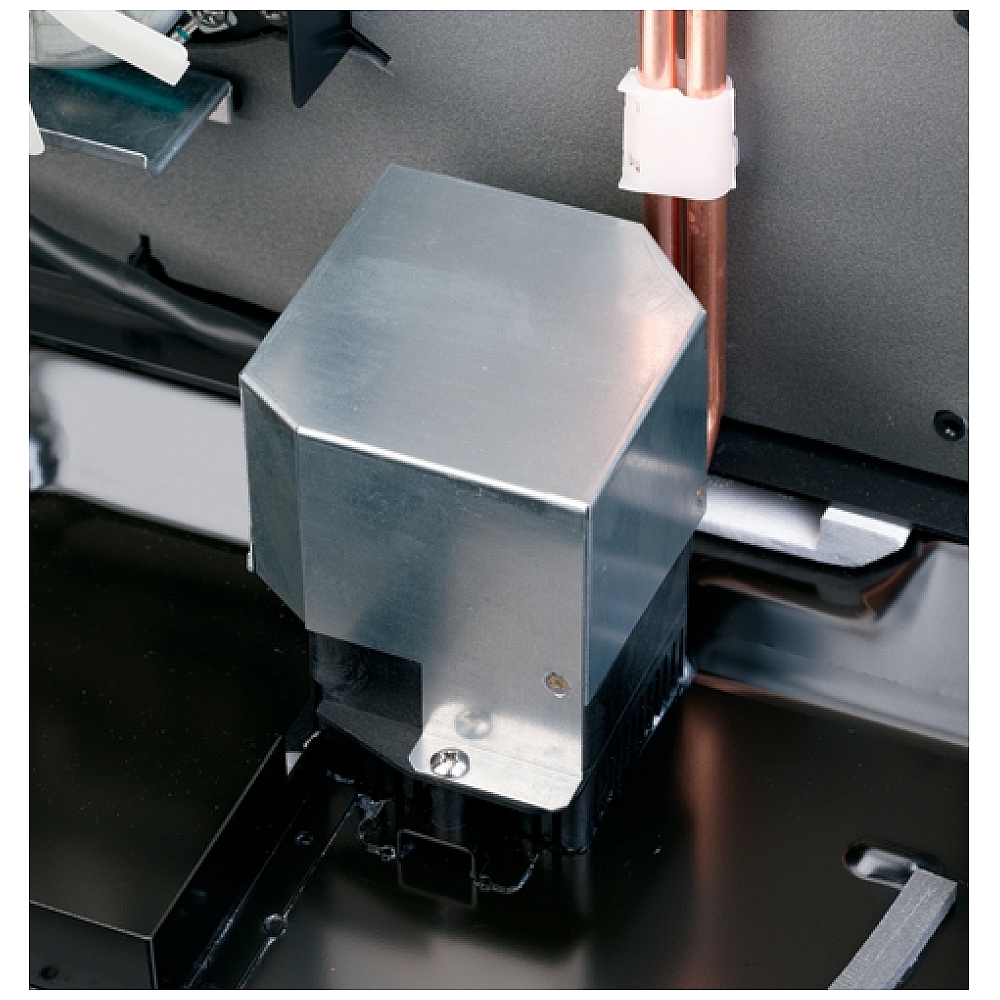

Internal Condensate Removal (ICR) | Yes |

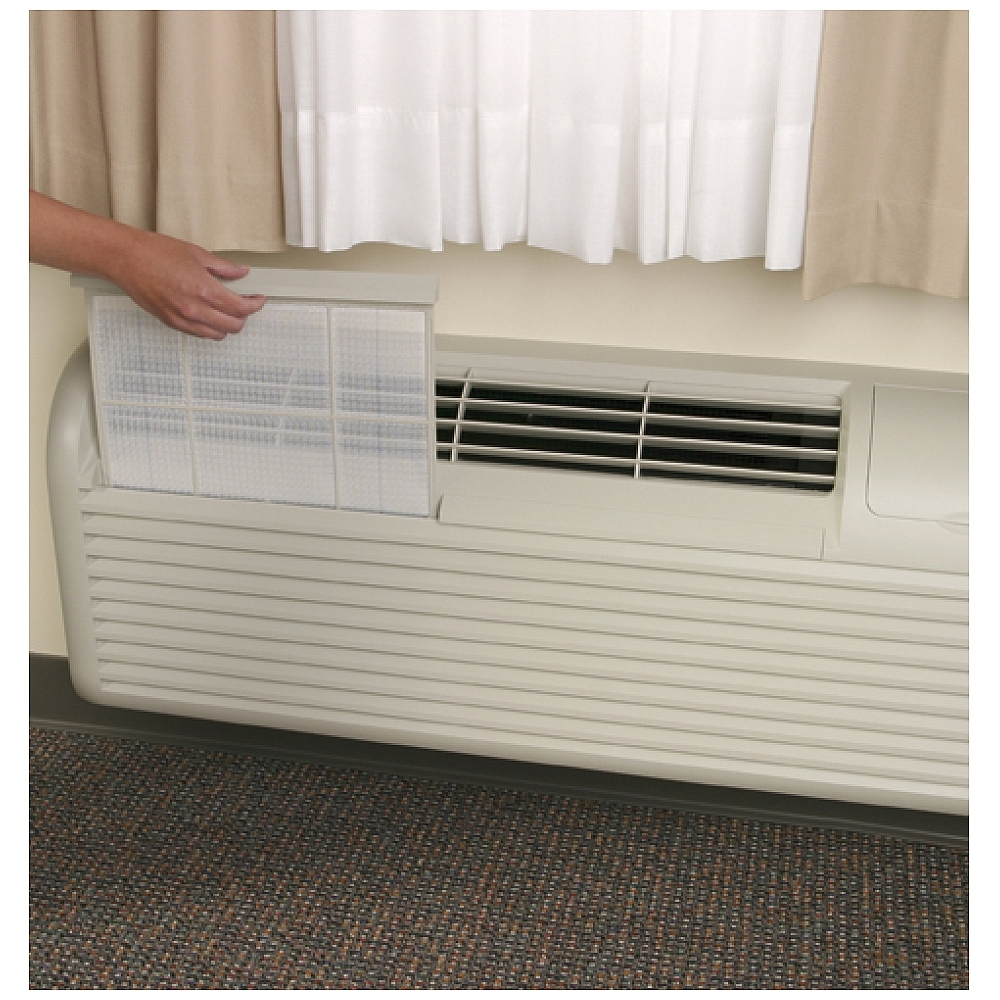

Upfront Filter | Yes |
Quick Heat Recovery | Yes |
Fan Speed Selections | Hi/Low Cooling 2 Fan Only Hi/Low Heating |
Heat Pump Heat Back-Up | Resistance; Supplemental |
Room Occupancy Sensor | Compatible |
Control Type | Standard Microcomputer; Rotary Knobs |
"SmartFan" Fan Cycle | Yes |
APPEARANCE | |
Color Appearance | Warm Gray Beige |
WEIGHTS & DIMENSIONS | |
Approximate Shipping Weight | 123 lb |
Net Weight (lbs.) | 108 lb |
Overall Height | 16 in |
Overall Width | 42 in |
Overall Depth | 13 3/4 in |
POWER / RATINGS | |
Heating - Reverse Cycle - Heater Amps | 3.2/3.5 |
Heating - Reverse Cycle - COP | 3.6 |
Cooling - Watts | 750/735 |
Heating - Reverse Cycle - Heater Watts (max. connected load) | 685/670 |
Cooling - Amperes; L.R. | 21.0 |
Voltage | 230 V |
Power Factor | 86/86 |
Cooling - Amperes; F.L. - Cooling | 3.8/4.1 |
ACCESSORIES | |
Extruded Aluminum | RAG67 |
SMC Wall Case | RAB77 |
Duct Adaptor | RAK6052 |
Duct Extension | RAK601 |
Power Connection Kit | RAK3153/3203/3303 |
Insulated Wall Case | RAB71 |
Exterior Architectural Louvers | RAG61(Beige); RAG62(Maple); RAG63(Bittersweet) |
Stamped Aluminum Exterior Rear Grille | RAG60 |
WARRANTY | |
Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Dimensions | |
---|---|
Height: | 16" |
Width: | 42" |
Depth: | 13 3/4" |
Sleeve Width: | 1 |
Sleeve Height: | 1 |
Minimum Window Opening Width (in.): | 1 |
Maximum Window Opening Width (in.): | 1 |
Minimum Window Opening Height (in.): | 1 |
Depth to Louvers (in.): | 1 |
Interior Unit Height (Mini-split systems only): | 1 |
Interior Unit Width (Mini-split systems only): | 1 |
Interior Unit Depth (Mini-split systems only): | 1 |
Weight: | 150 lbs. |
Appearance | |

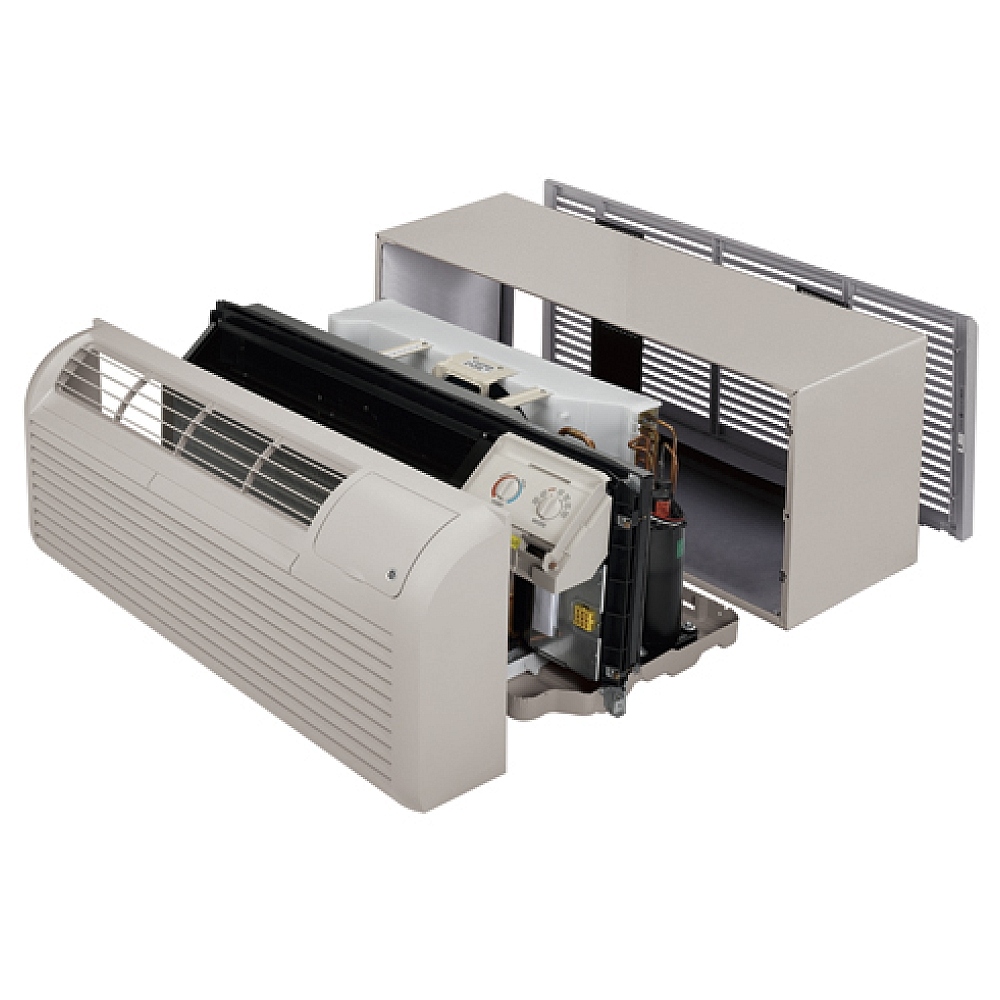

Chassis: | slide out |
Color: | warm gray beige |
Control Type: | knobs |
Performance | |
Cooling BTU: | 9000 |
Heating BTU: | 8400 |
Features | |
Fan Speed Selections: | 2 |
Heat: | heat pump |
Filter Type: | upfront |
Technical Details | |
Airflow: | 270 |
Cooling Amps: | 21 |
Cooling EER: | 12.0 |
Cooling Watts: | 750 |
Dehumidification: | 2.7 |
Heating Amps: | 3.5 |
Heating EER: | 12.0 |
Heating Watts: | 685 |
Volts: | 220 |
