GE AZ38H12DAD
Discontinued
4HAUF5
Why Buy This at CAS?
4HAUF5
When will I get this?

Why Buy This at CAS?
Description & Features



  • 11,700/11,500 BTU (Cooling)
  • 11.5/11.5 E.E.R.
  • 3.6 Dehumidification (pints/hr)
  • 10,900/10,700 BTU (Reverse Cycle Heat)
  • 300/260 CFM Indoor Fan (High/Low)
  • 75/45 Vent CFM
  • Corrosion-Treated Chassis Extends Life of the Unit in SeaCoast Areas

Manufacturer's Warranty: 1 year

Specs
CAPACITY
Heating - Reverse Cycle - BTUH 10,900/10,700
CFM Indoor Fan Low 260
Vent CFM 75/45
CFM Indoor Fan High 300
Cooling E.E.R. (BTUH / Watt) 11.5/11.5
Dehumidification (pts./hr.) 3.6
Cooling BTUH 11700 Btu
Sensible Heat Ratio at 230 Volts 65%
FEATURES
Auto Frost Control Monitor Yes
Vent Control 3-position
Temperature Limiting Electronic 7-Step
Universal Heaters Yes
Automatic Emergency Heat Yes
Reverse Cycle Defrost Yes
Central Desk Control Compatibility Yes
Rotary Compressor Yes
Fan Motor 2
Electric Resistance Heat Lockout Yes
Freeze Sentinel Yes
Heat Sentinel Yes
Louver Style Reversible
Auto Power Recovery Yes
Solid State Thermostat Control Yes
Discharge Grille 2-position
Remote Control Compatible
Sound Transmission Class (STC) 29
Control Panel Door Yes
Weather Protected Electrical Components Yes
Staged Heating 3-Stage
Internal Condensate Removal (ICR) Yes

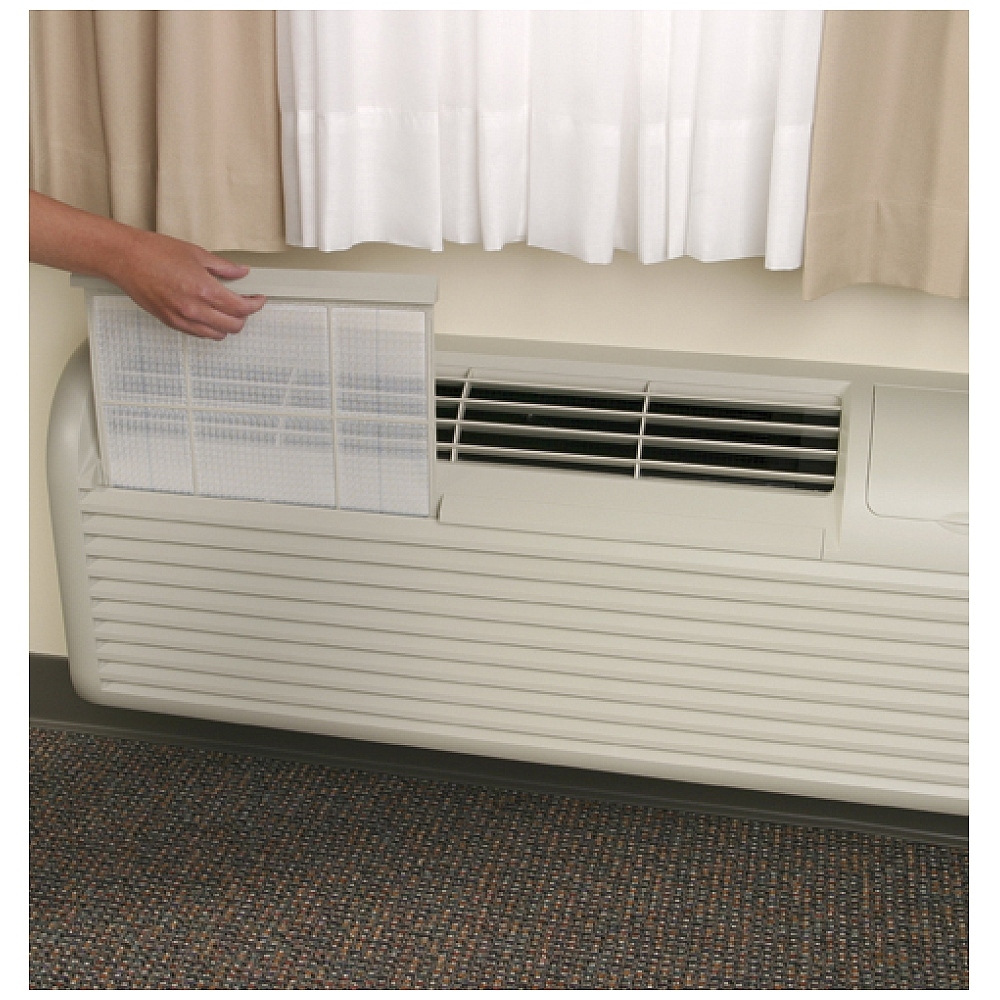

Upfront Filter Yes
Quick Heat Recovery Yes
Fan Speed Selections Hi/Low Cooling 2 Fan Only Hi/Low Heating
Heat Pump Heat Back-Up Resistance; Supplemental
Room Occupancy Sensor Compatible
Control Type Standard Microcomputer; Rotary Knobs
"SmartFan" Fan Cycle Yes
APPEARANCE
Color Appearance Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 132 lb
Net Weight (lbs.) 116 lb
Overall Height 16 in
Overall Width 42 in
Overall Depth 13 3/4 in
POWER / RATINGS
Heating - Reverse Cycle - Heater Amps 4.3/4.7
Heating - Reverse Cycle - COP 3.4
Cooling - Watts 1020/1000
Heating - Reverse Cycle - Heater Watts (max. connected load) 940/925
Cooling - Amperes; L.R. 31.0
Voltage 230 V
Power Factor 91/91
Cooling - Amperes; F.L. - Cooling 4.9/5.3
ACCESSORIES
Extruded Aluminum RAG67
SMC Wall Case RAB77
Duct Adaptor RAK6052
Duct Extension RAK601
Power Connection Kit RAK3153/3203/3303
Insulated Wall Case RAB71
Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Stamped Aluminum Exterior Rear Grille RAG60
WARRANTY
Warranty Notes For models produced on or after January 1, 2006 See written warranty for full details
Labor Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system

Dimensions
Sleeve Width: 1
Sleeve Height: 1
Minimum Window Opening Width (in.): 1
Maximum Window Opening Width (in.): 1
Minimum Window Opening Height (in.): 1
Depth to Louvers (in.): 1
Interior Unit Height (Mini-split systems only): 1
Interior Unit Width (Mini-split systems only): 1
Interior Unit Depth (Mini-split systems only): 1
Weight: 150 lbs.
Appearance
Chassis: slide out
Color: warm gray beige
Control Type: knobs
Control Type: knobs
Performance
Cooling BTU: 11700
Heating BTU: 10900
Features
Fan Speed Selections: 2
Heat: heat pump
Filter Type: upfront
Technical Details
Airflow: 75
Cooling Amps: 4.9
Cooling EER: 11.5
Cooling Watts: 1020
Dehumidification: 3.6
Heating Amps: 4.3
Heating EER: 11.5
Heating Watts: 940
Volts: 220
