GE AZ58H07DAC
Discontinued
4V2E6J
Why Buy This at CAS?
4V2E6J
When will I get this?

Why Buy This at CAS?
Description & Features



  • Cooling with Heat Pump and Electric Heat Back-Up
  • 230/208 Volts
  • 14,700/14,400 BTU (Cooling)
  • 13,400/13,200 BTU (Reverse Cycle Heat)
  • 4.8 Dehumidification (pts/hr)
  • 350/330 CFM Indoor Fan (High/Low)
  • 10.0 E.E.R. / 3.1 COP

Manufacturer's Warranty: 1 year

Specs
CAPACITY
Cooling BTUH 7100 Btu
Cooling E.E.R. (BTUH / Watt) 13.0/13.0
CFM Indoor Fan High 240
CFM Indoor Fan Low 220
Dehumidification (pts./hr.) 1.7
Heating - Reverse Cycle - BTUH 6400/6200
Sensible Heat Ratio at 230 Volts 75%
Vent CFM 50/40
FEATURES
"SmartFan" Fan Cycle Yes
Auto Frost Control Monitor Yes
Auto Power Recovery Yes
Automatic Emergency Heat Yes
Central Desk Control Compatibility Yes
Control Panel Door Yes
Control Type Highly Featured Microcomputer; Tactile touch pad with LED
Corrosion Treated Yes
Discharge Grille 2-position
Electric Resistance Heat Lockout Yes
Fan Motor 2
Fan Speed Selections Hi/Low/Auto Cooling 2 Fan Only Hi/Low/Auto Heating
Freeze Sentinel Yes
Heat Pump Heat Back-Up Resistance; Supplemental
Heat Sentinel Yes
Louver Style Reversible
Quick Heat Recovery Yes
Remote Control Compatible
Reverse Cycle Defrost Yes
Room Occupancy Sensor Compatible
Rotary Compressor Yes
Self - Diagnostics Yes
Service Indicator Yes
Solid State Thermostat Control Yes
Sound Transmission Class (STC) 29
Staged Heating 3-Stage
Temperature Limiting Electronic 7-Step
Universal Heaters Yes

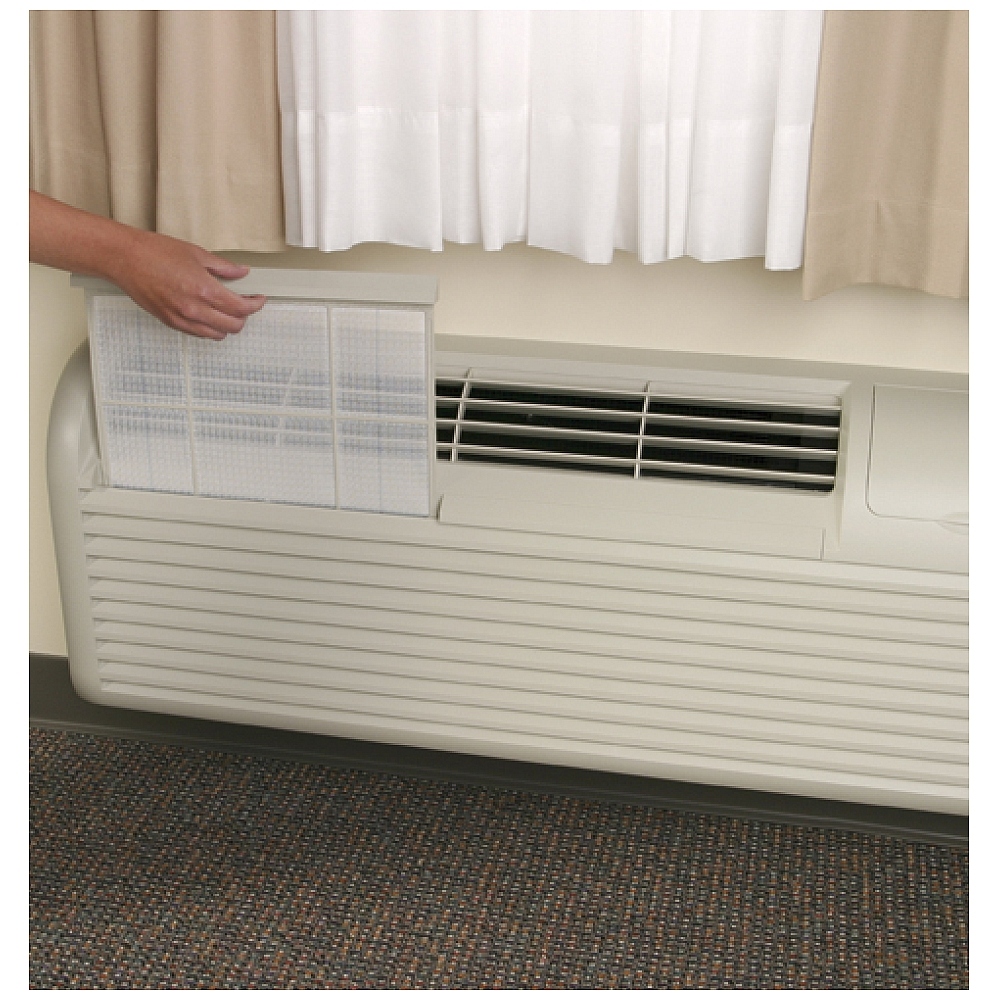

Upfront Filter Yes
Vent Control 3-position
Weather Protected Electrical Components Yes
APPEARANCE
Color Appearance Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 120 lb
Net Weight (lbs.) 104 lb
Overall Depth 13 3/4 in
Overall Height 16 in
Overall Width 42 in
POWER / RATINGS
Cooling - Amperes; F.L. - Cooling 2.7/2.9
Cooling - Amperes; L.R. 19.0
Cooling - Watts 546/531
Heating - Reverse Cycle - COP 3.5/3.5
Heating - Reverse Cycle - Heater Amps 2.4/2.6
Heating - Reverse Cycle - Heater Watts (max. connected load) 535/520
Power Factor 95
Voltage 230 V
ACCESSORIES
Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Extruded Aluminum RAG67
Insulated Wall Case RAB71
Power Connection Kit RAK3153/3203/3303
SMC Wall Case RAB77
Stamped Aluminum Exterior Rear Grille RAG60
WARRANTY
Parts Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes For models produced on or after January 1, 2006 See written warranty for full details

Dimensions
Sleeve Width: 1
Sleeve Height: 1
Minimum Window Opening Width (in.): 1
Maximum Window Opening Width (in.): 1
Minimum Window Opening Height (in.): 1
Depth to Louvers (in.): 1
Interior Unit Height (Mini-split systems only): 1
Interior Unit Width (Mini-split systems only): 1
Interior Unit Depth (Mini-split systems only): 1
Weight: 150 lbs.
Appearance
Chassis: slide out
Color: warm gray beige
Control Type: knobs
Performance
Cooling BTU: 14700
Heating BTU: 13400
Features
Fan Speed Selections: 2
Heat: heat pump
Filter Type: upfront
Technical Details
Airflow: 240
Cooling Amps: 2.7
Cooling EER: 13.0
Cooling Watts: 546
Dehumidification: 1.7
Heating Amps: 2.4
Heating EER: 13.0
Heating Watts: 535
Volts: 220
