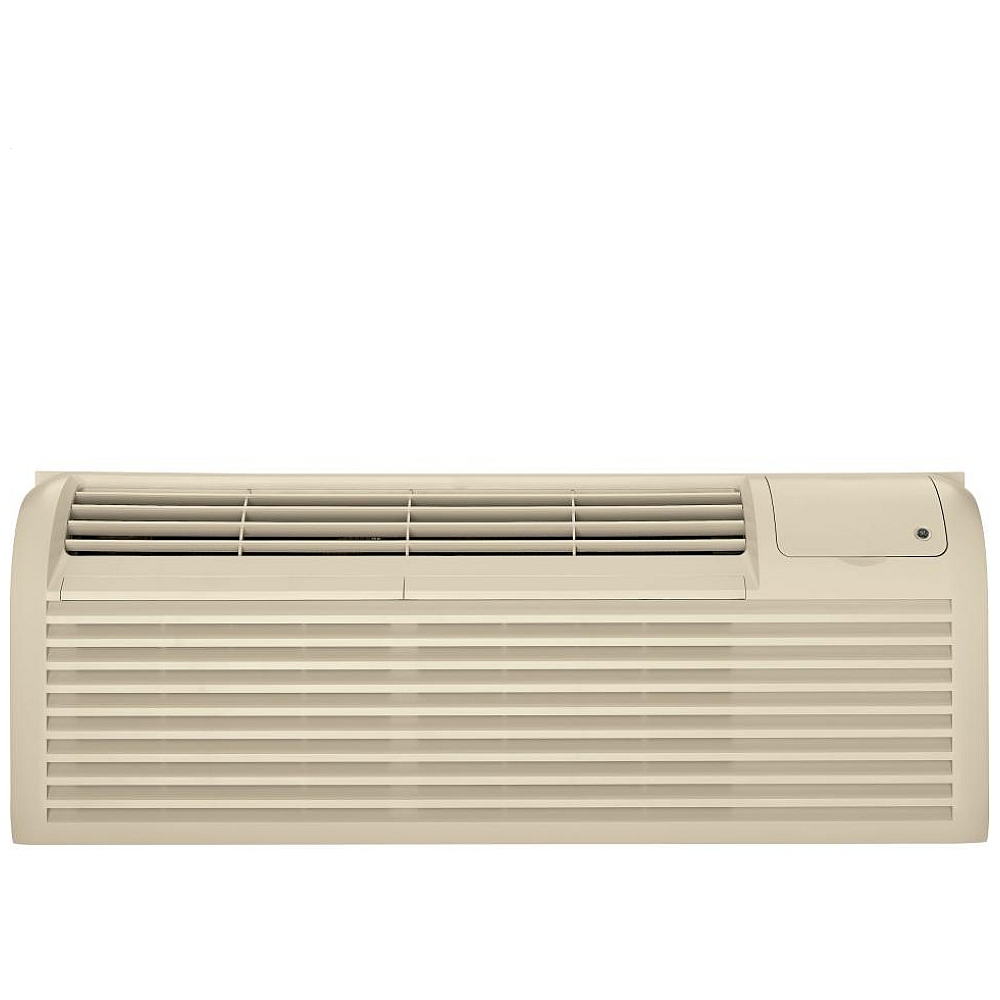

GE AZ58H09EAD
Discontinued
AF4XF6
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Ratings & Reviews
AF4XF6
When will I get this?

Why Buy This at CAS?
Description & Features
  • 9000 BTU (Cooling)
  • 12.0 E.E.R.
  • 2.8 Dehumidification (pts/hr)
  • 8400 BTU (Reverse Cycle Heat)
  • 290/270 CFM Indoor Fan (High/Low)
  • 70/45 Vent CFM

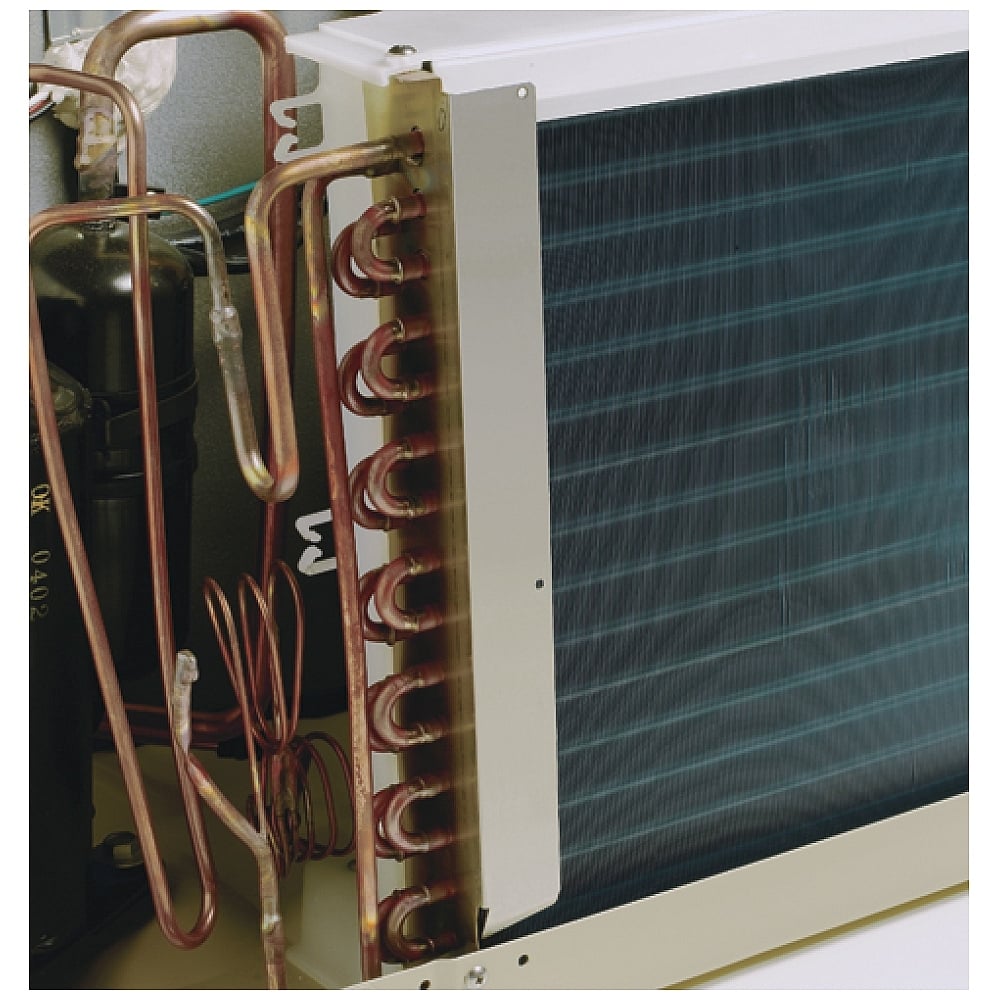

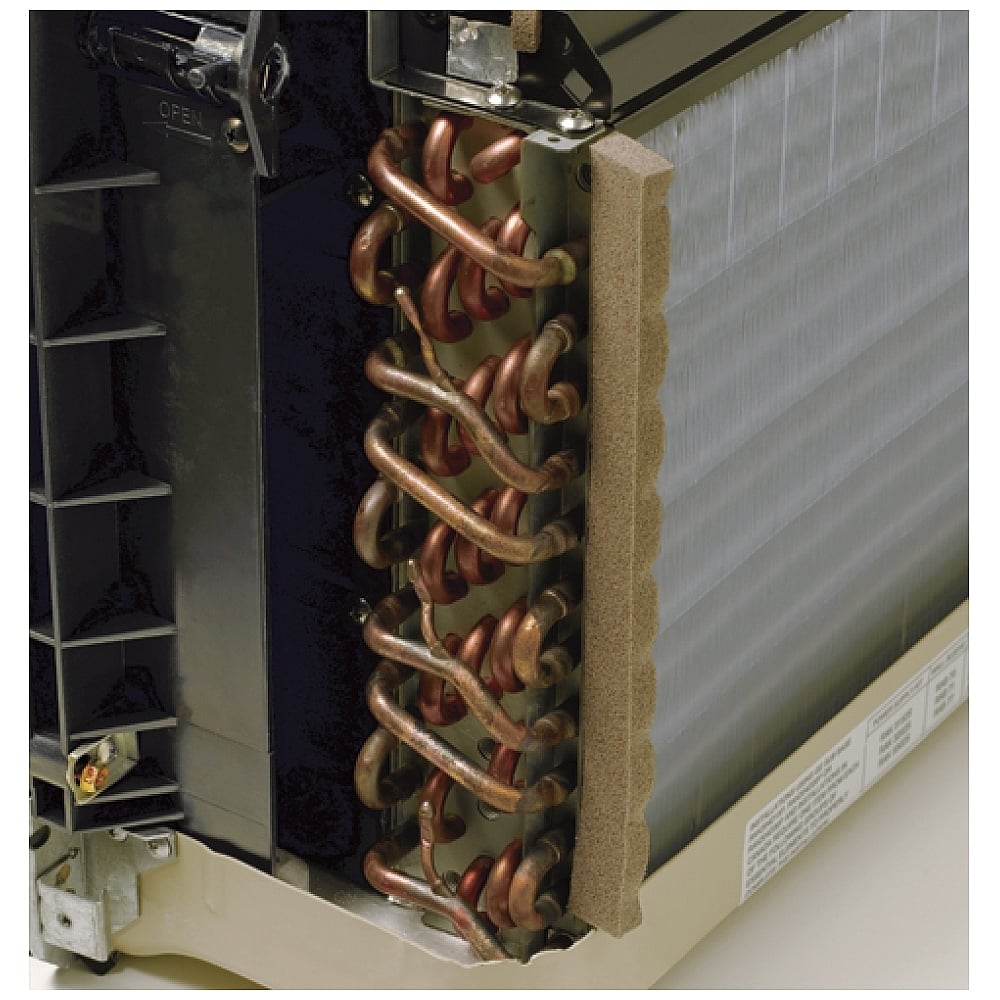

  • Corrosion-Treated Chassis — Extends Life of the Unit in SeaCoast Areas

Manufacturer's Warranty: 1 year

Canadian model: AZ58H09EAD

Specs
CAPACITY
Cooling BTUH 9000 Btu
Cooling E.E.R. (BTUH / Watt) 12.0
CFM Indoor Fan High 290
CFM Indoor Fan Low 270
Dehumidification (pts./hr.) 2.8
Heating - Reverse Cycle - BTUH 8400
Sensible Heat Ratio at 265 Volts 67%
Vent CFM 70/45
FEATURES
"SmartFan" Fan Cycle Yes
Auto Frost Control Monitor Yes
Auto Power Recovery Yes
Automatic Emergency Heat Yes
Central Desk Control Compatibility Yes

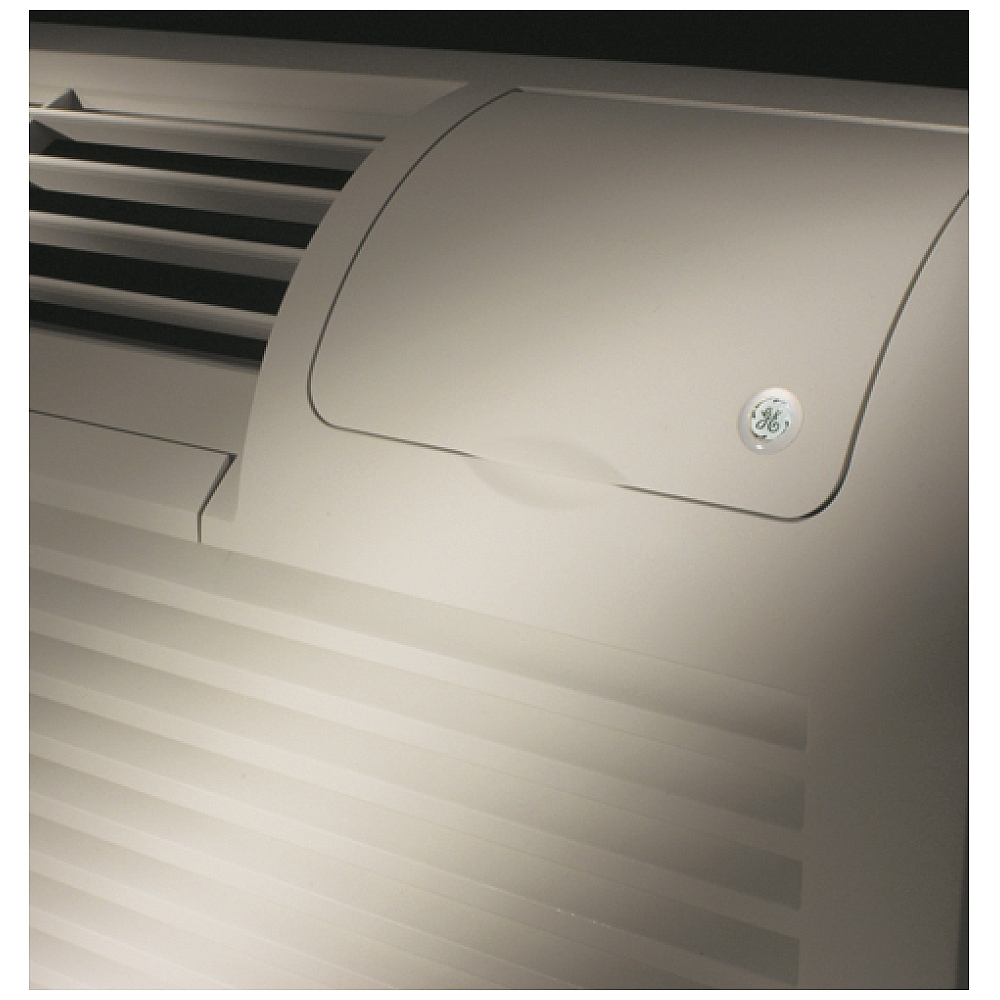

Control Panel Door Yes
Control Type Highly Featured Microcomputer; Tactile touch pad with LED
Corrosion Treated Yes
Discharge Grille 2-position
Electric Resistance Heat Lockout Yes
Fan Motor 2
Fan Speed Selections Hi/Low/Auto Cooling 2 Fan Only Hi/Low/Auto Heating
Freeze Sentinel Yes
Heat Pump Heat Back-Up Resistance; Supplemental
Heat Sentinel Yes
Internal Condensate Removal (ICR) Yes
Louver Style Reversible
Quick Heat Recovery Yes
Remote Control Compatible
Reverse Cycle Defrost Yes
Room Occupancy Sensor Compatible
Rotary Compressor Yes
Self - Diagnostics Yes
Service Indicator Yes
Solid State Thermostat Control Yes
Sound Transmission Class (STC) 29
Staged Heating 3-Stage
Temperature Limiting Electronic 7-Step
Universal Heaters Yes

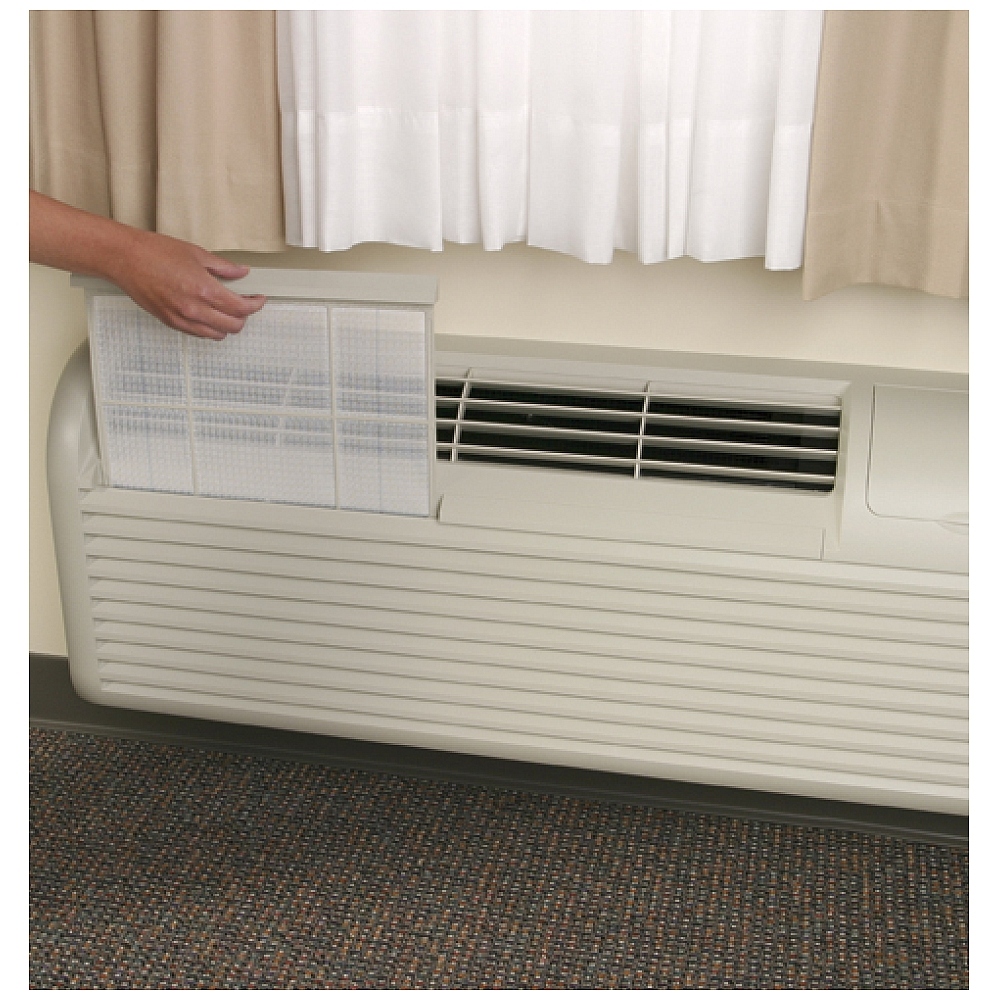

Upfront Filter Yes
Vent Control 3-position
Weather Protected Electrical Components Yes
APPEARANCE
Color Appearance Warm Gray Beige
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 127 lb
Net Weight (lbs.) 112 lb
Overall Depth 13 3/4 in
Overall Height 16 in
Overall Width 42 in
POWER / RATINGS
Cooling - Amperes; F.L. - Cooling 3.2
Cooling - Amperes; L.R. 18.0
Cooling - Watts 750
Heating - Reverse Cycle - COP 3.5
Heating - Reverse Cycle - Heater Amps 2.8
Heating - Reverse Cycle - Heater Watts (max. connected load) 705
Power Factor 94
Voltage 265 V
ACCESSORIES
Exterior Architectural Louvers RAG61(Beige); RAG62(Maple); RAG63(Bittersweet)
Extruded Aluminum RAG67

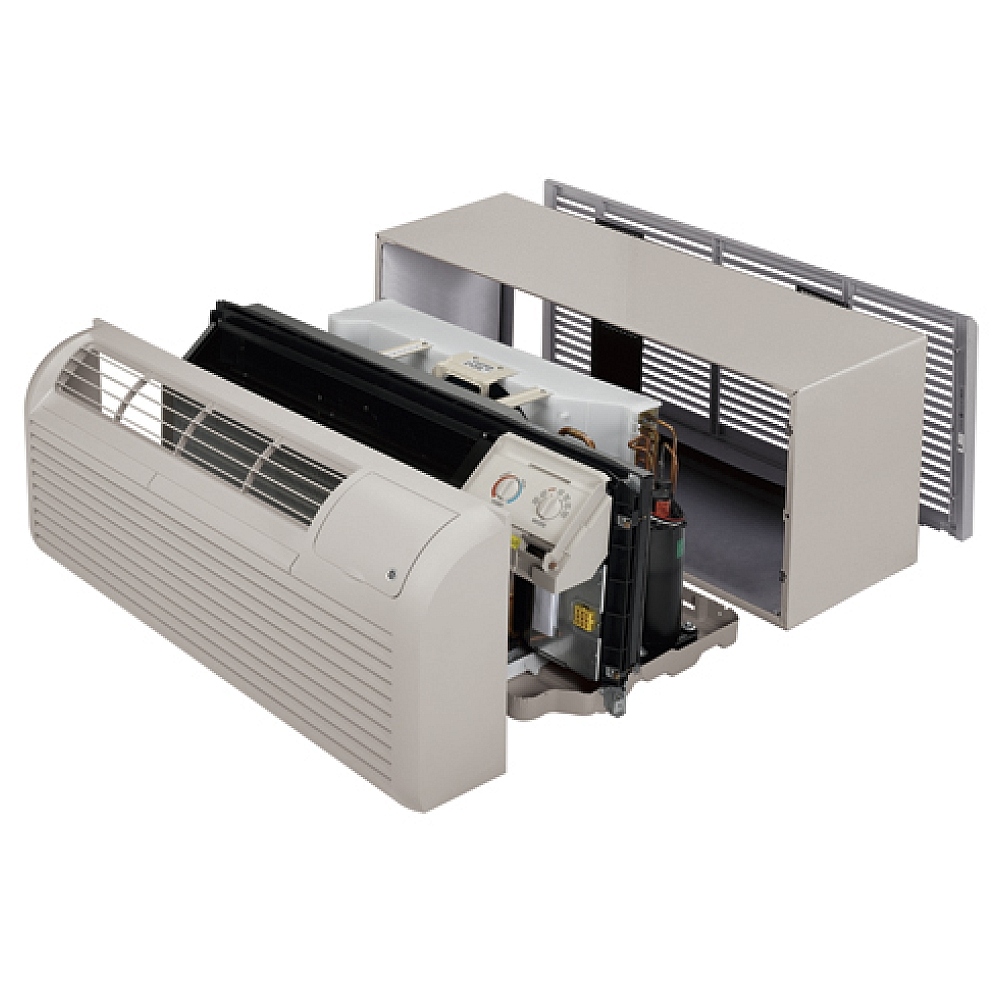

Insulated Wall Case RAB71
Power Connection Kit RAK5152/5172/5202/5302
SMC Wall Case RAB77
Stamped Aluminum Exterior Rear Grille RAG60
WARRANTY
Parts Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes For models produced on or after January 1, 2006 See written warranty for full details
Dimensions
Height: 16"
Depth: 13 3/4"
Sleeve Width: 1
Sleeve Height: 1
Minimum Window Opening Width (in.): 1
Maximum Window Opening Width (in.): 1
Minimum Window Opening Height (in.): 1
Depth to Louvers (in.): 1
Interior Unit Height (Mini-split systems only): 1
Interior Unit Width (Mini-split systems only): 1
Interior Unit Depth (Mini-split systems only): 1
Weight: 127 lbs.
Capacity
CFM Indoor Fan High: 290
CFM Indoor Fan Low: 270
Cooling E.E.R. (BTUH / Watt): 12.0
Dehumidification (pts./hr.): 2.8
Heating - Reverse Cycle - BTUH: 840
Sensible Heat Ratio at 265 Volts: 67%
Vent CFM: 70/45
Features
Cooling BTUH: 9000
Control Panel Door: Yes
Control Type: Highly Featured Microcomputer; Tactile touch pad with LED
Auto Power Recovery: Yes
Corrosion Treated: Yes
Freeze Sentinel: Yes
Heat Sentinel: Yes
Internal Condensate Removal (ICR): Yes
Louver Style: Reversible
Upfront Filter: Yes
Auto Frost Control Monitor: Yes
Central Desk Control Compatibility: Yes
Remote Control: Compatible
Room Occupancy Sensor: Compatible
Rotary Compressor: Yes
Solid State Thermostat Control: Yes
Temperature Limiting: Electronic 7-Step
Weather Protected Electrical Components: Yes
Vent Control: 3-position
SmartFan Fan Cycle: Yes
Fan Motor: 2
Fan Speed Selections - Cooling: Hi/Low/Auto
Fan Speed Selections - Fan Only: 2
Fan Speed Selections - Heating: Hi/Low/Auto
Automatic Emergency Heat: Yes
Electric Resistance Heat Lockout: Yes
Heat Pump Heat Back-Up: Resistance; Supplemental
Quick Heat Recovery: Yes
Reverse Cycle Defrost: Yes
Staged Heating: 3-Stage
Universal Heaters: Yes
Service Indicator: Yes
Discharge Grille: 2-position
Self - Diagnostics: Yes
Sound Transmission Class (STC) : 29
Appearance
Color Appearance: Warm Gray Beige
Power / Ratings
Power Factor: 94
Voltage: 265
Cooling - Amperes; F.L. - Cooling: 3.2
Cooling - Amperes; L.R.: 18.0
Cooling - Watts: 750
Heating - Reverse Cycle - COP: 3.5
Heating - Reverse Cycle - Heater Amps: 2.8
Heating - Reverse Cycle - Heater Watts (max. connected load): 705
