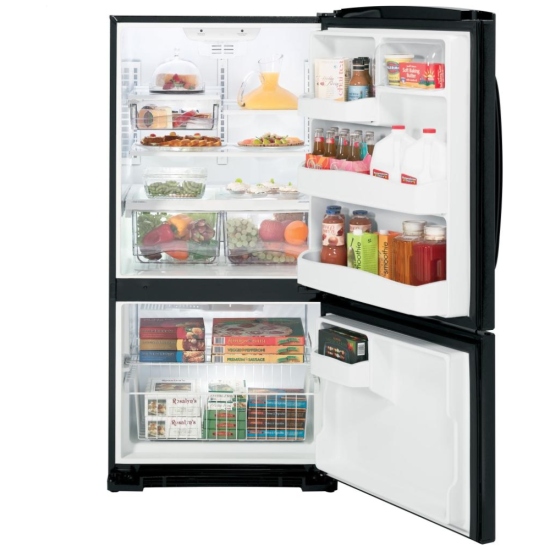

GBSC3HBXBB GE Bottom Freezer Refrigerator 23.2 cu. ft. Canada Parts

GE GBSC3HBXBB Bottom Mount Refrigerator, 23.2 Cu. Ft. Energy Star with Upfront Electronic Temperature Controls, BrightSpace Interior, Adjustable Glass Shelves, Crisper Drawers, and Snack Drawer

Crown doors with hidden hinges

Step up to rounded doors and the clean look of concealed hinges

Upfront electronic temperature controls

Easy-to-use controls are located in an easy-to-reach position

BrightSpace interior with GE Reveal® lighting

It s easy to find tasty treats under bright, clear interior lighting

Crisper drawers

Provides the ideal environment for storing your fruits and vegetables

Snack drawer

Conveniently stores favorite foods and allows for quick, easy access

Adjustable glass shelves

Shelves adjust to handle tall items and create additional space

Crown doors with hidden hinges — Step up to rounded doors and the clean look of concealed hinges
Upfront electronic temperature controls — Easy-to-use controls are located in an easy-to-reach position
BrightSpace™ interior with GE Reveal® lighting — It’s easy to find tasty treats under bright, clear interior lighting
Crisper drawers — Provides the ideal environment for storing your fruits and vegetables
Snack drawer — Conveniently stores favorite foods and allows for quick, easy access
Adjustable glass shelves — Shelves adjust to handle tall items and create additional space

Manufacturer's Warranty: 1 year

Canadian model: GBSC3HBXBB

Specs

Temperature Management Features	3 Electronic Sensors Multiflow Air Tower
Defrost Type	FrostGuard
Control Type	Upfront Temperature Controls
Dispenser	Non-Dispenser
Icemaker	Optional (IM4A Ready)
Fresh Food Cabinet Drawers	3 Total Clear 1 Snack Drawer
Fresh Food Cabinet Shelves	3 Total Glass 3 Adjustable 1 Full-Width 2 Split
Fresh Food Door Bins	3 Total Fixed 2 Full-Width
Fresh Food Door Features	Gallon Storage Dairy Compartment
Fresh Food Features	Interior Lighting - GE Reveal®
Freezer Cabinet Shelves	1 Total 1 Full-Width Wire
Freezer Door Bins	1 Total 1 Split-Width Fixed
Freezer Storage Baskets	1 Full-Width
Freezer Features	Interior Light 1 Ice N' Easy Tray Ice Storage Bin
Exterior Style	Free-Standing
Leveling System	Front Corners
Performance Features	Easily Removable Door Gaskets NeverClean Condenser Premium Quiet Design
CAPACITY
Total Capacity (cubic feet)	23.1 cu ft
Fresh Food Capacity	16.4 cu ft
Freezer Capacity	6.7 cu ft
APPEARANCE
Color Appearance	Black
Door Stops	Yes
Door Swing	Reversible Hinges
Exterior Design	Contoured Crown Textured Doors Hidden Door Hinges
Handle	Color-Matched High-Gloss
Textured Steel Case	Color Matched
claims & certifications
ENERGY STAR® Qualified
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	315 lb
Net Weight	286 lb
Overall Depth	34 3/8 in
Overall Height	68 1/2 in
Overall Width	35 1/2 in
Case Depth Without Door	28 1/4 in
Depth with Door Open 90°	62 3/4 in
Depth Without Handle	33 in
Height to Top of Case	67 3/4 in
Width w/Door Open 90 Degrees Incl. Handle	36 in
Back Air Clearances	0 3/4 in
Side Air Clearances	0 1/8 in
Top Air Clearances	1 in
POWER / RATINGS
Volts/Hertz/Amps	120v; 60Hz; 15A
ACCESSORIES
Optional Icemaker Kit	IM4A
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details

Capacity
Freezer (cubic feet)	6.90
Fresh Food (cubic feet)	16.30
Total (cubic feet)	23.2
Features
Defrost Type	Frost Free
Upfront Temperature Controls	Yes
Dairy Compartment	Yes
Easy-Out Crispers	Pivot-Out
Fresh Food Door Shelves	2 F/W & 1 Half-Width
Interior Lights	GE Reveal^TM
Snack Pan	Yes - clear
Vegetable / Fruit Crisper(s)	2 (Clear)
Freezer Features
Cabinet Shelves	1 Full Width
Door Shelves	1 split fixed door bin
Freezer Configuration	Door
FrostGuard^TM	Yes
Interior Light	Yes
Storage Basket (Wire Everwhite)	1 Full-Width Sliding
Fresh Food Cabinet Shelves
Adjustable	1 F/W, 2 Split
Total Number of Shelves	3 glass (2 split, 1 FW)
Ice Service Features
Automatic Icemaker	Optional IM6
Economical / Quiet
Energuide Rating	468
Energy Star® Qualified	Yes
NeverClean^TM Condenser	Yes
Quiet Package	Premium Quiet Design
Appearance
Colour Appearance	Black - Textured
Door Handles	Colour-Matched
Exterior Design
Adjustable Rollers	Front
Door Stops	Yes
Door Swing	Shipped w/ Right-Hand Door Opening
Exterior Design	Contoured Door w/ Hidden Hinge, New GE Crowned Door
Reversible Doors	Yes
Air Clearances
Back (in.)	1
Each Side (in.)	1/8
Top (in.)	1
Weights & Dimensions
Approximate Shipping Weight (lbs.)	315
Case Depth Without Door (in.)	28 1/4
Depth With Door Open 90 Degrees (in.)	62-7/8
Depth Without Door Handle (in.)	32-1/2
Height to Top of Case (in.)	67-7/8
Overall Depth (in.)	34-3/8
Overall Height (in.)	69-3/8
Overall Width (in.)	32-7/8
Width w/Door Open 90 Degrees Less Handle (in.)	36
Warranty
Full 1 Year	Entire Appliance; Parts & Labour; In-Home

Manuals

GE & Profile Fridge 2024

Owner's Manual (GBSC3HBXBB-owners-manual-canada.pdf)

Quick Specs (GBSC3HBXBB-quick-specs-canada.pdf)

Energy Guide (GBSC3HBXBB-energy-guide-canada.pdf)
