GE GTR16DBEWW Top-Freezer Refrigerator, 15.7 Cu. Ft., Adjustable wire shelves , Upfront temperature controls, Gallon door storage, Never Clean condenser, Clear crisper drawers
- Recessed handles
- Flush with the surface and ideal for tight spaces
- Upfront temperature controls
- Easy-to-use controls regulate both fresh food and freezer sections
- Adjustable wire shelves
- Moveable racks can handle a variety of foods
- Clear crisper drawers
- Transparent drawers make finding your favorite items quick and easy
- Gallon door storage
- Larger items are easily accommodated in the door

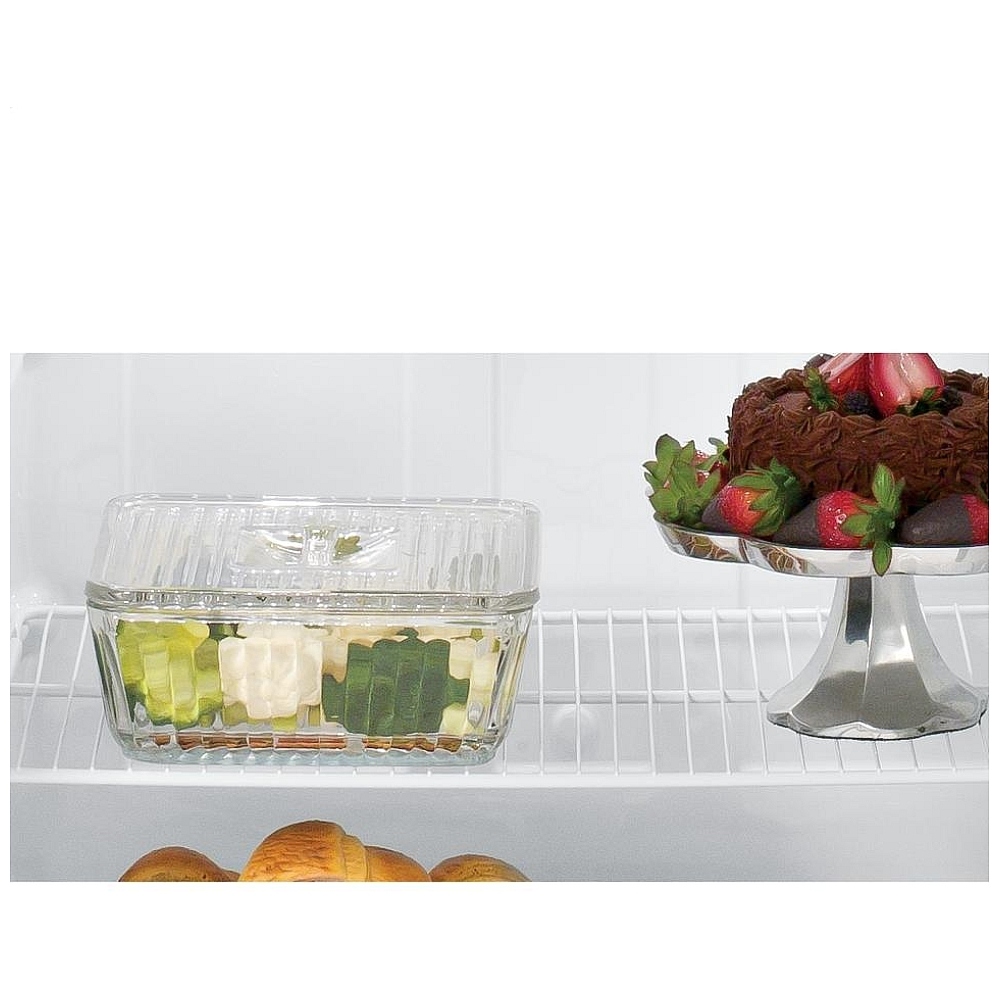

Adjustable Wire Shelves
Moveable racks can handle a variety of foods
Upfront Temperature Controls
Easy-to-use controls regulate both fresh food and freezer sections
Gallon Door Storage
Larger items are easily accommodated in the door
Clear Crisper Drawers
Transparent drawers make finding your favorite items quick and easy
Never Clean Condenser
Sealed compartment keeps coils clean and simplifies maintenance
Manufacturer's Warranty: 1 year
Canadian model: GTR16DBEWW
| Defrost Type | Frost Free |
| Control Type | Upfront Temperature Controls |
| Icemaker | Optional (IM4A Ready) |
| Fresh Food Cabinet Shelves | 2 Total 2 Wire 2 Full-Width 2 Adjustable 1 Glass Drawer Cover |
| Fresh Food Door Shelves | 2 Total 2 Full-Width 2 with Gallon Storage |
| Fresh Food Cabinet Drawers | 2 Clear |
| Fresh Food Door Features | Dairy Compartment |
| Fresh Food Features | Interior Lighting - Single Level |
| Freezer Cabinet Shelves (Wire) | Step Shelf |
| Freezer Door Shelves | 2 Total 2 Full-Width Fixed |
| Freezer Features | 1 Ice Tray |
| Exterior Style | Free-Standing |
| Leveling System | Leveling Legs |
| Performance Features | Easily Removable Door Gaskets Never Clean Condenser Deluxe Quiet Design |
| CAPACITY | |
| Total Capacity (cubic feet) | 15.7 cu ft |
| Fresh Food Capacity | 11.57 cu ft |
| Freezer Capacity | 4.1 cu ft |
| Shelf Area | 19.2 sq ft |
| APPEARANCE | |
| Color Appearance | White |
| Door Stops | Yes |
| Door Swing | Reversible Hinges |
| Exterior Design | Textured Square Doors |
| Handle | Color-Matched Recessed |
| Textured Steel Case | Color Matched |
| Claims & Certifications | |
| ADA Compliant | |
| America at Work: Product Assembled in the U.S.A. | |
| ECONOMICAL / QUIET | |
| Cabinet & Door Liner | ABS |
| WEIGHTS & DIMENSIONS | |
| Approximate Shipping Weight | 165 lb |
| Net Weight | 146 lb |
| Overall Depth | 29 1/8 in |
| Case Depth Without Door | 25 7/8 in |
| Depth with Door Open 90° | 54 7/8 in |
| Depth Without Handle | 29 1/8 in |
| Overall Height | 61 3/4 in |
| Height to Mid-Freezer | 51 3/8 in |
| Height to Top of Case | 61 1/4 in |
| Overall Width | 28 in |
| Width w/Door Open 90 Degrees Incl. Handle | 28 5/8 in |
| Width w/Door Open 90 Degrees Less Handle | 28 5/8 in |
| Back Air Clearances | 2 in |
| Side Air Clearances | 0 3/4 in |
| Top Air Clearances | 1 in |
| POWER / RATINGS | |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| ACCESSORIES | |
| Optional Icemaker Kit | IM4A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
|
Capacity |
|
|
Freezer (cubic feet) |
4.11 |
|
Fresh Food (cubic feet) |
11.57 |
|
Shelf Area (square feet) |
19.2 |
|
Total (cubic feet) |
15.7 |
|
Features |
|
|
Temperature control(s) |
Upfront |
|
Dairy Compartment |
1 Clear |
|
Fresh Food Door Shelves |
2 w/Gal. Storage |
|
Interior Lights |
1 |
|
Vegetable / Fruit Crisper(s) |
2 (Clear) |
|
Freezer Features |
|
|
Cabinet Shelves (Wire Everwhite) |
1-Full Width Z Shelf |
|
Door Shelves |
2 Fixed |
|
Fresh Food Cabinet Shelves |
|
|
Adjustable |
2 Full-Width |
|
Total Number of Shelves |
2 Wire Everwhite |
|
Ice Service Features |
|
|
Automatic Icemaker & Ice Bin |
Optional (IM4A) |
|
Ice Trays |
1 |
|
Economical / Quiet |
|
|
Automatic Moisture Control |
Yes |
|
Cabinet Liner |
ABS |
|
Door Liner |
ABS |
|
Energuide Rating |
455 kWh/yr |
|
Appearance |
|
|
Colour Appearance |
WW |
|
Door Handles |
Colour-Matched Recessed |
|
Exterior Design |
|
|
Adjustable Rollers |
Front |
|
Coil-Free Back |
Yes |
|
Condenser |
NeverClean TM |
|
Door Stops |
Yes |
|
Door Swing |
Shipped w/ Right-Hand Door Opening |
|
Reversible Doors |
Yes |
|
Squared Doors |
Yes |
|
Textured Steel Case & Doors |
Galvanized |
|
Air Clearances |
|
|
Back (in.) |
1 |
|
Each Side (in.) |
3/4 |
|
Top (in.) |
1 |
|
Weights & Dimensions |
|
|
Approximate Shipping Weight (lbs.) |
165 |
|
Case Depth Without Door (in.) |
25-7/8 |
|
Depth With Door Open 90 Degrees (in.) |
54-7/8 |
|
Depth Without Door Handle (in.) |
29-1/8 |
|
Height to Top of Case (in.) |
61-1/4 |
|
Overall Depth (in.) |
31 |
|
Overall Height (in.) |
62 |
|
Overall Width (in.) |
28 |
|
Width w/Door Open 90 Degrees Less Handle (in.) |
28-5/8 |
|
Warranty |
|
|
Full 1 Year |
Entire Appliance; Parts & Labour; In-Home |
Owner's Manual (GTR16DBEWW-owners-manual-canada.pdf)
