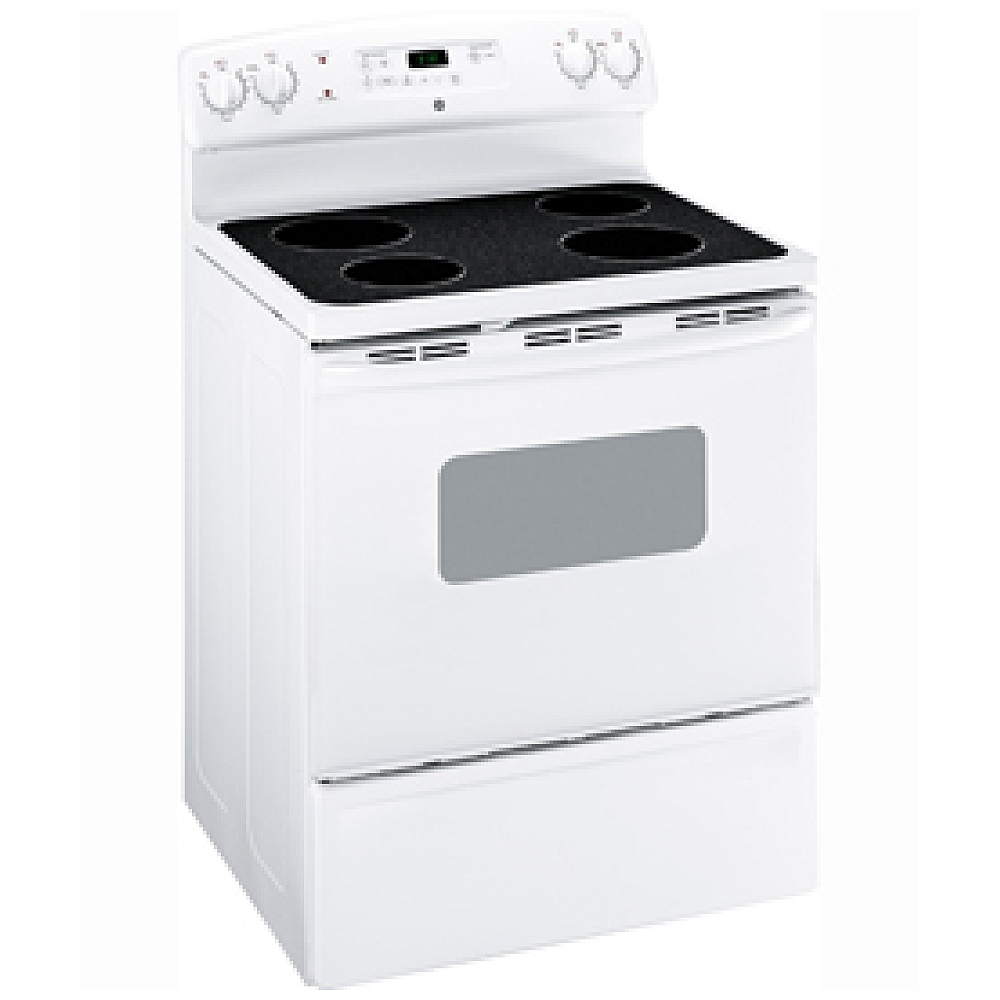

GE JCBP620DTWW Free Standing Electric Range, Self cleaning, QuickSet III Oven Control, One-Piece Upswept Cooktop, Certified Sabbath Mode, Dual Element Bake
- Certified Sabbath Mode
- Allows consumers to keep cooked foods warm on the Jewish Sabbath and Jewish holidays
- Dual Element Bake
- Alternates the upper broiling element and the lower baking element for even heating and optimal baking results.
- One-Piece Upswept Cooktop
- The CleanDesign™ upswept cooktop eliminates crevices so dirt has nowhere to hide. Cleaning is fast and easy.
- QuickSet III Oven Control
- 2 Ribbon, 8" Heating Elements
- With ribbon heating elements, the heat comes from brightly glowing elements positioned beneath the smooth surface. Even heat is directed straight up to the pan for high speed heat-up. Provides a quick "on" with a bright visual response.
- Quick Clean Storage Drawer
- The frameless design allows this handy storage drawer to roll out completely without any obstruction. Whether you mop, sweep, or vacuum, every inch of your floor comes completely clean.
· QuickSet III Oven Control
· One-Piece Upswept Cooktop
· 2 Ribbon, 8" Heating Elements
· Quick Clean Storage Drawer
· Certified Sabbath Mode
· Dual Element Bake
Manufacturer's Warranty: 1 year
Canadian model: JCBP620DTWW
| Appearance | |
| Backguard Type | Steel, White |
| Window | Big Hearth-Shaped |
| Easy Level System | 4 Leveling Legs |
| Colour Appearance | White on White |
| Textured Steel Side Panels | White |
| Handle Style | White, high gloss |
| Oven Door Type | White Glass |
| Capacity | |
| Oven Capacity | 5.0 |
| Features | |
| QuickSet Controls | QuickSet III |
| One-Piece Upswept Cooktop | Porcelain Enamel |
| Hot Surface | 1 |
| Certified Sabbath Mode | Yes |
| Electronic Oven Control | Yes |
| Clock & Kitchen Timer | Yes |
| Oven Temperature Display | Digital |
| Hi / Low Broil | Yes |
| Dual Element Bake | Yes |
| Oven Rack Positions | 6 |
| Glass-Ceramic Cooktop | Patterned White on Black Glass |
| Outlets | 1 |
| 4 Pass Broil Element | 3410 watt |
| 4 Pass Bake Element | 2585 watt |
| 8" Heating Element | 2 ribbon (2000 watt) |
| Surface Unit On | 1 |
| Cooktop Type | Smoothtop |
| Total Indicator Lights | 2 |
| Oven Interior Light | Yes |
| Oven Type / Cleaning | Self-Clean |
| Oven Shelves | 2 |
| 6" Heating Element | 2 ribbon (1500 watt) |
| Infinite Heat Controls | Yes |
| Removable Full-Width Storage Drawer | White |
| Fuel Type | Electric |
| Power & Ratings | |
| KW Rating at 240V | 10.5 |
| EnerGuide Rating (kWh/year) | 495 |
| Amps @ 240V/208V | 40 |
| KW Rating at 208V | 7.9 |
| Warranty | |
| Full 1 Year | Entire Appliance; In Home; Parts & Labour |
| Weights & Dimensions | |
| Depth with Door Open (in.) | 46-3/4 |
| Overall Depth Including Handle (in.) | 27 3/4 |
| Approximate Shipping Weight (lbs.) | 175 |
| Overall Width (in.) | 29-7/8 |
| Overall Height (in.) | 47-3/4 |
| Overall Depth (in.) | 25-3/8 |
|
Capacity |
|
|
Oven Capacity |
5.0 |
|
Controls |
|
|
Certified Sabbath Mode |
Yes |
|
Clock & Kitchen Timer |
Yes |
|
Electronic Oven Control |
Yes |
|
Hi / Low Broil |
Yes |
|
Oven Temperature Display |
Digital |
|
QuickSet Controls |
QuickSet III |
|
Features |
|
|
4 Pass Bake Element |
2585 watt |
|
4 Pass Broil Element |
3410 watt |
|
Cooktop Type |
Smoothtop |
|
Dual Element Bake |
Yes |
|
Fuel Type |
Electric |
|
Glass-Ceramic Cooktop |
Patterned White on Black Glass |
|
Oven Interior Light |
Yes |
|
Oven Rack Positions |
6 |
|
Oven Shelves |
2 |
|
Oven Type / Cleaning |
Self-Clean |
|
6" Heating Element |
2 ribbon (1500 watt) |
|
8" Heating Element |
2 ribbon (2000 watt) |
|
Infinite Heat Controls |
Yes |
|
Outlets |
1 |
|
Removable Full-Width Storage Drawer |
White |
|
One-Piece Upswept Cooktop |
Porcelain Enamel |
|
Indicator Lights |
|
|
Hot Surface |
1 |
|
Surface Unit On |
1 |
|
Total Indicator Lights |
2 |
|
Appearance |
|
|
Backguard Type |
Steel, White |
|
Colour Appearance |
White on White |
|
Easy Level System |
4 Leveling Legs |
|
Handle Style |
White, high gloss |
|
Oven Door Type |
White Glass |
|
Textured Steel Side Panels |
White |
|
Window |
Big Hearth-Shaped |
|
Weights & Dimensions |
|
|
Approximate Shipping Weight (lbs.) |
175 |
|
Depth with Door Open (in.) |
46-3/4 |
|
Overall Depth (in.) |
25-3/8 |
|
Overall Depth Including Handle (in.) |
27 3/4 |
|
Overall Height (in.) |
47-3/4 |
|
Overall Width (in.) |
29-7/8 |
|
Electrical Requirements |
|
|
Amps @ 240V/208V |
40 |
|
KW Rating at 208V |
7.9 |
|
KW Rating at 240V |
10.5 |
|
EnerGuide Rating |
|
|
EnerGuide Rating (kWh/year) |
495 |
|
Warranty |
|
|
Full 1 Year |
Entire Appliance; In Home; Parts & Labour |
Download Warranty/Use and Care (JCBP620DTWW-warranty-use-and-care-canada.pdf)
