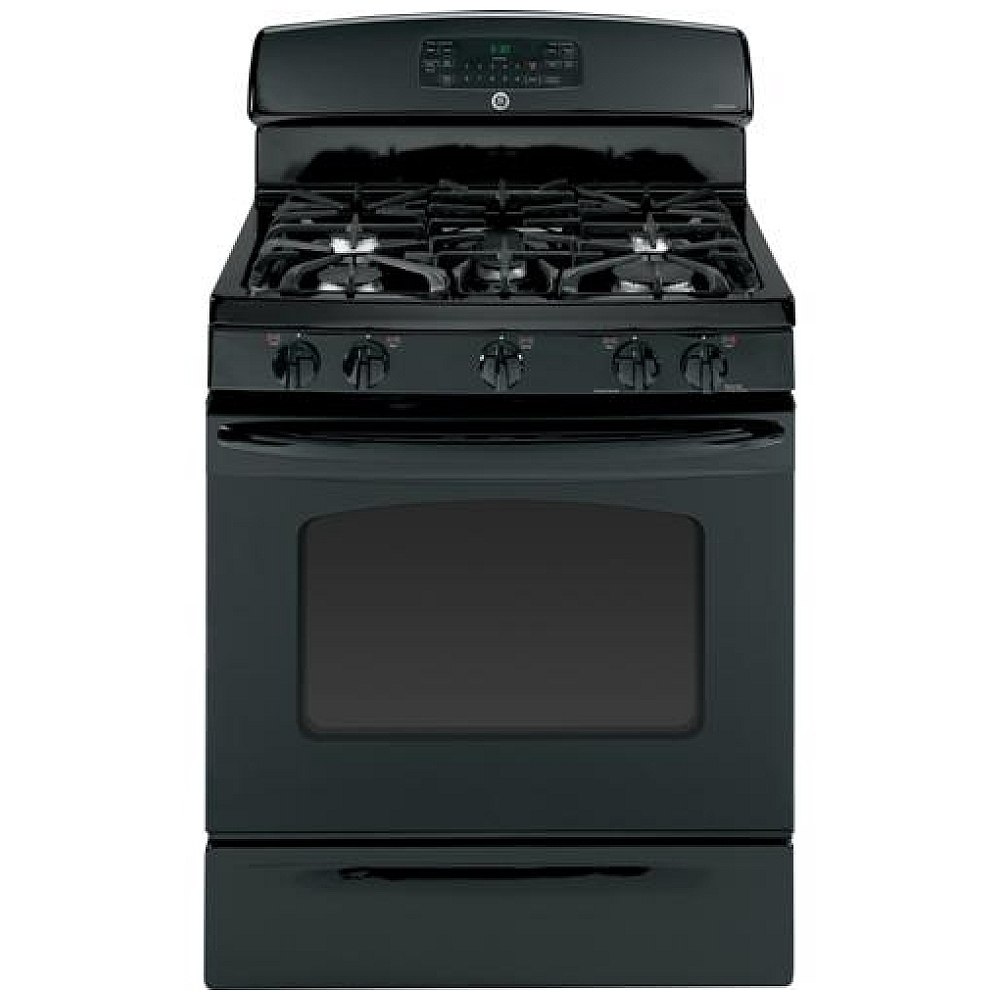

GE JCGB810DET Freestanding Gas Convection Range, 30 in, 5.0 cu.ft, with QuickSet IV, Cast Iron Reversible Griddle/Grill, Continuous Grates, XL Hearth Window and 1 X 17000/12000/9500/5000 Burners
Self-Clean Oven
Conveniently cleans the oven cavity without the need for scrubbing.
5.0 Cu. Ft. Oven Capacity
Enough room to cook an entire meal at once.
Gas Convection Oven
Circulates air throughout the oven cavity ensuring better baking and roasting results.
Reversible Cast-Iron Griddle/Grill
Provides the flexibility to sear meats on the grill and cook delicate meals on the griddle.
17,000 BTU PowerBoil Burner
Delivers intense heat for rapid boiling.
Manufacturer's Warranty: 1 year
Canadian model: JCGB810DETBB
| Capacity | |
| Oven Capacity | 5.0 |
| Controls | |
| Auto Self-Clean | Yes |
| Automatic Oven Timer (Time Bake) | Yes |
| Delay Self-Clean | Yes |
| Hi / Low Broil | Yes |
| QuickSet Controls | QuickSet V |
| Self-Clean Cool Down Time Display | Yes |
| TrueTemp TM System | Yes |
| Features | |
| All-Purpose Burners | (1) 9500 BTU - 150° Simmer |
| Automatic Self-Clean Oven Door Lock | Yes |
| Backguard Type | Porcelain-Enameled |
| Center Oval Burner | (1) 10,000 BTU |
| Control Lock Capability | Yes |
| Cooktop Burners | Sealed Burners |
| Digital Temperature Display | Yes |
| Dishwasher Safe Grates | Yes |
| Fuel Type | Natural Gas |
| High Output Burner | (1) 12,000 BTU - 150° Simmer |
| Non-Stick Griddle | Included |
| Oven Interior | Self-Clean |
| Power Boil TM Burner | (1) 17,000 BTU - - 160° Simmer |
| Precise Simmer Burner | (1) 5000 BTU - 140° Simmer |
| Variable Cleaning time | Yes |
| Convection Bake | Yes |
| Cooktop | Deep Recessed Porcelain |
| Embossed Rack Positions | 6 |
| Ignition System | Electronic |
| In - Oven Broiling | Yes |
| One-Piece Upswept Cooktop | Yes |
| Oven "ON" Light | Yes |
| Oven Cycle Light | Yes |
| Oven Racks | 2 chrome |
| Valves (Degree of Turn) | 270 |
| Indicator Lights | |
| Oven Interior Light | Yes |
| Oven Controls | |
| Audible Preheat Signal | Yes |
| Delay Bake Option With Cook & Hold | Yes |
| Digipad | Yes |
| Electronic Clock & Kitchen Timer | Yes |
| Certified Sabbath Mode | Yes |
| Appearance | |
| 4 Leveling Legs | Yes |
| Cast-iron reversible griddle | Yes |
| Colour Appearance | Black on Black |
| Control Location | Upfront |
| Designer-Style Control Knobs | Yes |
| Frameless Lift-off Oven Door | Black Glass |
| Handle Style | Black, high gloss |
| Handle Style | D-Handle |
| Heavy cast-iron continuous matte grates | Back |
| Knob Colour | Glossy Black |
| New GE Badge | Yes |
| Other Colours Available | BB; SS |
| Oven Door with Window | Big Hearth-Shaped Window |
| Scratch-Resistant Backguard | Porcelain-Enameled |
| Weights & Dimensions | |
| Approximate Shipping Weight (lbs.) | 225 |
| Cabinet Width Required (in.) | 30 |
| Depth With Oven Door Open 90 Degrees (in.) | 46-3/8 |
| Height to Cooking Surface (in.) | 36 1/4 +/-1/4 |
| Interior Dimensions - Upper Oven (w x h x d) (in.) | 24 x 19 x 19 |
| Overall Depth (excluding handle) | 26-5/8 |
| Overall Depth (in.) | 26 1/4 |
| Overall Height (in.) | 47 |
| Overall Width (in.) | 30 |
| BTU Ratings | |
| Oven/Broiler BTU Rating - LP (000's BTU's) | 16.0 Oven / 12.0 Broil |
| Oven/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Oven / 13.5 Broiler |
| Burner BTU Ratings (000's/BTU) | |
| LP Gas | (1) 11.0; (1) 10.0; (1) 9.5; (1) 8.0; (1) 5.0 |
| Natural Gas | (1) 17.0; (1) 12.0; (1) 10.0; (1) 9.5; (1) 5.0 |
| Electrical Requirements | |
| Volts; Hertz; Amps | 120V; 60Hz ; 15A |
| Accessories | |
| LP Conversion Kit | Included |
| Warranty | |
| Limited 1-year | Entire Appliance; In Home; Parts & Labour |
| Features | |
| Total Capacity: | 5.0 Cu. Ft. |
| Configuration: | Range with Storage Drawer |
| Ignition System: | Electronic |
| Oven Cleaning Type: | Self-Clean |
| Temperature Management System: | TrueTemp System |
| Cleaning Time: | Variable |
| Cooktop Burner Type: | Sealed |
| Cooktop Surface: | Deep Recessed; One-Piece Upswept; Porcelain-Enamel |
| Continuous Grates: | Yes |
| Cooktop Burner Grate Material: | Heavy Cast |
| All-Purpose Burners: | (1) 9,500 BTU |
| Center Oval Burner: | (1) 10,000 BTU |
| High Output Burner: | (1) 12,000 BTU |
| Power Boil Burner: | (1) 17,000 BTU |
| Precise Simmer Burner: | (1) 5,000 BTU / 140°F Simmer |
| Valves (Degree Of Turn): | 270° |
| Control Type: | QuickSet V |
| Digital Temperature Display: | Yes |
| Cooking Technology: | Convection |
| Fuel Type: | Natural Gas (Factory Set) |
| Leveling System: | 4 Leveling Legs |
| Convection Bake: | Yes |
| Oven Racks: | 2 |
| Embossed Rack Positions: | 6 |
| Scratch-Resistant Backguard: | Porcelain-Enameled |
| Oven Interior Light: | Yes |
| Griddle: | Reversible Cast Griddle/Grill |
| Oven Control Features | |
| Audible Preheat Signal: | Yes |
| Automatic Oven Timer (Time Bake): | Yes |
| Auto Self Clean: | Yes |
| Certified Sabbath Mode: | Yes |
| Control Lock Capability: | Yes |
| Delay Bake Option (Time Bake): | Yes |
| Delay Clean Option: | Yes |
| Digipad Numeric Entry: | Yes |
| Electronic Clock and Timer: | Yes |
| Hi / Low Broil: | Yes |
| In-Oven Broiling: | Yes |
| Oven Cycle Light: | Yes |
| Oven "ON" Light: | Yes |
| Self-Clean Cool Down Time Display: | Yes |
| Appearance | |
| Control Knobs: | Large Designer-Style |
| Frameless Oven Door(s): | Yes |
| Big Hearth Oven Window: | Yes |
| Power / Ratings | |
| Oven BTU Rating - LP: | 16,000 BTU's |
| Broiler BTU Rating - LP: | 12,000 BTU's |
| Oven BTU Rating - Natural Gas: | 16,000 BTU's |
| Broiler BTU Rating - Natural Gas: | 13,500 BTU's |
| Top Burner BTU Rating - LP: | (1) 11,000; (1) 10,000; (1) 9,500; (1) 8,000; (1) 5,000 BTU's |
| Top Burner BTU Rating - Natural Gas: | (1) 17,000; (1) 12,000; (1) 10,000; (1) 9,500; (1) 5,000 BTU's |
| Volts/Hertz/Amps: | 120V; 60Hz; 5A |
| LP Conversion Kit: | Included |
| Warranty | |
| Parts Warranty: | Limited 1-Year Entire Appliance |
| Labor Warranty: | Limited 1-Year Entire Appliance |
| Warranty Notes: | See Written Warranty For Full Details |
| Dimensions and Weights | |
| Oven Interior Width: | 24" |
| Oven Interior Depth: | 19" |
| Oven Interior Height: | 19" |
| Overall Width: | 30 |
| Overall Depth: | 26 5/8" |
| Overall Depth with Oven Door Open 90°: | 46 3/8" |
| Overall Height: | 47" |
| Overall Height To Cooking Surface: | 36 1/4" +/- 1/4" |
| Net Weight: | 200 Lbs. |
| Approx. Shipping Weight: | 220 Lbs. |
