APPEARANCE
Color Appearance	Stainless Steel/Gray
Control Knobs	Weighted Stainless Steel Appearance
Cooktop Burner Grate Color	Black Matte
Handle	Stainless SteelDesigner-Style
Oven Door Features	Big View Oven Window
CAPACITY
Capacity (Cu. Ft.)	2.5 Upper / 4.3 Lower
Total Capacity (cubic feet)	6.8
FEATURES
Configuration	Double Oven Range
Ignition System	Electronic
Oven Cleaning Type	Self-Clean (Both Ovens)

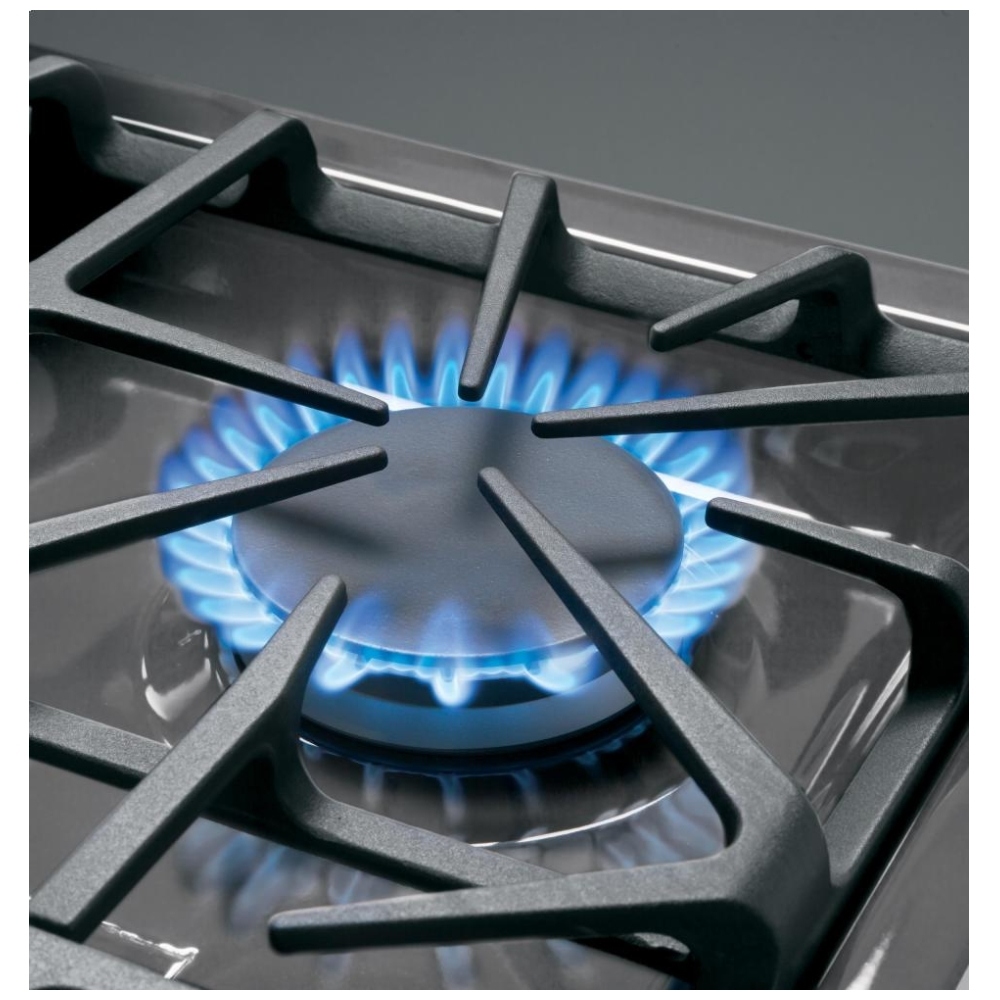

Cooktop Burner Type	Sealed
Cooktop Surface	Deep RecessedOne-Piece UpsweptPorcelain-EnamelGray
Burner - Left Front	11,000 BTU
Burner - Left Rear	9,500 BTU

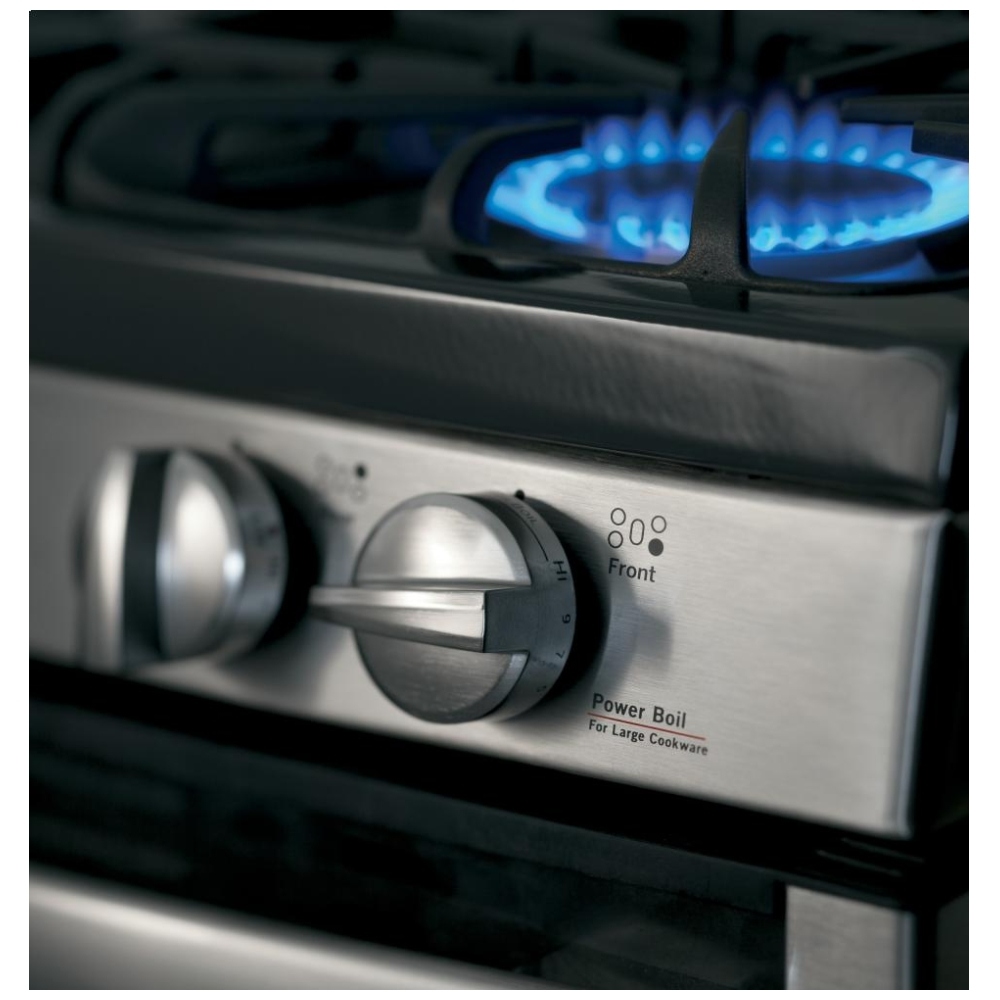

Burner - Right Front	17,000 BTU Power Boil
Burner - Right Rear	5,000 BTU Precise Simmer
Burner - Center	8,000 BTU Oval

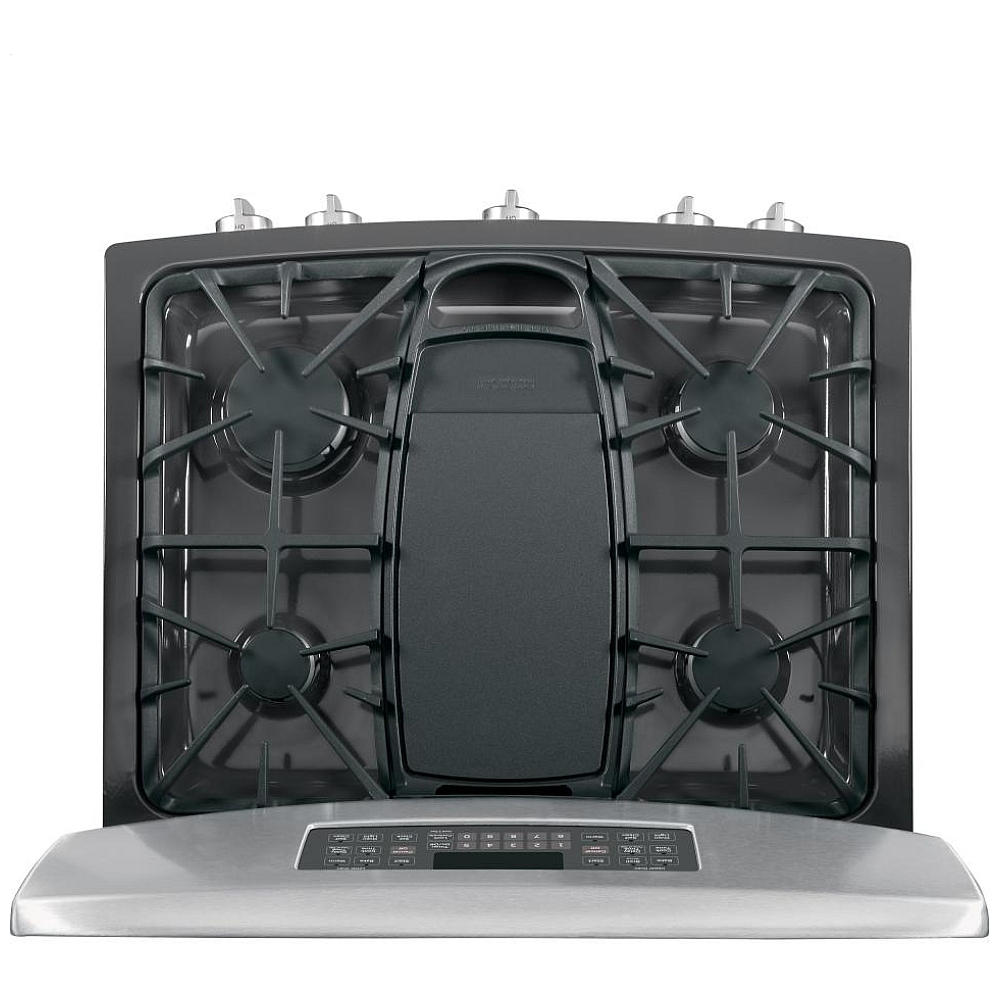

Cooktop Burner Grate Features	Continuous Grates
Cooktop Burner Grate Material	Heavy Cast Iron
Control Type	Electronic Touch
Oven Control Features	Audible Preheat SignalAuto Self CleanCertified Sabbath ModeControl Lock Capability
Cooking Technology	Traditional
Fuel Type	Natural Gas (factory set)
Interior Oven Light	1 Auto Incandescent (Both Ovens)
Oven Rack Features	3 Reinforced Oven Racks

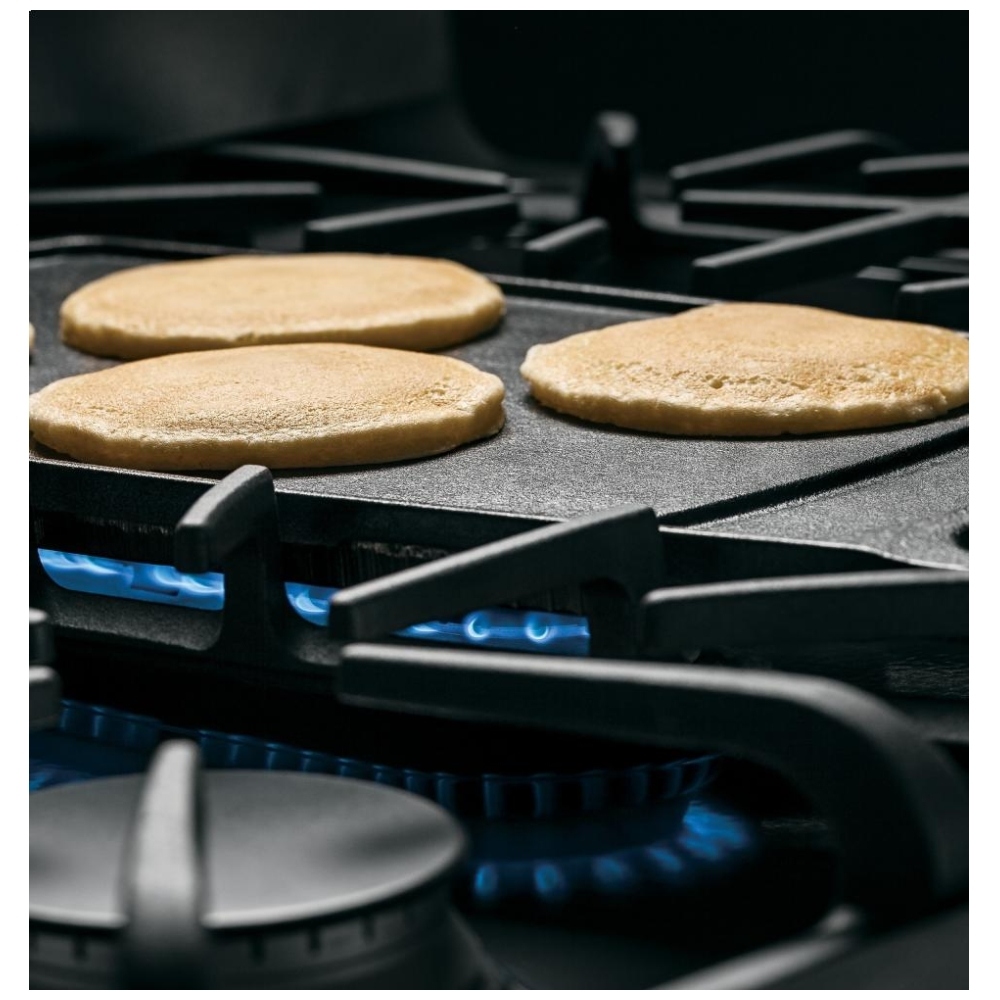

Griddle	Non-Stick
POWER / RATINGS
Bake/Broiler BTU Rating - LP (000's BTU's)	10.0 / 12.5 Upper; 13.5 / 0.0 Lower
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)	12.0 / 13.5 - Upper; 14.0 / 0.0 - Lower
Top Burner BTU Rating - LP (000's BTU's)	(1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(1) 17.0; (1) 11.0, (1) 9.5; (1) 6.0; (1) 5.0
Volts/Hertz/Amps	120v; 60Hz; 15A
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	See written warranty for full details
WEIGHTS & DIMENSIONS
Depth Without Handle	27.75
Approximate Shipping Weight	225.0
Cabinet Width	30.0
Net Weight	205.0
Oven Interior Dimensions (W x H x D) (in.)	24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Overall Depth	29.5
Overall Height	47.25
Height to Cooking Surface (in.)	36 - 36 1/2
Overall Width	30.0
Depth with Door Open	44.0

Capacity
Lower Oven Capacity	4.3
Total Oven Capacity	6.7
Upper Oven Capacity	2.4
Controls
Audible Preheat Signal	Yes
Auto Oven Shut-Off	With Override
Control Lock Capability	Yes
Range Lockout	Yes
Auto Self-Clean	Yes
Automatic Oven Timer (Time Bake)	Yes
Certified Sabbath Mode	Yes
Delay Bake Option (Time Bake)	Yes
Delay Self-Clean	Yes
Electronic Clock & Timer	Yes
Electronic Oven Control	Yes
Hi / Low Broil	Yes
Oven Temperature Display	Digital
QuickSet Controls	QuickSet VI Glass Touch Controls
Self-Clean Cool Down Time Display	Yes
TrueTemp TM System	Yes
Variable Cleaning Time	Yes
Features
All-Purpose Burners	(1) 9500/850 BTU
Automatic Self-Clean Oven Door Lock	Yes
Continuous Burner Grate Surface	Yes
Cooktop Burners	4 Sealed Burners
Dishwasher Safe Knobs	Yes
Fuel Type	Natural Gas
High Output Burner	(1) 12,000 BTU - 150° Simmer
Infinite Baking Drawer Control	Yes
Non-Stick Griddle	Included
Oven Interior Light	1 (upper) + 2 (lower)
Oven Meat Probe	Yes
Power Boil TM Burner	(1) 15,000 BTU - 180° Simmer
Precise Simmer Burner	(1) 5000 BTU - 140° Simmer
Burner Grate Type / Style	Two doubles continuous heavy cast with center grate
Cooktop	Deep Recessed Porcelain-Enameled Upswept
Cooktop Grate/Burner Cap Colour	Matte (Dull) Black
Embossed Rack Positions	6
Ignition System	Electronic
In - Oven Broiling	Yes
Lower Baking Oven	Dual Bake Element (150° - 450°)
Oven "ON" Light	Yes
Oven Cycle Light	Yes
Oven Racks	2
Oven Racks	2 Heavy Duty, 1 Roller Rack
Removable Baking Drawer Liner	Included
Valves (Degree of Turn)	270
Oven Controls
Digipad	Yes
Glass Touch Controls	Backlit
Appearance
4 Leveling Legs	Yes
Cast-iron reversible griddle	Yes
Colour Appearance	Stainless Steel
Control Location	Upfront
Designer-Style Control Knobs	Stainless Steel
Drawer Handle	Stainless Steel
Frameless Oven Door	Stainless Steel
Handle Style	Stainless Steel
Heavy cast-iron continuous matte grates	3 Black
Knob Colour	Stainless
Oven Door Handle	Sculptured (Stainless Look)
Oven Door with Window	Yes
Scratch-Resistant Backguard	Stainless Steel
Weights & Dimensions
Approximate Shipping Weight (lbs.)	245
Approximate Shipping Weight (lbs.)	246
Depth With Oven Door Open 90 Degrees (in.)	43-5/8
Height to Cooking Surface (in.)	36 1/4 +/-1/4
Interior Dimensions - Lower Oven (w x h x d) (in.)	24 x 13 x 20
Interior Dimensions - Upper Oven (w x h x d) (in.)	24 x 9 x 17-1/2
Overall Depth (excluding handle)	29-4/9
Overall Depth (in.)	26 1/4
Overall Height (in.)	47
Overall Height (in.)	47-4/9
Overall Width (in.)	30
Burner BTU Ratings (000's/BTU)
LP Gas	10.0 / 10.0 Upper - 13.5 / 1150W Lower
Natural Gas	12.0 / 10.0 Upper - 16.0 / 1150 W Lower
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz ; 15A
Accessories
LP Conversion Kit	Included
Warranty
Limited 1-year	Entire Appliance; In Home; Parts & Labour

GE JCGB850SEFSS

GE JCGB850SEFSS

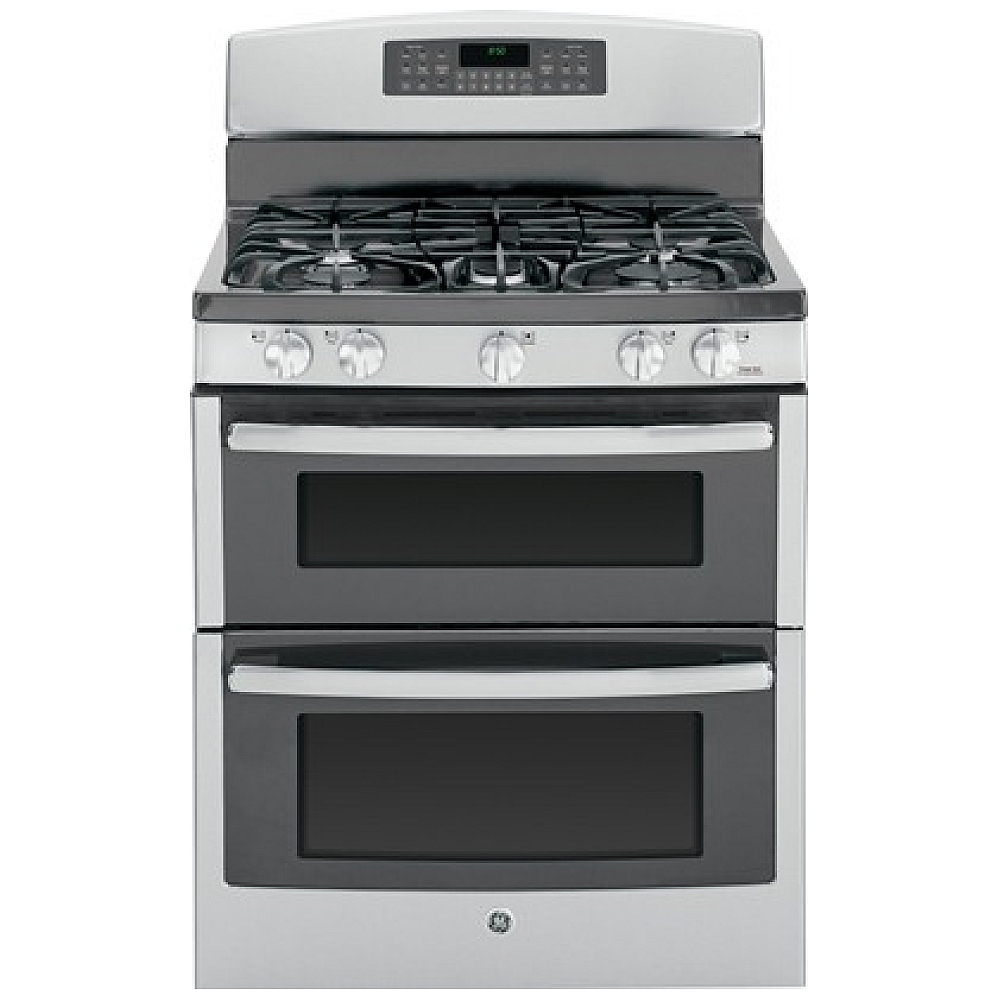

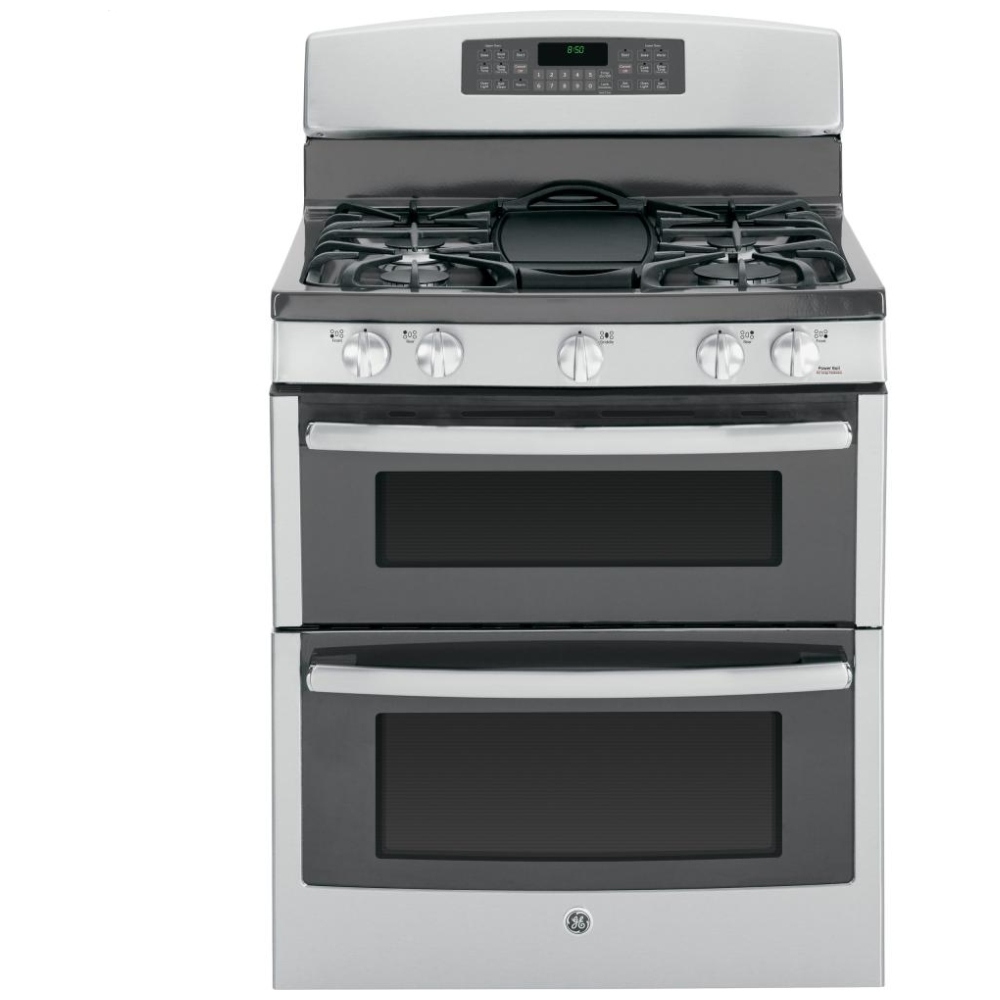

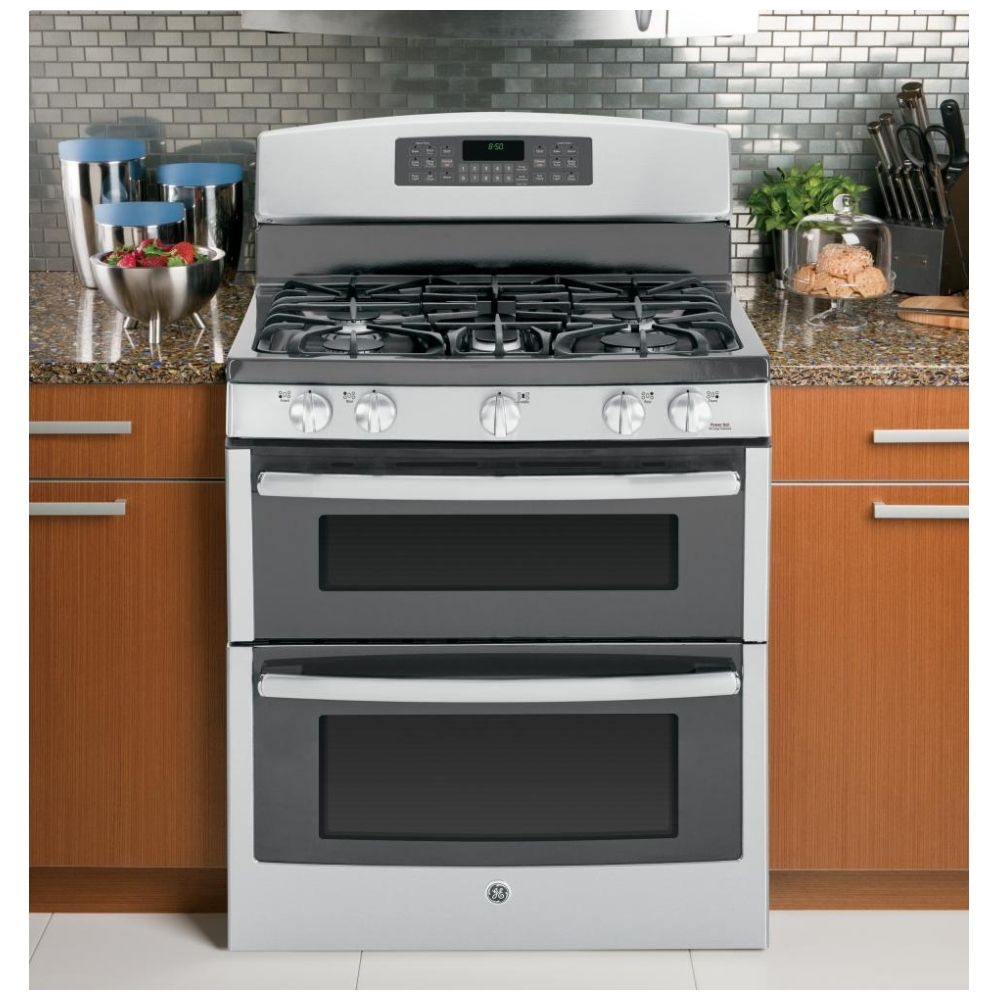

GE JCGB850SEFSS Gas Range, 6.7 cu. ft. Capacity, 30 inch Exterior Width, Self Clean, 5 Burners, Double Oven, Stainless Steel colour
