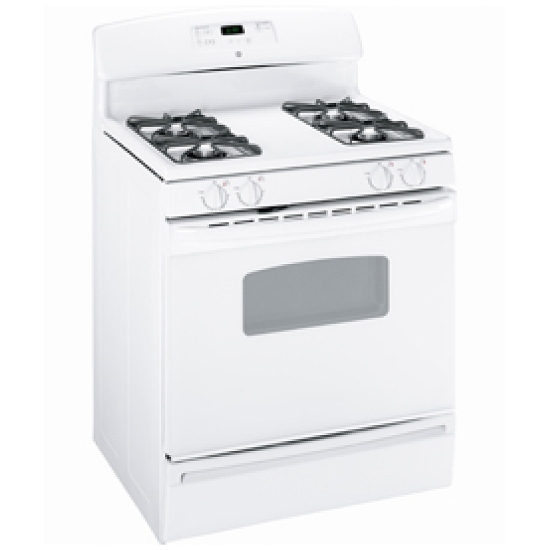

JGBS20DEMWW GE Gas Range 30 inch Canada Parts - Sale! Best Price, Reviews and Specs

Description & Features

Extra Large 4.8 cu. ft. Oven,

All Purpose Burners - Deliver a wide range of heat output ideal for most cooking requirements,

Porcelain-Enameled Cooktop,

One-Piece Upswept Cooktop,

Lift-Up Cooktop,

Standard Grates - Provide a sturdy and convenient cookware surface for everyday cooking, and

Frameless Lift-off Oven Door

Extra-Large Oven Capacity

Provides a large oven interior ideal for cooking more items at once

All Purpose Burners

Deliver a wide range of heat output ideal for most cooking requirements

Electronic Clock And Timer

Features a convenient digital clock and easy-to-use timer with an audible signal to help coordinate cooking times in the kitchen

Standard Grates

Provide a sturdy and convenient cookware surface for everyday cooking

Frameless Glass Oven Door

Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry

ClearView™ Window

Features a convenient viewing area to check the progress of food

Capacity
Extra Large Oven	Yes
Oven Capacity	4.8
Controls
QuickSet Controls	QuickSet II Electronic Timer
Features
All-Purpose Burners	(4) 9,100 / 850 BTU
Cooktop Burners	Std. / Twin Burners
Fuel Type	Natural Gas
Oven Interior	Standard Clean
Oven Interior Light	Yes
Burner Grate Type / Style	Standard Porcelain Steel; Square
Cooktop	Porcelain-Enamel
Cooktop Grate/Burner Cap Colour	Glossy Grey
Embossed Rack Positions	6
Ignition System	Electronic
Lift-Up Cooktop	Yes
One-Piece Drip Pans	Optional Accessory
One-Piece Upswept Cooktop	Yes
Oven Racks	2
Porcelain-Enameled Subtop	Yes
Slide - Out Broiler Drawer	Yes
Valves (Degree of Turn)	140
Appearance
4 Leveling Legs	Yes
Colour Appearance	White on White
Frameless Lift-off Oven Door	White Glass
Handle Style	White, high gloss
Knob Colour	Glossy White
Oven Door with Window	Regular
Scratch-Resistant Backguard	Porcelain-Enameled
Weights & Dimensions
Approximate Shipping Weight (lbs.)	175
Cabinet Width Required (in.)	30
Depth With Oven Door Open 90 Degrees (in.)	46-3/8
Height to Cooking Surface (in.)	36 1/4 +/-1/4
Overall Depth (in.)	26 1/4
Overall Height (in.)	46 7/8
Overall Width (in.)	30
BTU Ratings
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000	(4) 8.0
Top Burner BTU Rating - Nat. Gas / LP (000's BTU's)	(4) 9.1
Electrical Requirements
Volts; Hertz; Amps	120V; 60Hz; 5A
Accessories
LP Conversion Kit	Included
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

Manufacturer's Warranty: 1 year

Canadian model: JGBS20DEMWW

Specs

CAPACITY
Total Capacity (cubic feet)	4.8 cu ft
Unit Capacity	Extra Large Oven
FEATURES
Ignition System	Electronic
Oven Cleaning Type	Standard Clean
Cooktop Burner Type	Standard
Cooktop Surface	Porcelain-Enamel One-Piece Upswept Lift-Up
All-Purpose Burners	(4) 9,100/850 BTU
Cooktop Burner Grate Material	Standard Porcelain Steel Square
Valves (Degree of Turn)	140
Control Type	Touchpads QuickSet V Digital Temperature Display
Oven Control Features	Electronic Clock and Timer
Broiler Pan and Grid	Yes
Clock and Minute Timer	Yes
Fuel Type	Natural Gas (factory set)
Interior Oven Light	Yes
Leveling System	4 Leveling Legs
One-Piece Drip Pans	Optional Accessory
Oven Rack Features	2 Oven Racks 6 Embossed Rack Positions
Porcelain-Enameled Backguard	Yes
Porcelain-Enameled Subtop	Yes
Scratch-Resistant Backguard	Porcelain-Enameled
Slide - Out Broiler Drawer	Yes
APPEARANCE
Color Appearance	White
Control Knobs	Designer-Style
Cooktop Burner Grate Color	Grey
Frameless Oven Door(s)	White Glass
Handle	Color-Matched Sculptured
Oven Door Features	Hearth Oven Window
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	179 lb
Cabinet Width	30 in
Net Weight	159 lb
Oven Interior Dimensions (W x H x D) (in.)	24 x 18-1/2 x 19
Overall Depth	26 1/4 in
Overall Height	46 1/8 in
Overall Width	30 in
POWER / RATINGS
Oven/Broiler BTU Rating - LP (000's BTU's)	16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)	18.0
Top Burner BTU Rating - LP (000's BTU's)	(4) 8.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)	(4) 9.1
Volts/Hertz/Amps	120V; 60Hz; 5A
ACCESSORIES
LP Conversion Kit	Included
Optional One-Piece Drip Pans	WB35K1001 black; WB35K1002 chrome
WARRANTY
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
Warranty Notes	For models produced on or after January 1, 2006 See written warranty for full details

Specs

Manuals

GE & Profile Electric Range 2024

GE & Profile Gas Range 2024

Quick Specs (JGBS20DEMWW-quick-specs-canada.pdf)

Use and Care Manual (JGBS20DEMWW-use-and-care-manual-canada.pdf)

Installation Instructions (JGBS20DEMWW-installation-instructions-canada.pdf)
