FILTER
App Filter - Control Type	Rotary knobs
App Filter - Cooktop Type	Coil
App Filter - Cabinet Width	Cooking 30 in. (Standard)
App Filter - Fuel Type	Electric
APPEARANCE
Color Appearance	White on White
POWER / RATINGS
KW Rating at 208V	5.6
KW Rating at 240V	7.4
Amp Rating at 208V	30
Amp Rating at 240V	40
WARRANTY
Warranty Notes	For models produced on or after January 1, 2006 See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Net Weight	27.0
Cooktop Size	30.0
Overall Depth	21.25
Cutout Dimensions (Width x Depth) (In.)	28-1/2 x 19-1/2
Overall Width	30.25
Overall Height	3.0
Approximate Shipping Weight	32.0
Cabinet Width	30.0
FEATURES
Cooktop Burner Type	4 Plug-In Calrod™ Coil
Element - Left Front	6" 1300W
Removable One-Piece Drip Bowls	Chrome with Removable Trim Rings
Cooktop Surface	White Porcelain-Enamel
Indicator Lights	Surface Element "ON"
Control Type	Infinite Heat Rotary
Lift-Up Cooktop With Support Rods	Yes
Element - Right Front	8" 2400W
Control Location	Front Center
Element - Right Rear	6" 1300W
Element - Left Rear	8" 2400W

Features
Cooktop Type	Coil
Fuel Type	Electric
6" Heating Element	2 Plug-In Calrod^TM (1300W)
8" Heating Element	2 Plug-In Calrod^TM (2400W)
Burner Type	Coil Lift Top
Centre Caps	Chrome
Infinite Heat Controls	Yes
Removable One-Piece Drip Bowls	Chrome
Lift-Up Cooktop	Yes
"On" Indicator Light	Yes
Appearance
Colour Appearance	Stainless Steel
Control Location	Upfront
Other Colours Available	BB: WW
Weights & Dimensions
Approximate Shipping Weight (lbs.)	32
Cooktop Width (in.)	30
Cutout Dimensions (w x d) (in.)	28-1/2 x 19-5/8
Overall Depth (in.)	21-1/4
Overall Height (in.)	3
Overall Width (in.)	30 1/4
Electrical Requirements
Amp Rating at 208V	30
Amp Rating at 240V	40
KW Rating at 208V	5.6
KW Rating at 240V	7.4
Warranty
Full 1 Year	Entire Appliance; In Home; Parts & Labour

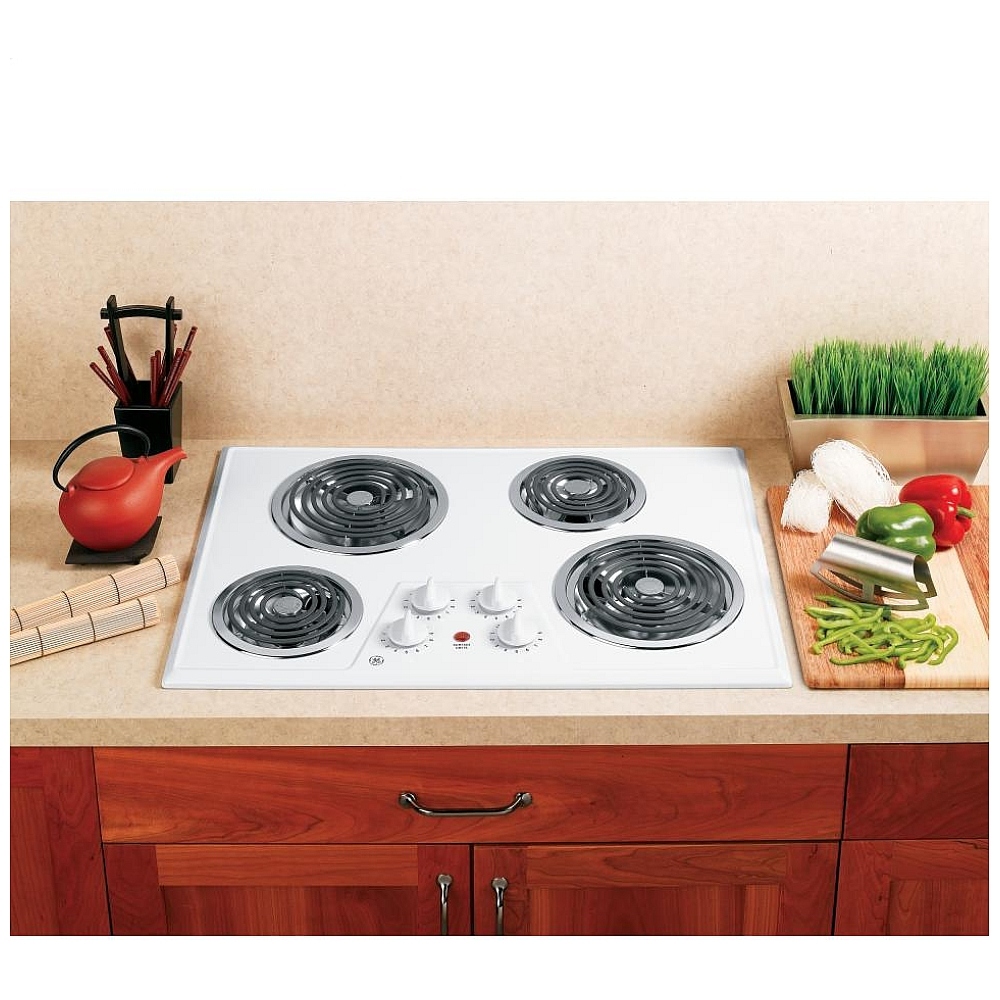

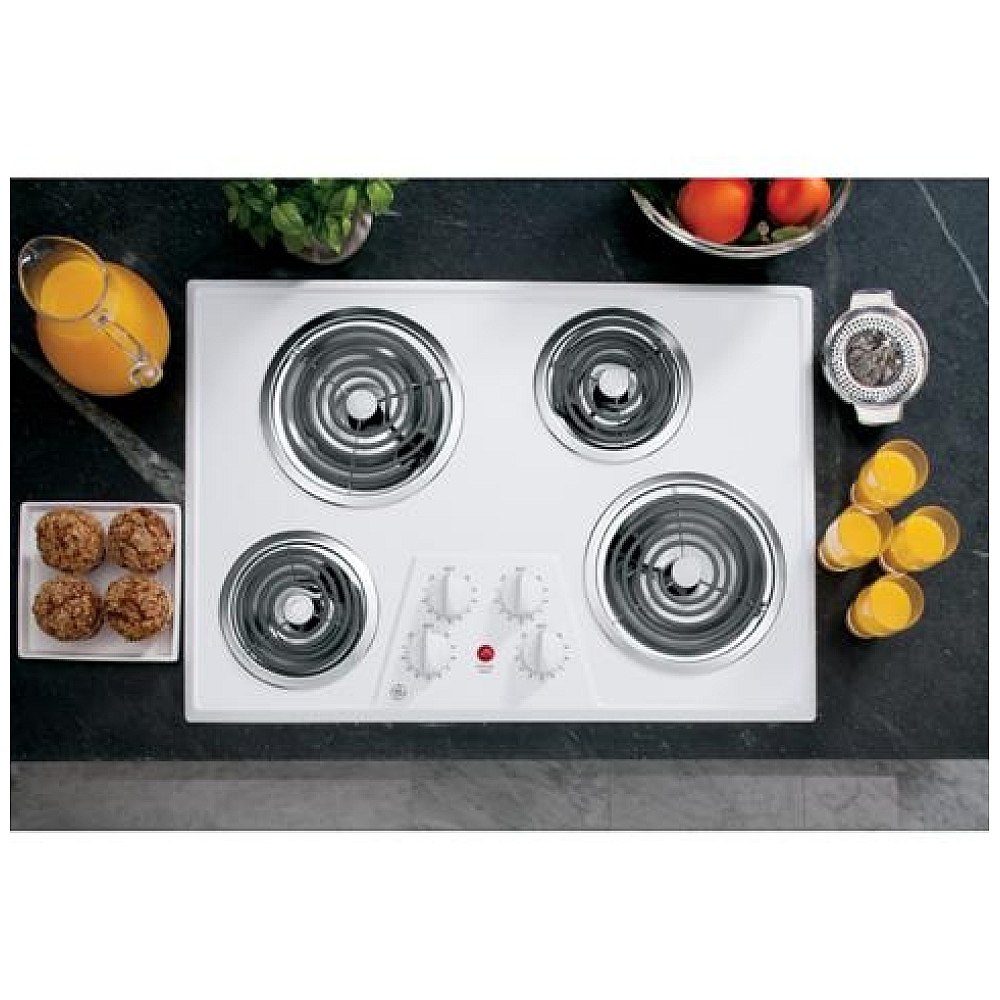

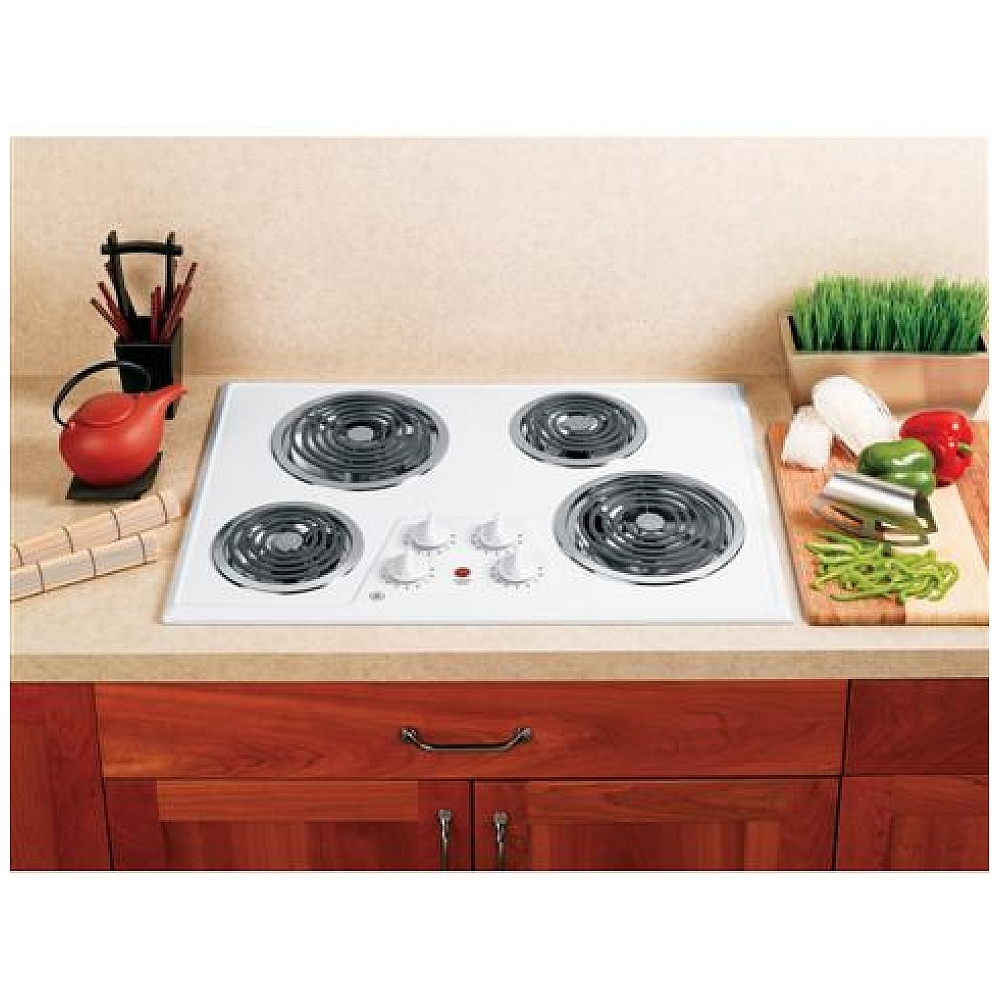

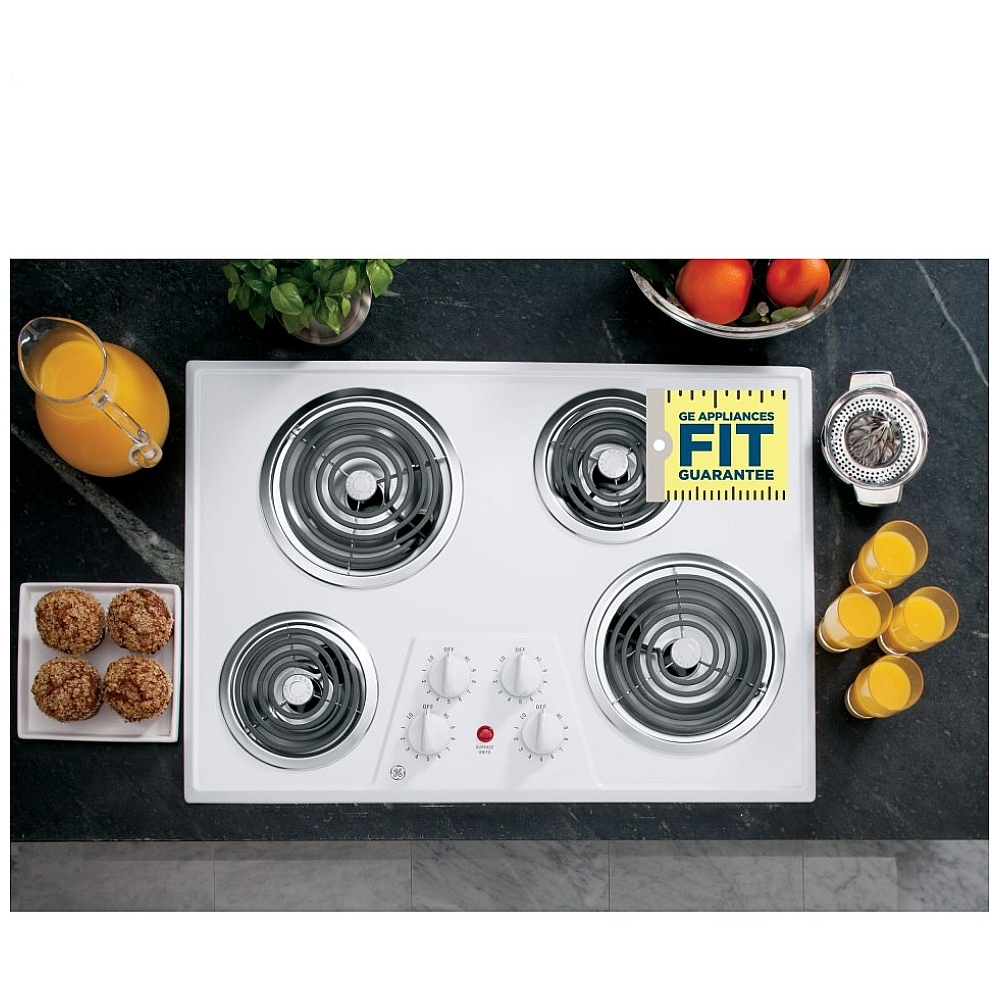

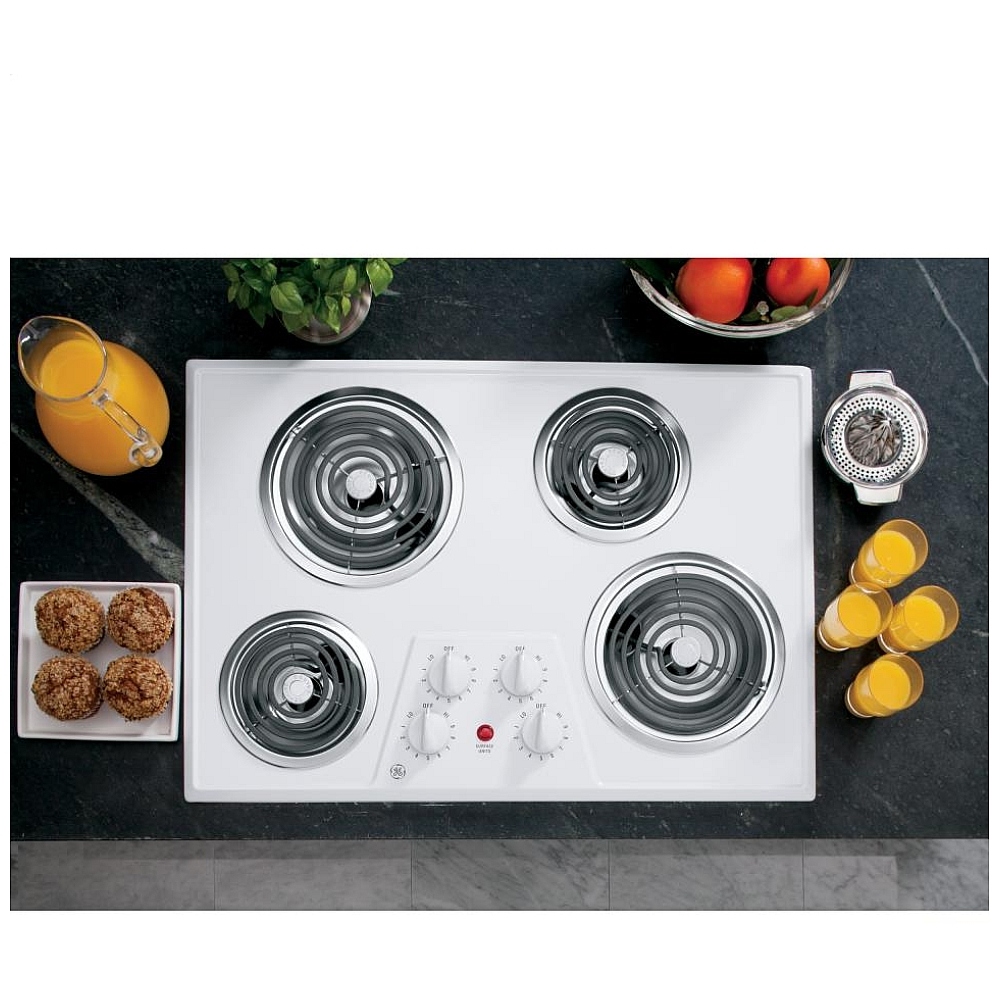

GE JP328WKWW

GE JP328WKWW Electric Cooktop, 30 inch Exterior Width, 4 Burners, 2,400 W Highest Element, White colour
