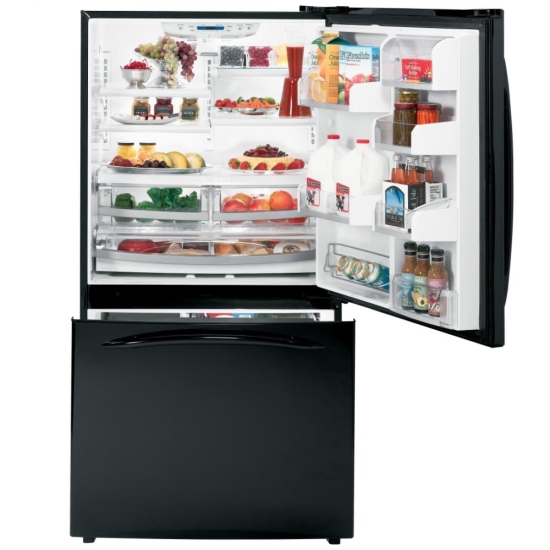

PDSF5NBXBB GE Bottom Freezer Refrigerator 25.3 cu. ft. Canada Parts

GE is one of the largest manufacturers of major appliances in the world. Since 1907, they have been introducing advanced appliances to improve peoples' lives and conserve electricity. They're continuing that legacy today with innovations like the Advantium® oven, the Harmony™ clothes care system, and more. Today, GE offers nearly 400 products — from refrigerators to cooking appliances to dryers — that meet ENERGY STAR® standards.

With this bottom freezer refrigerator you can eliminate trips to the store by keeping foods fresh longer with the ClimateKeeper system. The BrightSpace interior with GE reveal lighting will cast a natural-looking glow throughout the refrigerator. And you'll speed up your cool down with the TurboCool setting that restores proper temperature to the refrigerator after frequent door openings.

High-gloss doors with top and bottom bevels

Add a designer look with smooth, beveled doors

ClimateKeeper™ system

Electronic controls, multiple electronic sensors and a multi-flow air system help provide even cooling

Upfront temperature controls with actual temperature display

Easy-to-reach, easy-to-read controls display accurate temperatures

BrightSpace™ interior with GE Reveal® lighting

It's easy to find tasty treats under bright, clear interior lighting

Freshness Center™ with full-width drawer

Maintain fresh tastes with two humidity-controlled crispers and a full-width adjustable-temperature deli drawer

Multi-level Slide 'n Store™ system

You'll have instant access to frozen foods in three full-extension baskets

Stainless-Steel Doors with Top & Bottom Bevels — Provides a striking finish and contoured doors to accentuate kitchen decor
ClimateKeeper™ Temperature Management System — Digital controls and electronic sensors give you a greater degree of control over food preservation
Upfront Temperature Controls with Actual Temperature Display — Features easy-to-reach, easy-to-read temperature controls and displays the actual temperature setting
BrightSpace™ Interior with GE Reveal™ Lighting — Cast a natural-looking glow throughout the refrigerator
Freshness Center™ — Offers maximum convenience by utilizing two humidity-controlled drawers and 1 full-length adjustable temperature deli drawer
Multi-Level Slide 'n Store™ Basket System — Includes three full-extension baskets for tremendous storage flexibility and keeps contents perfectly in place

Manufacturer's Warranty: 1 year

Canadian model: PDSF5NBXBB

Specs

CAPACITY
Total Capacity (cubic feet)	25.3 cu ft
Fresh Food Capacity	17.58 cu ft
Freezer Capacity	7.72 cu ft
Shelf Area	31.2 sq ft
FEATURES
Configuration	Full Door
Temperature Management System	ClimateKeeper™
Temperature Management Features	TurboCool™ Setting 4 Electronic Sensors Multiflow Air Tower
Defrost Type	FrostGuard™
Control Type	Upfront Electronic Digital Actual Temperature Display Upfront Electronic Temperature Controls
Dispenser	Non-Dispenser
Dispenser Features	Door Alarm
Icemaker	Optional (IM4A Ready)
Fresh Food Cabinet Drawers	3-Stack drawer system
Fresh Food Cabinet Shelves	4 Glass Split
Fresh Food Cabinet Shelf Features	1 QuickSpace™ Shelf 3 Slide-Out 3 Spill Proof 4 Adjustable
Fresh Food Door Bins	5 Total
Fresh Food Door Features	ClearLook™ Bins 1 Fixed 4 Adjustable Gallon Storage
Fresh Food Features	Dairy Compartment Condiment Bin - Fixed Snugger Clips - 2
Meat Pan	Full-Width with Adjustable Temperature
Vegetable / Fruit Crisper(s)	2 Adjustable Humidity
Freezer Storage Baskets	3 Wire, Slide-Out (2 Full-Width/1 Split)
Freezer Features	Slide 'n Store™ Freezer Drawer Interior Lighting - GE Reveal® Ice Bucket 2 Ice N' Easy Trays Freezer Drawer with Full Extension Slides
Beverage Feature	In-the-Door Can Rack
Easy-Out Crispers	Drawer glides
Exterior Style	Free-Standing
Leveling System	Front Corners
Performance Features	Premium Quiet Design
CLAIMS & CERTIFICATIONS
ECONOMICAL / QUIET
Energy Saver	Yes
APPEARANCE
Color Appearance	High-Gloss Black
Door Stops	Yes
Door Swing	Reversible Hinges
Easy to Remove Door Gaskets	Yes
Exterior Design	Contoured with Top & Bottom Bevel
Handle	Color-Matched High-Gloss
Hidden Door Hinge(s)	Yes
Textured Steel Case	Color Matched
Adjustable Rollers	Front
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	383 lb
Net Weight	348 lb
Overall Depth	35 1/8 in
Overall Height	69 5/8 in
Overall Width	35 7/8 in
Case Depth Without Door	28 in
Depth with Door Open 90°	64 3/4 in
Depth Without Handle	32 5/8 in
Height to Top of Case	69 in
Width w/Door Open 90 Degrees Incl. Handle	37 7/8 in
Back Air Clearances	1 in
Side Air Clearances	0 1/8 in
Top Air Clearances	1 in
POWER / RATINGS
Volts/Hertz/Amps	120V ; 60Hz ; 15A
ACCESSORIES
Optional Icemaker Kit	IM4A
WARRANTY
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes	See written warranty for full details

Manuals

GE & Profile Fridge 2024

Quick Specs (PDSF5NBXBB-quick-specs-canada.pdf)

Use and Care Manual (PDSF5NBXBB-use-and-care-manual-canada.pdf)

Energy Guide (PDSF5NBXBB-energy-guide-canada.pdf)
