PGCS1PJXSS GE French Door Refrigerator 20.7 cu. ft. Canada Parts

GE is one of the largest manufacturers of major appliances in the world. Since 1907, they have been introducing advanced appliances to improve peoples' lives and conserve electricity. They're continuing that legacy today with innovations like the Advantium® oven, the Harmony™ clothes care system, and more. Today, GE offers nearly 400 products — from refrigerators to cooking appliances to dryers — that meet ENERGY STAR® standards.

With this french door counter depth refrigerator you can have a built in look without the built in expense. The stainless-steel doors with top & bottom bevels provide a striking finish and contoured doors to accentuate kitchen decor.

Counter-depth configuration

Counter-depth configuration makes it possible to have the look of a built-in without the added expense

Stainless steel doors with top and bottom bevels

Step up to a striking finish with contoured doors that accentuates kitchen de cor

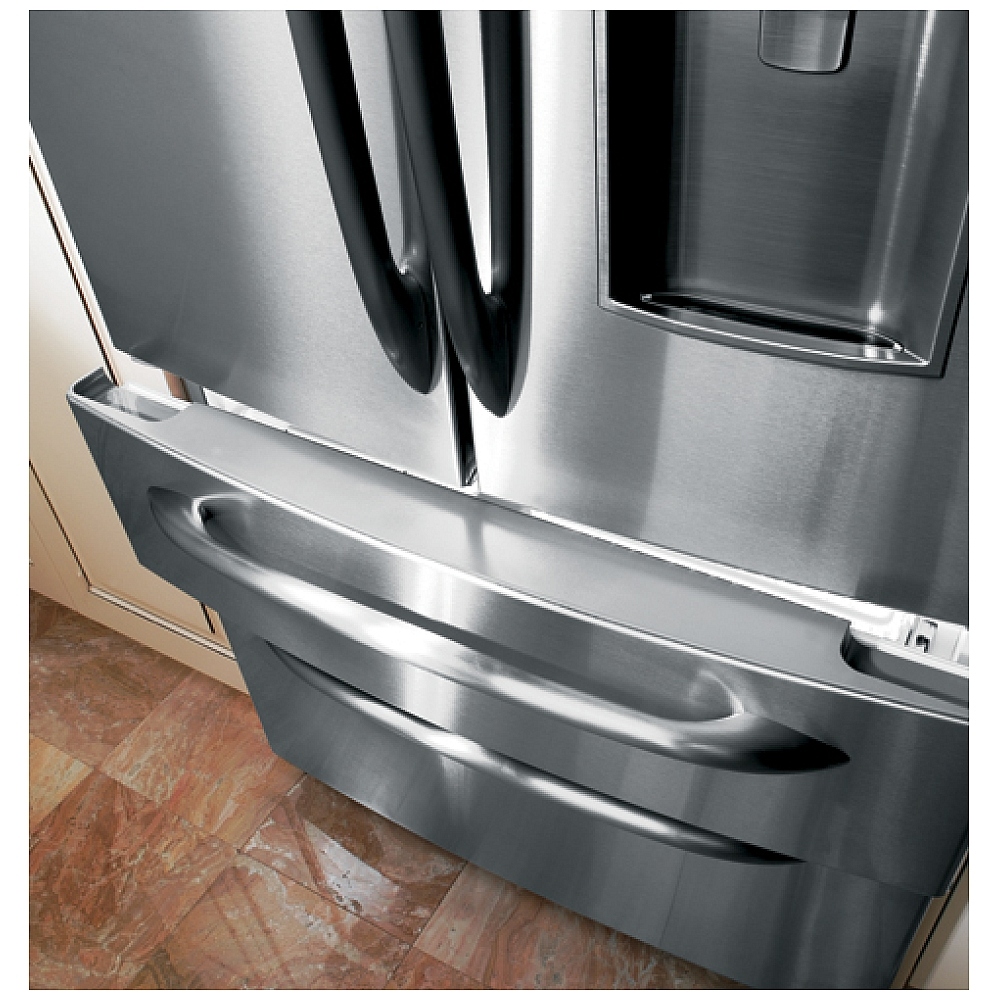

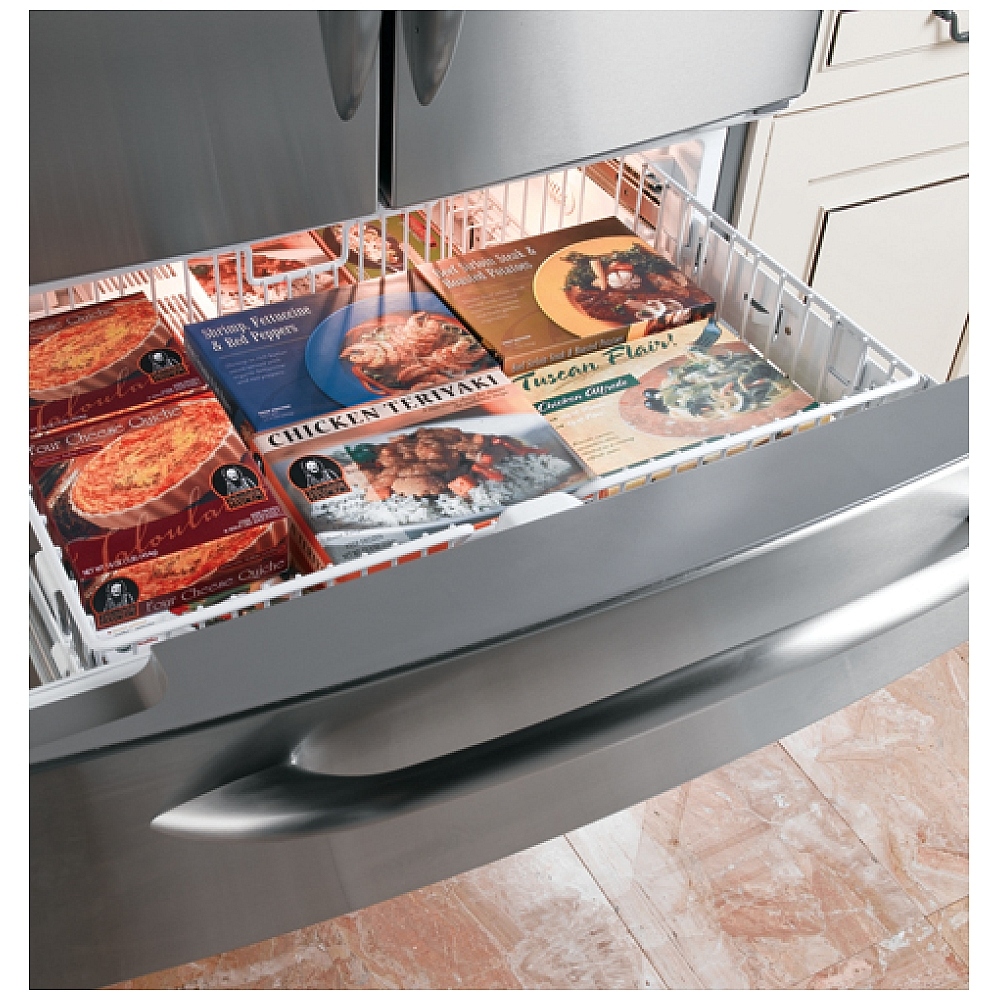

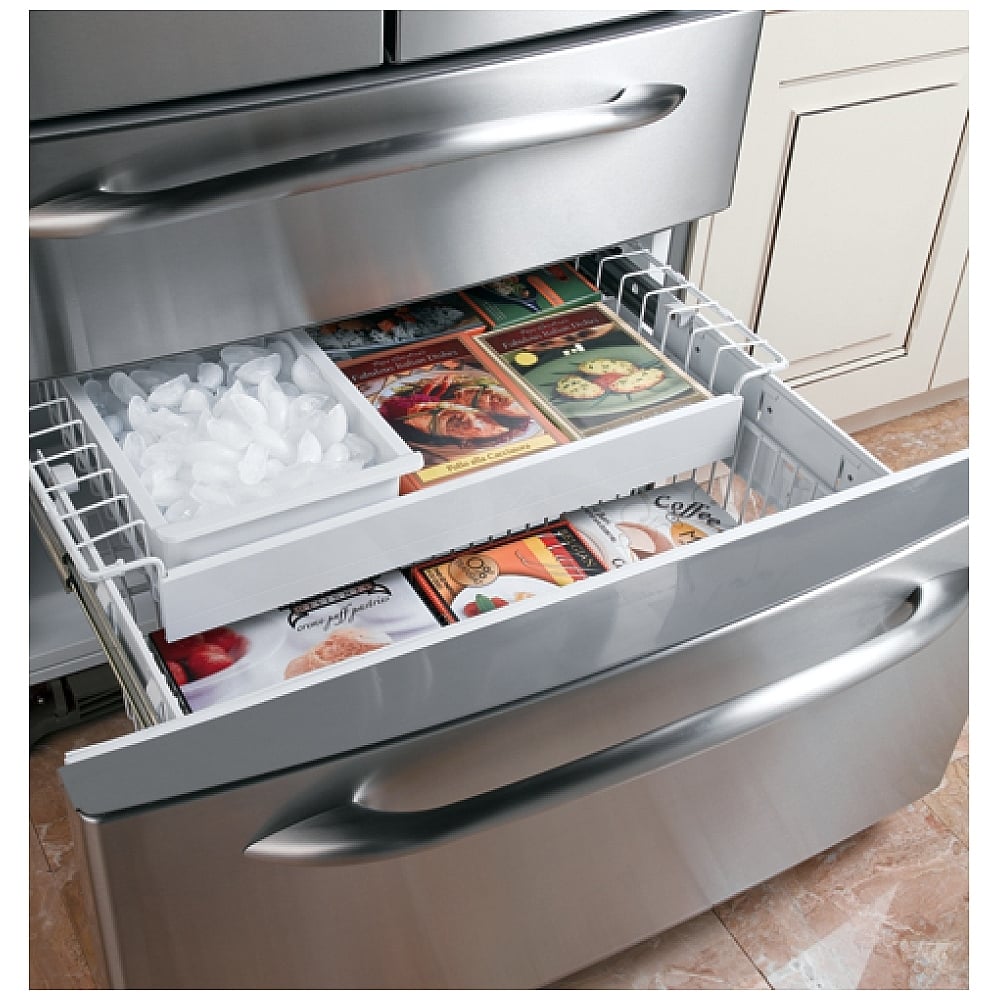

Armoire style double drawer freezer system

Two freezer drawers make it simple to find exactly what you're looking for

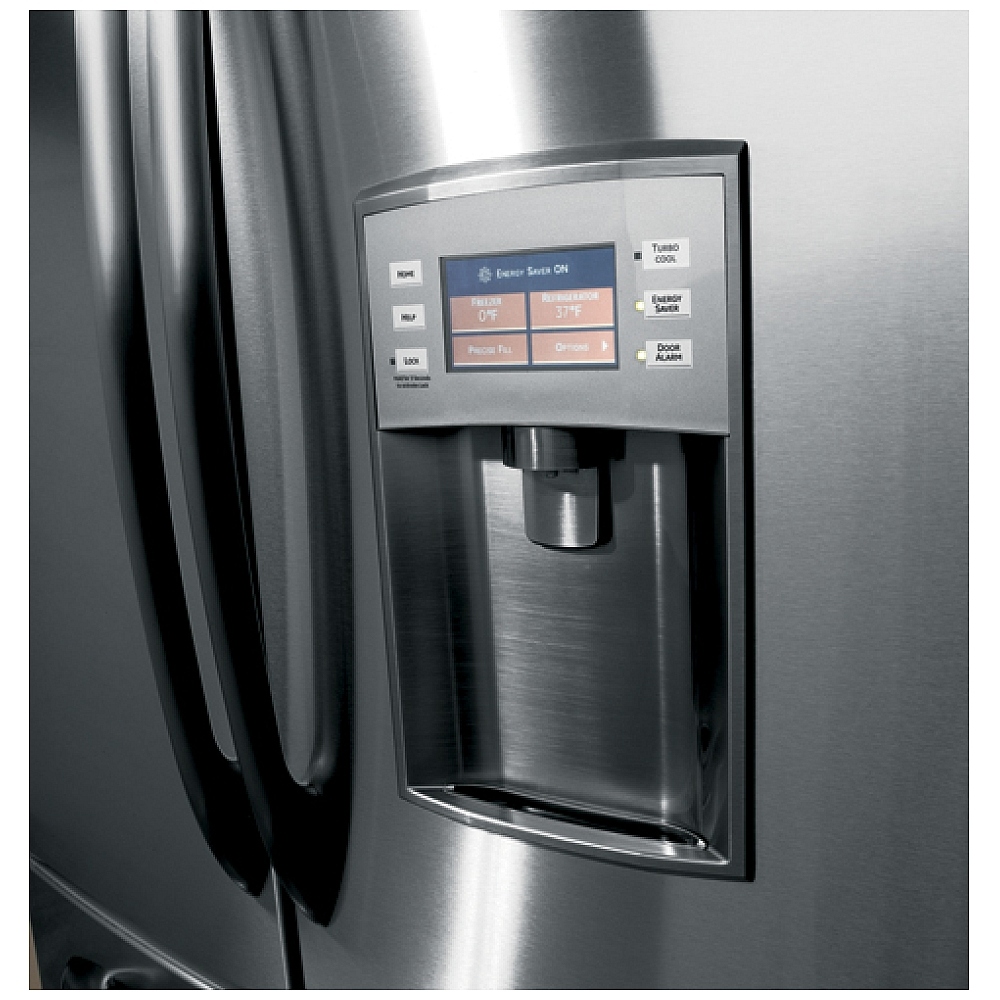

External water dispenser with LCD controls

Dispenses filtered water and makes it easy to monitor all the functions of the refrigerator

ClimateKeeper™ system

Electronic controls, multiple electronic sensors and a multi-flow air system help provide even cooling

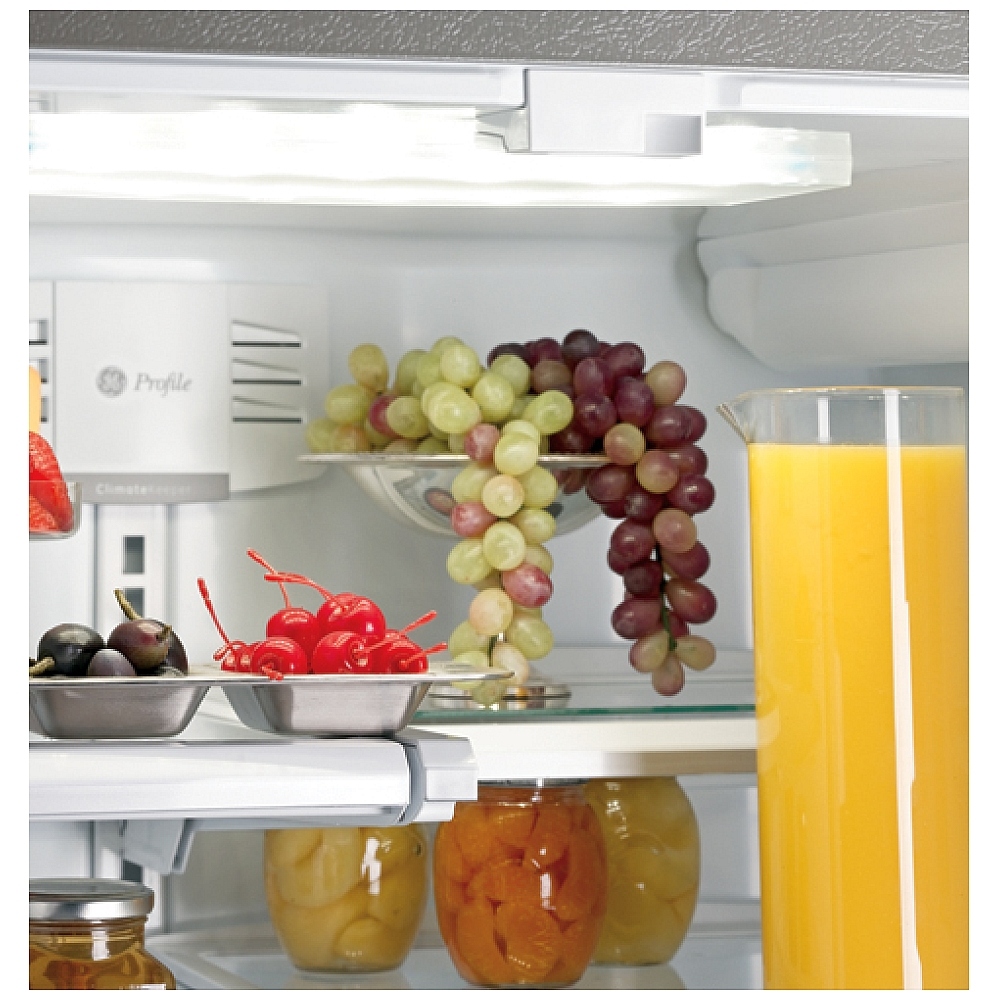

LED lighting

Find exactly what you've been looking for under crisp, clear lighting

Counter-Depth Design — Offers a built-in look without the built-in expense
Stainless-Steel Doors with Top & Bottom Bevels — Provides a striking finish and contoured doors to accentuate kitchen decor
Two Freezer Drawers — Add convenience by allowing easy access and organization of frozen foods
External Water Dispenser with LCD Controls — Offers fresh water and also makes it easy to monitor all the functions of the refrigerator
ClimateKeeper™ Temperature Management System — Digital controls and electronic sensors give you a greater degree of control over food preservation
LED Lighting — Casts a clean, beautiful light throughout the fresh food area of the refrigerator
Factory-installed icemaker with water filtration system
Freshness Center with 2 adjustable humidity crispers and 1 full-width adjustable temperature deli drawer

Manufacturer's Warranty: 1 year

Canadian model: PGCS1PJXSS

Specs

CAPACITY
Total Capacity (cubic feet)	20.7 cu ft
Fresh Food Capacity	14.6 cu ft
Freezer Capacity	6.1 cu ft
Shelf Area	23.9 sq ft
FEATURES
Configuration	French Door with Armoire Style
Temperature Management System	ClimateKeeper™
Temperature Management Features	TurboCool™ Setting 4 Electronic Sensors Multiflow Air System
Defrost Type	FrostGuard™
Control Type	External Electronic Digital Temperature Display 4.3" Color LCD
Dispenser	External Water
Dispenser Features	Precise Fill Door Alarm Filter Change Indicator
Icemaker	Factory-Installed
Water Filtration	GE Water Filtration 1 Year GSWF
Filter Change Indicator	Electronic - External
Fresh Food Cabinet Drawers	Freshness Center™ 2 Adjustable Humidity 1 Full-Width, Adjustable Temperature
Fresh Food Cabinet Shelves	4 Total - Glass
Fresh Food Cabinet Shelf Features	4 Split Adjustable 3 Slide-Out 3 Spill Proof 1 QuickSpace™ Shelf
Fresh Food Door Bins	5 Total
Fresh Food Door Features	4 Adjustable ClearLook™ with Gallon Storage
Fresh Food Features	Dairy Compartment Snugger Clips - 2 Clear, Fixed Condiment Bin BrightSpace Interior Lighting - LED
Freezer Storage Baskets	3 Total 2 Slide-Out 2 Full-Extension 1 Fixed
Freezer Features	Interior Lighting - GE Reveal®
Beverage Feature	In-the-Door Beverage Rack
Exterior Style	Free-Standing
Leveling System	All Corners
Performance Features	Premium Quiet Design Energy Saver NeverClean Condenser Easily Removable Door Gaskets
APPEARANCE
Color Appearance	Stainless Steel
Counter-Depth Design	Yes
Dispenser Color	Stainless Appearance
Door Stops	Yes
Door Swing	Hinges on Left & Right
Exterior Design	Contoured with Top & Bottom Bevel
Handle	Stainless Steel Sculptured
Hidden Door Hinge(s)	Yes
Textured Steel Case	Gray
Adjustable Rollers	Front and Rear
WEIGHTS & DIMENSIONS
Approximate Shipping Weight	373 lb
Net Weight	343 lb
Overall Depth	31 in
Overall Height	69 5/8 in
Overall Width	35 3/4 in
Case Depth Without Door	23 7/8 in
Depth with Door Open 90°	43 1/8 in
Depth with Drawer Fully Extended	47 in
Depth Without Handle	28 1/2 in
Height to Top of Case	69 in
Width w/Door Open 90 Degrees Incl. Handle	40 7/8 in
Back Air Clearances	0 1/2 in
Side Air Clearances	0 1/8 in
Top Air Clearances	1 in
POWER / RATINGS
Volts/Hertz/Amps	120V ; 60Hz ; 15A
WARRANTY
Parts Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes	See written warranty for full details

Dimensions
Height:	69 5/8"
Depth:	31"
Height Without Door Hinge:	69
Depth w/Door Open:	43 1/8
Depth With Handle:	31
Depth Without Door:	23 7/8
Depth Without Handles:	28 1/2
Capacity:	20.7
Refrigerator Capacity:	14.6
Freezer Capacity:	6.1
Shelf Area (Sq. Ft.):	23.9
Side Air Clearance (in.):	1/8
Top Air Clearance (in.):	1
Back Air Clearance (in.):	1/2
Weight:	373 lbs.
Capacity
Total Capacity (cubic feet):	20.7
Fresh Food Capacity:	14.6
Freezer Capacity:	6.1
Shelf Area:	23.9
Features
ClimateKeeperâ„¢:	Yes
French Door & Double Drawer:	Yes
4.3 inch Color LCD Control:	Yes
Frost-Free:	Yes
Multiflow Air Tower:	Yes
Door Alarm:	Yes
Electronic Sensors:	4
TurboCoolâ„¢ Setting:	Yes
External Electronic Digital Actual Temperature Display and Child Lock:	Yes
Factory-Installed Automatic Icemaker:	Yes
External Water Dispenser:	Yes
Electronic - External Filter Change Indicator:	Yes
1 Year GE Water Filtration:	Yes
Fresh Food Split Cabinet Shelves - Adjustable:	4
Fresh Food Cabinet Shelves - QuickSpaceâ„¢ Shelf:	1
Fresh Food Cabinet Shelves - Slide-Out:	3
Fresh Food Cabinet Shelves - Spill Proof:	3
Fresh Food Cabinet Shelves - Total Number of Shelves:	4
ClearLookâ„¢ Adjustable Door Bins with Gallon Storage:	4
Fixed Door Bins:	1
Full-Width Meat Pan with Temperature Control:	Yes
Vegetable / Fruit Crispers (adjustable humidity):	2
Dairy Compartment:	Yes
In-the-Door Can Rack:	Yes
Interior LED Lighting:	Yes
Snugger Clip(s):	2
Slide 'n Storeâ„¢ Freezer Drawer:	Yes
GE RevealÂ® Freezer Interior Light:	Yes
Sliding Freezer Storage Basket- Full Width:	2
Sliding Freezer Storage Basket- split:	1
Sweet Spot Shelf:	Yes
4 Point Front Adjustable Leveling System:	Yes
Free-Standing:	Yes
Energy Saver:	Yes
Premium Quiet Design:	Yes
Appearance
Counter-Depth Design:	Yes
Hinges on Left & Right:	Yes
Front and Rear Adjustable Rollers:	Yes
Door Stops:	Yes
Easy to Remove Door Gaskets:	Yes
French Door - Contoured with Top & Bottom Bevels:	Yes
Weights and Dimensions
Approximate Shipping Weight (lbs.):	373
Case Depth Without Door (in.):	23 7/8
Depth with Door Open 90Â° (in.):	43 1/8
Depth Without Handle (in.):	28 1/2
Height to Top of Case (in.):	69
Width w/Door Open 90 Degrees Incl. Handle (in.):	40 7/8
Back Air Clearances (in.):	1/2
Side Air Clearances (in.):	1/8
Top Air Clearances (in.):	1
Power/ Ratings
Volts:	120
Hertz:	60
Amps:	15

Manuals

GE & Profile Fridge 2024

Quick Specs (PGCS1PJXSS-quick-specs-canada.pdf)

Use and Care Manual (PGCS1PJXSS-use-and-care-manual-canada.pdf)

Energy Guide (PGCS1PJXSS-energy-guide-canada.pdf)
