BOT30G
BOT30G
When will I get this?
Description & Features
Specs
Manuals
Video
Reviews
Rebates
Financing
Install
Delivery

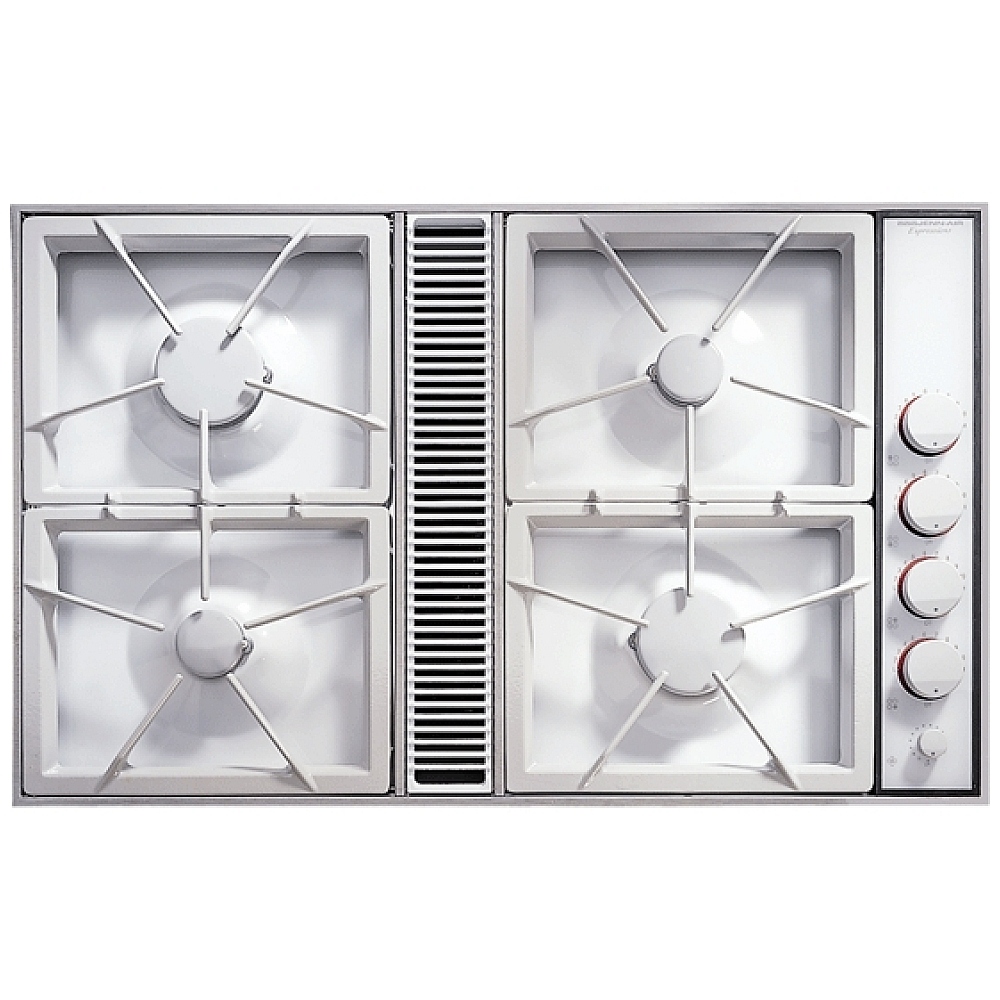

With a downdraft ventilation system built-in, this cooktop makes it easy to create an open kitchen design while keeping the air fresh and clean. Four sealed gas burners provide reliable performance for a wide variety of cooking techniques.
- Downdraft Ventilation System with Variable-Speed Fan
- A downdraft cooktop eliminates the need for an overhead hood by using a ventilation system to capture smoke, steam and odors right at the cooking surface to help keep your kitchen air fresh.
- Electronic Ignition and Flame-Sensing™ Re-ignition
- Gas burners light reliably every time, and if a draft blows the flames out, they are automatically re-ignited.
- Four Fixed Sealed Burners
- The fixed sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.
- 12,000 BTU Burner
- The high-heat burner on this luxury gas downdraft cooktop offers a powerful 12,000 BTUs.
- 10,500 BTU Burner
- This high-heat burner offers a powerful 10,500-BTU output.
- Two 6,500 BTU Burners
- These burners' lower-BTU output offers the control needed for lower-heat cooking techniques like simmering.
- Countertop/Island/Peninsula Install without Hood
- Because it features a built-in downdraft ventilation system and doesn't require a hood, the rangetop offers exceptional design flexibility.
- Infinite Burner Control Settings
- Enjoy precise controls by selecting your preferred burner setting - from low to high and everywhere in between.
- Backlit Controls
- Stylish backlit controls make it easy to read settings in lighting of any level.
- Porcelain-on-Cast-Iron Grates
- These grates feature a smooth porcelain coating to withstand high temperatures.
- Four sealed burners with Flame-Sensing(TM) re-ignition ensures that burners stay lit.
- Smart Port design keeps flame away from grates to heat the pot instead of the grates.
- Countertop or island/peninsula installation is easy, thanks to downdraft design.
- Illuminated backlit controls show at-a-glance that a burner is on.
- Variable-speed ventilation fan lets you pick the best airflow for your cooking needs.
- Electronic pilotless ignition eliminates the need for a standing pilot light.
- Porcelain-on-cast-iron burner grates ensure easy clean-up.
- Infinite control settings provide pinpoint temperature control for gourmet cooks.
- Award-winning flush-to-the-counter design compliments any kitchen decor.
- Available in black, white or bisque.
- Accepts optional accessories for cooking flexibility.
- Convertible to LP gas.
- Downdraft ventilation keeps kitchen fresh and odor-free, no matter what you're cooking.
Manufacturer's Warranty: 2 years
Canadian model: CVGX2423W
| Burner Detail | |
| Burner Type | Sealed |
| Ignition Type | Electronic |
| Left Front Brnr High LP (BTU) | 4500 |
| Left Front Brnr High Nat (BTU) | 6500 |
| Left Front Brnr Low Nat (BTU) | 800 |
| Left Front Burner Description | Main with Simmer |
| Left Rear Brnr High Nat (BTU) | 10500 |
| Left Rear Burner High LP (BTU) | 8000 |
| Left Rear Burner Low Nat (BTU) | 1600 |
| Right Front Brnr High LP (BTU) | 8000 |
| Right Front Brnr High Na (BTU) | 12000 |
| Right Front Brnr Low Nat (BTU) | 1600 |
| Right Front Burner Description | High Output |
| Right Rear Brnr High LP (BTU) | 4500 |
| Right Rear Brnr High Nat (BTU) | 6500 |
| Right Rear Brnr Low Nat (BTU) | 800 |
| Right Rear Burner Description | Main with Simmer |
| Cooking Surface Controls | |
| Color | Color Coordinated |
| Location | Surface Right Side |
| Material | Plastic |
| Type (Switch/Rotation Degrees) | Knobs |
| Gas Specifications | |
| LP Gas Convertible | Yes |
| Grate Detail | |
| Grate Color | Color Coordinated |
| Grate Material | Porcelain on Cast Iron |
| Model | |
| Fuel Type | Natural Gas |
| Modular Cooktop | |
| Number of Bays | 1 |
