JennAir JIC4536XS
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
AFK0R9
Ratings & Reviews
AFK0R9
When will I get this?

Description & Features

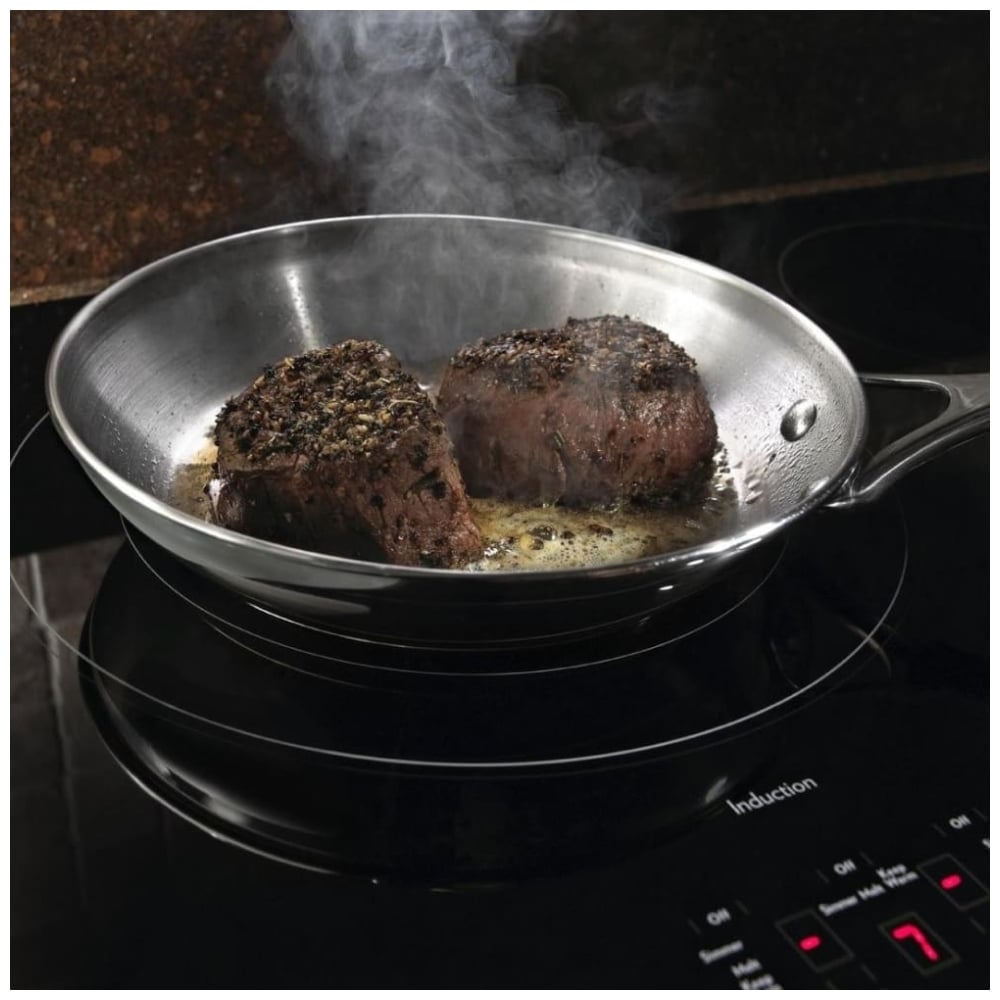

This induction cooktop offers precise temperature control and heats up more quickly than a traditional gas or electric cooktop. Energy transfers heat directly to cookware, turning it into the heat source, while the surface remains cool to the touch. This

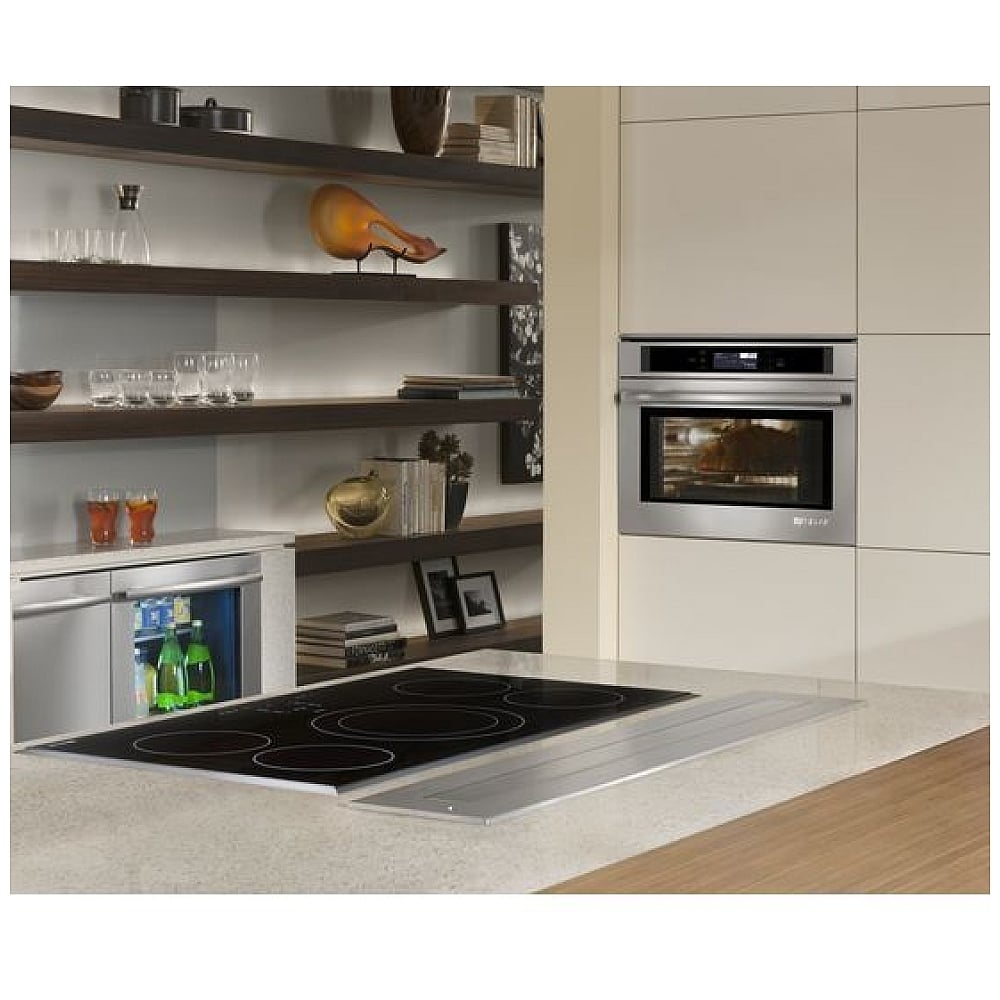

  • Built-In Oven Compatible
  • This luxury induction cooktop can be installed over a single built-in wall oven, offering additional design flexibility.
  • Five Element Timers
  • Separate timers for each element allows you to easily time several dishes at once.
  • Five Induction Elements
  • Five induction elements, in a variety of sizes to match cookware, generate heat directly into the cookware while keeping the surface cool.
  • Induction Technology
  • Cooks like gas, looks like electric, outperforms both. By converting cookware into the heat source, induction technology gives you fast, efficient and outstanding cooking power.
  • Industry s Most Powerful Induction Element
  • Our newest induction cooktops feature the industry s most powerful induction element, delivery fast & consistent results.
  • Keep Warm Function
  • The kettle will maintain water at the desired temperature for up to 30 minutes with the Keep Warm function.
  • Keep Warm™ Function
  • One of the Low Settings, each element features a Keep Warm™ Function which may be used to keep cooked food or delicate sauces warm until you're ready to serve. Having the function available on each element allows you to cook and warm food on the same element.
  • Melt Function
  • Available on all five elements, this function allows you to cook at minimal power, ideal for cooking delicate sauces or melting chocolate or butter.
  • One-Touch Off Feature
  • This feature allows you to quickly turn off the cooktop with a single touch. A tone sounds to confirm that the element has been turned off.
  • Pan Detection
  • A sensor detects your cookware before enabling an element. When it is removed, the element automatically switches off.
  • Performance Boost
  • Quickly heat cookware, boil liquids and sear meats by raising the cooking temperature above the highest setting for up to 10 minutes, available on all induction elements.

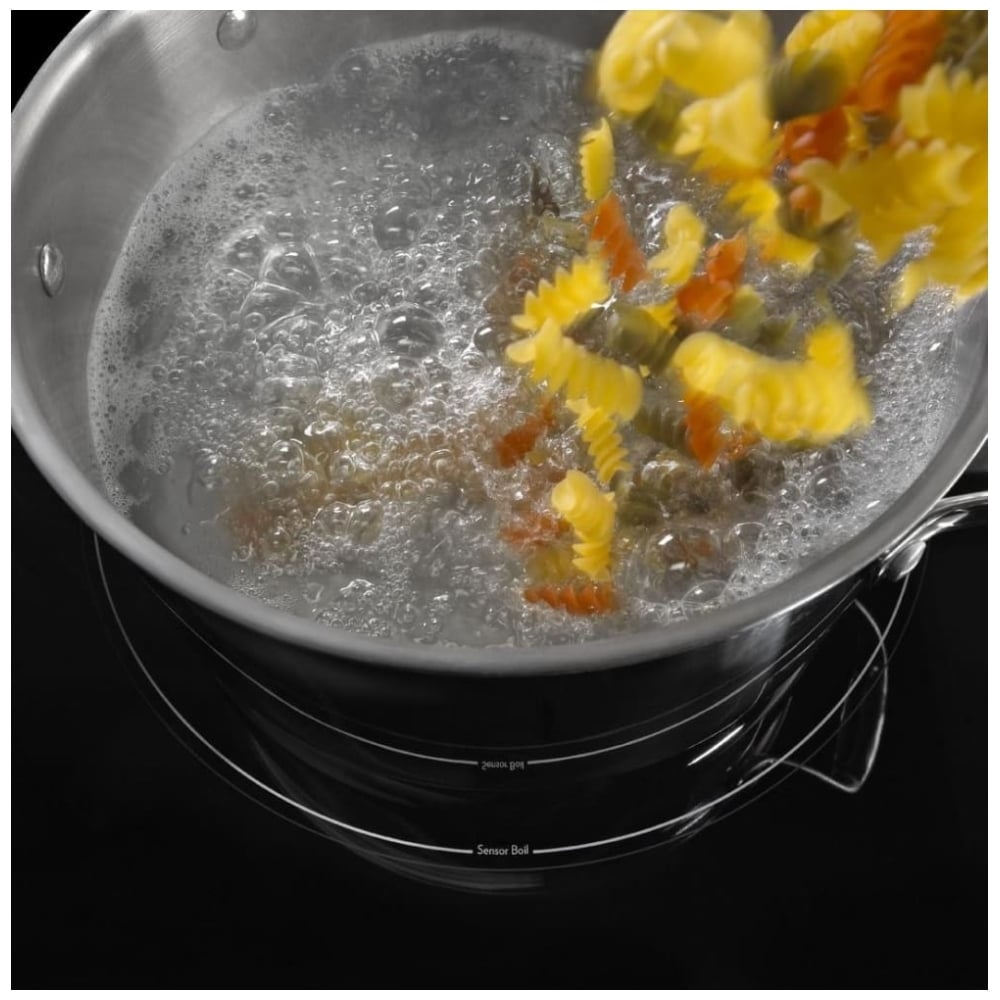

  • Sensor Boil Function
  • This induction cooktop s intuitive option selects the optimal power level to quickly bring water to a boil, beeps it reaches the boiling point, then adjusts the power level to minimize the possibility of boiling over.
  • Simmer Function
  • This convenient Simmer Function provides the low, steady heat required for simmering sauces and soups.

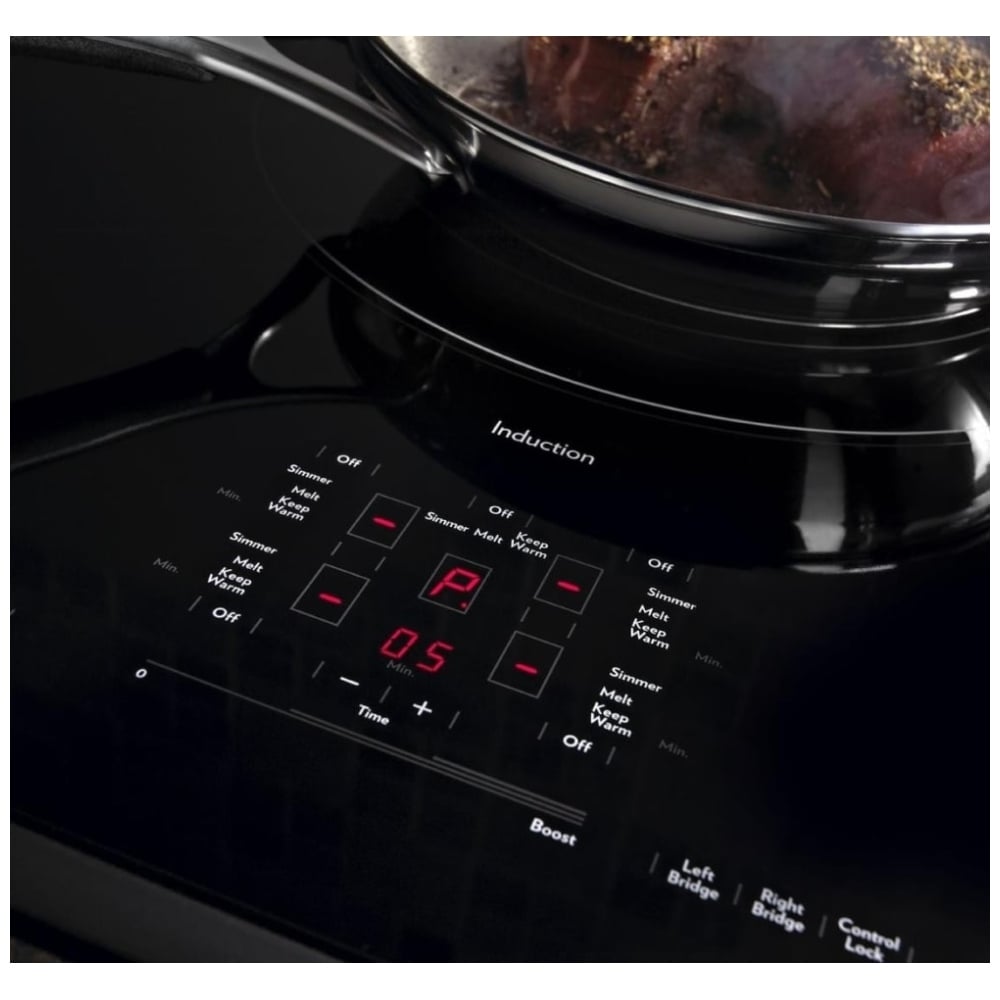

  • Touch-Activated Controls with Power Slider
  • These controls are activated by the simple movement of a finger sliding across the sensitized surface.

Manufacturer's Warranty: 2 years

Canadian model: JIC4536XS

Canadian UPC: 883049232010

EAN: 0883049232010

Specs
Certifications
Ada Compliant Yes
Prop65 Standard
Ul Yes
Controls
Control Location Front
Control Type Tap Touch
Infinite Heat Controls No
Cooktop Details
Cooktop Surface Color Black
Cooktop Surface Material Ceramic Glass
Digital Display Yes
Griddle Included N/A
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Details
Automatic Pan Detection Yes
Combinations With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Cooktop Selections Control Lock; Keep Warm Setting; Melt; Power Boost; Power On Indicator Light; Sensor Boil; Simmer; Timer
Design Expression Stainless Steel
Fuel Type Electric Induction
Installs Over Built-in Oven Yes
Dimensions
Product Height 3.375
Cutout Depth 19.25
Cutout Height 12
Carton Height 7.75
Gross Weight 50.7
Carton Depth 25.5
Carton Width 39.5
Cutout Width 33.125
Product Depth 21.3125
Net Weight 0
Product Width 36.3125
Electrical
Power Cord Included No

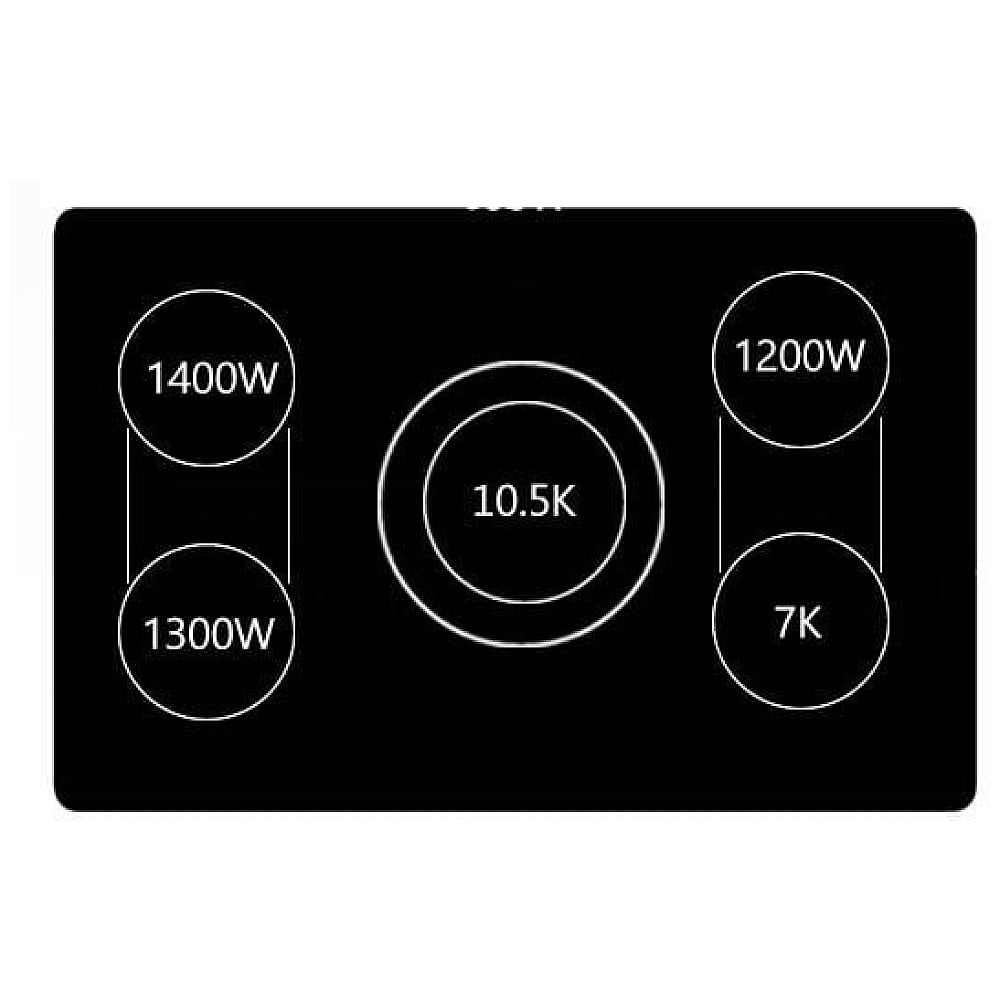

Element/burner Details
Center Rear Element-burner Power 5000/2800W
Center Rear Element-burner Size 12in./9in.
Center Rear Element-burner Type Dual
Cooktop Element Style Induction
Cooktop Type Traditional
Left Front Element-burner Power 2500W/1800W
Left Front Element-burner Size 7in.
Left Front Element-burner Type Bridge
Left Rear Element-burner Power 2500W/1800W
Left Rear Element-burner Size 7in.
Left Rear Element-burner Type Bridge
Number of Cooking Element-burners 5
Right Front Element-burner Power 2500W/1800W
Right Front Element-burner Size 7in.
Right Front Element-burner Type Bridge
Right Rear Element-burner Power 2500W/1800W
Right Rear Element-burner Size 7in.
Right Rear Element-burner Type Bridge
Exterior Details
Knob Color NA
General
Combination Match With Oven JJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Ventilation Details
Downdraft Vent No

Dimensions
Depth 21 5/16
Width 36 5/16
Height 3 3/8
Carton Height 7 3/4
Cutout Depth 19 1/4
Cutout Width 33 1/8
Gross Weight 51
Maximum Height 4 3/8
Carton Depth 25 1/2
Carton Width 39 1/2

Certifications
Prop 65 Standard
ADA Compliant Yes
UL UL

Description
Combinations with Oven JJW2427,JJW2430,JJW3430

Configuration and Overview
Fuel Type Electric Induction
Cooktop Type Traditional
Size (IN,inches) 36
Installs Over Built-In Oven Yes

Controls
Control Type Tap Touch
Control Location Front
Infinite Heat Controls No
Knob Color NA

Cooktop Details
Hot Surface Indicator Light Yes
Cooktop Surface Material Ceramic Glass
Automatic Pan Detection Yes
Downdraft Vent No
Heating Element On Indicator Light Yes
Cooktop Element Style Induction
Cooktop Surface Color Black
Number of Cooking Element-Burners 5
Left Front Element-Burner Power 2500W/1800W
Center Rear Element-Burner Power 5000/2800W
Left Front Element-Burner Size 7"
Center Rear Element-Burner Size 12"/9"
Left Front Element-Burner Type Bridge
Left Rear Element-Burner Power 2500W/1800W
Left Rear Element-Burner Size 7"
Left Rear Element-Burner Type Bridge
Right Front Element-Burner Power 2500W/1800W
Right Front Element-Burner Size 7"
Right Front Element-Burner Type Bridge
Right Rear Element-Burner Power 2500W/1800W
Right Rear Element-Burner Size 7"
Right Rear Element-Burner Type Bridge
Center Rear Element-Burner Type Dual

GDS
isBaseUnit true
isConsumerUnit true
GPC Code 10001951
IsDispatchUnit .
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623

Appearance
Digital Display Yes

Features
Griddle NA
Selection Keep Warm Setting,Control Lock,Melt,Heating Element On Indicator Light,Power On Indicator Light,Power Boost,Sensor Boil,Simmer,Timer

Electrical
Power Cord Included No
Volts 240
Hz 60
Amps 50

Refinement
Style Cooktops

Design Type
Design Expression Stainless Steel

Refinement JEN
Burners/Elements for Cooktops 5
