JennAir
Buy 1 Save 10%; Buy 2 or 3 Save 15%
Buy 4 or more Save 20%
Save additional $250 on select units

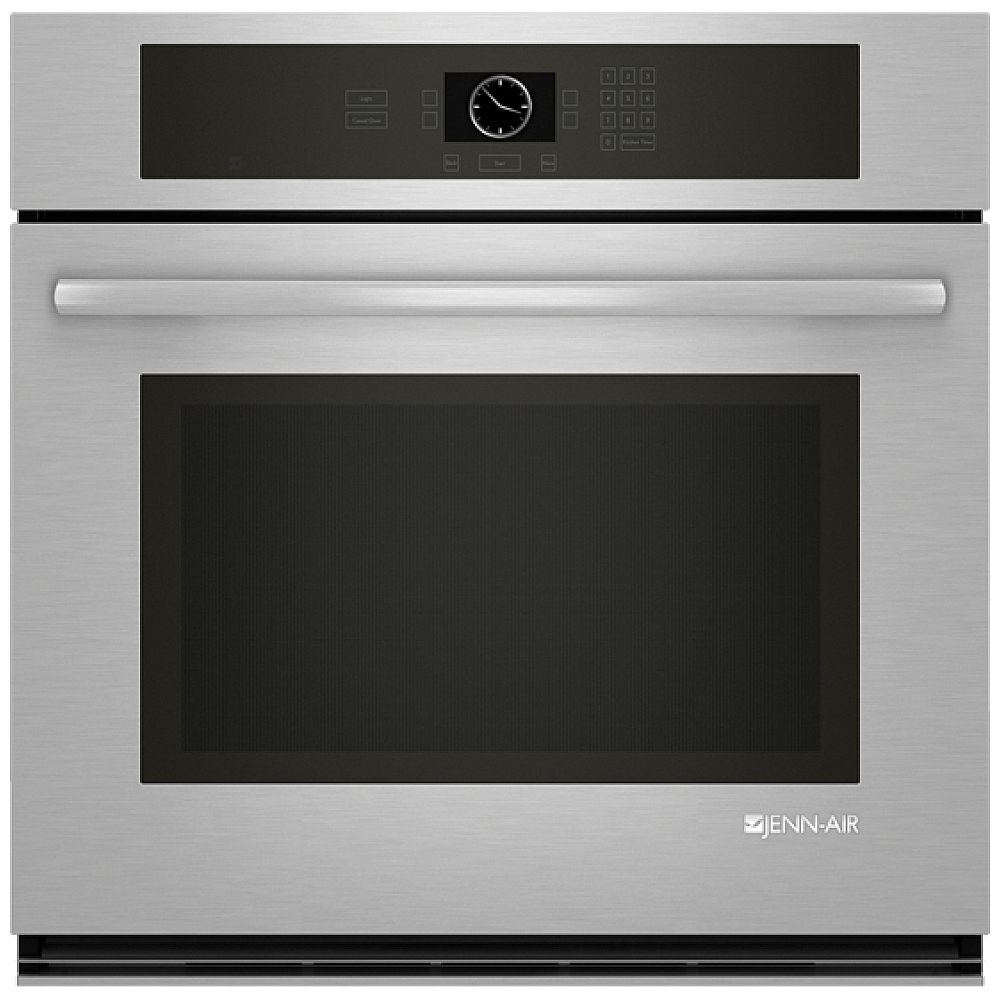

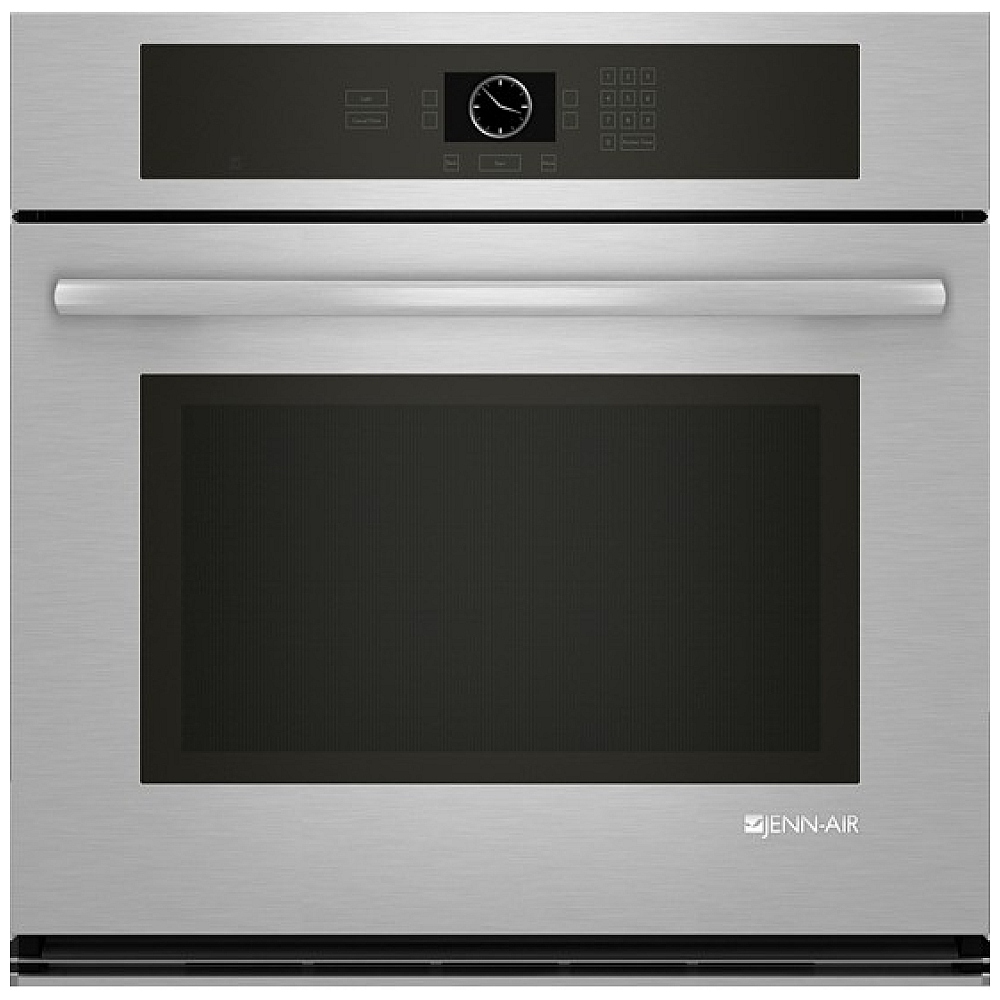

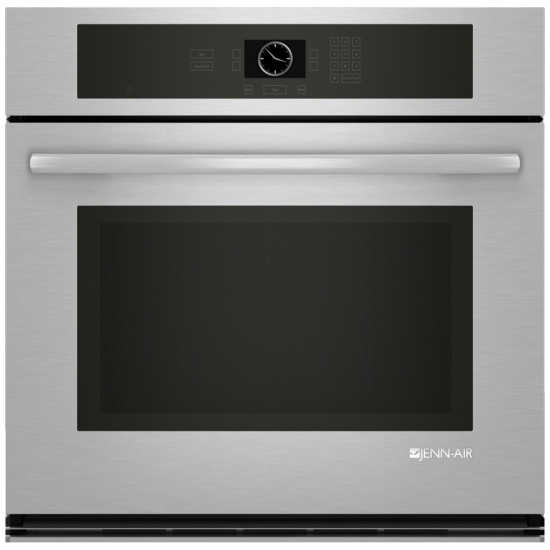

JennAir JJW2330WS
Discontinued
>> View & Compare Jenn-Air Noir™ Wall Oven Line Up << >> View & Compare Jenn-Air Noir™ Wall Oven Line Up <<
>> View & Compare Jenn-Air Rise™ Wall Oven Line Up << >> View & Compare Jenn-Air Rise™ Wall Oven Line Up <<
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
AIERW6
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $148.84 for 18 months
Ratings & Reviews
AIERW6
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $148.84 for 18 months
Description & Features
Overview
This sophisticated Jenn-Air® single wall oven features a full-color, menu-driven LCD display, which offers guidance for selecting cooking options and saving preferred settings. It features a single spacious oven, as well as a common cutout 1 for design flexibility.

Specifications
Built In Oven Features
  • Self-Cleaning : Self-Cleaning
  • Hidden Bake Element: Yes
  • Number of Oven Racks: 2
  • Number of Rack Guides: 5
  • Bake Element Power: 2800W/2427W
  • Broiler Element Power: 3600W
  • Broiler Location: Top Center
  • Door Broil Position: Closed
  • Interior Coating: Porcelain
  • Interior Color: Black
  • Rack Guide Type: Molded
  • Oven Interior Height: 17 1/8
  • Oven Interior Width: 23
  • Oven Interior Depth: 19 3/4
  • Oven Rack 1 Type: Standard
  • Oven Rack 2 Type: Standard
  • Oven Cooking System: Thermal
  • Light Type: Halogen
  • Oven Capacity (cu. ft.): 4.5

Configuration and Overview
  • Oven Type: Single
  • Fuel Type: Electric
  • Size: 30
  • Oven Cooking System: Thermal
  • Star K Compliant: Yes
  • UL: Yes
  • Amps: 20
  • Hz: 60 Hz
  • Volts: 240V

Controls
  • Door Type: Metal & Glass
  • Flush Installation Approved: Yes
  • Handle Color: Color Coordinated
  • Handle Material: Metal
  • Oven Window Size: Extra Large
  • Door Removable: Yes

Dimensions
  • Depth: 26 5/16
  • Height: 29 1/2
  • Width: 29 3/4
  • Cutout Depth: 24
  • Cutout Height: 27 3/4
  • Cutout Width: 28 1/2
  • Interior Depth (in.): 19 3/4
  • Interior Height (in.): 17 1/8
  • Oven InteriorInterior Width (in.): 23

Oven Control Features
  • Display Type: LCD Touch Screen
  • Display Color: Full Color
  • Selections: Audible Signal, Cancel/Off, Clock, Control Lock, Cook and Hold, Cook Time, Delay Start, Keep Warm Setting, My Creations, Sabbath Mode, Warm Hold
  • Language Conversion: English/French
  • Temperature Conversion: Yes

  • Signature Features
  • My Creations
  • 4.3-Inch Full Color Menu-Driven LCD Display
  • 2 High-Luminosity Halogen Lights
  • Common Cutout
  • Oven Control Features
  • Cook & Hold Option
  • Delay-Start Cooking & Cleaning
  • Sabbath Mode
  • Light-Assisted Menu-Driven Controls
  • Keep Warm™ Option
  • Control Lockout
  • Oven Features
  • 2 Heavy-Duty Racks with Handle
  • 3,600-Watt Broil Element
  • 4.5 Cu. Ft. Oven Capacity
  • 8-Pass Recessed Broil Element
  • Closed-Door Broiling
  • Variable Temperature Broil
  • Jet Black Cavity
  • Hidden Bake Element
  • CustomClean™ Self-Cleaning Oven with Adjustable Levels and Automatic Lock
  • 2,800-Watt Bake Element
  • Exterior Design Features
  • Flush-to-Cabinet Design
  • Under Counter or In-Wall Installation
  • Seamless Flat Front Design

4.3-Inch Full Color Menu-Driven LCD Display

My Creations
Common Cutout
2 High-Luminosity Halogen Lights
4.5 Cu. Ft. Oven Capacity
2,800-Watt Bake Element
3,600-Watt Broil Element
Hidden Bake Element
8-Pass Recessed Broil Element
Variable Temperature Broil
Closed-Door Broiling
CustomClean™ Self-Cleaning Oven with Adjustable Levels and Automatic Lock
2 Heavy-Duty Racks with Handle
Jet Black Cavity
Light-Assisted Menu-Driven Controls
Delay-Start Cooking & Cleaning
Cook & Hold Option
Keep Warm™ Option
Control Lockout
Sabbath Mode
Seamless Flat Front Design
Flush-to-Cabinet Design
Under Counter or In-Wall Installation

Manufacturer's Warranty: 2 years

Canadian model: JJW2330WS

Specs
Configuration and Overview
Oven Type Single
Fuel Type Electric
Size 30
Oven Cooking System Thermal
Star K Compliant Yes
Amps 20
Hz 60
Volts 240
Oven Features
Hidden Bake Element Yes
Bake Element Power 2800W
Broiler Element Power 3600W
Broiler Location Top Center
Door Broil Position Closed
Interior Coating Porcelain
Interior Color Black
Rack Guide Type Molded
Oven Rack 1 Type Standard
Oven Rack 2 Type Standard
Oven Cooking System Thermal
Light Type Halogen
Oven Control Features
Display Color Full Color
Selections Keep Warm Setting, Audible Signal, Control Lock, Cancel/Off, Cook and Hold, Cook Time Indicator, Delay Start, Warm Hold, My Creations, Sabbath Mode, Clock
Language Conversion English/French
Temperature Conversion Yes
Controls
Door Type Metal & Glass
Flush Installation Approved Yes
Handle Color Stainless Steel
Handle Material Metal
Oven Window Size Extra Large
Door Removable Yes
Dimensions
Depth 26 5/16
Height 29 1/2
Width 29 3/4
Cutout Depth 24
Cutout Height 27 3/4
Cutout Width 28 1/2



Performance
Fuel Type Electric
Oven Capacity 4.5 Cu. Ft.
Oven Features
Cooking System Standard Thermal
Hidden Bake Element Yes
Bake Yes
Broil Standard
Cleaning System CustomClean™Self-Cleaning
Delayed Cooking Yes
Sabbath Mode Yes
Design
Oven Window Extra Large
Oven Controls Glass Touch
Oven Cavity Finish Black
Oven Rack Quantity 2
Oven Rack Type Standard
Oven Lights 2
Control Lockout Yes
Specifications
Bake Element Wattage @ 240V 2800
Broil Element Wattage @ 240V 3600
Dimensions
Product Height 29 1/2 Inches
Product Width 29 3/4 Inches
Product Depth 26 5/16 Inches
