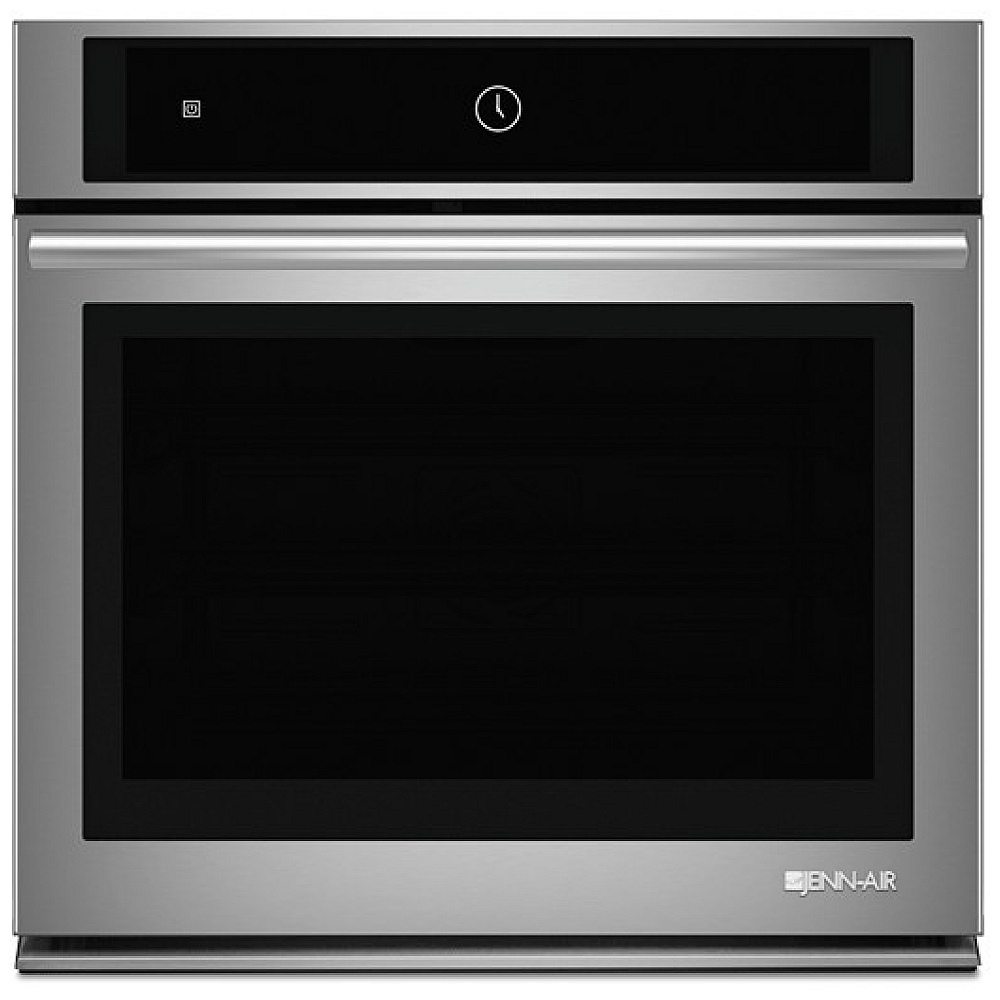

JennAir JJW2430DS
Discontinued
>> View & Compare Jenn-Air Noir™ Wall Oven Line Up << >> View & Compare Jenn-Air Noir™ Wall Oven Line Up <<
>> View & Compare Jenn-Air Rise™ Wall Oven Line Up << >> View & Compare Jenn-Air Rise™ Wall Oven Line Up <<
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
AW57LB
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $200.78 for 18 months
Ratings & Reviews
Similar Colours and Options
JJW2430DP
JJW2430DP
Stainless Steel
JJW3430DS
JJW3430DS
Stainless Steel
AW57LB
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
60 Day Returns
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $200.78 for 18 months
Description & Features

Offering 5.0 cubic feet of oven capacity, this Jenn-Air® single wall oven achieves beautiful baking, broiling and roasting results with the MultiMode® convection system. A 4.3-inch full color menu-driven LCD display effortlessly guides through oven settings, and rapid preheat allows for a fast preheat when cooking with two oven racks. This wall oven pairs beautifully with appliances in our Euro Style suite.

Offering 5.0 cubic feet of oven capacity, this Jenn-Air® single wall oven achieves beautiful baking, broiling and roasting results with the MultiMode® convection system. A 4.3-inch full color menu-driven LCD display effortlessly guides through oven settings, and rapid preheat allows for a fast preheat when cooking with two oven racks. This wall oven pairs beautifully with appliances in our Euro Style suite.
  • Multimode® Convection System
  • Three radiant elements provide consistent heat on every rack for evenly browned, perfectly cooked dishes.
  • 4.3-Inch Full Color Menu-Driven LCD Display
  • Allow the oven to guide you through its modes and functions with a brilliant, 4.3-inch full-color display. Controls outside of the LCD display light up or darken to show you relevant selections for intuitive navigation during use.
  • Telescoping Glide Rack
  • This roll-out rack lets you easily position and remove dishes.
  • Rapid Preheat
  • This convenient oven mode reduces the amount of preheat time while allowing you to bake on up to two oven racks.
  • Common Cutout
  • Our double and single wall ovens fit into the existing cutout for nearly every competitor's wall oven. Each oven fits into the smallest cutout, while its overall height also allows you to cover the remaining gap in the tallest cutout.
  • My Creations
  • My Creations allows you to seamlessly combine up to three cooking modes and save the settings for your favorite recipes.
  • 5.0 Cubic Foot Oven Capacity
  • This oven offers generous capacity to cook multiple dishes at once, making it ideal for entertaining.
Multimode® Convection System
Three radiant elements provide consistent heat on every rack for evenly browned, perfectly cooked dishes.

4.3-Inch (10.9cm) Full Color Menu-Driven LCD Display
Allow the oven to guide you through its modes and functions with a brilliant, 4.3-inch full-color display. Controls outside of the LCD display light up or darken to show you relevant selections for intuitive navigation during use.

Telescoping Glide Rack
This roll-out rack lets you easily position and remove dishes.

Rapid Preheat
This convenient oven mode reduces the amount of preheat time while allowing you to bake on up to two oven racks.

Common Cutout1
Our double and single wall ovens fit into the existing cutout for nearly every competitor’s wall oven. Each oven fits into the smallest cutout, while its overall height also allows you to cover the remaining gap in the tallest cutout.

My Creations
This control panel combines up to three modes, selecting the time and temperature for each mode. Settings can be saved for later use or deleted when no longer needed.

5.0 Cubic Foot Oven Capacity
This oven offers generous capacity to cook multiple dishes at once, making it ideal for entertaining.

Manufacturer's Warranty: 2 years

Canadian model: JJW2430DS

Canadian UPC: 883049334974

EAN: 0883049334974

Specs
SPECIFICATIONS
Dimensions
Capacity 5.00
Cutout Depth 24.0 in
Cutout Height 28.0 in
Cutout Width 28-1/2 in
Depth 23-1/8 in
Depth Closed Including Handles 25-5/16 in
Depth With Door Open 90 Degree 45-3/8 in
Height 29-7/8 in
Oven Capacity 5.0 cu. ft.
Width 30.0 in
Configuration and Overview
Fuel Type Electric
Installable Under Cooktop Yes
Installable Under Oven Yes
LP Convertible No
Oven Type Single
Size 30 in
Oven Details
Automatic Shut-Off Yes
Broiler Location Top of Oven
Convection Functions Bake, Broil, Roast
Door Broil Position Closed
Door Lock Yes
Door Removable Yes
Hidden Bake Element Yes
Interior Coating Porcelain
Interior Color Black
Language Conversion English/French
Light Control Oven Light Touch Pad
Light Type Halogen
Number of Bake Elements 1
Number of Broil Elements 1
Oven Cooking System Convection
Oven Interior Depth 19.0 in
Oven Interior Height 18.0 in
Oven Interior Width 25.0 in
Oven Selections Clock, Delay Start, My Creations, Keep Warm Setting, Proofing, Sabbath Mode, Temperature Probe, Temperature-Sensor Baking, Time Bake
Power On Indicator Light Yes
Self-Cleaning Oven Racks No
Temperature Conversion Yes
Appearance
Flush Installation Approved Yes
Handle Material Metal
Details
Bake Element Power 2800W
Convection Element Type Single-Fan
Number of Oven Racks 3
Number of Rack Guides 6
Oven Cleaning Type Self-Cleaning
Certifications
Prop 65
UL Yes
Electrical
Power Cord Included No
Exterior
Oven Window Size Extra Large
Design Type
Design Expression Euro-Style
GDS
GPC Code 10001950
IsInvoiceUnit true
IsOrderableUnit true
Product Type EA
UDEX 1100400623
isBaseUnit true
isConsumerUnit true
Oven Type Single
Fuel Type Electric
Size 30
Oven Cooking System Convection
CUL Yes
UL UL
Amps 20
Hz 60
Volts 240

Oven Features
Hidden Bake Element Yes
Bake Element Power 2800W
Broiler Element Power 4000W
Convection Element Type Single-Fan
Convection Element Power 3200
Broiler Location Top of Oven
Door Broil Position Closed
Interior Coating Porcelain
Interior Color Black
Oven Rack 1 Type Standard
Oven Rack 2 Type Standard
Oven Rack 3 Type Gliding Roll-Out
Number of Bake Elements 1
Number of Broil Elements 1
Convection Functions Bake, Broil, Roast
Oven Cooking System Convection
Light Type Halogen
Self-Cleaning Oven Racks No

Oven Control Features
Convection Functions Bake, Broil, Roast
Display Color Full Color
Selections Clock, Delay Start, Keep Warm Setting, My Creations, Proofing, Sabbath Mode, Temperature Probe, Temperature-Sensor Baking, Time Bake
Language Conversion English/French
LP Convertible No
Temperature Conversion Yes

Controls
Door Type Metal & Glass
Flush Installation Approved Yes
Handle Color Stainless Steel
Handle Material Metal
Oven Window Size Extra Large
ADA Compliant ADA Height and Side and Front Reach Compliant
Door Removable Yes
Installable Under Oven Yes

Dimensions
Depth 23 1/8
Height 29 7/8
Width 30
Cutout Depth 24
Cutout Height 28
Cutout Width 28 1/2
